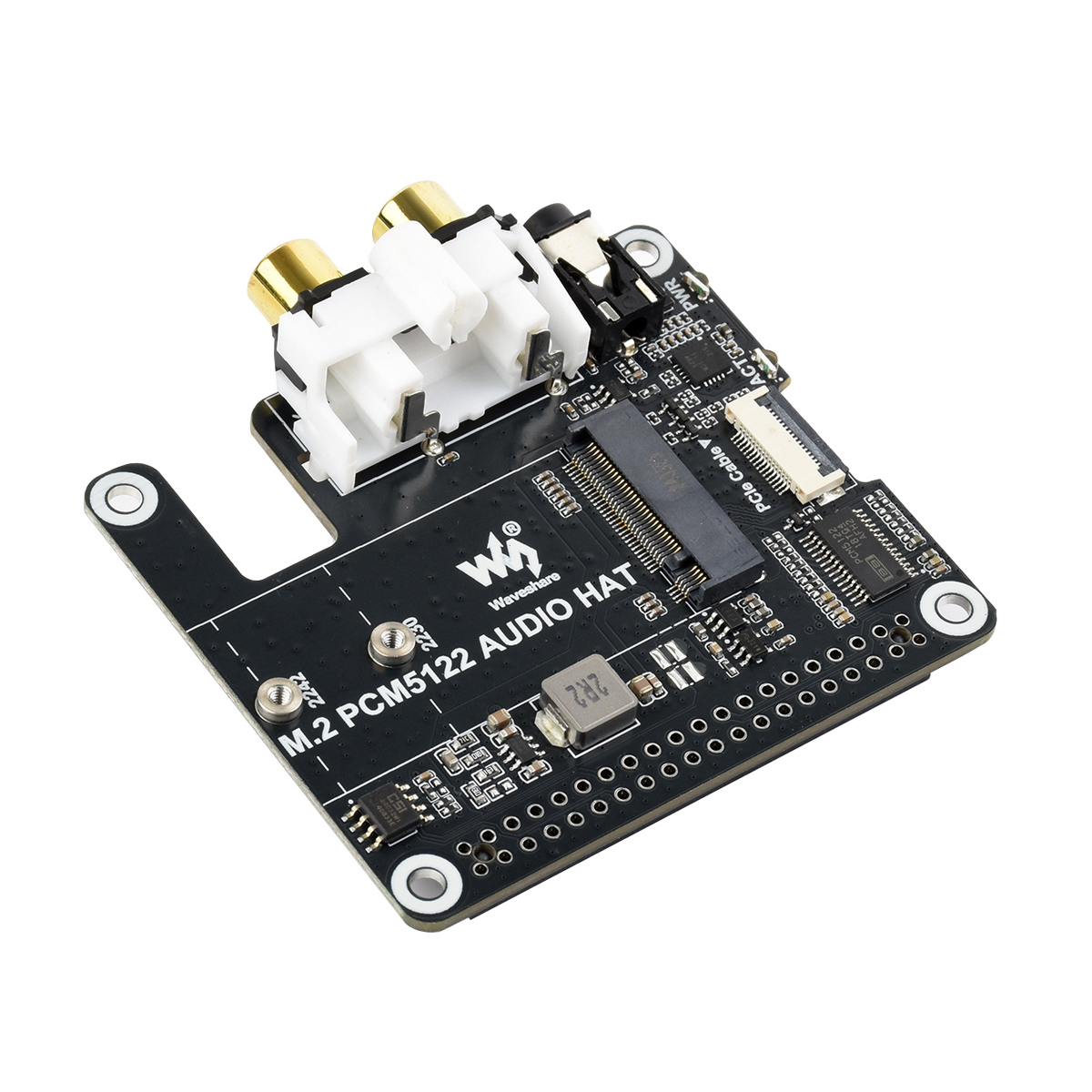

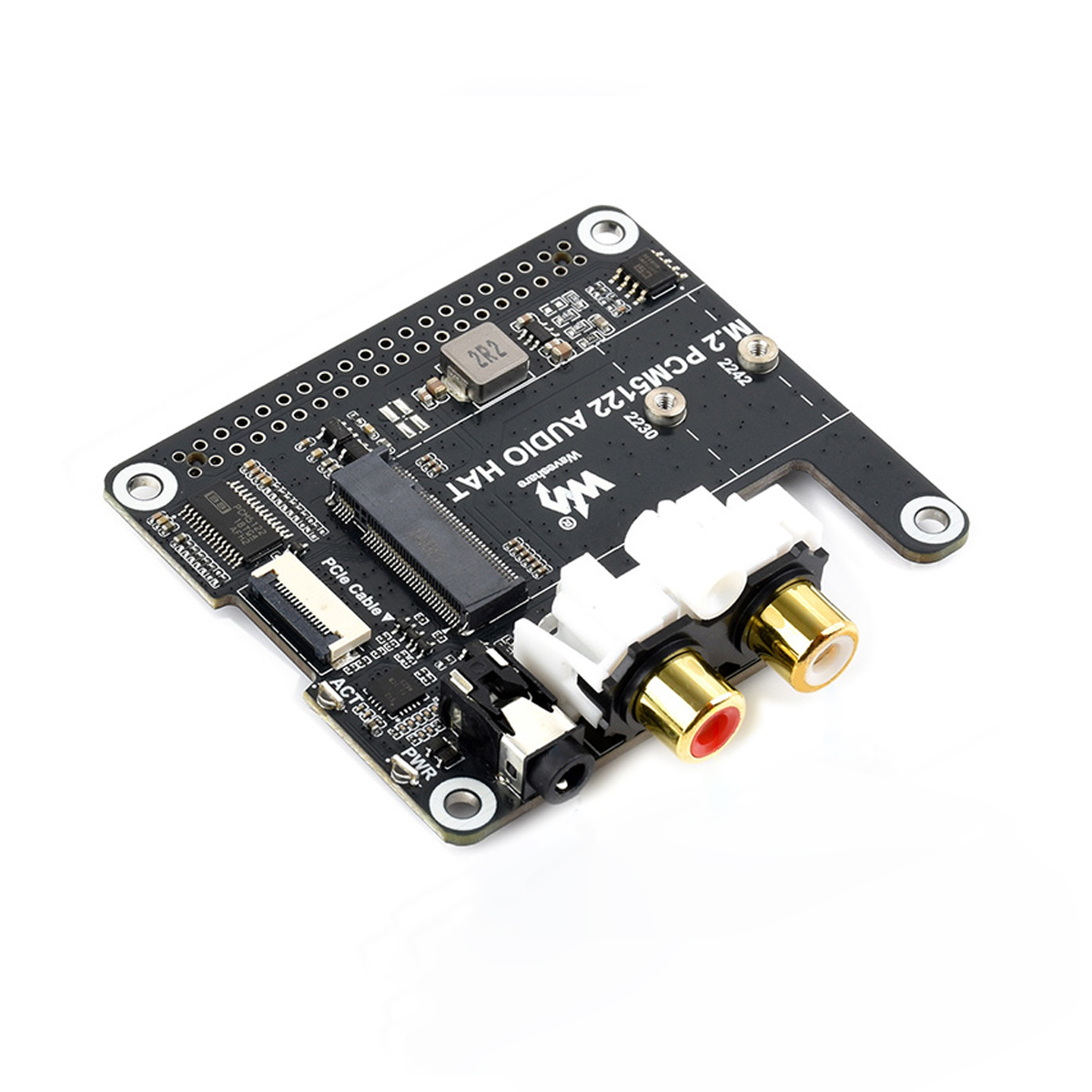

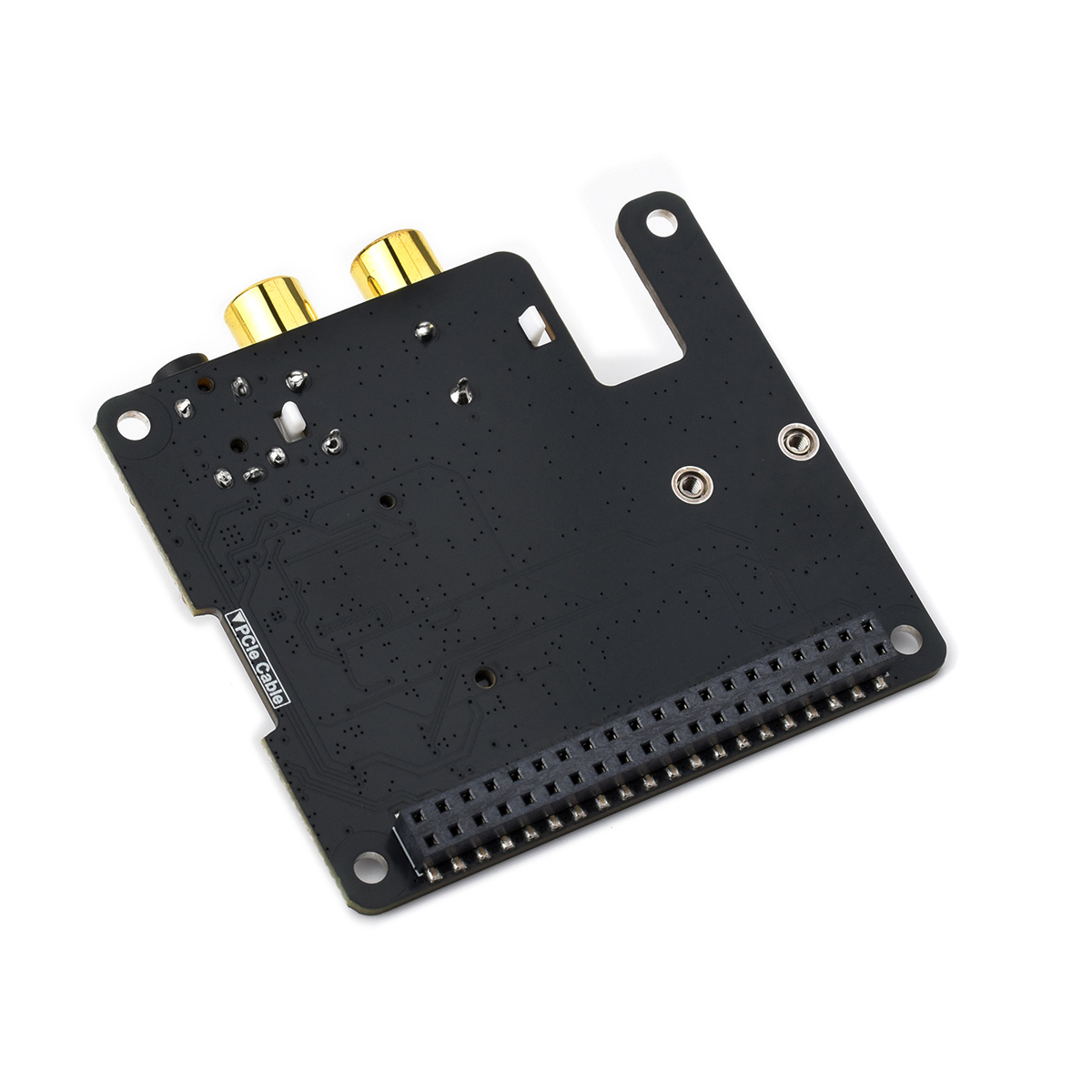

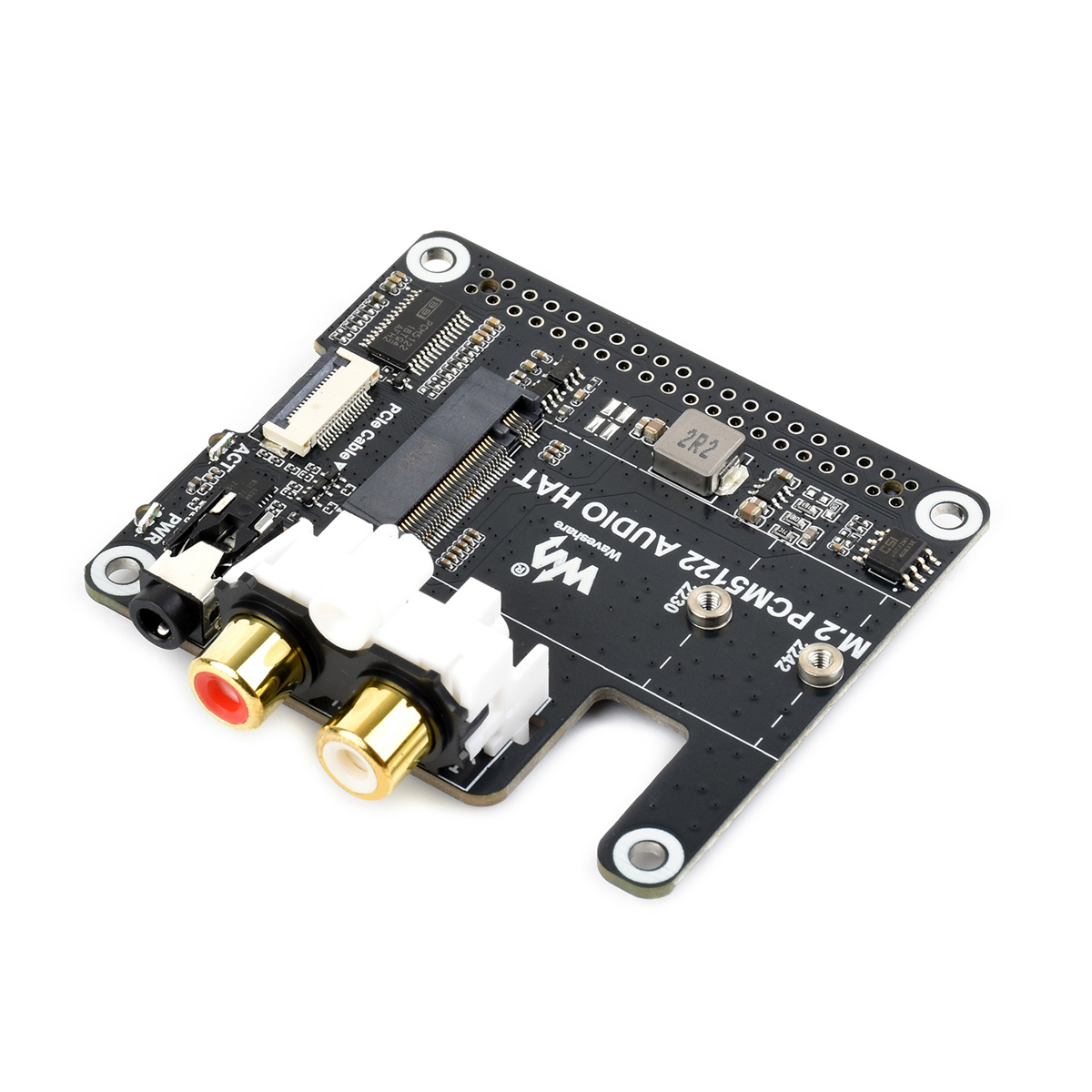

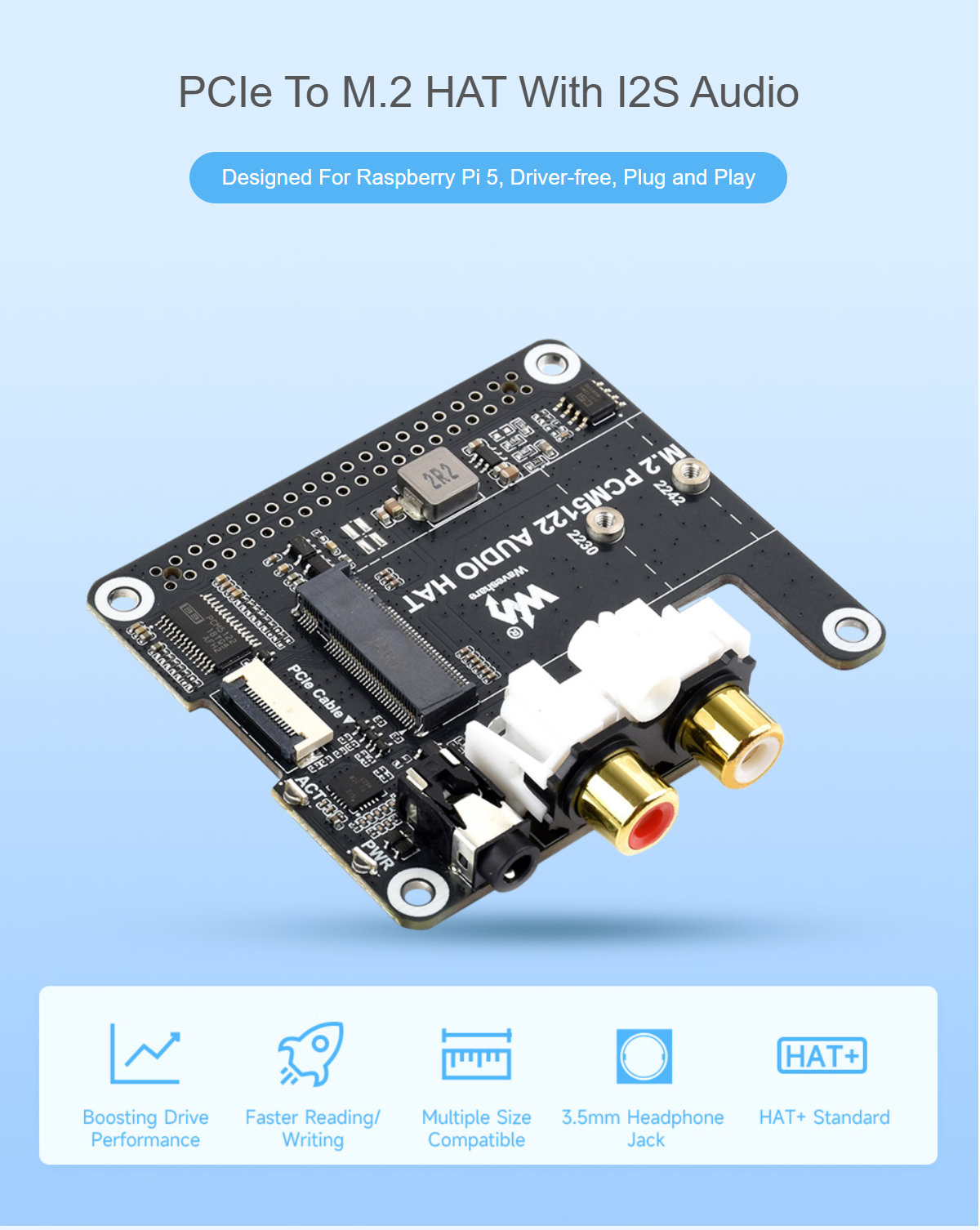

Waveshare PCIe To M.2 HAT With I2S Audio Expansion Board 3.5mm Headphone Jack Plug and Play for Raspberry Pi 5
Waveshare PCIe To M.2 HAT With I2S Audio Expansion Board 3.5mm Headphone Jack Plug and Play for Raspberry Pi 5

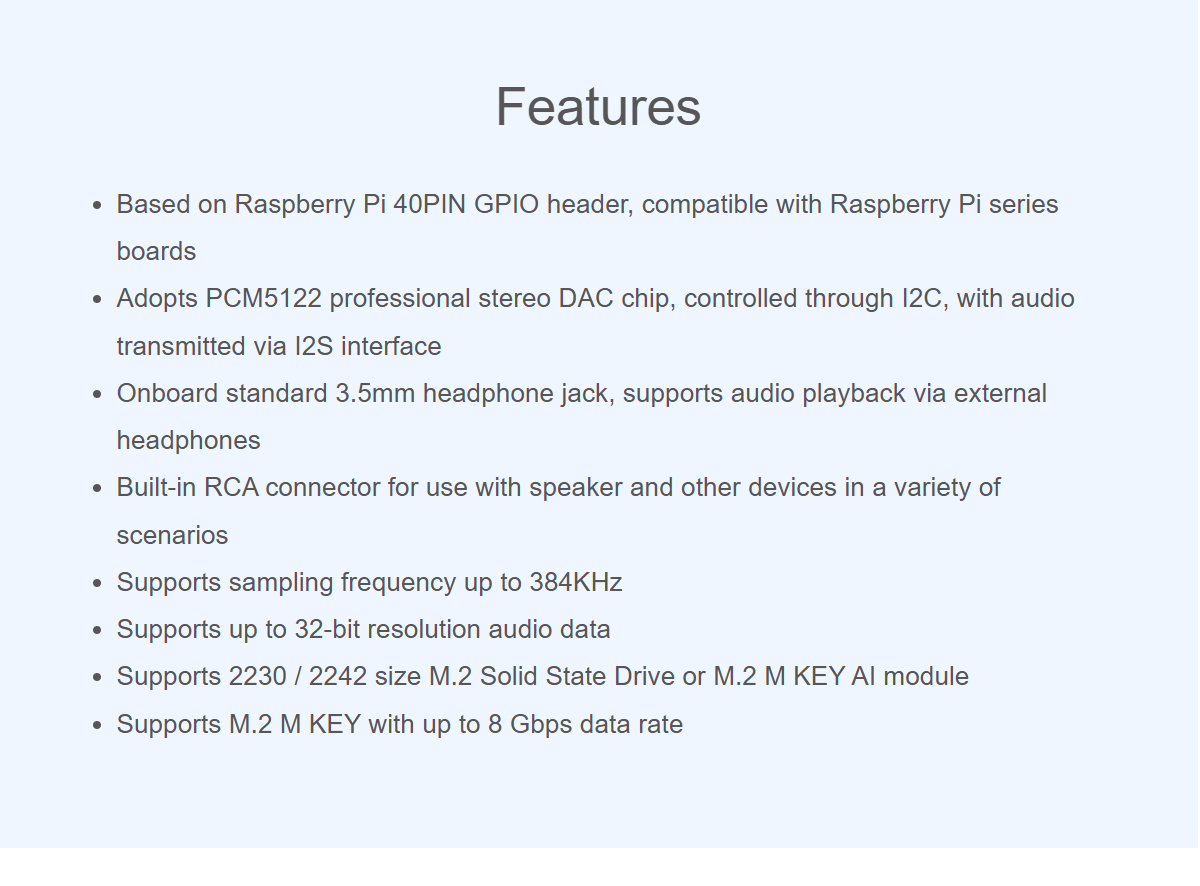

Based on Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards

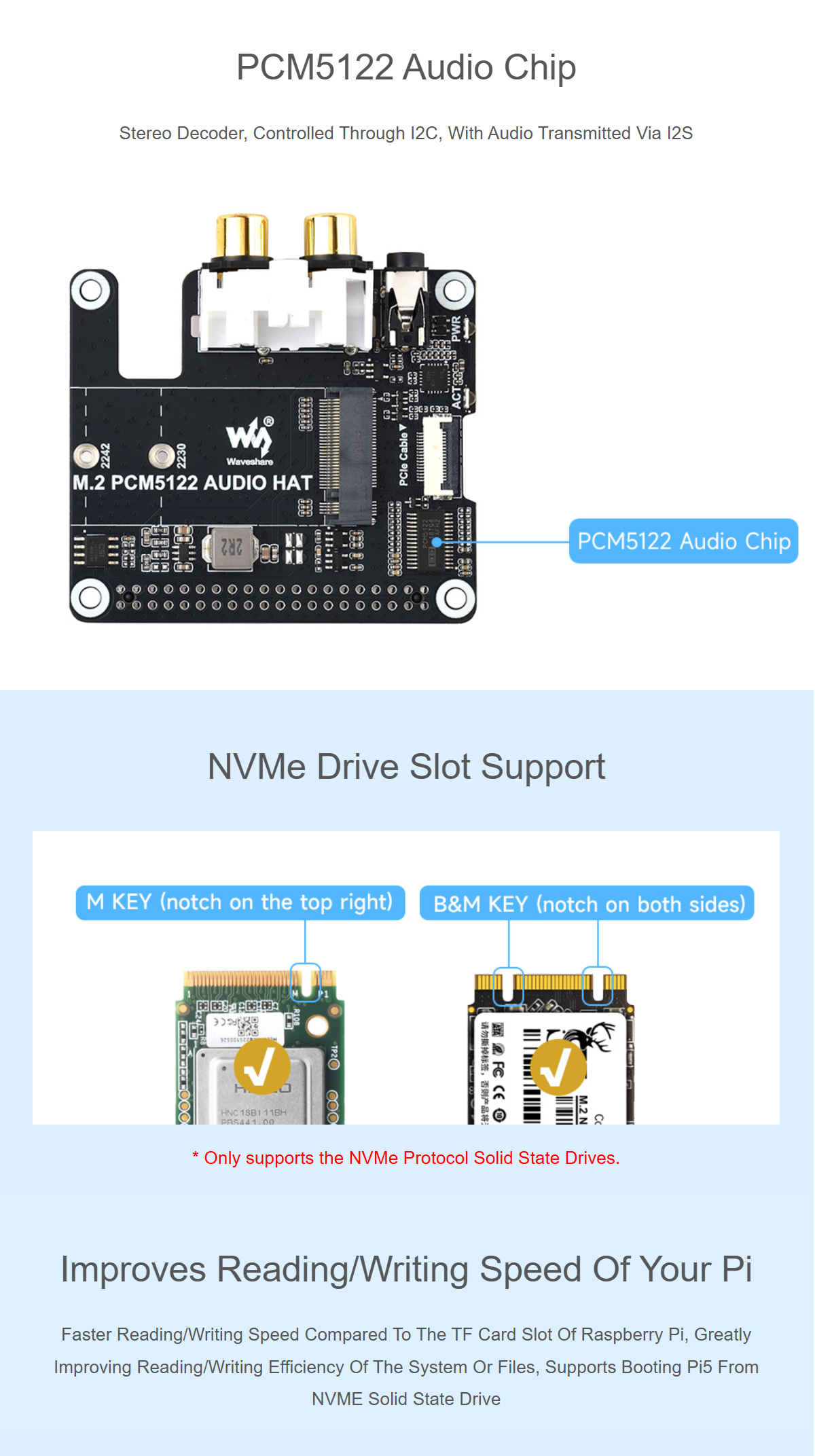

Adopts PCM5122 professional stereo DAC chip, controlled through I2C, with audio transmitted via I2S interface

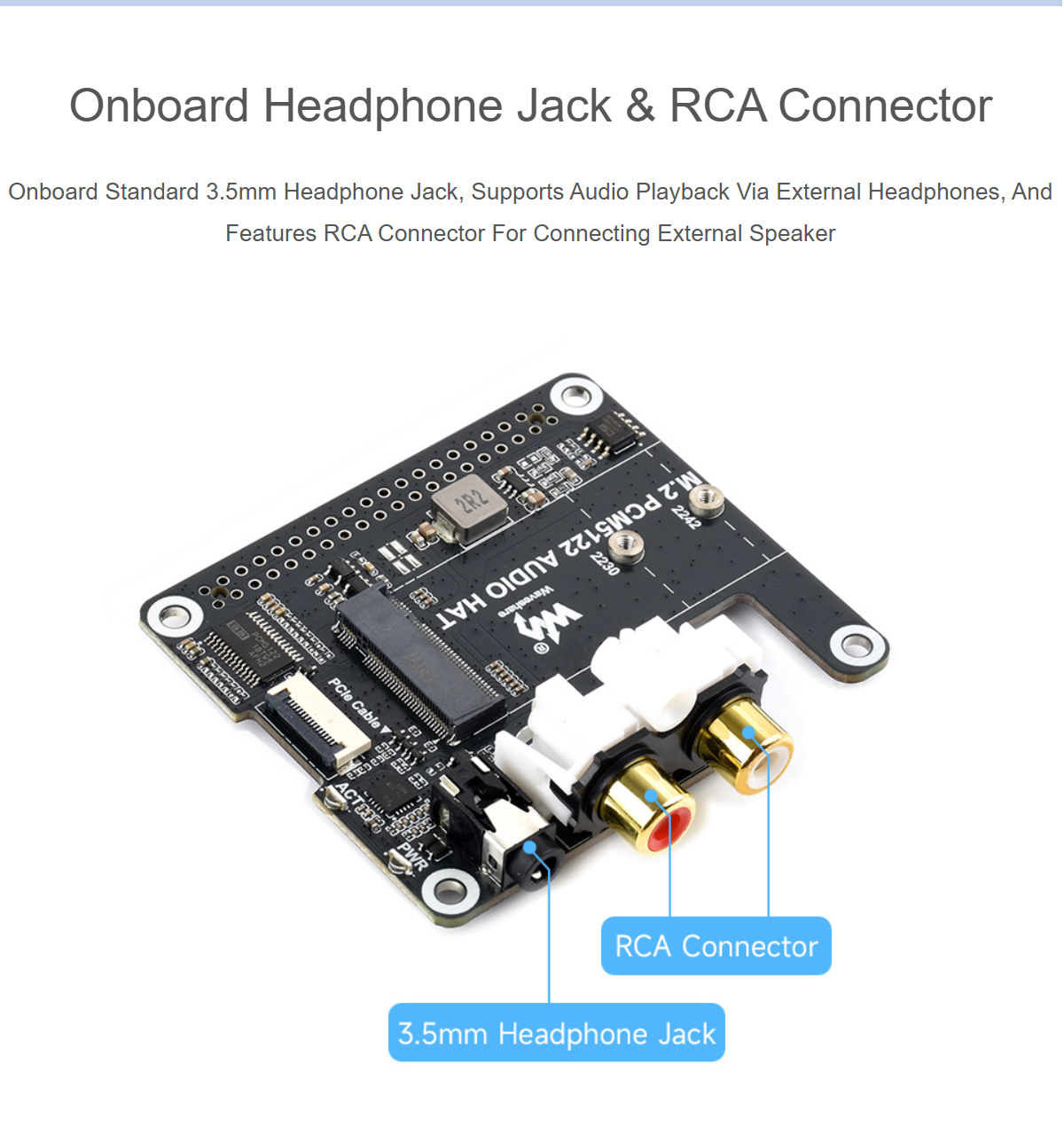

Onboard standard 3.5mm headphone jack, supports audio playback via external headphones
Built-in RCA connector for use with speaker and other devices in a variety of scenarios
Supports sampling frequency up to 384KHz
Supports up to 32-bit resolution audio data

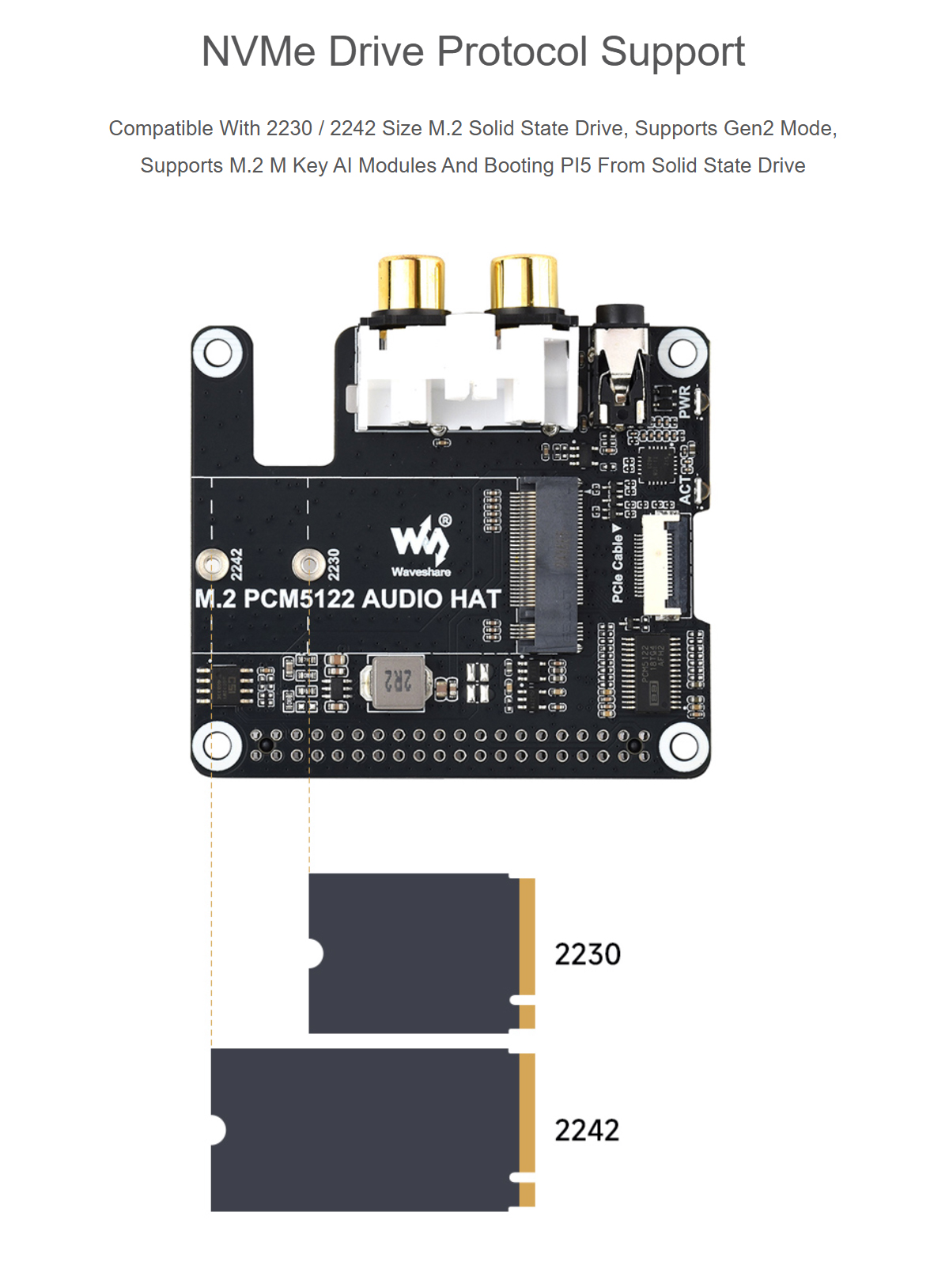

Supports 2230 / 2242 size M.2 Solid State Drive or M.2 M KEY AI module

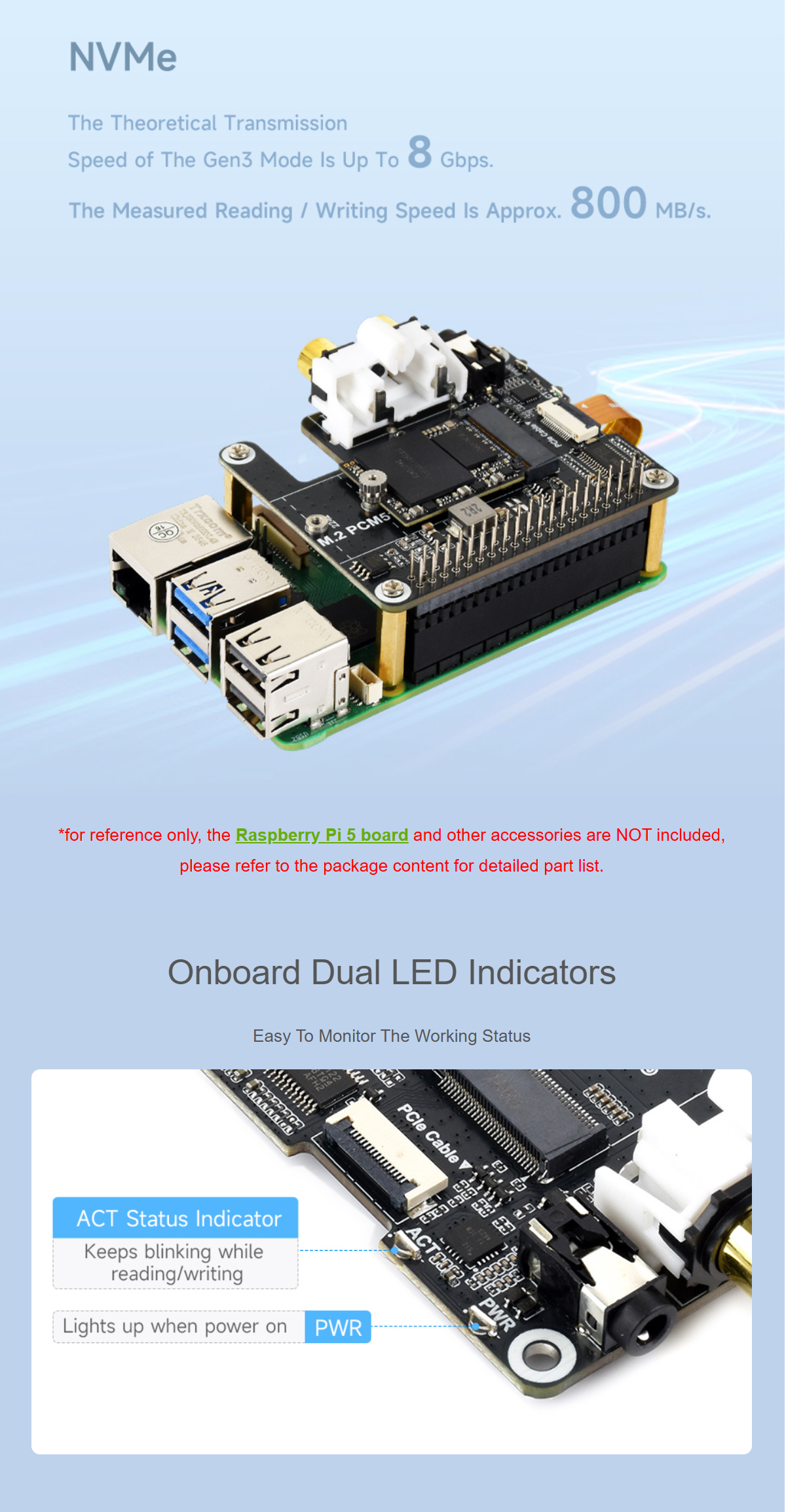

Supports M.2 M KEY with up to 8 Gbps data rate

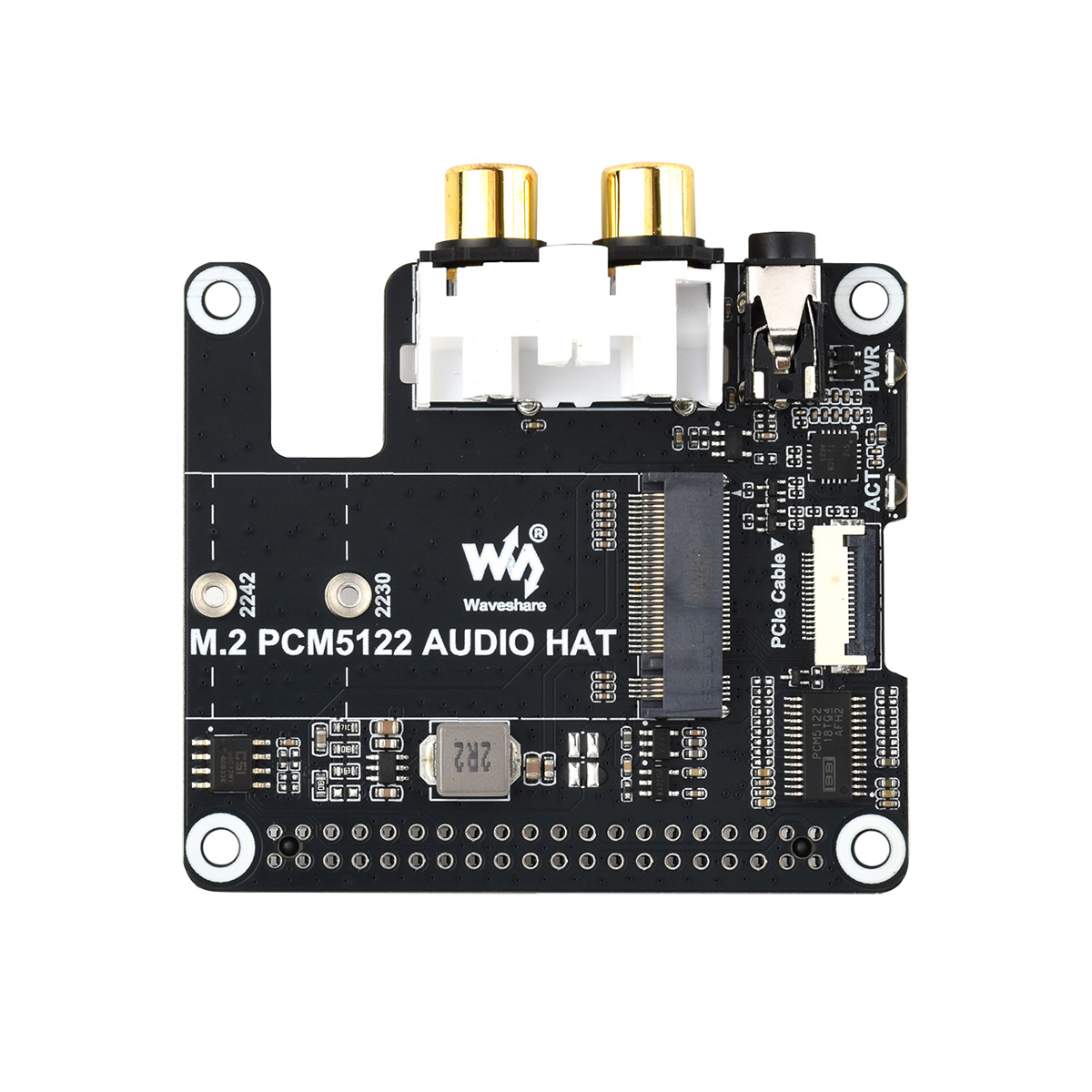

Model: M.2 PCM5122 AUDIO HAT
SKU: 34170
Weight: 41g

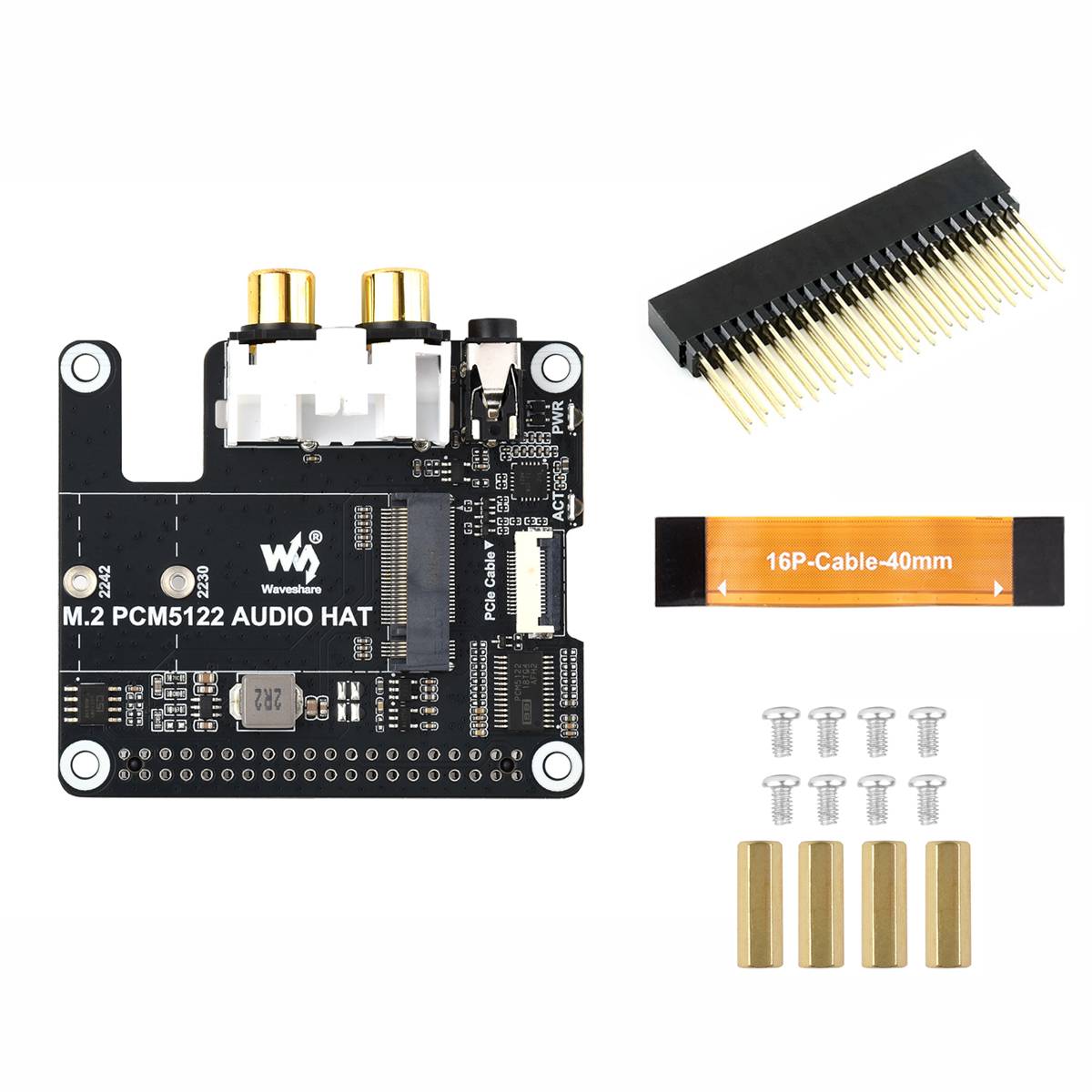

M.2 PCM5122 AUDIO HAT x1
2*20pin header 2.54 mm pitch x1

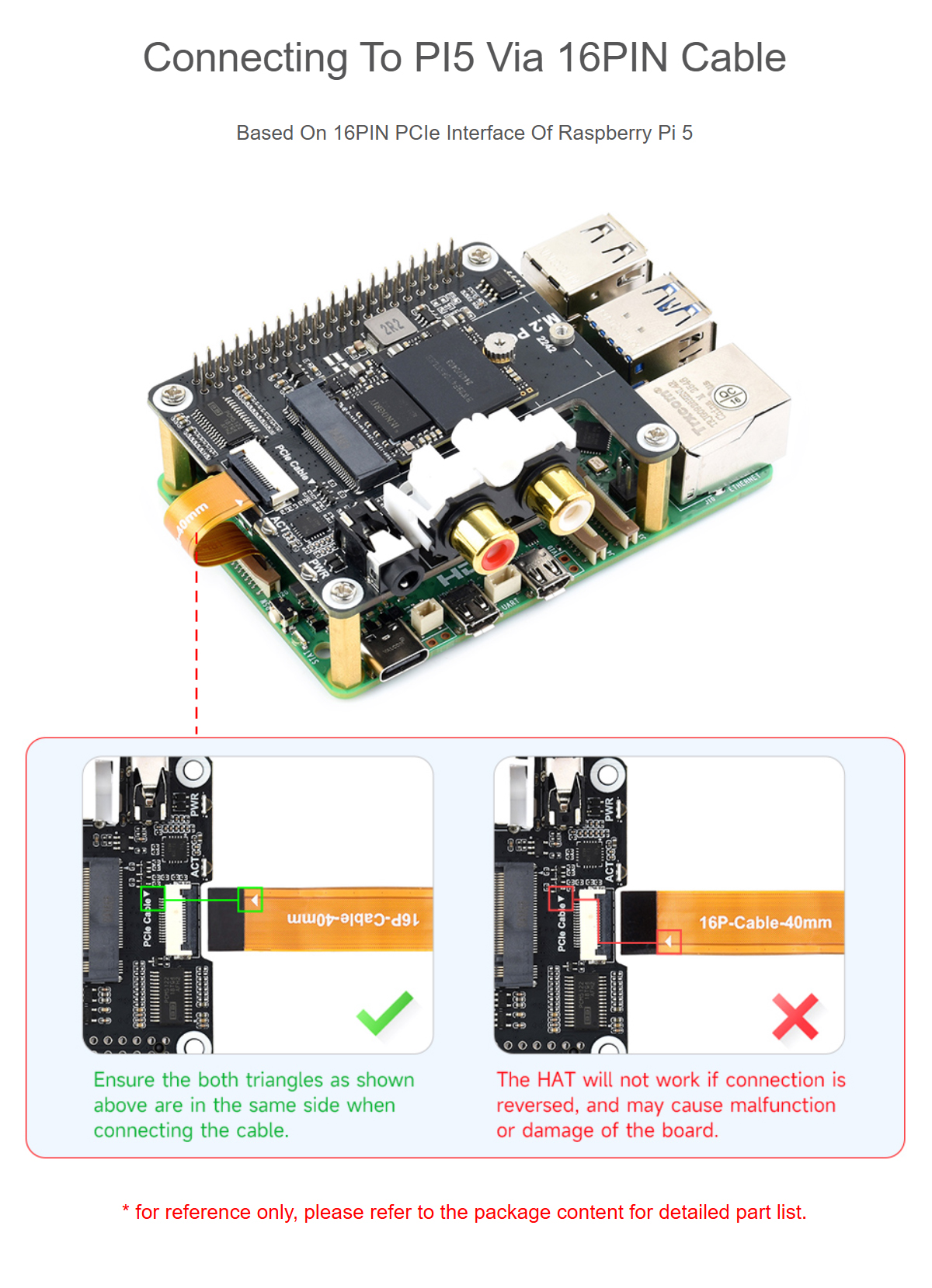

16P-Cable-40mm x1
Screws pack x1
