CRRCPRO GF40i Gasoline Engine Kit
| Part No.: | CRGF40i |
| Manufacturer: | CRRCPRO Engine |
Send to a friend
Features

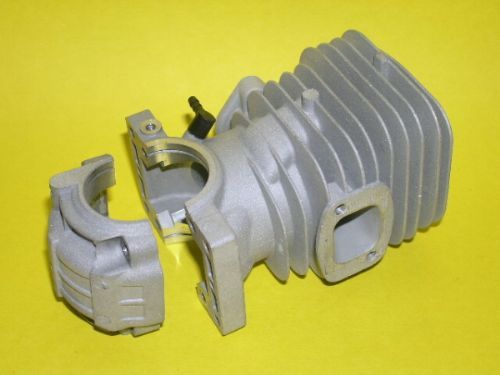

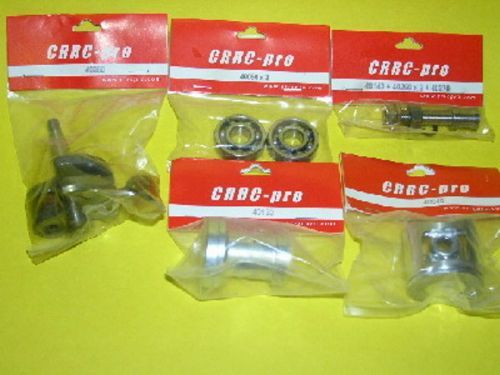

-2 pcs. aluminum crankcase, dual ball bearings supported crankshaft, needle bearing equiped conecting rod, walbro butterfly type carburetor.
-This is a DIY engine kit, One year warranty for the ignition model and warranty for parts only
Product Details
-Displacement: 40cc
Bore x Stroke: 40mm x 31mm
Dry Weight: 1300g (2.87 lbs.)
Carburetor: Walbro butterfly type w/pump
Max Output: 3.95HP @ 7200 rpm
Ignition: 4.8v - 6v DC-CDI
Fuel: 93 plus octane premixed 25-35:1
Propeller: 18 X 10, 20 x 8,20 x 10 (Two leafs)
Warning!
-This gasoline engine is just for the RC model airplane use only. never use in the other situation.
-This engine is not a toy! Serious injury and/or death can occur from its misuse! read and become familiar with this entire instruction manual. learn the engine’s applications, limitations and possible hazards.
Item Packing

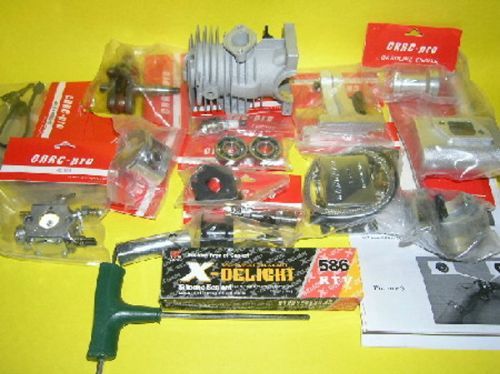

-One unassemble Gf40i Gasoline Airplane Engine kit.

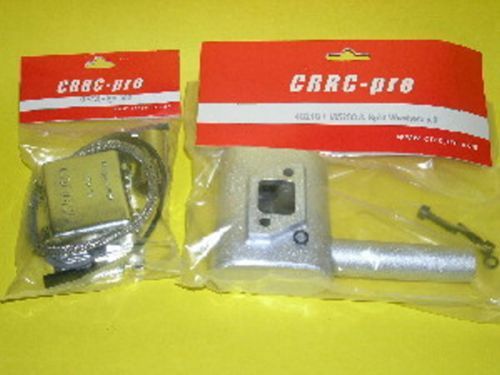

-Auto advance CDI Electronic iginition
-spark plug, plug wrench
-Engine mount
-Auto advance CDI Electronic iginition
-spark plug, plug wrench
-Engine mount
Detailed Images
