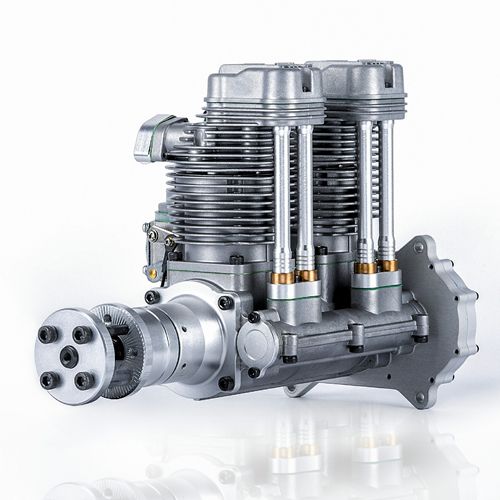

NGH GF60i2 Linear Double Cylinder 4-stroke 60CC Gasoline Engine for RC Airplane Fixed-Wing Drone
| Part No.: | NG-GF60i2 |
| Manufacturer: | Feixiang |
Send to a friend
Features
Type：Linear double cylinder 4-stroke air-cooled gasoline engine （Only For fixed-wing aircraft models and long-endurance UAV ）
Product Details
Bore：36mm
Stroke：29.4mm
The dimensions：59.82cc（2 x 29.91cc）
Carburetor：Walbro WT962
The maximum power：6.3 HP/8000rpm
Range of the speeds：1200-7500rpm
Igniter：NGH Automatic Angle LV igniter (RoHS & CE authentication)
Igniter power supply：DC 4.8V - 8.4V 1000mAH
Spark plug：CM6
Fuel: 92# unlead gasoline + Fully synthetic 2T lubricants
Lubricating ratio: Gasoline：Lubricating = 35:1
Fuel consumption：22ml/min（Experimental conditions：22x10 Beech propeller，5400rpm）
Recommended propeller：20x10、22x8-10、23×8（two leaf blades）
Weight：Engine 2800g、Igniter 130g
Stroke：29.4mm
The dimensions：59.82cc（2 x 29.91cc）
Carburetor：Walbro WT962
The maximum power：6.3 HP/8000rpm
Range of the speeds：1200-7500rpm
Igniter：NGH Automatic Angle LV igniter (RoHS & CE authentication)
Igniter power supply：DC 4.8V - 8.4V 1000mAH
Spark plug：CM6
Fuel: 92# unlead gasoline + Fully synthetic 2T lubricants
Lubricating ratio: Gasoline：Lubricating = 35:1
Fuel consumption：22ml/min（Experimental conditions：22x10 Beech propeller，5400rpm）
Recommended propeller：20x10、22x8-10、23×8（two leaf blades）
Weight：Engine 2800g、Igniter 130g

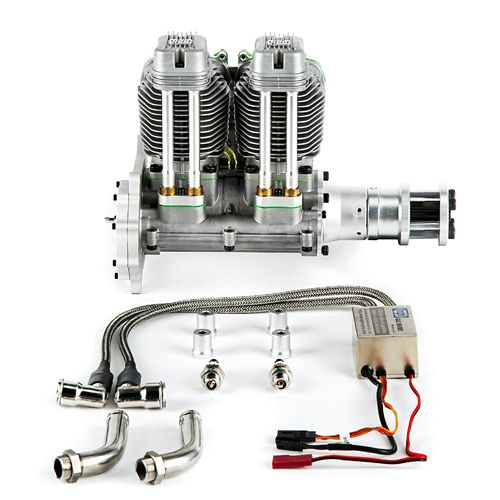

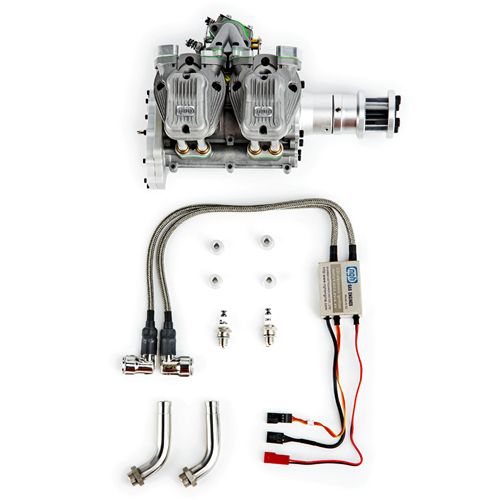

Item Packing
Gf60i2 engine x 1
Exhaust pipe assembly x 2
CDI electronic igniter x 1
Cm-6 spark plug x 2
Engine fixing strut x 4
Valve lash adjustment plug x 1
Instructions x 1
Logo sticker x 1
Exhaust pipe assembly x 2
CDI electronic igniter x 1
Cm-6 spark plug x 2
Engine fixing strut x 4
Valve lash adjustment plug x 1
Instructions x 1
Logo sticker x 1
Detailed Images
