DLE120 T4 RC Airplane Gasoline Engine Power Four-Cylinder Two-Stroke Side Exhaust Natural Wind-Cooled 120CC Displacement
| Part No.: | DLE120-T4 |
| Manufacturer: | DLE |
Send to a friend
Features
DLE120 T4 RC Airplane Gasoline Engine Power Four-Cylinder Two-Stroke Side Exhaust Natural Wind-Cooled 120CC Displacement
Product Details
Performance: 12HP/7500rpm
Idle Speed: 1200rpm/min
Static Thrust:26.5kg / Altitude100 meters
Propeller: 27×10, 26×12, 28×10
Spark Plug Type:NGK, CM6
Exhaust Amount: 122 ccm
Diameter × stroke: 36mm×30mm
Compression Ratio: 7.1：1
Lubrication Ratio: 30:1
Weight of Main Engine:2960g
Weight of Exhaust:500g
Weight of lgnition:140g
Lgnition voltage:4.8v-8.4v
Idle Speed: 1200rpm/min
Static Thrust:26.5kg / Altitude100 meters
Propeller: 27×10, 26×12, 28×10
Spark Plug Type:NGK, CM6
Exhaust Amount: 122 ccm
Diameter × stroke: 36mm×30mm
Compression Ratio: 7.1：1
Lubrication Ratio: 30:1
Weight of Main Engine:2960g
Weight of Exhaust:500g
Weight of lgnition:140g
Lgnition voltage:4.8v-8.4v

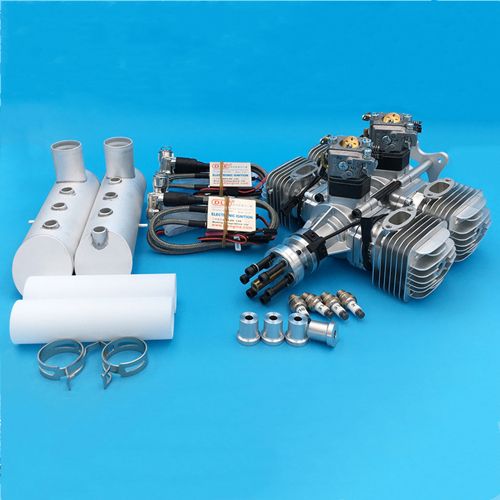

Item Packing
DLE120 T4 Engine x 1set

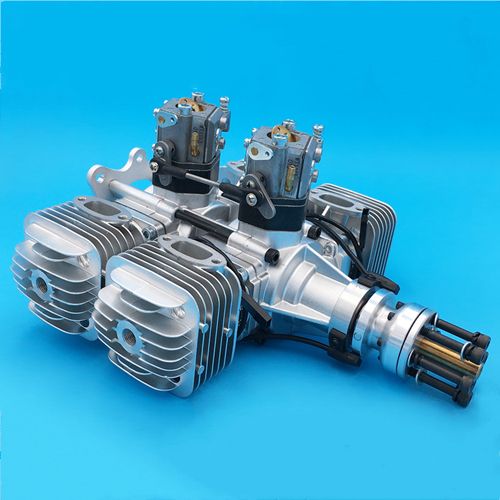

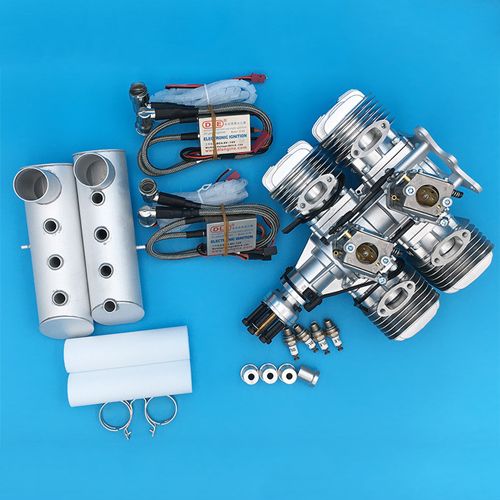

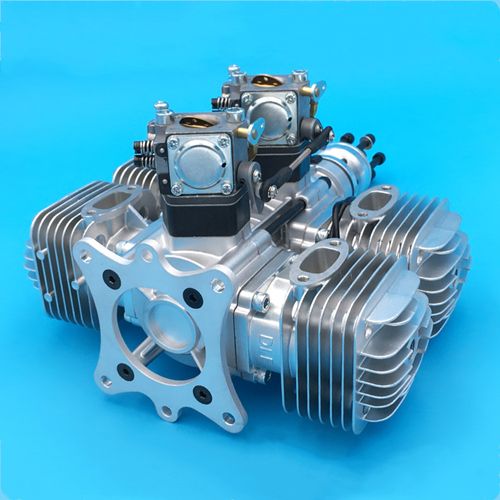

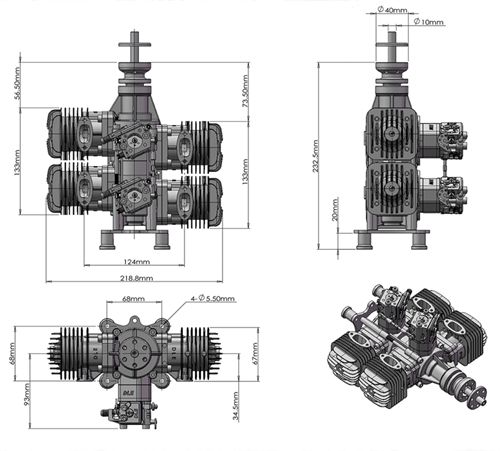

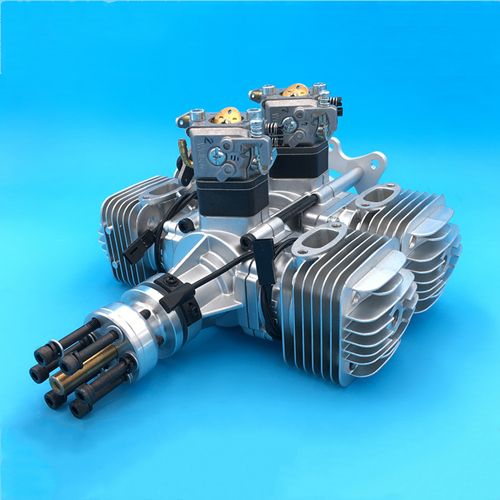

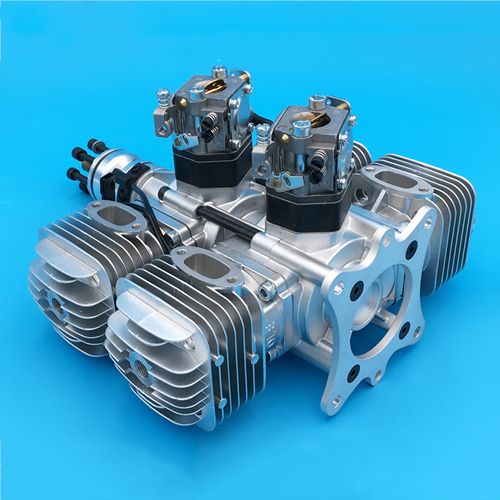

Detailed Images
