RadioMaster TX12 MKII 16ch Hall Gimbals Support OPENTX and EDGETX Remote Control Transmitter ELRS For RC Drone
| Part No.: | TX12-MKII-ELRS |
| Manufacturer: | RadioMaster |
Send to a friend
Features
Added internal ExpressLRS module support
Updated main board design from STM32F207 to STM32F407
Improved USB-C QC 3.0 Charging

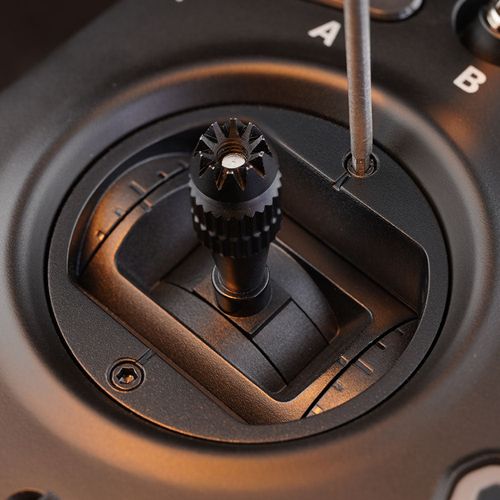

Precision hall-effect gimbals as standard
EdgeTX operating system installed from the factory

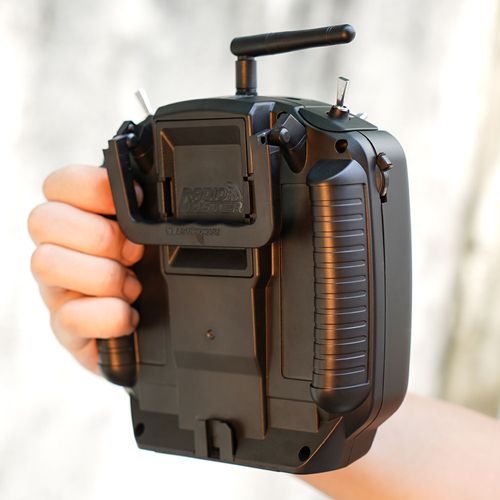

Updated rear case with comfortable grips

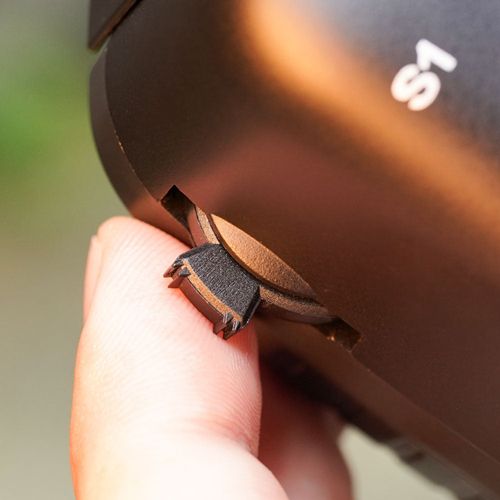

Improved S1 / S2 slider grip
SD Card included
Provide M1 and M2 modes
Updated main board design from STM32F207 to STM32F407
Improved USB-C QC 3.0 Charging
Precision hall-effect gimbals as standard
EdgeTX operating system installed from the factory
Updated rear case with comfortable grips
Improved S1 / S2 slider grip
SD Card included
Provide M1 and M2 modes
Product Details
Item: TX12 Mark II Radio
Size: 170*159*108mm
Weight: 363g
Frequency: 2.400GHZ-2.480GHZ
RF Chip: ExpressLRS (ELRS)
Working Current: 320mA@8.4V (ELRS)
Voltage Range: 6.6-8.4v DC
Radio Firmware: ExpressLRS (RF module)
Channels: Up to 16 (depending on the receiver)
Display: 128*64 Monochrome LCD display
Gimbal: High precision hall gimbals
External module: JR/FrSKY/Crossfire compatible
Upgrade Method: USB/SD card & EdgeTX Buddy online or EdgeTX Companion PC software
USB Charging: QC3 USB-C
SD Card: Included
Size: 170*159*108mm
Weight: 363g
Frequency: 2.400GHZ-2.480GHZ
RF Chip: ExpressLRS (ELRS)
Working Current: 320mA@8.4V (ELRS)
Voltage Range: 6.6-8.4v DC
Radio Firmware: ExpressLRS (RF module)
Channels: Up to 16 (depending on the receiver)
Display: 128*64 Monochrome LCD display
Gimbal: High precision hall gimbals
External module: JR/FrSKY/Crossfire compatible
Upgrade Method: USB/SD card & EdgeTX Buddy online or EdgeTX Companion PC software
USB Charging: QC3 USB-C
SD Card: Included

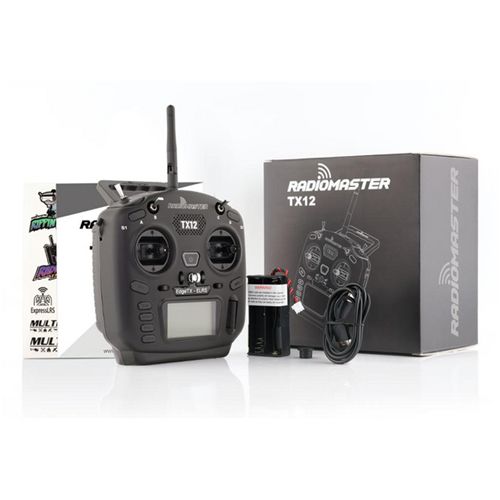

Item Packing
1 x TX12 Mark II Radio Controller
1 x Antenna
1 x USB-C Cable
1 x Quick Start Guide
1 x Sticker
1 x Antenna
1 x USB-C Cable
1 x Quick Start Guide
1 x Sticker
Detailed Images
