Matek System MICRO BEC 6-60V TO 5V/9V/12V-ADJ
| Part No.: | MICROBEC |
| Manufacturer: | Matek |
Send to a friend
Features
Due to shortage of chips, the voltage regulator chip has been replaced with SOP-8 package.
PCB 1mm wider.
Identical performance as previous version.
PCB 1mm wider.
Identical performance as previous version.
Product Details
- Wide 6V to 60V Operating Input Range
- Start-up Voltage >=6.7V
- VOut 5V, 9V or 12V Adj. Default is 5V.
- Maximum Duty Cycle: 100%, when input voltage< setting value, Regulator output voltage = Input voltage
- Continuous load current: Depends on input voltage and heat dissipation.
-

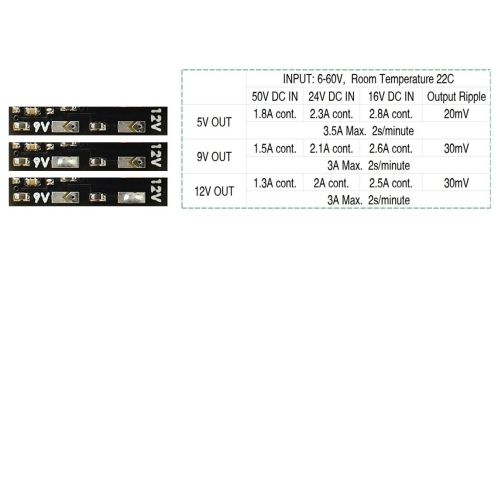

INPUT: 6-60V, Room Temperature. 22C, without additional heat sink 50V DC IN 24V DC IN 16V DC IN Output Ripple 5V OUT 1.8A cont. 2.3A cont. 2.8A cont. 20mV 3.5A Max. 2s/minute 9V OUT 1.5A cont. 2.1A cont. 2.6A cont. 30mV 3A Max. 2s/minute 12V OUT 1.3A cont. 2A cont. 2.5A cont. 30mV 3A Max. 2s/minute - Standby current: <5mA
- OCP Protection and Hiccup
- Thermal Shutdown
- Output Short-circuit tolerant (3 seconds/minute)
- No protection for reversed input polarity
- Pins distance: 2.54mm

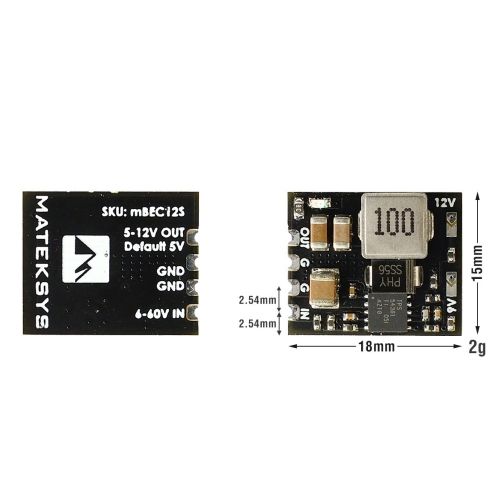

- Size & Weight: 18×15(16)x4.5mm, 2g
- Packing: 1pc/package
Item Packing
MICRO BEC 6-60V TO 5V/9V/12V-ADJ x 1
Detailed Images
