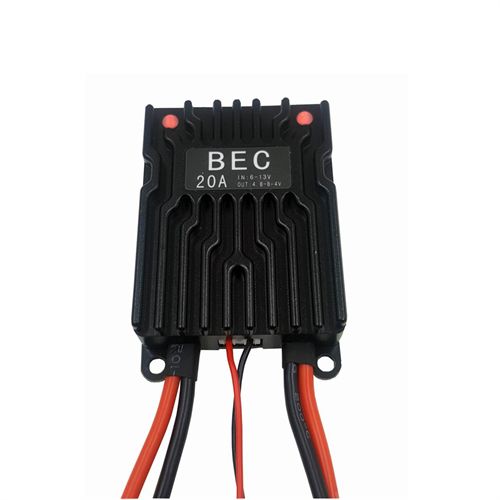

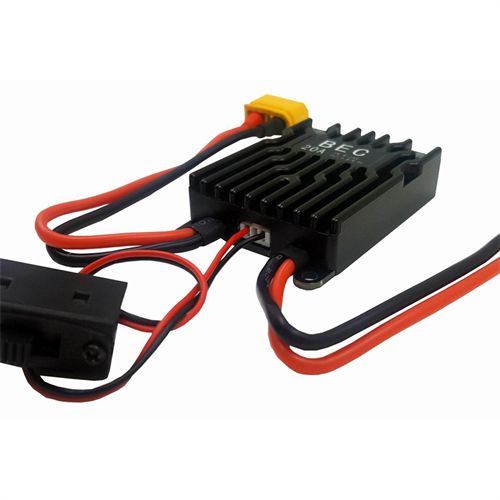

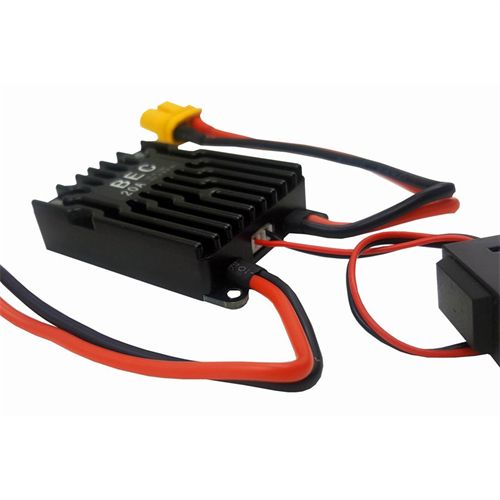

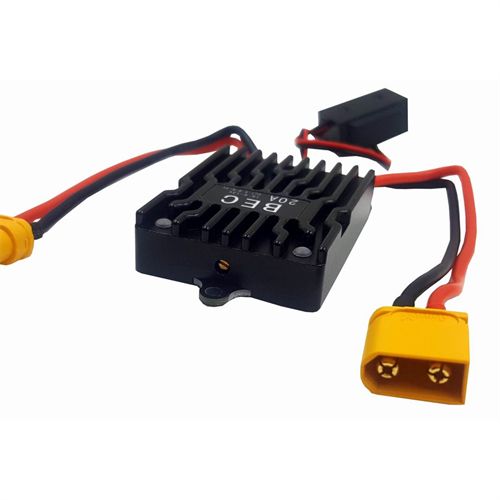

Rccskj High Current Linear Regulator BEC UBEC 20A 2-3S LiPo With Switch For 3D Aircraft Turbojet 8106#
| Part No.: | PH-031 |
| Manufacturer: | Feixiang |
Send to a friend
Features

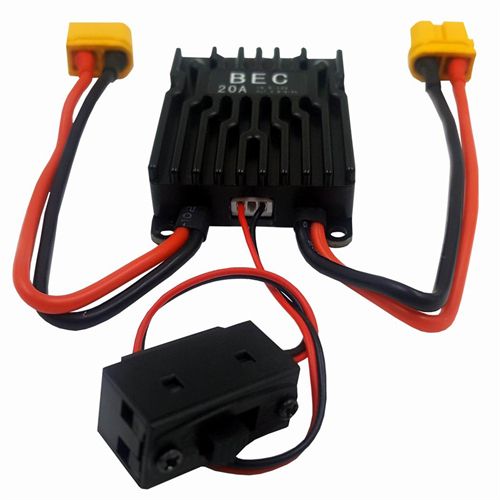

- The external switch can turn on/off the UBEC easily.
- It has two status LED, which lights up when the BEC works normally.
- 4.8-8.4V arbitrary voltage output, applicable for all kinds of receivers/gyros/servos, etc.
- Linear buck chip is used to provide pure and sufficient working power for the receiver and servos etc.
- Exquisite aluminum case is helpful for heat dissipation & EMI (Electromagnetic Interference) reduction.
- 2 cables are connected in parallel at the output end of the BEC, allow larger current to flow into the receiver.
- It has two status LED, which lights up when the BEC works normally.
- 4.8-8.4V arbitrary voltage output, applicable for all kinds of receivers/gyros/servos, etc.
- Linear buck chip is used to provide pure and sufficient working power for the receiver and servos etc.
- Exquisite aluminum case is helpful for heat dissipation & EMI (Electromagnetic Interference) reduction.
- 2 cables are connected in parallel at the output end of the BEC, allow larger current to flow into the receiver.
Product Details
Input voltage: 6V - 13V (2-3s lipo)
Output voltage: 4.8-9.7v (freely adjusted to adapt to various high and low voltage servo)
Output current: 0-20a (Max: 30a)
Overall dimension: 50mmx38mmx13mm
Output voltage: 4.8-9.7v (freely adjusted to adapt to various high and low voltage servo)
Output current: 0-20a (Max: 30a)
Overall dimension: 50mmx38mmx13mm
Item Packing
Rccskj High Current Linear Regulator x 1
