Foxeer Digisight 720P Digital Analog 4ms Latency Super WDR FPV Camera

Foxeer Digisight 720P Digital Analog 4ms Latency Super WDR FPV Camera
Part No.: FO-HS1255
Manufacturer: Foxeer

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Foxeer Digisight 720P Digital Analog 4ms Latency Super WDR FPV Camera

Product Details

Sensor Type:  Sony 1/3" CMOS Sensor
Scale:  4:3(default)/16:9 Switchable
Tv System:  PAL(default)/NTSC Switchable
Resolution:  Digital 720P/Analog 1000TVL
Shutter Speed:  PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
Video Output: 720P Digital HD/CVBS Analog Signal
FOV: Digital: FOV-H:120° FOV-D: 145°
         Analog: FOV-H:125° FOV-D: 155°
Shutter Speed: Auto
Minimum Illumination:0.01Lux
White Balance:Auto
DNR:3DNR 2DNR
WDR:120dB
Mode:DAY/CLOUDY/Night/LED
Fast Mode Switch:Long Press Right Button to switch among DAY/CLOUDY/Night/LED
Flight OSD:Cam Title / Voltage (Only in analog) / Time
Input Power:Digital: 3.3V from VTx
                       Analog: 4.5~20V
Language:ENGLISH/ DEUTSCH/ FRANCAIS/ PYCCKNN/ PORTUGUES/ ESPANOL/ 中文
Working Temperature:-10°~50°C RH90% MAX
Working Humidity:20~80%
Storage Temperature:-20°~70°C
Menu:Analog via camera programming board, Digital via VTx programming board
Consumption:Analog: 50mA±15% @ DC12V 115mA±15% @ DC5V
                         Digital: 350mA@3.3V(Powered by VTX)

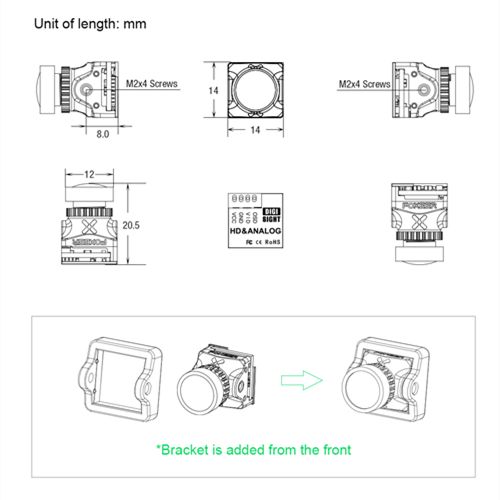

Dimension:14*14mm; 19*19mm(Add Bracket)
Weight:4.3g(Exclude cable)

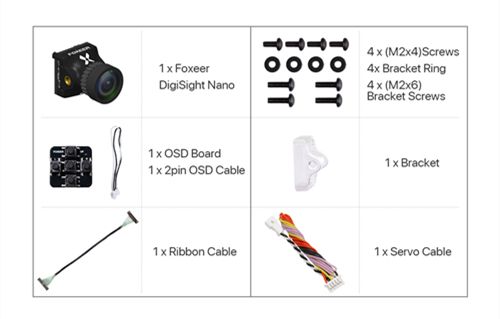

Item Packing

Foxeer Digisight Nano x1
OSD Board x1
2pin OSD Cable x1
Ribbon Cable x1
Bracket x1
Servo Cable x1
(M2x4)Screws x4
Bracket Ring x4
(M2x6)Brachet Screws x4

Detailed Images
