CADDXFPV Set AvatarPro High Frame Starlight Night Vision Camera with built-in gyroscope and built-in 32G storage

CADDXFPV Set AvatarPro High Frame Starlight Night Vision Camera with built-in gyroscope and built-in 32G storage
Part No.: WAHD-PROKIT
Manufacturer: Feixiang

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

*AVATAR VTX V2 comes with 8G/32G built-in storage and can record 1080P or 720P high-definition flight videos without interference. With 32G built-in storage, the recording time is increased by four times.
*The new VTX has enhanced TVS protection and a brand-new appearance design. It upgrades the service life, impact resistance and stability of FPV once again. At the same time, it provides anti-GPS interference ability and enjoys excellent performance.
*Supports two installation hole distances of 20mm and 25mm. Every step is considered for you to make installation easier.
*Matched with a high-definition 1080p OLED dual micro display, making your FPV flight more smooth and efficient.
*The antenna quality is reclassified. It supports high frame rate and standard frame rate. The average delay of video transmission is only 22ms, and the working performance in the full frequency band is more stable.

Product Details

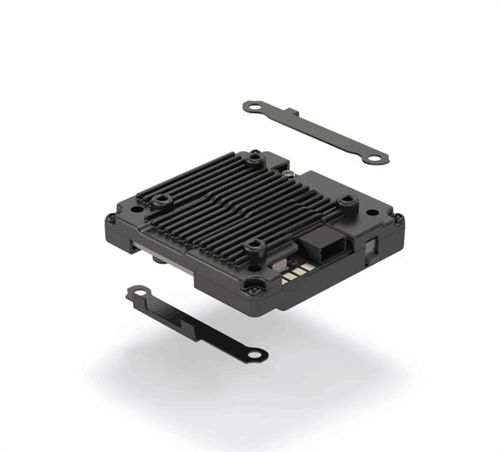

Specification of Avatar V2 VTX:
Module: Avatar V2 module
Communication frequency: 5.725 - 5.850GHz
Transmitter power: FCC: <30dBm; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm

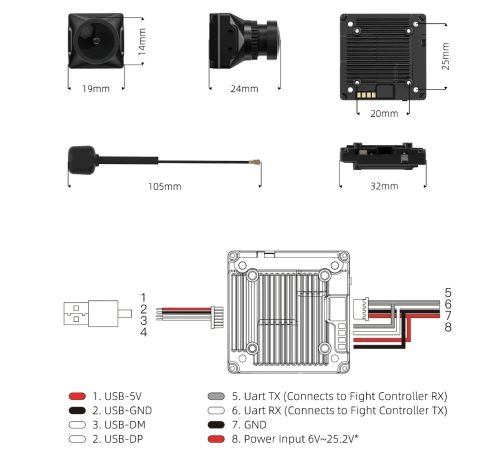

Interfaces: JST1.04 (power input), JST0.86 (USB)
Mounting holes: 25.525.5mm, 2020mm
Size: 33*33*10.5mm
Recording: 8G/32G
Weight: 17.6
Operating temperature: -20 - 40°C
Channels: 8
Wide power input: 6V - 25.2V
Supported FC systems: Betaflight, Inav, Fettec, ArduPilot, Kiss
SD: Canvas mode
Delay: Average delay 22ms
Antenna: (IPEX)

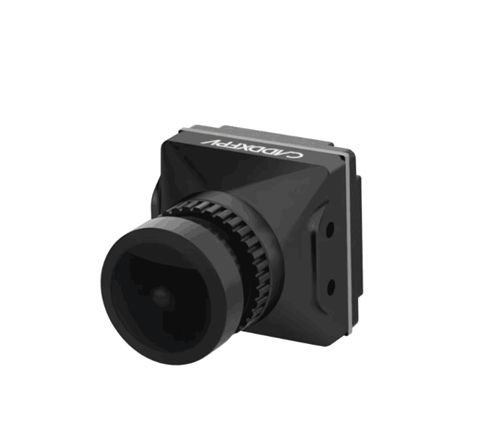

Avatar Pro camera:
Model: Avatar Pro camera
Image sensor: 1/1.8 inch Sony Starvis 2 sensor
Resolution: 1080P/60fps, 720P/100fps, 720P/60fps; 1080P/120fps backward compatible
Aspect ratio: 16:9/4:3
Lens aperture: F1.6
Field of view: 160°
Rolling shutter: 9.5
Size: 19*19*24mm
Coaxial cable: 140mm
Minimum illumination: 0.00001Lux
Supports Gyroflow

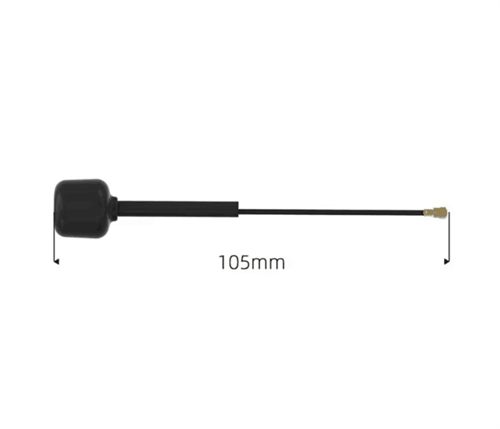

Avatar V2 Antenna Information
Polarization: LHCP
Frequency range: 5600MHz - 6000MHz
Gain: 1.9dB (<1.5)
Input impedance: 50Ω
Interface type: IPEX - 1
Size: R15×45mm (without cable)
Weight: 2

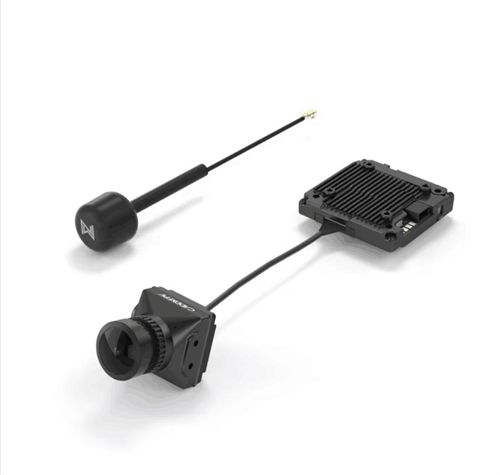

Item Packing

1× Avatar V2 VTX
1× Avatar Pro camera
1×Avatar V2 Antenna

Detailed Images
