Caddx Polar Vista Kit FPV Digital Image Transmission HD Digital Starlight Camera for DJI Goggles V2

Caddx Polar Vista Kit FPV Digital Image Transmission HD Digital Starlight Camera for DJI Goggles V2
Part No.: CADDX-VISTA
Manufacturer: Feixiang

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

The CADDXFPV air Unit is an advanced video transmission modulethat supports a 5.8 GHZ digital video signal and 720p 120fps image transmission, with a transmission range of up to 4 km and a minimum end-to-end latency within 28 ms. The air unit can be mounted on a racing drone and used with DJI FPV Goggles or a remote controller to transmit video, control signals, and flight controller information wirelessly.

Product Details

MODLE: Polar Vista Kit
Weight: Vista Kit (camera included):28g; Antenna: 1.5g

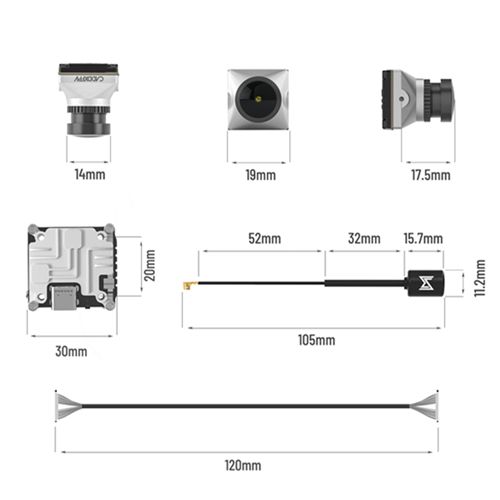

Dimensions: Vista Kit: 30x29x13mm; Camera: 19x19x24mm; Coaxial Cable: 120mm
Operating Frequency: 5.725-5.850GHZ
Transmitter Power (ERP): FCC/SRRC/MIC: < 30dbm; CE: < 14d Bm
Min.latency (end-to-end): 720p 60fps: < 32ms
Max.Transmission Distance: FCC/SRRC: 4km; CE:0.7km
I/0 Interface: USB-C, IPEX, 3-in-lport
Supported Flight control System: F3.F4 . F7
Operating Temperature Range: 32°to104°F( 0°to40°C)
Input Power: 7.4-26.4V
Power Outout: 25mw/200mw/500mw/ 700mw
Hardware Included: Polar vista kit / m2 screw / Gasket Ring Menu cable / 3-in-1 cable / coaxial-cable / antenna
Goggles: Work with DJI goggles
Camera: Sensor: 1/1.8" starlight cmos; Min Illumination: 0.00003LUX; Lens: F/1.6 & 8 Mega; Shutter: Rolling shutter; IS0: 100-25600; FOV: 162° (D):138°(H):75°(V); Aspect Ratio: 16:9

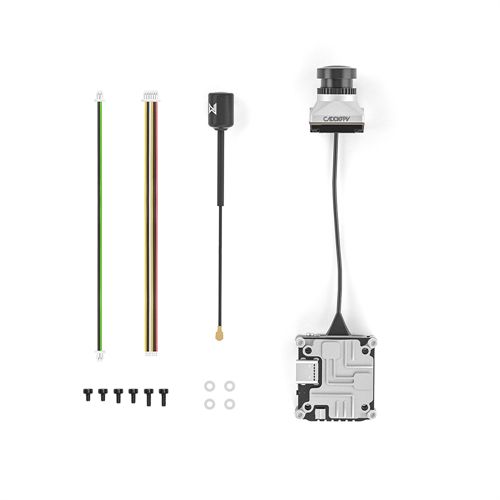

Item Packing

Polar vista kit x 1
M2 screws 3/4/5mm x 6
Gasket Ring x 4
3-in-1 cable x 1
Menu cable x 1

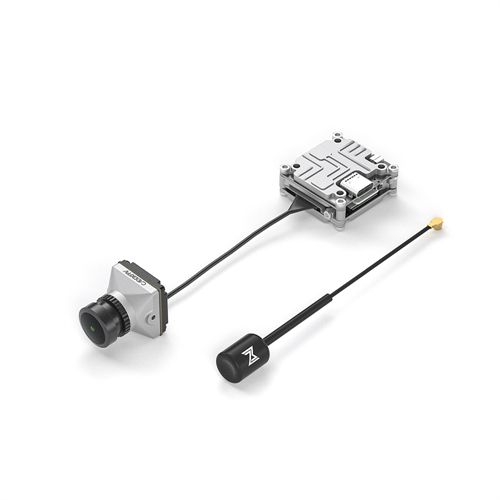

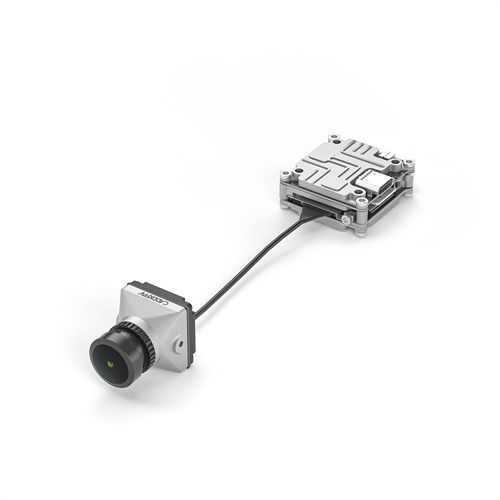

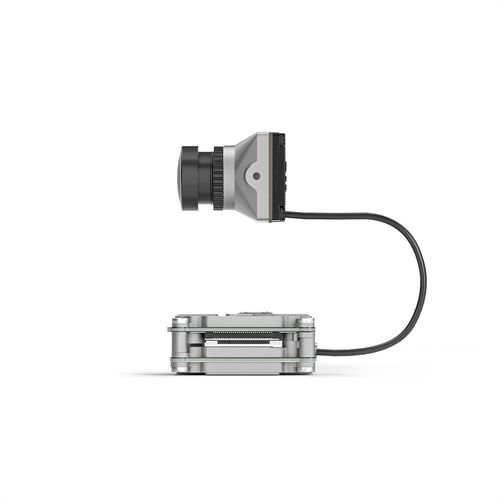

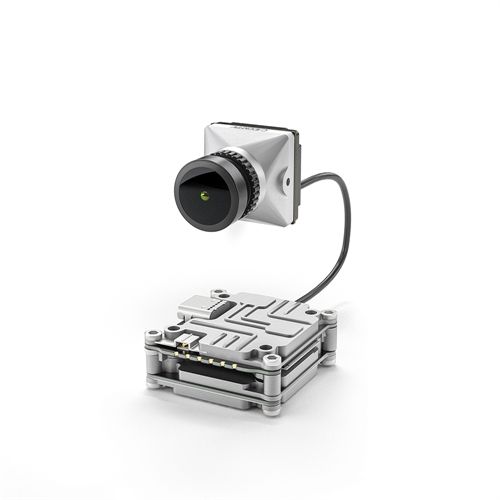

Detailed Images
