Hobbywing LED Program Card For PLATINUM series aircraft/heli ESC

Hobbywing LED Program Card For PLATINUM series aircraft/heli ESC
Part No.: EM-006
Manufacturer: Hobbywing

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

-This program card is used to set the programmable parameters of brushless ESC, it has a friendly user interface to set the programmable parameters very easily. It is pocket-sized, so you can bring it to the racing or flying field conveniently.

-Product Number:EM-006
This is available for PLATINUM series aircraft/heli ESC

Product Details

-Size:  88mm (L) * 58mm (W) * 14mm (H)
-Weight:  40g.
-Input Voltage:  4.8-6V (If the ESC hasn’t a built-in BEC, you must use an additional battery pack to supply the program card)

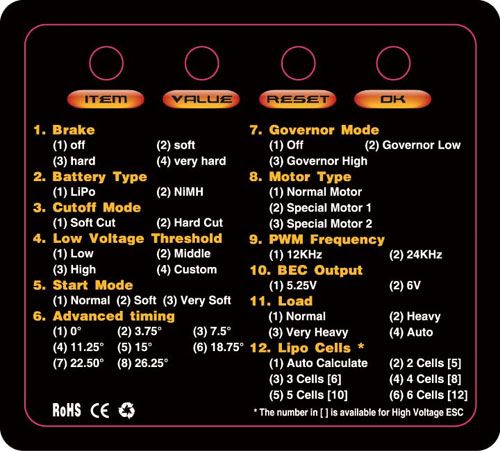

#1Brake Setting
#2Battery Type
#3Low Voltage Protection Mode (Cutoff Mode)
#4Low Voltage Protection Threshold (Cutoff Threshold)
#5Start Mode
#6Timing
#7Governor Mode
#8Motor Type
#9PWM Frequency
#10Built-In BEC Output
#11Motor Load
#12Lipo Cells

Item Packing

-Hobbywing LED Program Card For PLATINUM series aircraft/heli ESC X 1

Detailed Images
