Aomway HB25T 5.8G 40CH Switchable Raceband 25mW/200mW VTX 600TVL PAL/NSTC Switchable Camera 4.8V-24V

Aomway HB25T 5.8G 40CH Switchable Raceband 25mW/200mW VTX 600TVL PAL/NSTC Switchable Camera 4.8V-24V
Part No.: FV-HB25T
Manufacturer: Aomway

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

-Aomway HB25T 5.8G 40CH Switchable Raceband 25mW/200mW VTX 600TVL PAL/NSTC Switchable Camera 4.8V-24V

Product Details

Brand Name: Aomway
Item Name: Camera
Power Supply: DC 4.8-24V
Current: 150mAh @12V (200mW) / 90mAh @ 12V (25mW)
Power Switchable: 25mW / 200mW (by push button)
Format: NTSC / PAL
FOV: 120°
Imager: 1/4” 600TVL CMOS
Microphone: Available

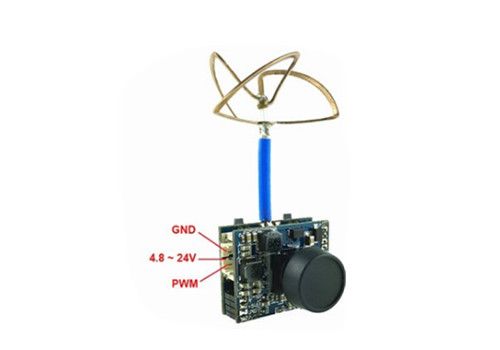

Port: 3p JST connector (GND, Power, PWM signal)
Channel Display: Digital Tube
Channel Selection: Push Button / PWM
Antenna Gain: 3db Omni-directional
Dimension: 23*19*22mm
Antenna Size: 25*14mm
Transmitter Weight: 7 g


Frequency Chart:
FR1:
CH1_5705MHz,CH2_5685MHz,CH3_5665MHz,CH4_5645MHz,
CH5_5885MHz,CH6_5905MHz,CH7_5925MHz,CH8_5945MHz


FR2:
CH1_5733MHz,CH2_5752MHz,CH3_5771MHz,CH4_5790MHz,
CH5_5809MHz,CH6_5828MHz,CH7_5847MHz,CH8_5866MHz

FR3:
CH1_5725MHz,CH2_5745MHz,CH3_5765MHz,CH4_5785MHz,
CH5_5805MHz,CH6_5825MHz,CH7_5845MHz,CH8_5865MHz

FR4:
CH1_5740MHz,CH2_5760MHz,CH3_5780MHz,CH4_5800MHz,
CH5_5820MHz,CH6_5840MHz,CH7_5860MHz,CH8_5880MHz

FR5(RaceBand):
CH1_5658MHz,CH2_5695MHz,CH3_5732MHz,CH4_5769MHz,
CH5_5806MHz,CH6_5843MHz,CH7_5880MHz,CH8_5917MHz

PWM Function:
CH1_1150μs,CH2_1250μs,CH3_1350μs,CH4_1450μs,
CH5_1650μs,CH6_1750μs,CH7_1850μs,CH8_1950μs
Note: when PWM detected at 1500μs then auto transfer to button control mode.

Item Packing

1 x Camera
1 x 3pin JST silicone cable

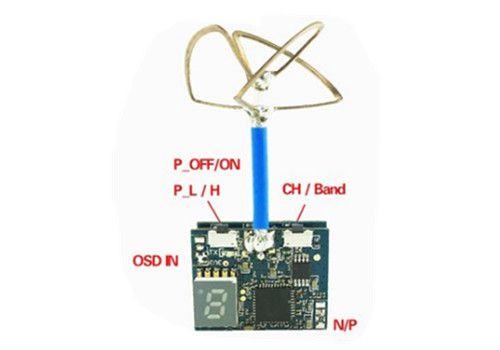

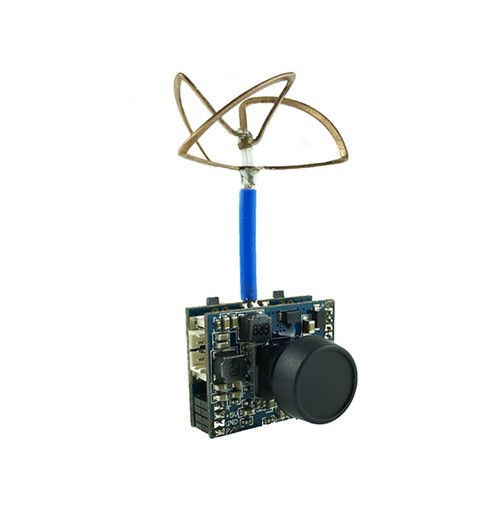

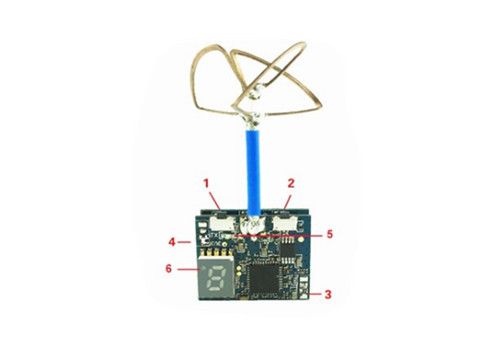

Detailed Images
