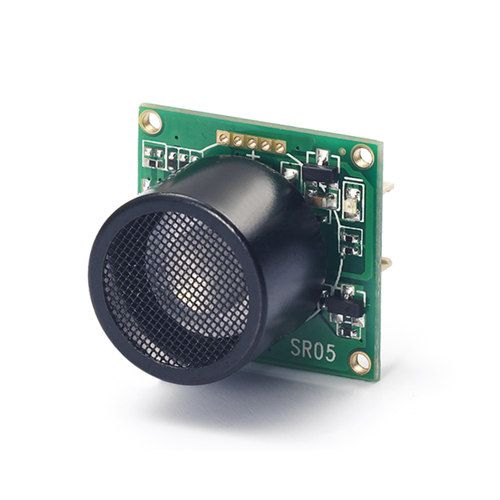

Radiolink SU04 Ultrasonic Sensor Distance Measurement Module Compatible RC Drone Pixhawk Mini Pix

Radiolink SU04 Ultrasonic Sensor Distance Measurement Module Compatible RC Drone Pixhawk Mini Pix
Part No.: QA-SU04
Manufacturer: Radiolink Radio Control

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

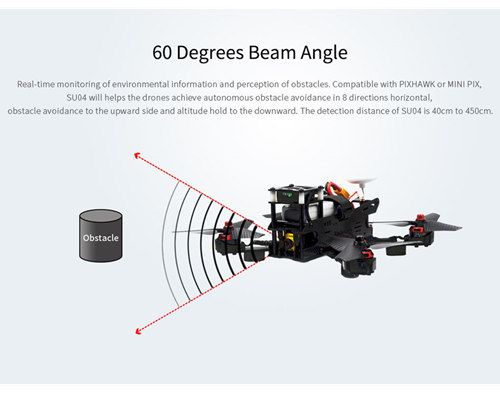

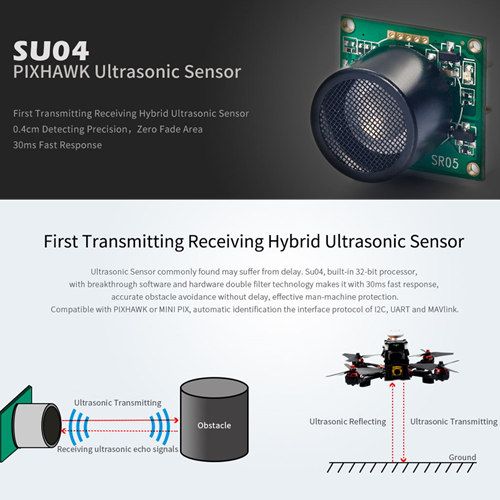

SU04 is a transmitting receiving hybrid ultrasonic sensor, it compatible with PIXHAWK and MINI PIX. SU04 will helps the drones achieve autonomous obstacle
avoidance in 8 directions horizontal, obstacle avoidance to the upward side and altitude hold to the downward. The detection distance of SU04 is 40cm to 450cm.

Product Details

Item name: ultrasonic sensor SU04
Size: 20*22*19mm
Weight: 8g (include wire)
Input voltage: 4.5-5.5V( don't support HV)
Current: 18mA@5V
Transmit power: 90mA
Working temperature: -20 to 80°
Measuring range: 40cm-450cm

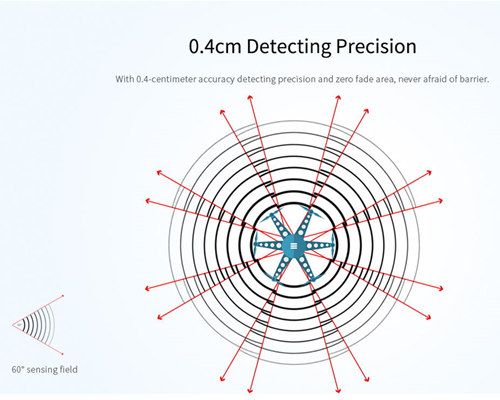

Detection accuracy: 0.1cm
Response frequency: 40+-1.0MHz
Blind area: 0 blind area (data shows blind area is 40cm)

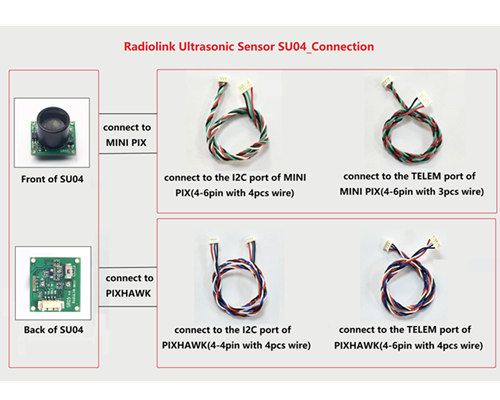

Output way: 12C mode serial port

Item Packing

ultrasonic sensor SU04 x 1

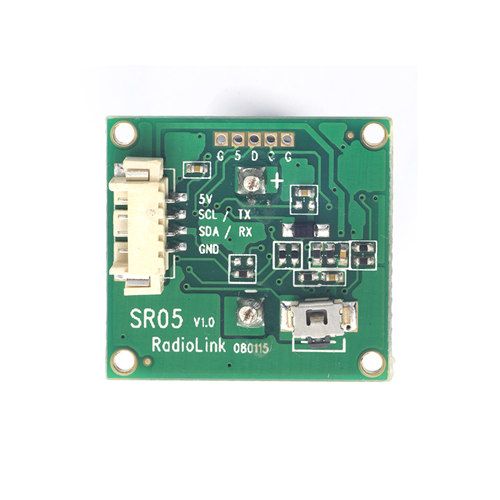

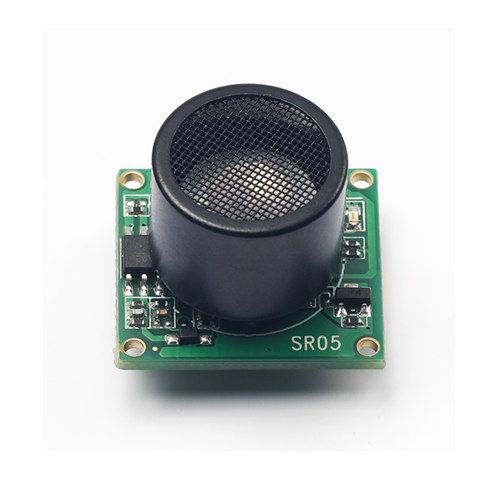

Detailed Images
