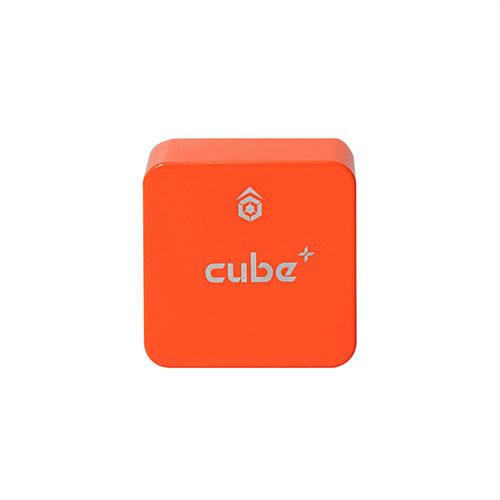

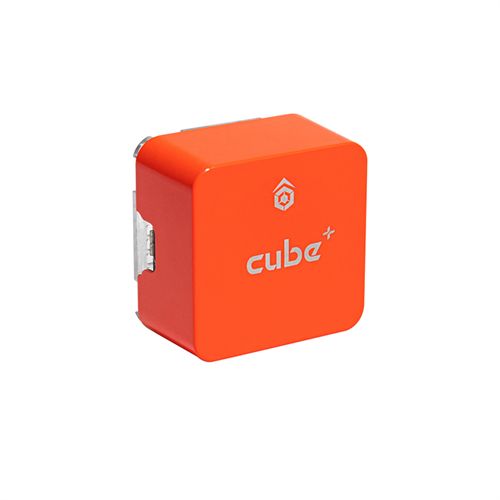

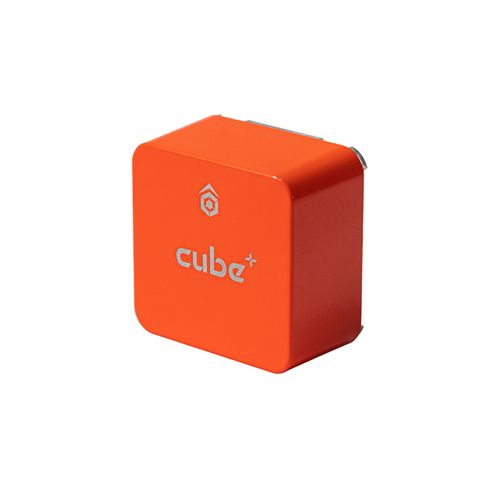

HEX Orange Cube+ Ardupilot Flight Control Main Control Module Pixhawk Cubepilot For Quadcopter Drones
Part No.: | HX4-06214 |
Manufacturer: | HEX |
Send to a friend
Features

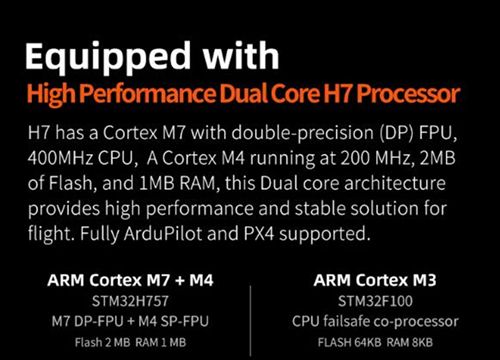

- Faster H7 SOC with 1MB ram. (STM32H757)

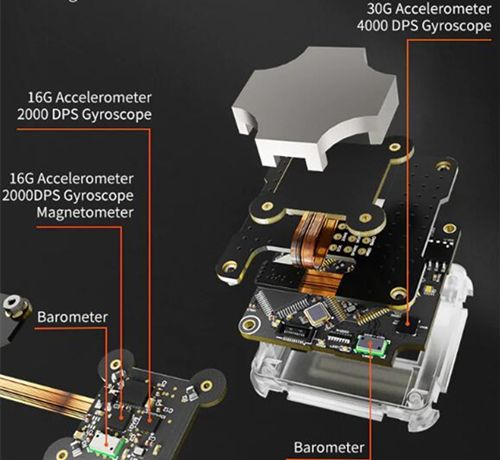

- Upgraded triple redundant IMU sensors.
- Two sets of IMU are vibration-isolated mechanically, reducing the effects of frame vibration.
- Temperature-controlled IMUs, allowing optimum working temperature of IMUs.
- Entire flight management unit (FMU) and inertial management unit (IMU) housed in small form factor (cube).
- Manufacturers can design their own carrier boards to suit their specific needs now and in the future.

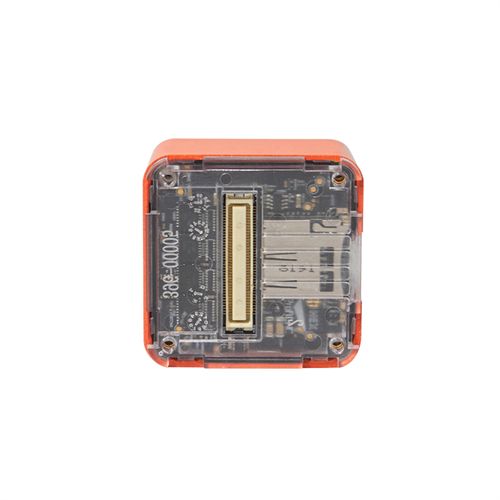

- CubePilot carrier board compatible. All inputs and outputs go through a 80 pin DF17 connector, allowing plug-in solution for manufacturers of commercial systems.
- Upgraded triple redundant IMU sensors.
- Two sets of IMU are vibration-isolated mechanically, reducing the effects of frame vibration.
- Temperature-controlled IMUs, allowing optimum working temperature of IMUs.
- Entire flight management unit (FMU) and inertial management unit (IMU) housed in small form factor (cube).
- Manufacturers can design their own carrier boards to suit their specific needs now and in the future.
- CubePilot carrier board compatible. All inputs and outputs go through a 80 pin DF17 connector, allowing plug-in solution for manufacturers of commercial systems.
Product Details
Please note that:
At present, due to the relatively new chip,
PX4 firmware and old apm firmware are not supported temporarily.
Firmware above v4.2.3 of apm can be used.
At present, due to the relatively new chip,
PX4 firmware and old apm firmware are not supported temporarily.
Firmware above v4.2.3 of apm can be used.
Item Packing
Main Control Module x 1
