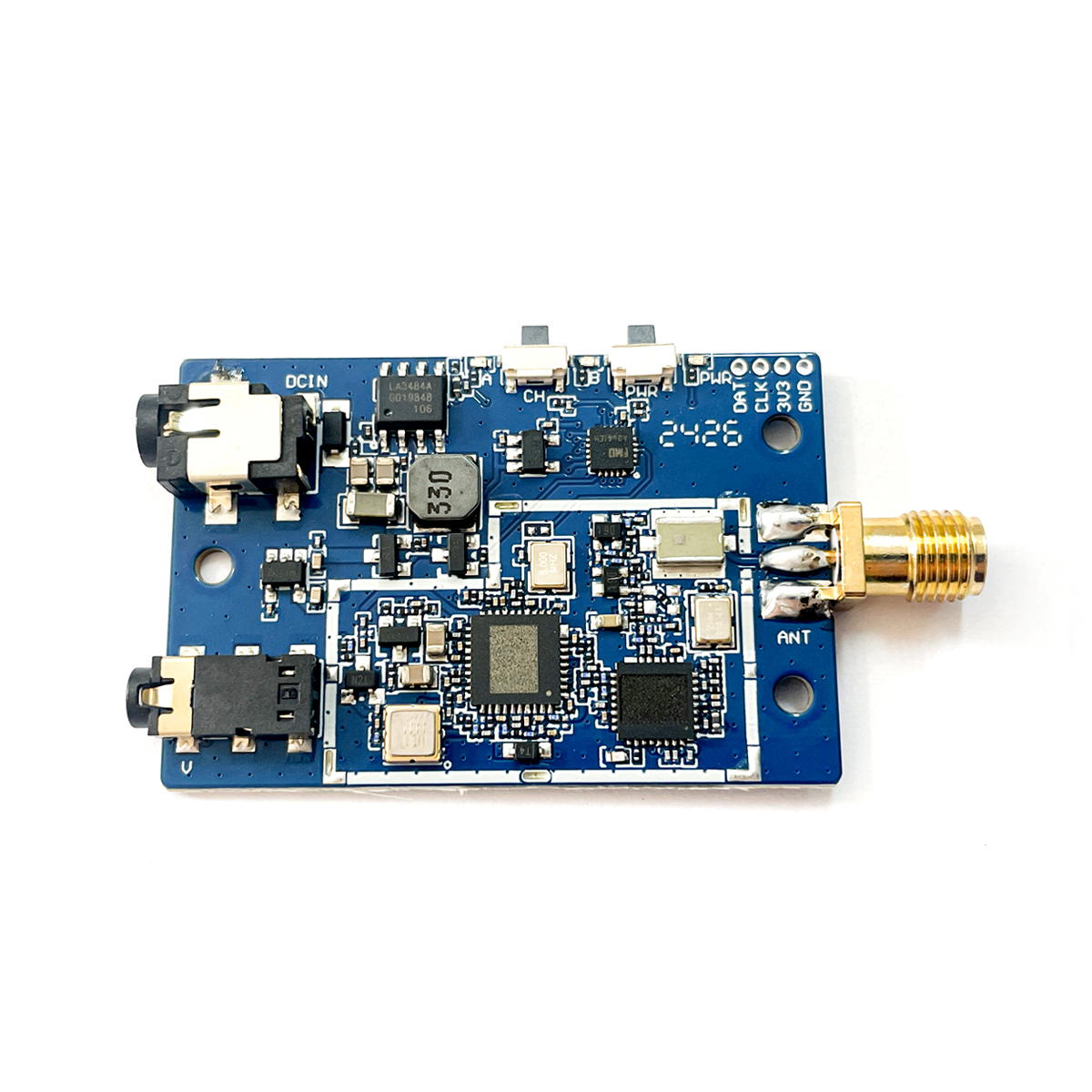

1.2GHz FPV Video Receiver Module VRX 9CH 7-36V with Antenna Long Range Signal Receiver for RC Drone
1.2GHz FPV Video Receiver Module VRX 9CH 7-36V with Antenna Long Range Signal Receiver for RC Drone
1.2GHz FPV Video Receiver Module VRX 9CH 7-36V with Antenna Long Range Signal Receiver for RC Drone

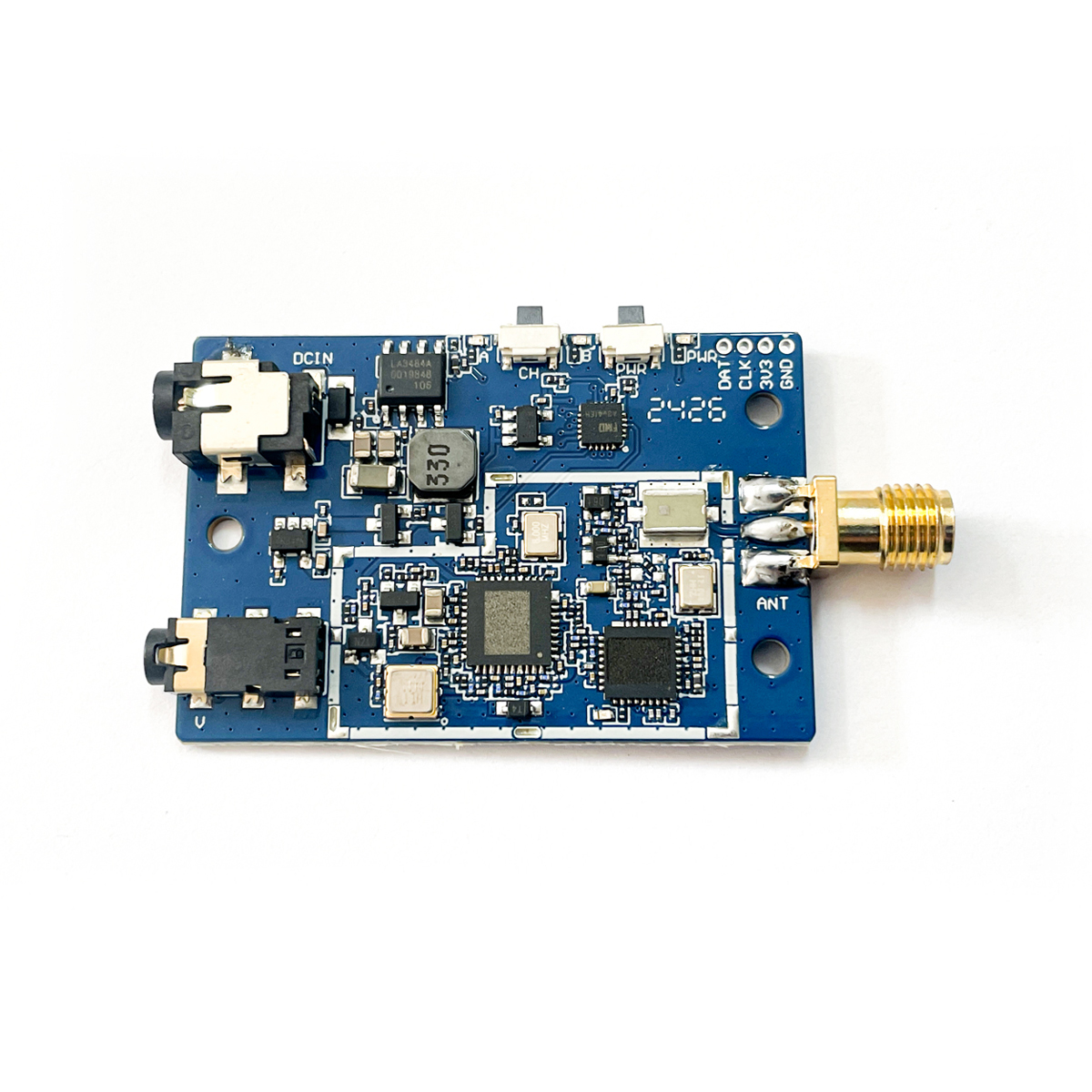

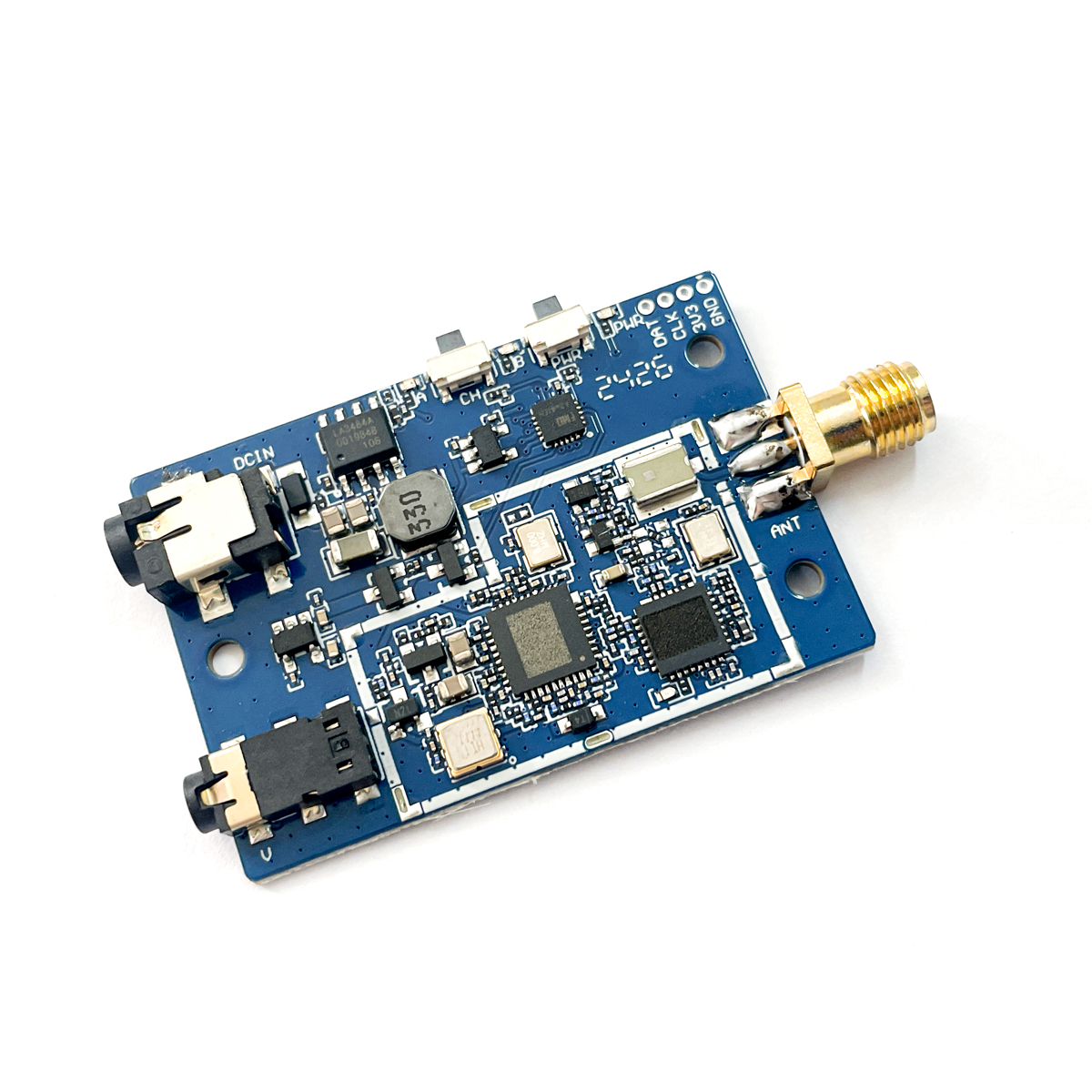

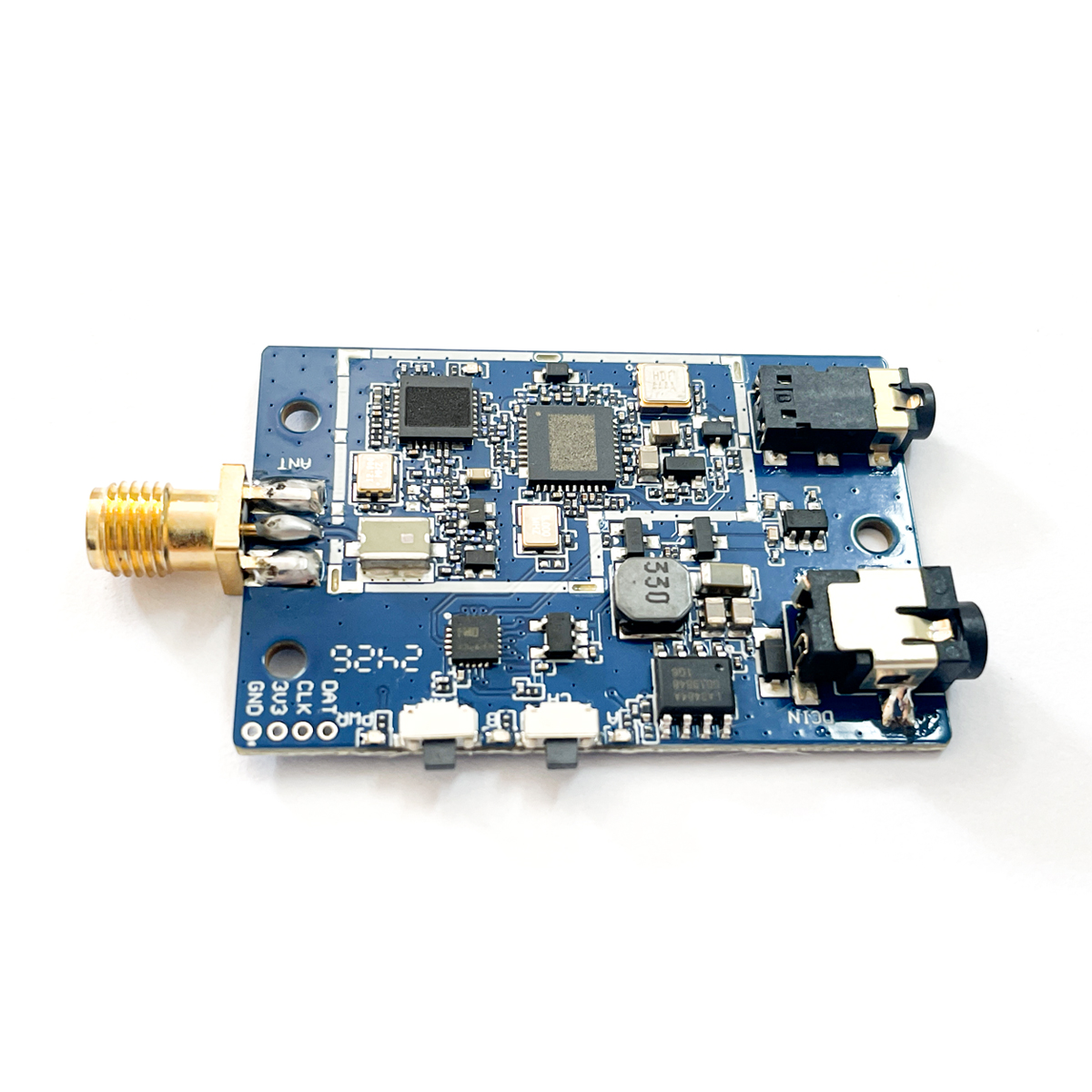

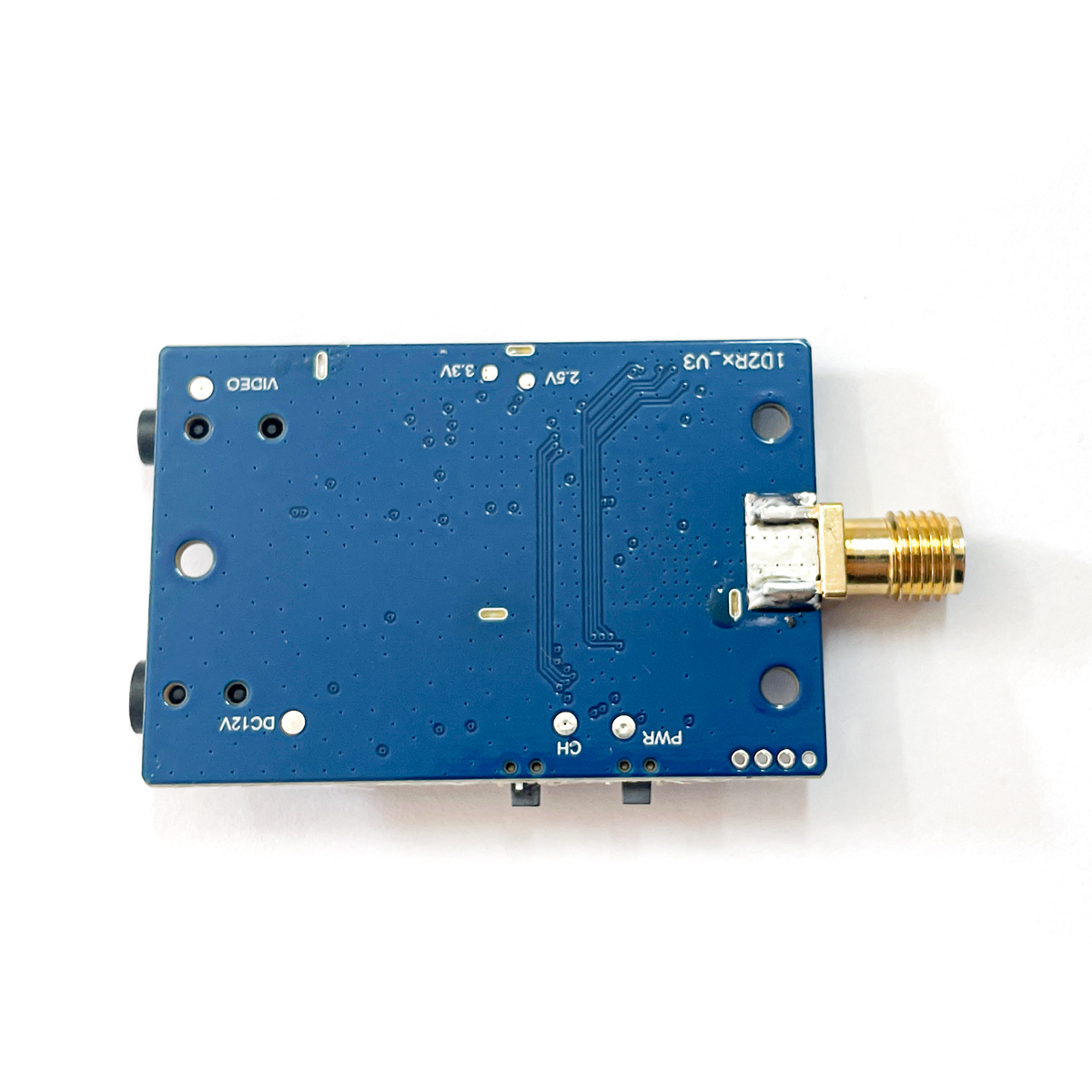

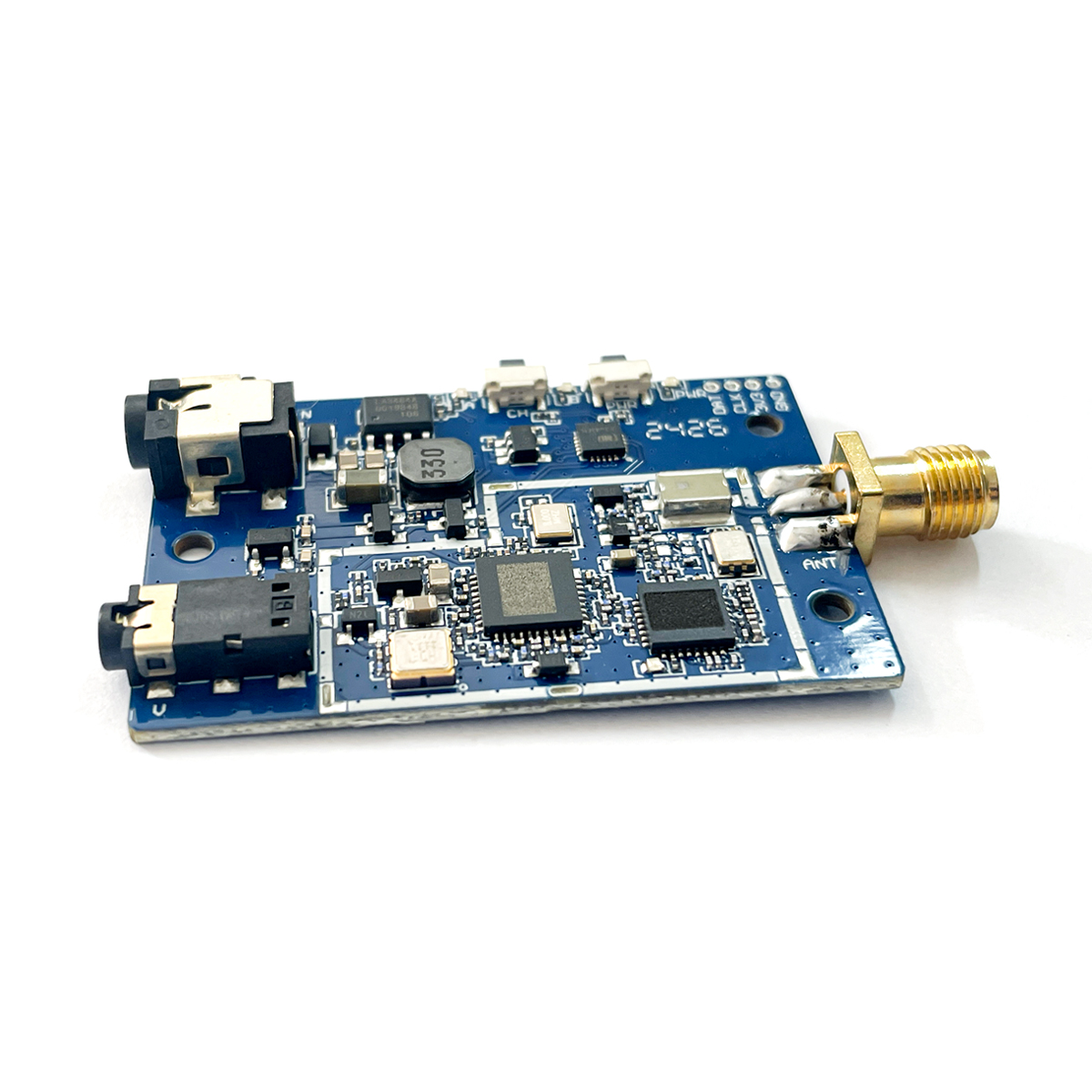

Model: 1.2GHz VRX
Receiving Frequency: 9 Frequency Points (1080MHz to 1360MHz)
Input Voltage: DC 7-36V
Current Consumption: 105mA @12V
Control & Indication: Button Control and LED Indicators
On-Board Regulator Output: 5V 1A RX
Sensitivity: -95dBm
Voltage Standing Wave Ratio (VSWR): 2:1
Demodulation Mode: FM/PLL
Input Impedance: 50Ω, Typ.
Video Output Impedance: 75Ω, Typ.
RF Connector: SMA

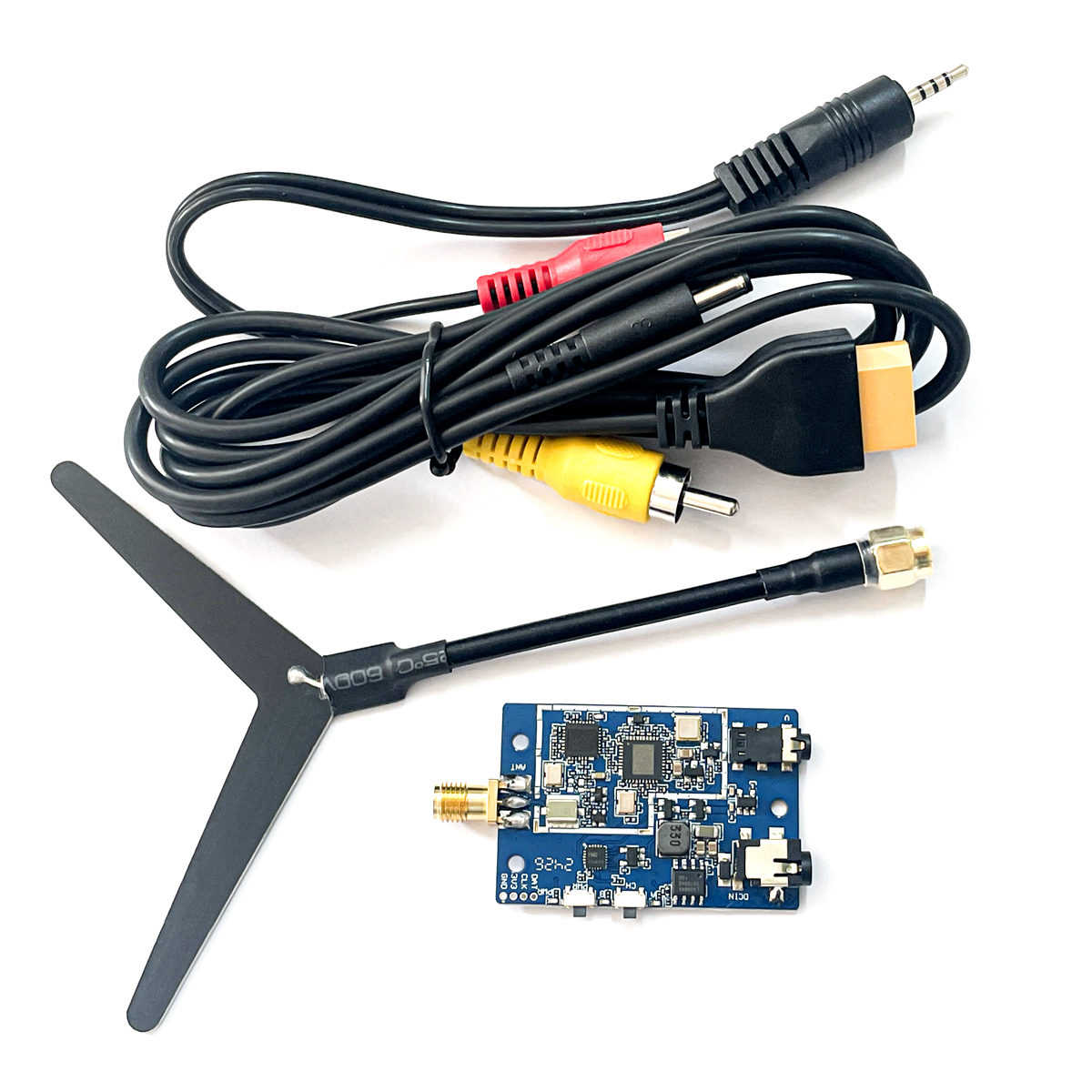

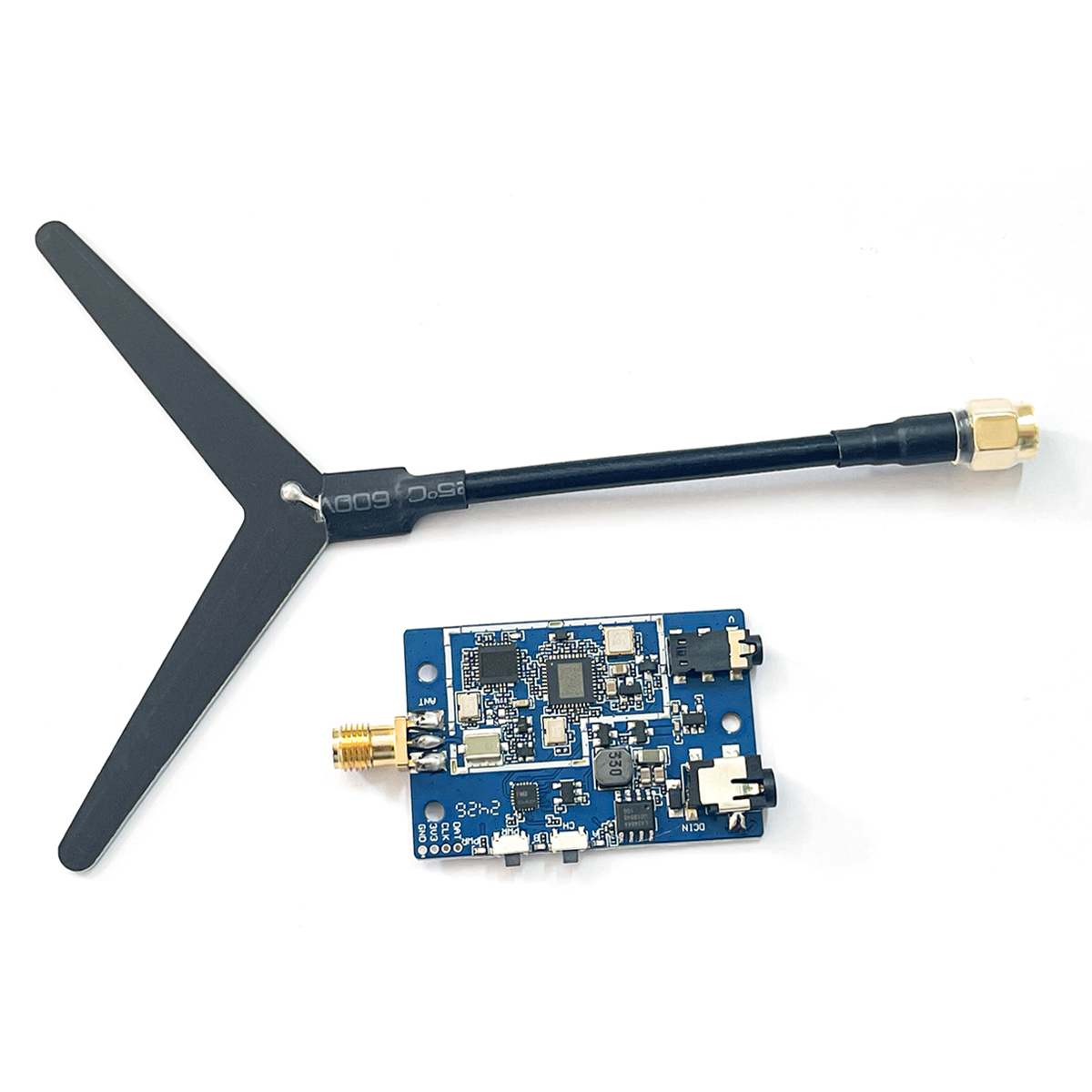

1.2G Receiver x1

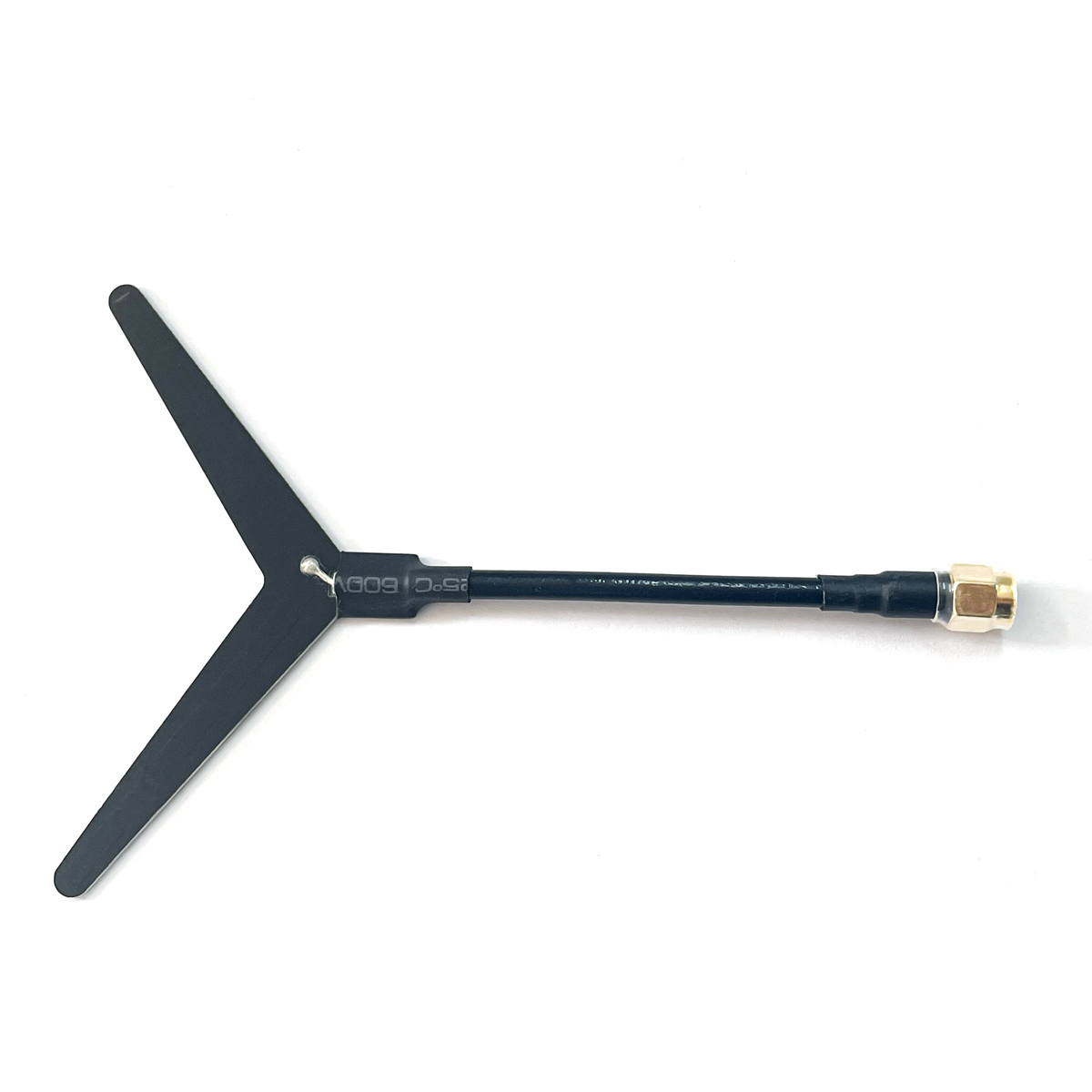

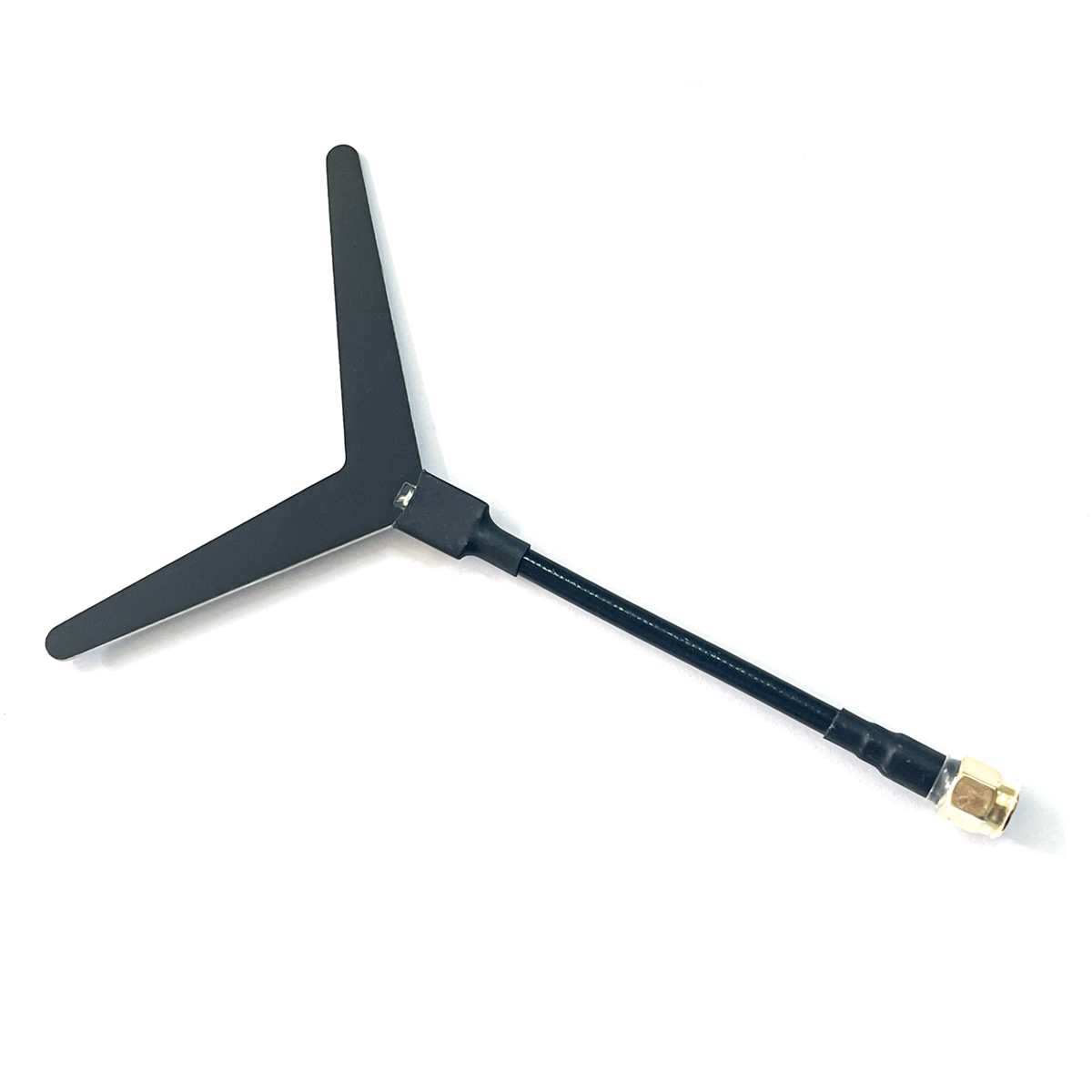

Y-Type Antenna x1
Video Cable x1
Power Supply Cable x1
