3DR Radio Telemetry 500MW 915Mhz Air and Ground Data Transmit Module For APM 2.6 2.8 Pixhawk Flight Control
3DR Radio Telemetry 500MW 915Mhz Air and Ground Data Transmit Module For APM 2.6 2.8 Pixhawk Flight Control
Independent signal amplifier 1W
Same design, both modules can be used either on the groundstation or in the air

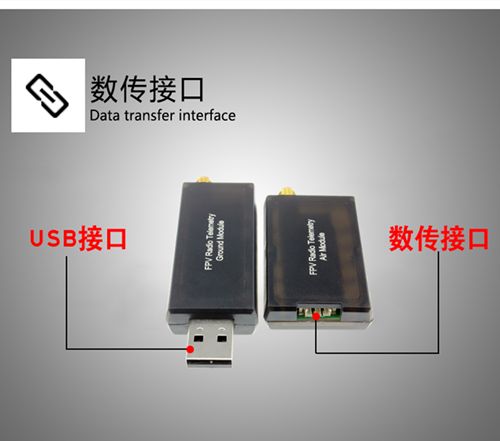

Both come with Micro USB TTL port
Equips with 3 kinds of cable for APM and Pixhawk(5P for Apm,6P for Pixhawk) OTG
Use a small omnidirectional antenna up to several kilometers
Bidirectional amplifiers available for greater range
Open source firmware
Frequency:915MHZ

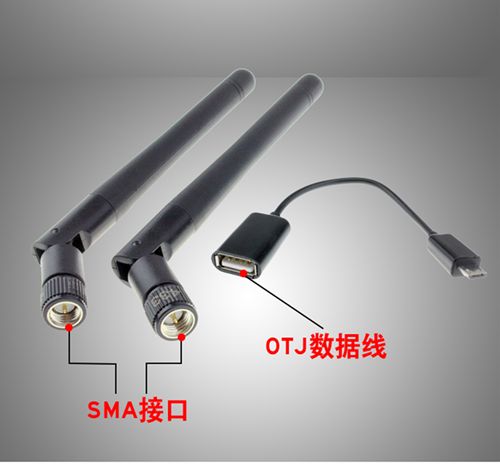

Antenna connectors: RP-SMA connector
Power: 500mw
Sensitivity: -118dBm sensitivity

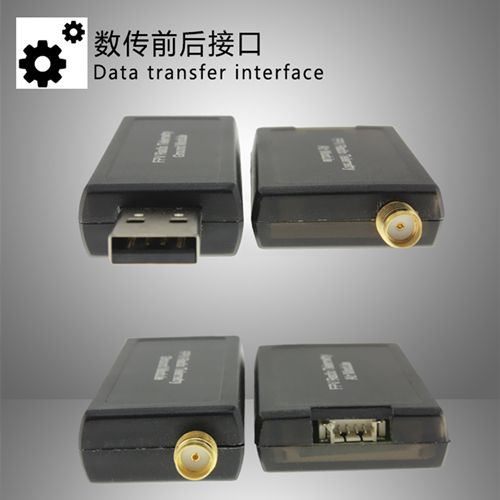

Interface: Standard TTL UART
Connection status: LED indicators
Net weight: 63g

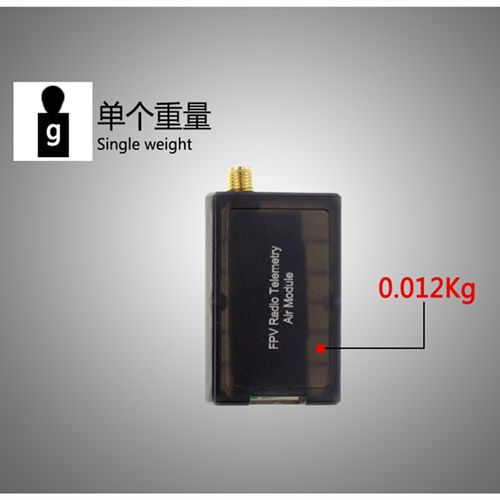

RadioTelemetry Air Module Dimension: 51*30*10mm/12g
RadioTelemetry Ground Module Dimension: 70*25*12mm/15g
1 x Air Module
1 x Groudstation Module
1 x Apm Cable 5P
1 x Pixhawk Cable 6P
1 x OTG Cable
