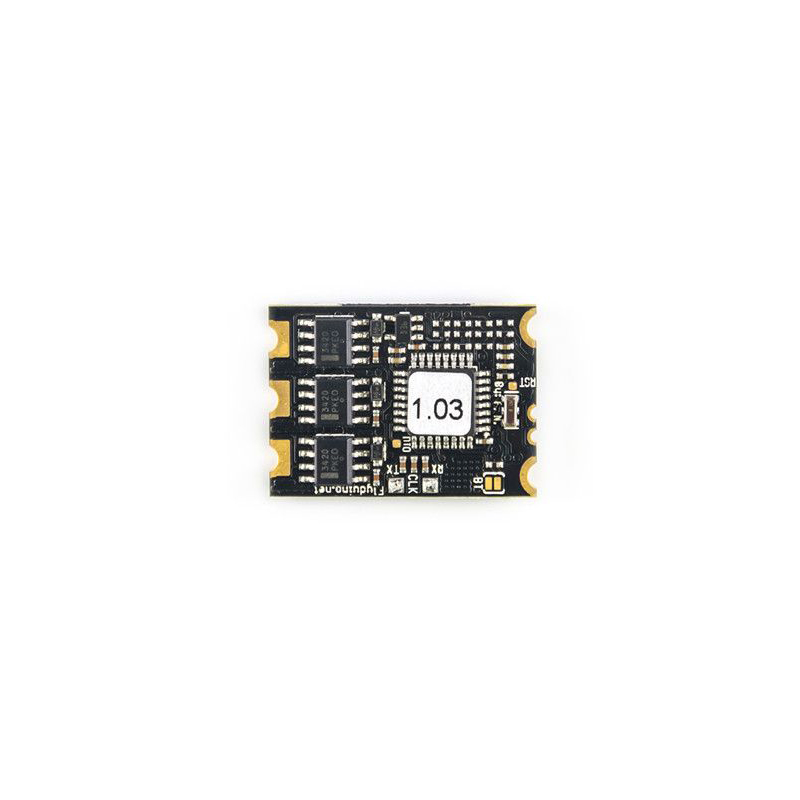

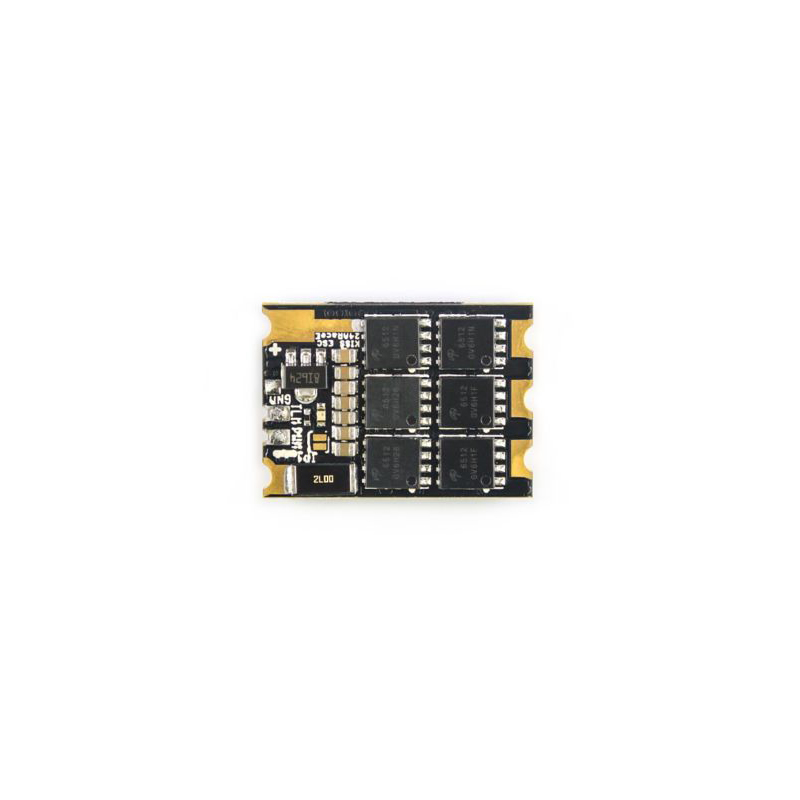

KISS ESC 24A RE FW 1.03
In the sense of our KISS ESC line this ESC offer a great compability to a wide range of motors, the work of years went in to making the best possible here.
The fast 32it Arm Cortex CPU does a very good job and runs the ESC very effective, of course reaction times are top notch.
The 24 RE is layed out as a beefy ESC which withstand quite some abuse due to FPV races, several mechanisms doing its best to protect your valuable equipment, the rating of 24A wont need direct cooling, mounting them partially covered is ok.
No need to worry with different firmwares, simply solder and fly (some solder skills are the only needed skills).
First ESC with with oneshot42 support (dont worry, Oneshot125 and normal PWM are auto detected too).
Beside this, this is the first ESC who offer a easy to use telemetry function over the regular servo connector which you can use in combination with our KISS-FC, no external heavy parts needed anymore to have infos like voltage, ampere and even your RPM on your OSD (MinimOSD supported) or on your receiver LCD screen (Frsky-Taranis, f.e.).
– 32-bit ARM Cortex MCU@48Mhz
– Telemetry capable (voltage, current, temperature, RPM)
– Overcurrent protection (measures the current and reduces it to a max of 30A)
– Over temperature protection (reduces max power if temp exceeds 120°C)
– Expanded adaptive auto timing
– Specifically designed for racing drones (24 amps continuous even with bad cooling)
– High max RPM (64000 with a 14 pole motor)
– Accurate RPM control (950 step resolution)
– Very fast throttle response
– Linear throttle response
– Active freewheeling
– Regenerative braking
– No external electrolytic capacitor required
– Fast FET switching due to the use of gate drivers
– Small and lightweight (19 x 27mm) (3.6g)
Specifications:
– Current Draw: 24A Continuous
– Voltage Range: 2-5s Lipo
– Weight: 3.53g
– Size: 19mm x 27mm x 4.5mm

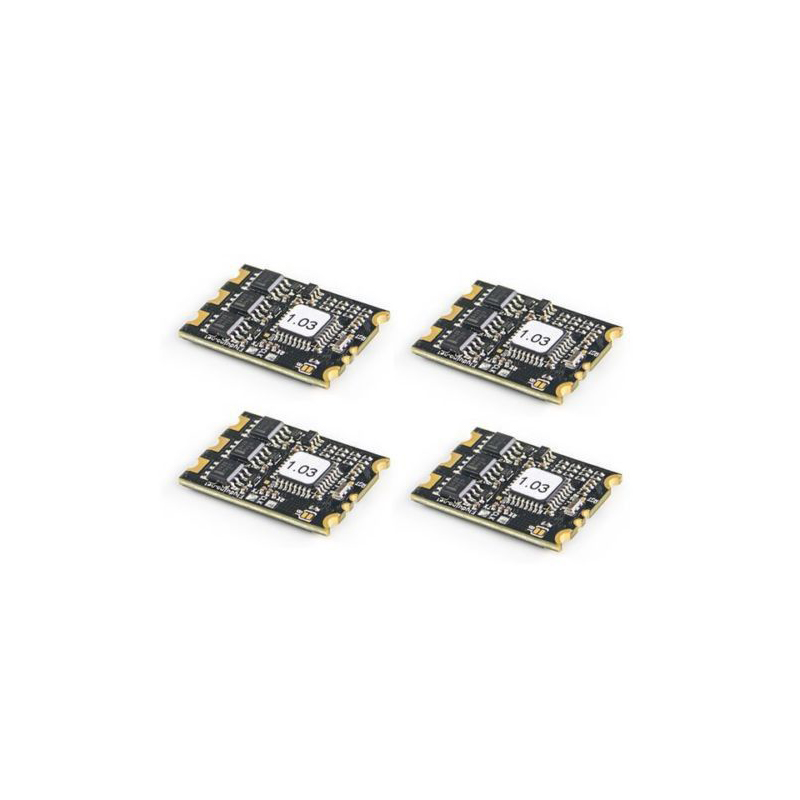

KISS ESC 2-5S 24A Race Edition V.1.03 X 4
