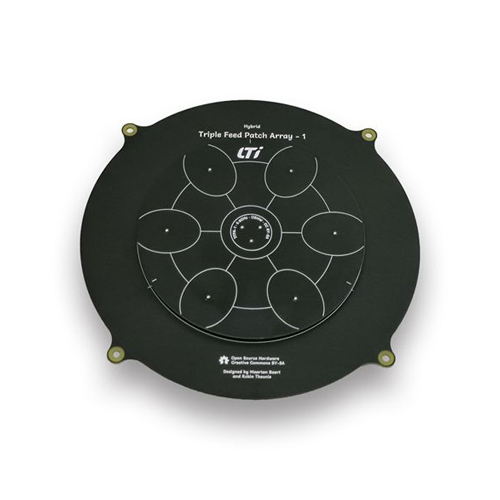

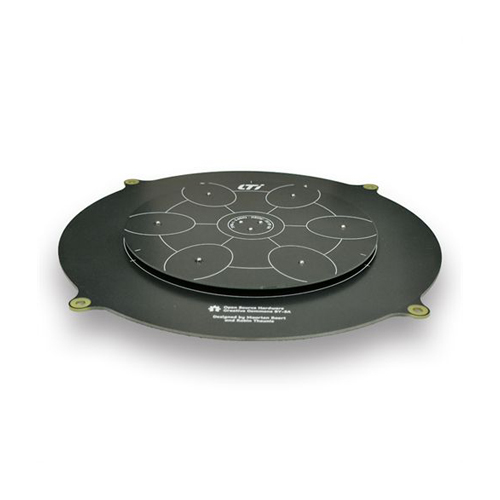

1PCS 5.8GHz Triple Feed Patch Array 14dBi Gain SMA RP-SMA Male Port Image Transmitter Flat Panel Antenna for FPV Drone Airplane
– Item name: triple feed patch antenna
– Center frequency: simulated:5.8GHz; measured:5.8GHz±100MHz
– Bandwidth: simulated:660MHz(5.47-6.13GHz); measured:950MHz±100MHz[Feed network losses increase bandwidth]
– Matching: simulated:S11＜-30dB,VSWR＜1.065; measured:S11＜-20dB,VSWR＜1.22[At center frequency]
– Axial ratio: simulated:1.05(0.38dB); measured:1.10(0.83dB)[Averaged over beam width]
– Antenna gain: simulated:14.4dBi; measured:14.0dBi
– Half power beam width: simulated:30°; measured:30°[horizontal and vertical]
– Radiation efficiency: simulated:75%; measured:74%

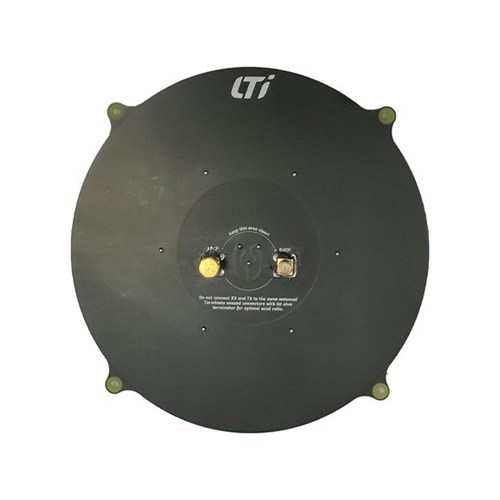

– Port:SMA male/RP-SMA male（optional）

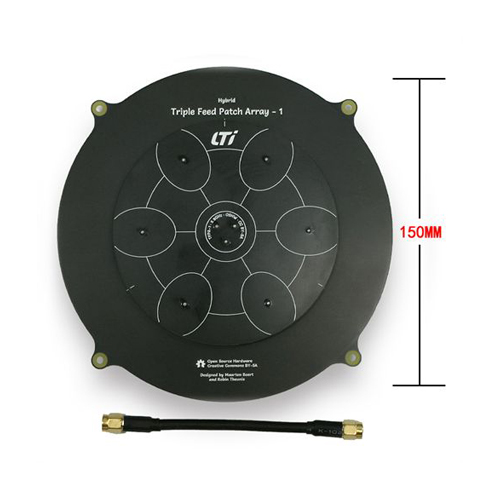

– Diameter:150mm
14dBi Antenna x1
