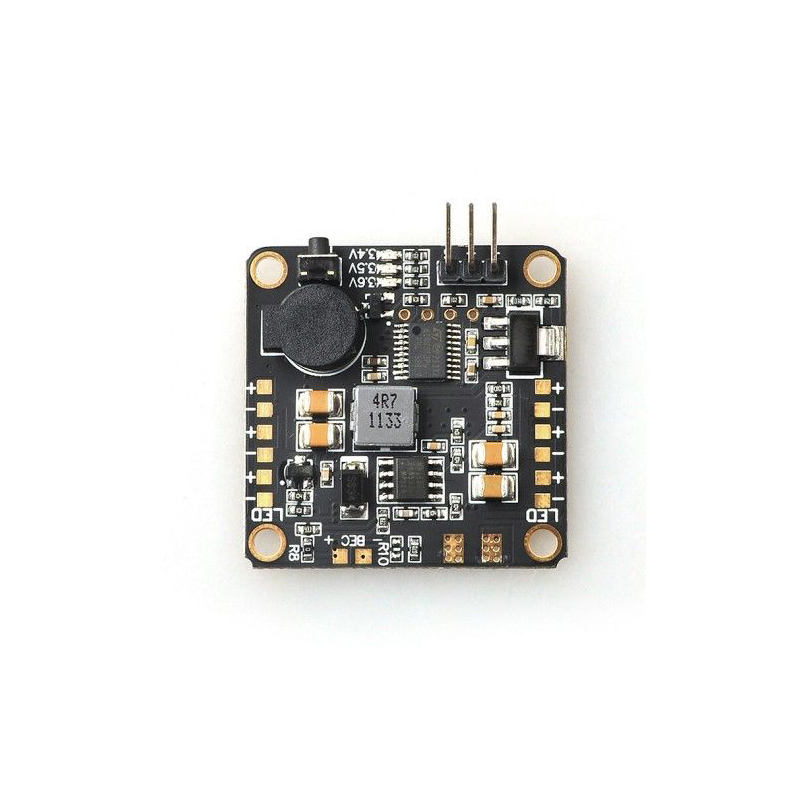

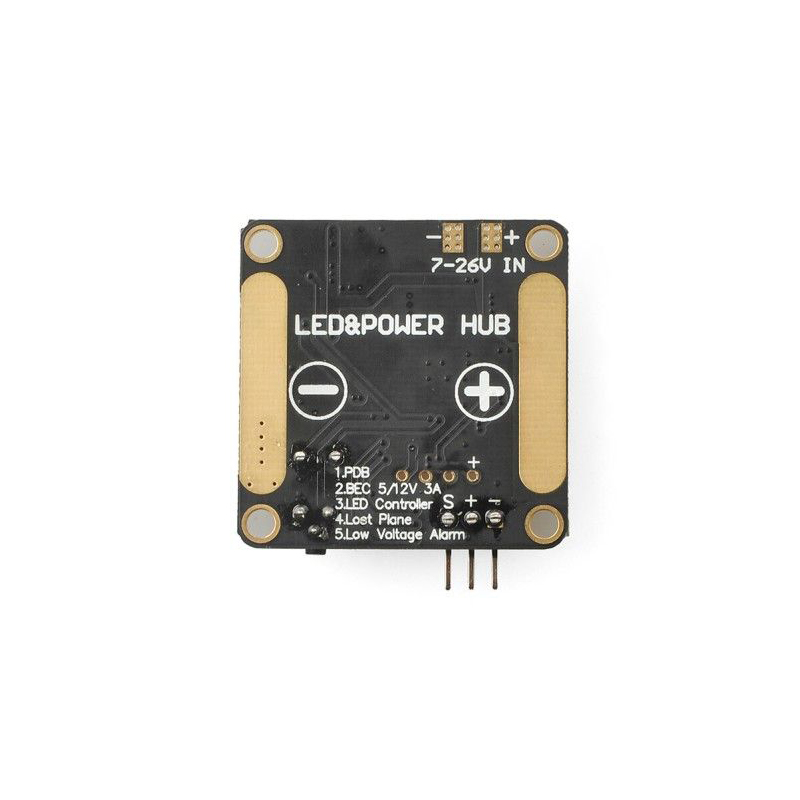

5 in 1 Power Distribution Board + LED Control + 5V/12V BEC+ Low Voltage Alarm+ Tracker
– 5 in 1 Module: Power distribution board + 5V/12V 3A BEC + LED control + Tracker + Low voltage alarm
– With 5V LED control, three modes: light, slow blink, and flash
– Tracker function, use remote control to trigger buzzer and LED lights, convenient for finding the plane
– Low voltage alarm. can set 3.4. 3.5V, 3.6V as alarm voltage
– Working voltage: 7~26V DC, 2~6 Cells Lipo
– Size: 36*36*6mm
– Weight: 6g
– Mounting hole pitch: 30.5mm. Diameter: 3mm, same with Naze32, CC3D flight control
– BEC:
Input voltage: 7~26V 2-6S Lipo battery
Output voltage: 5V/12V adjustable, Max 3A
– Can only use 5V/12V LED board (not included)
– 1* 5 in 1 power distribuiton board
