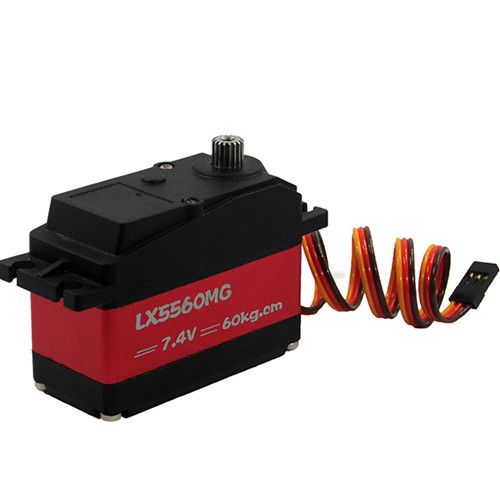

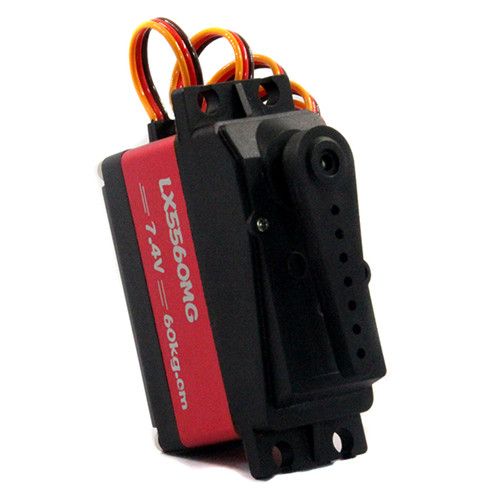

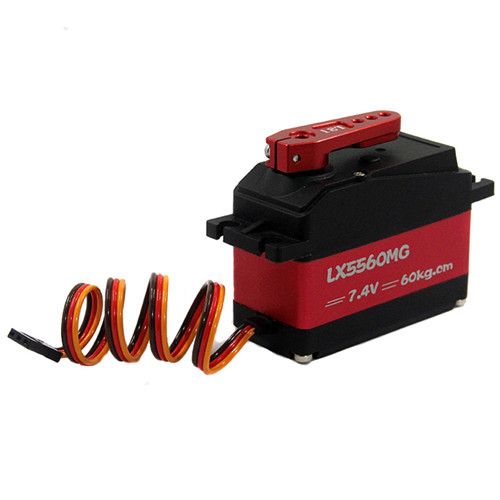

60kg LX5560MG SSG HV metal gear Digital 7.4V Rc Servo with 18T Arm for 1/5 Redcat HPI Baja RC Car servo Robot
60kg LX5560MG SSG HV metal gear Digital 7.4V Rc Servo with 18T Arm for 1/5 Redcat HPI Baja RC Car servo Robot
Durable Metal Gear
Dual Ball Bearing
Programmable Digital Amplifier with Mosft Drive
Bottom Side Axial Mount Hole
Original factory product
Less Noise
Contains: Long Holder Aluminum & Short Holder Aluminum & Circle Holder-18T & Circle Holder -Orientation Angle:maximum 180 or 270 deg
Mechanical Angle :360 deg
(Plug/Output wheel/Radio control system compatible with Futaba JR Hitec)
Tip:
The best use voltage is 7.4v.
It is recommended to use 2s battery for power supply (6v-8.4v)
Size:65*30*48(servo)
Weight:162g
Wire length:320mm
Speed: 0.17sec/60 degree at(6v)
0.15sec/60 degree at(7.4v)
0.13sec/60 degree at(8.4v)
Torque: 58kg.cm.at(6v)
65kg.cm.at(7.4v)
70kg.cm.at(8.4v)
Voltage: 6v-8.4v
Dead Zoon setting:3 Microseconds
LX5560MG Servo x1
18T Metal Arm x1
package of accessories x1
