9IMOD 3542 1630KV 2250KV Outrunner Brushless Motor 14 Pole 12 Slot High Torque for 1/10 1/12 RC Crawler Car
9IMOD 3542 1630KV 2250KV Outrunner Brushless Motor 14 Pole 12 Slot High Torque for 1/10 1/12 RC Crawler Car
Stable Output Power:14 Pole 12 Slot Hi-torque rotor design

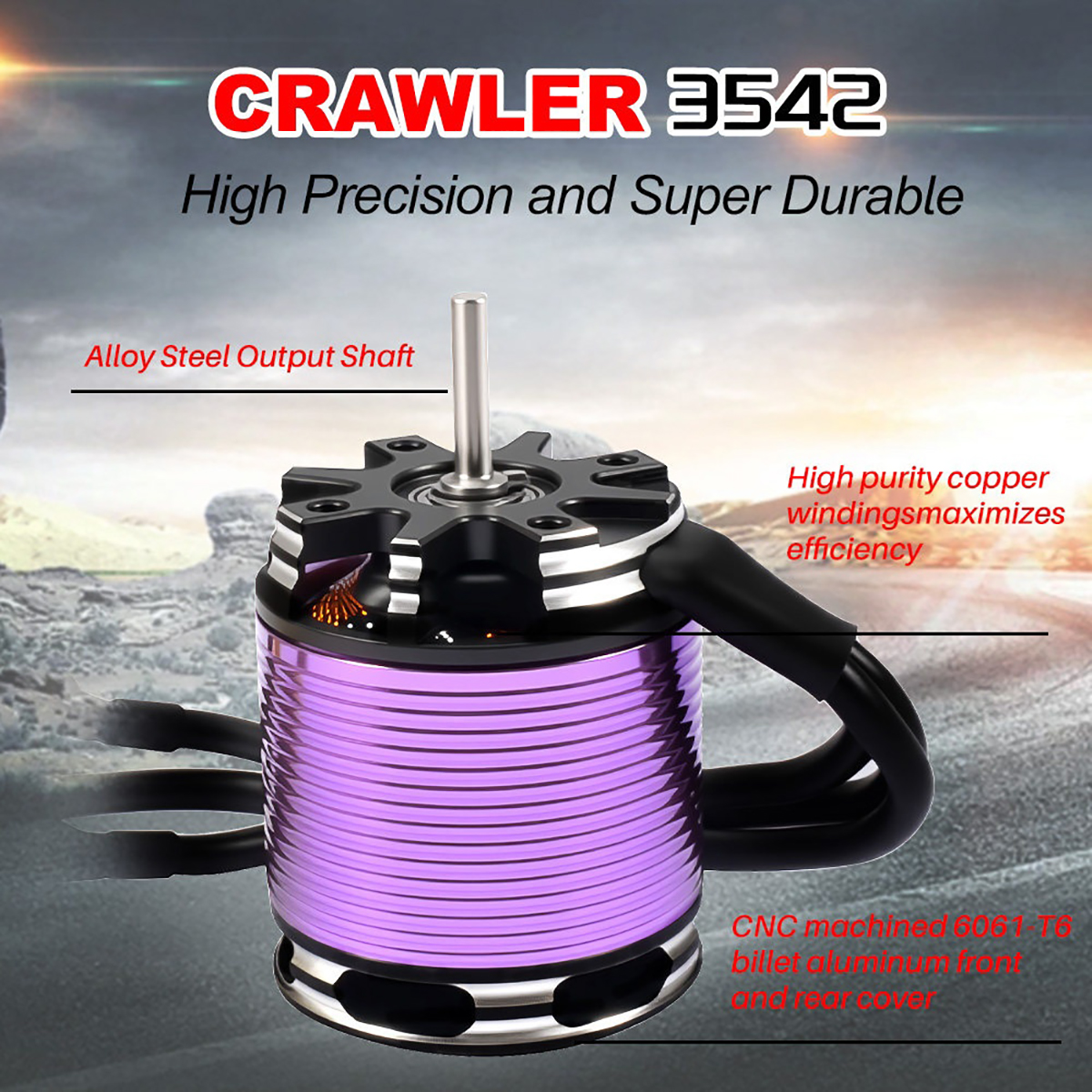

Material:CNC Machined 6061 T6 aluminum front and rear cover.High purity copper windings maximizes efficiency.High toughness stainless steel shaft( Φ 3 . 175mm), high precision and high quality bearing make the motor super durable.

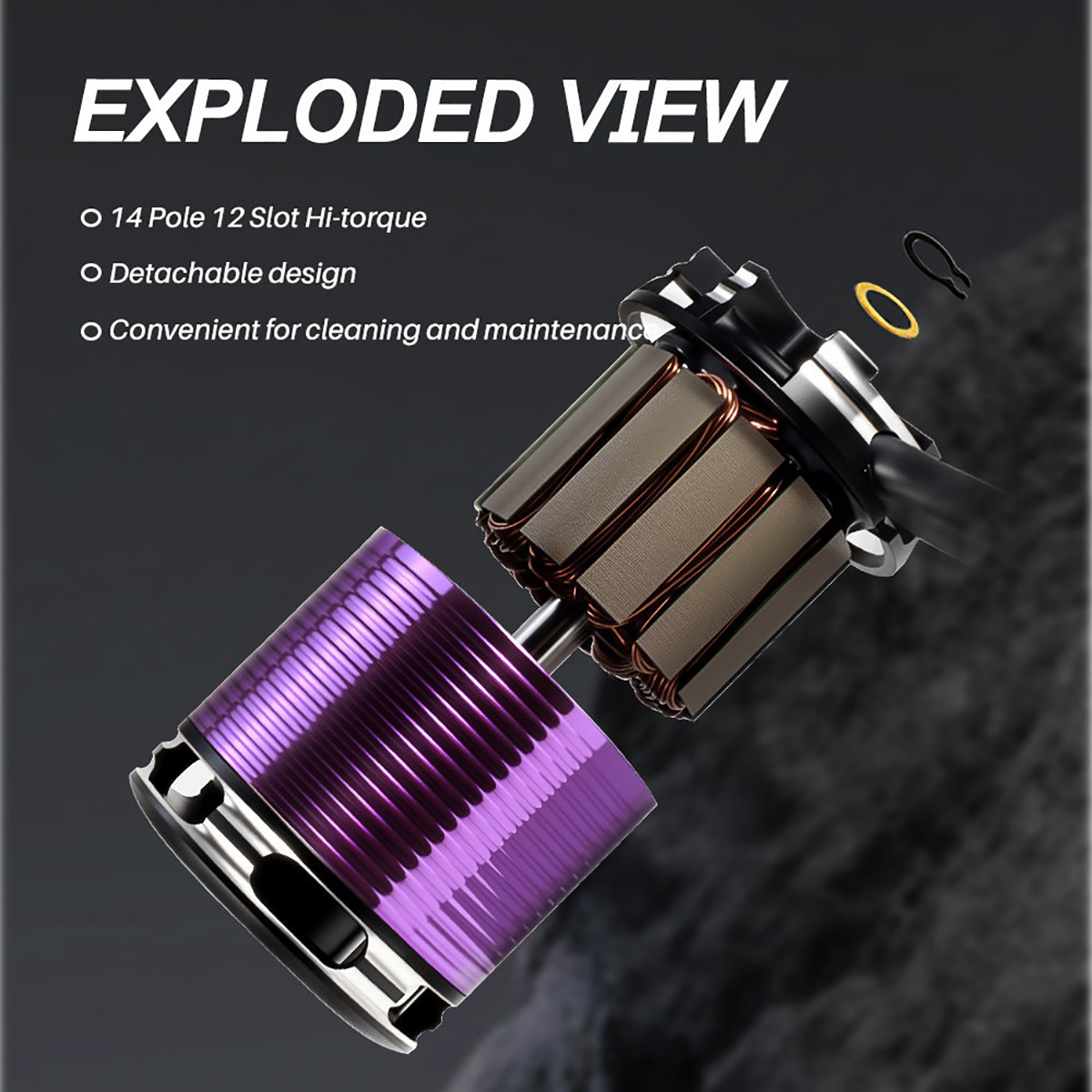

Removable/Replaceable Design:Detachable design, Convenient for cleaning and maintenance, Effectively extend the service life of the motor and improve work efficiency.
High Performance:Excellent torque and drive ability, engineered for maximum energy conversion.

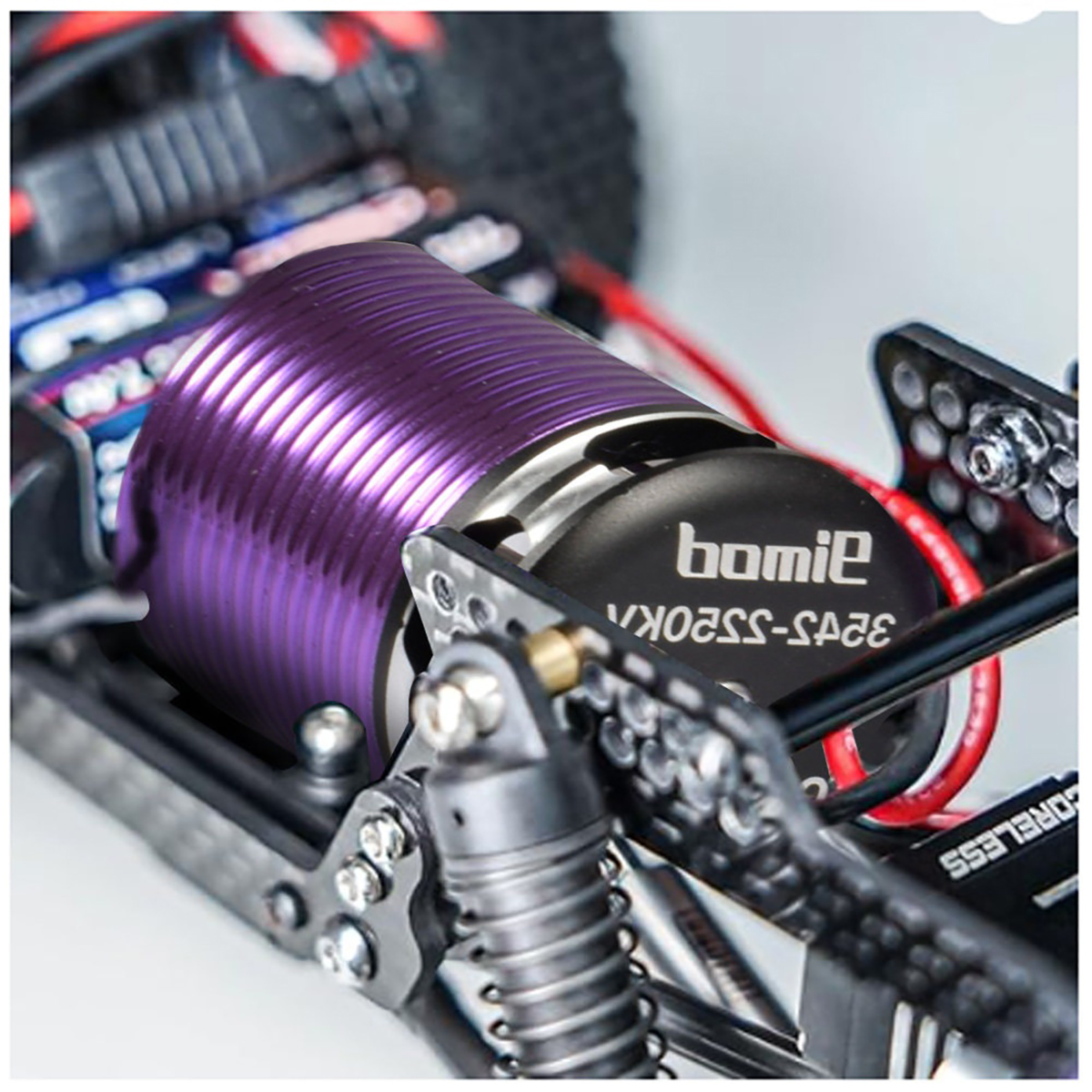

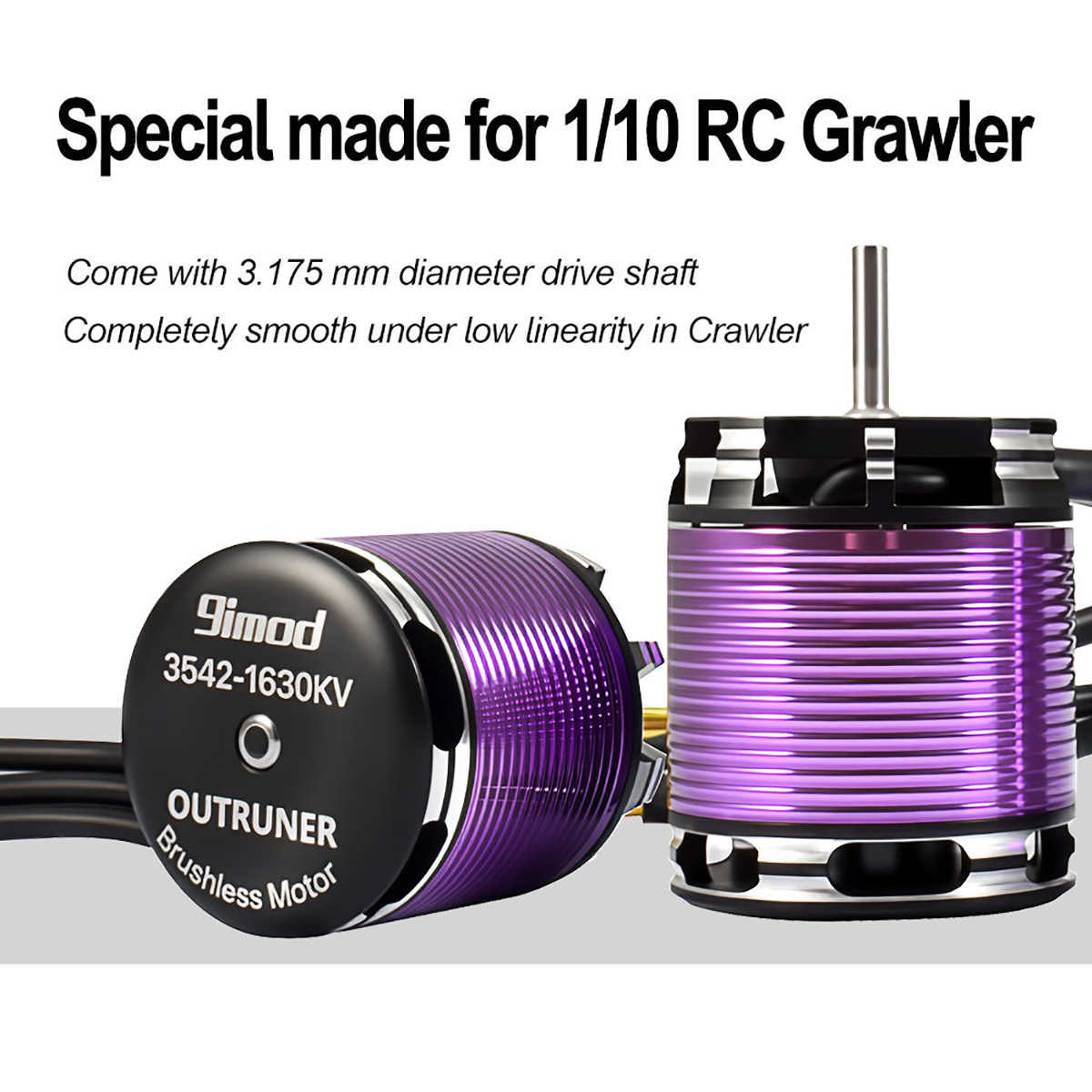

Suit For:Special made for RC 1/10 1/12 brushless crawler cars.

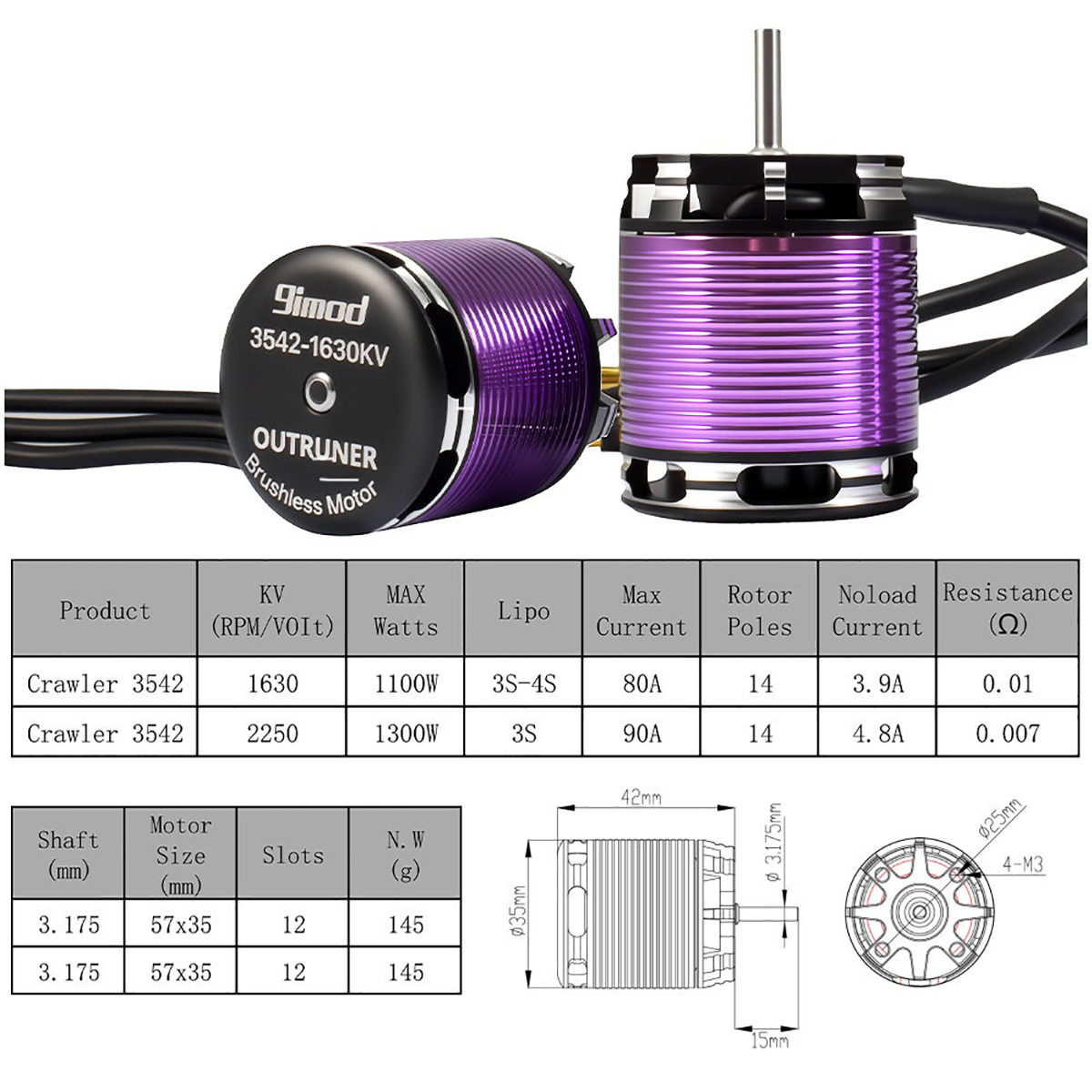

Model: 3542-1630KV
MAX Watts: 1100w
lipo: 3s-4s
Max Current: 80A
Rotor Poles: 14
Noload Current: 3.9A
Resistance (Ω): 0.01

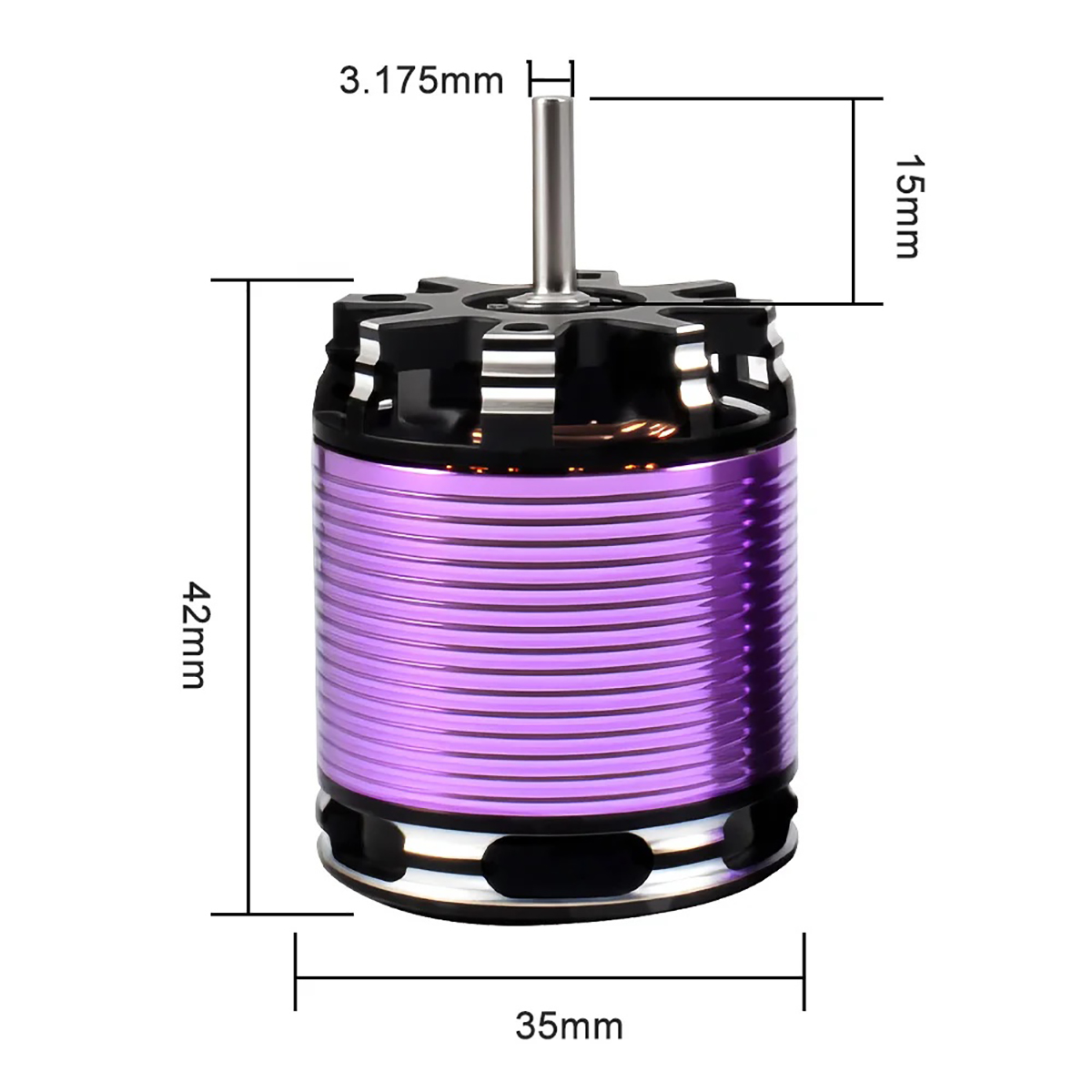

Shaft(mm): 3.175
Motor Size(mm): 57*35
Slots: 12

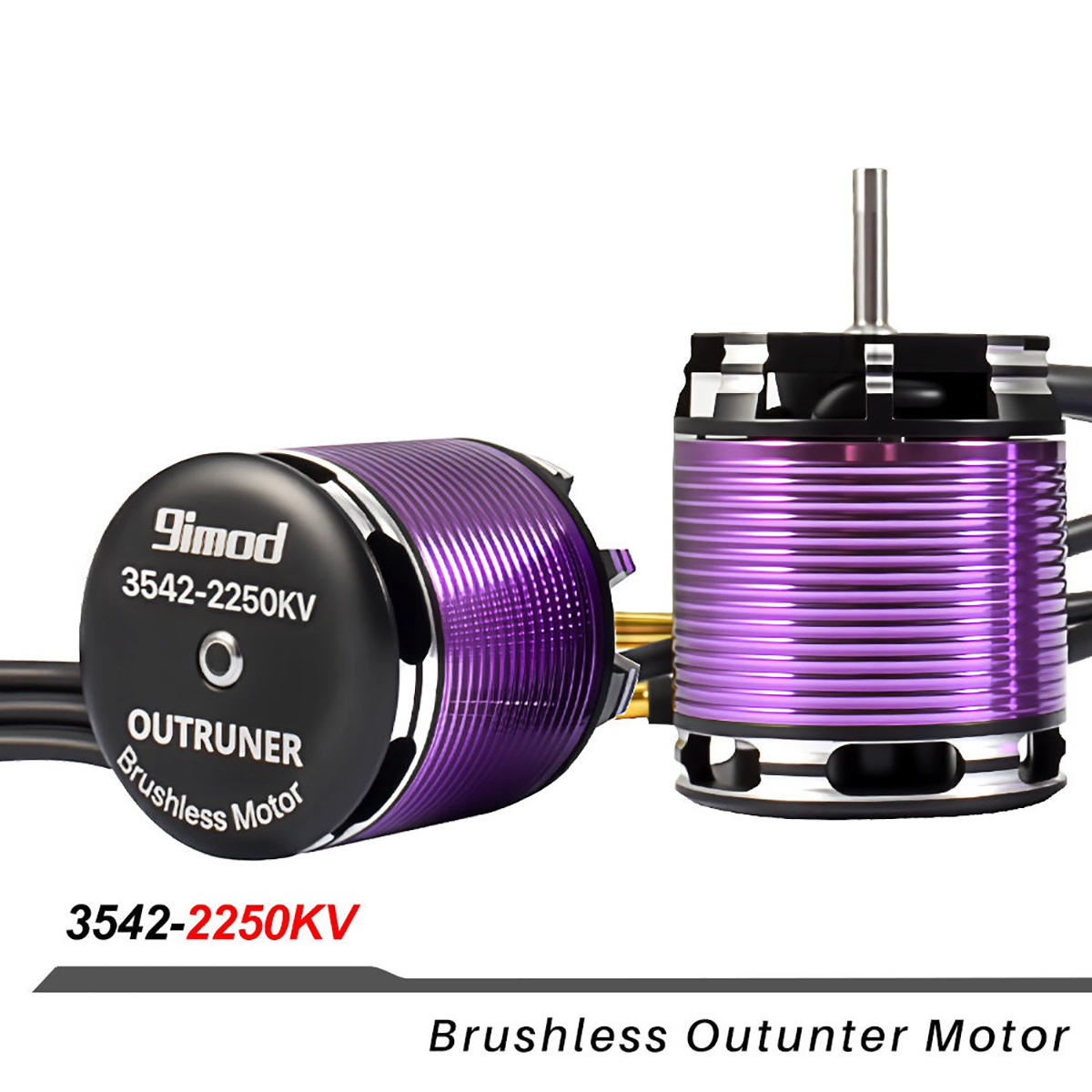

Model: 3542-2250KV
MAX Watts: 1300w
Lipo: 3S
Max Current: 90A
Rotor Poles: 14
Noload Current: 4.8A
Resistance (Ω): 0.007
Shaft(mm): 3.175
Motor Size(mm): 57*35
Slots: 12
3542 Brushless Motor x1
