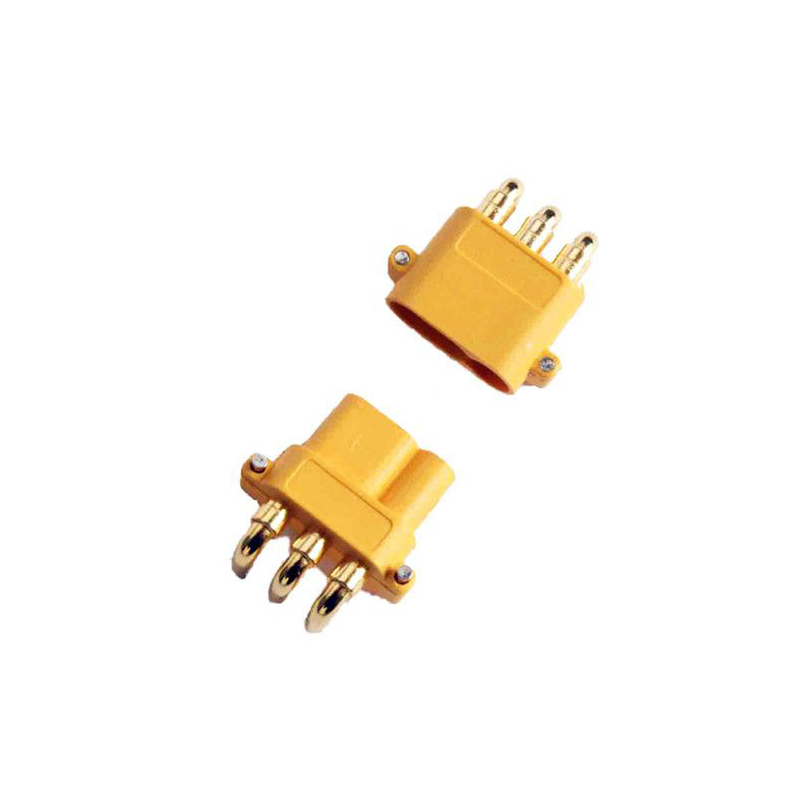

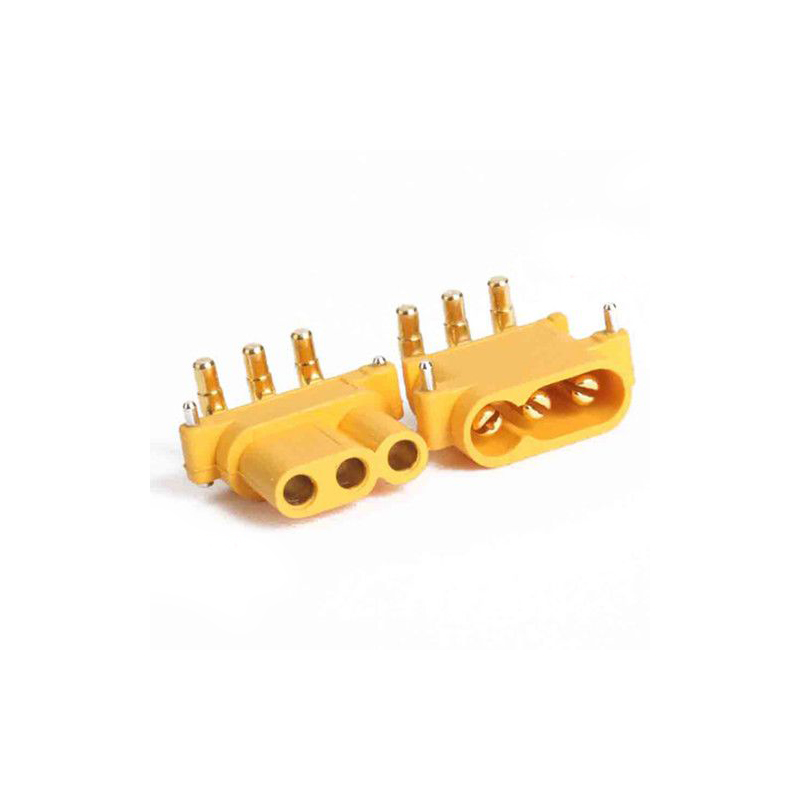

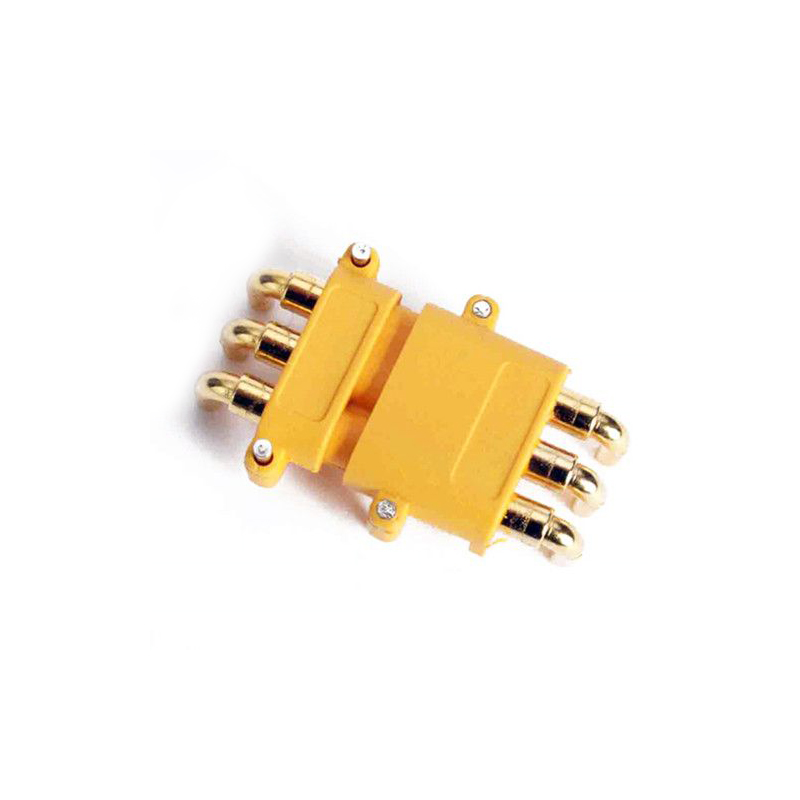

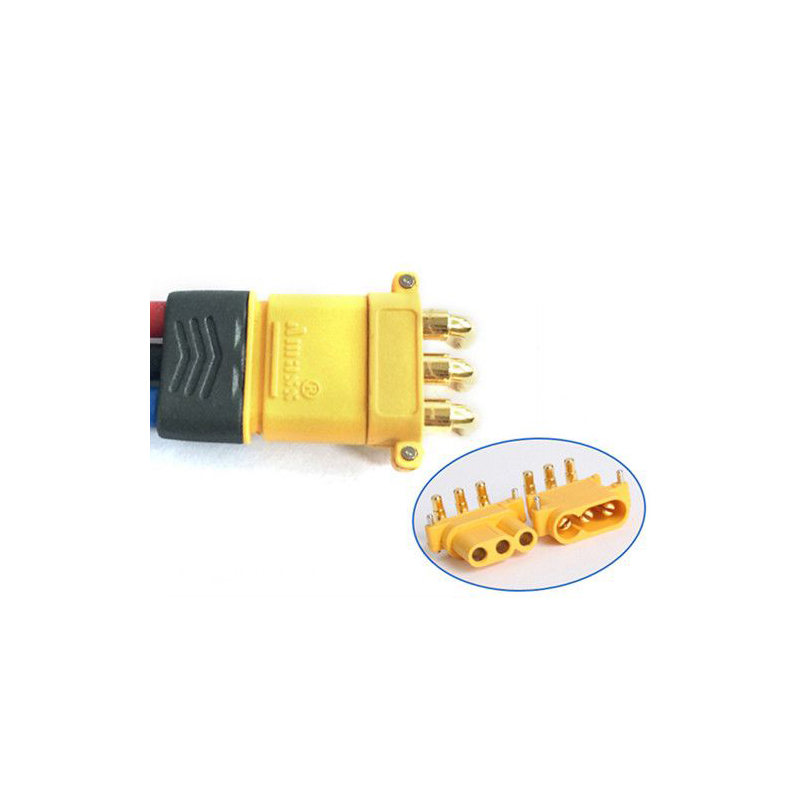

Amass MR30PW Connector Plug Female & Male XT30 three core version
– Suitable for connecting ESCs and motors
– Assistive weld foot, more stable

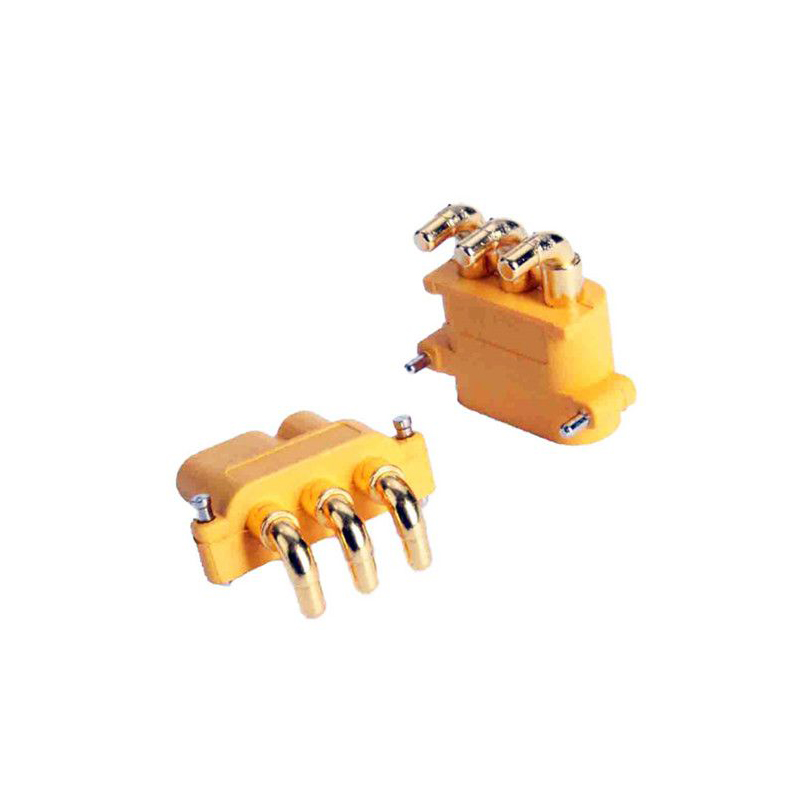

– 90 degree foot, suitable for welding on circuit board.
Brand Name: Amass
Item Name: MR30PW connector
Body Material and Surface Plating: Brass and gold plated
Insulation Material: PA66
Original Internal Resistance: 0.8MΩ
500 Times Internal Resistance: 0.85MΩ
Max. Continuous Current: 30A (within 30 minitues)
Max. Instantaneous Current: 40A (within 1 minitues)
Recommended Cable Spec: 18AWG 2.8mm diameter
Recommended Soldering Spec: 400° C/3S
Weight: 1.2g
Insulation Degree: UL94V-0
Machine Life: 1000 Times
Amass MR30PW Connector male x 1
Amass MR30PW Connector female x 1
