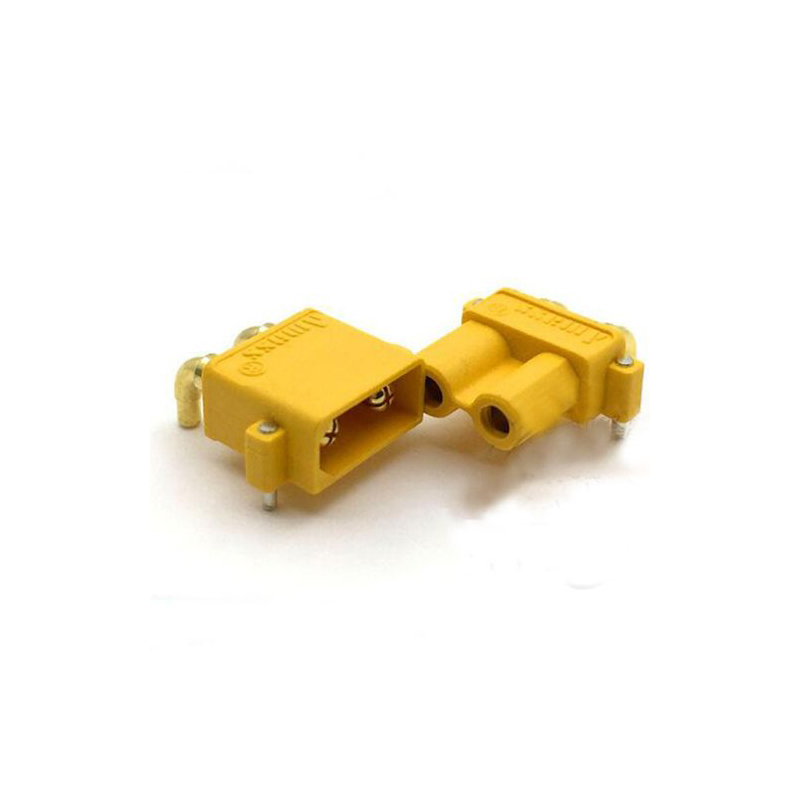

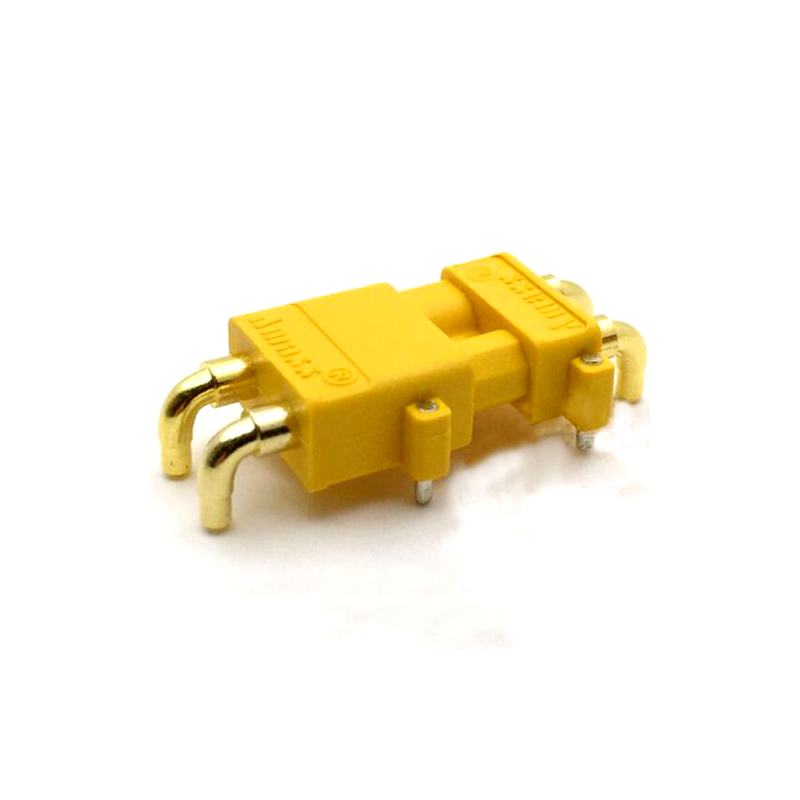

AMASS XT30PW Banana golden XT30 Upgrade Right Angle Plug Connector male female ESC Motor PCB board plug connector for RC model
AMASS XT30PW Banana golden XT30 Upgrade Right Angle Plug Connector male female ESC Motor PCB board plug connector for RC model
Body material and surface plating:brass and gold plated
Insulation material:PA66
Original internal resistance:0.8MΩ
Maximum continuous current within 30 minutes(temperature rise<80℃):30A
Recommend cable specification:18AWG wire Φ2.8MM
Mechanical life:3000 times
Weight:1.7g/1.8g
Insulation material:UL94V-0
500 Times internal resistance:0.85MΩ
Maximum instantaneous current within 1 minute(temperature rise<120℃):40A
Recommend soldering temperature and time:400℃/3S
Trough 20A current 10-300HZ Sweep vibration Amplitude 5MM Cycle 1MIN:Voltage stability No soaring or disappearing
Product Name: PCB board for horizontal connector, low temperature rise flame retardant plug

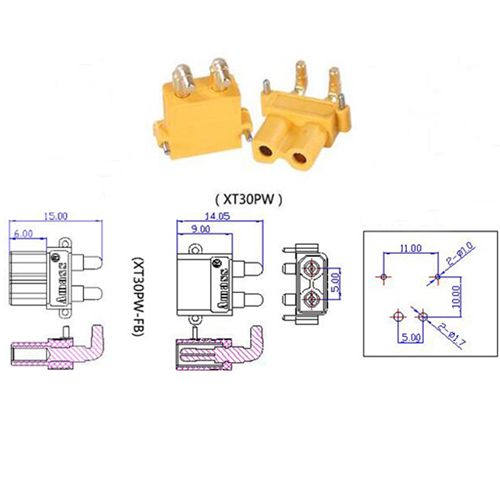

Product Type: XT30PW
Resistant current: 30A
Molded Case Material: Nylon
Surface treatment: frosted
Metal Material: Copper Gold Plated
Applicable products: suitable for small current small drone FPV motor ESC port
AMASS XT30PW
