AMASS XT90PB Plug 4.5mm Male Female Banana Plug Connector for RC Battery Lipo and Motor RC Models Connection Cable Toys DIY
AMASS XT90PB Plug 4.5mm Male Female Banana Plug Connector for RC Battery Lipo and Motor RC Models Connection Cable Toys DIY
1. 100% Amass Brand new and high quality.
2. Lightweight design,small size, high resistance current.
3.Suitable for the situation that needs a lightweight or small size plug.
4. Ensures high-amp connection.
5. Used in RC battery and motor.
6. Made of high-temp Nylon and gold plated spring connectors, both included in the injection mould at the time when forming the connector.

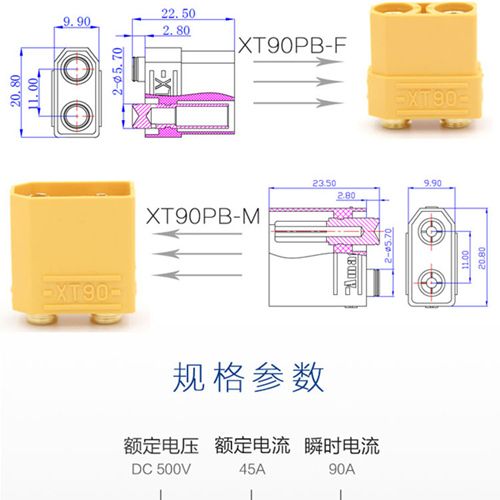

Banana Plug: 4.5 mm
Body Material: Brass and gold plated
Insulation Material: Nylon/PA
Internal Resistance:0.30mΩ
Maximum continuous current / instantaneous current: 45A / 90A
Rated Voltage: DC 500V
Temperature Resistance: -20°C – 120°C
FR Level: UL94 V0
Recommend Use:1000 times
Certification: CE/UL

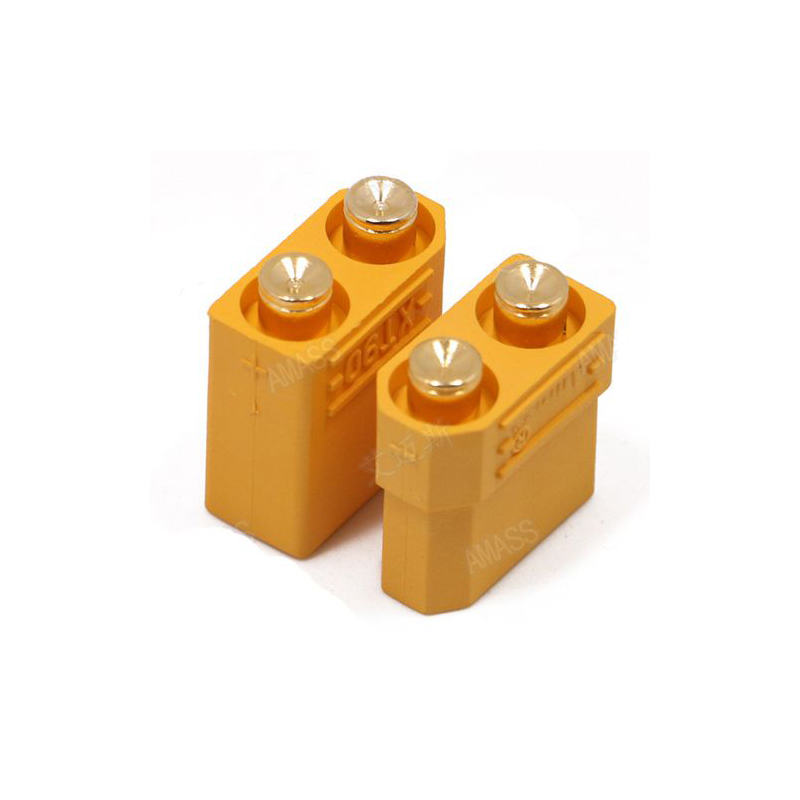

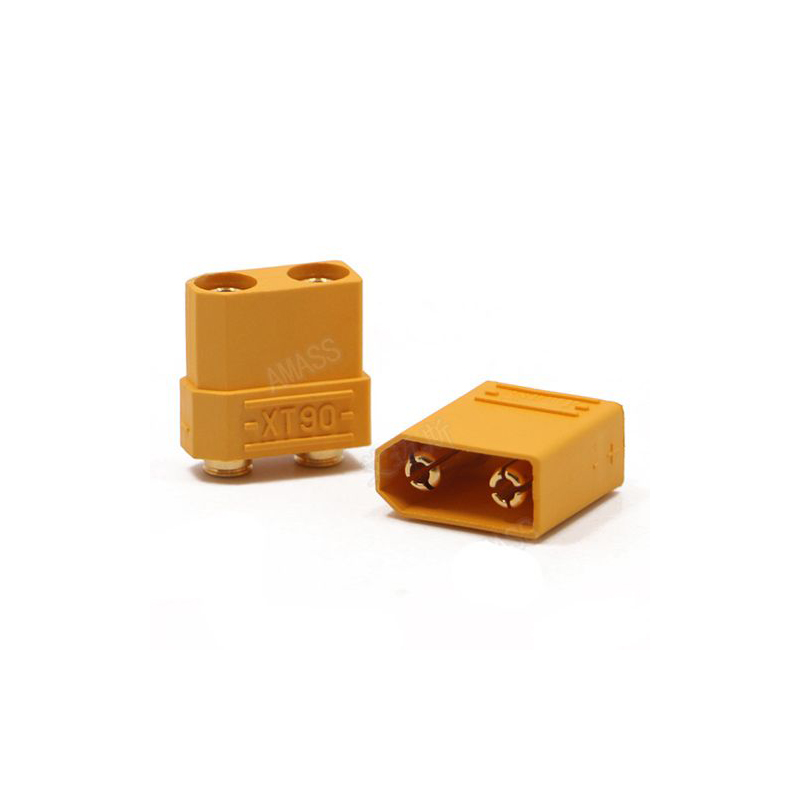

1x Amass XT90PB male connector
1x Amass XT90PB female connector
