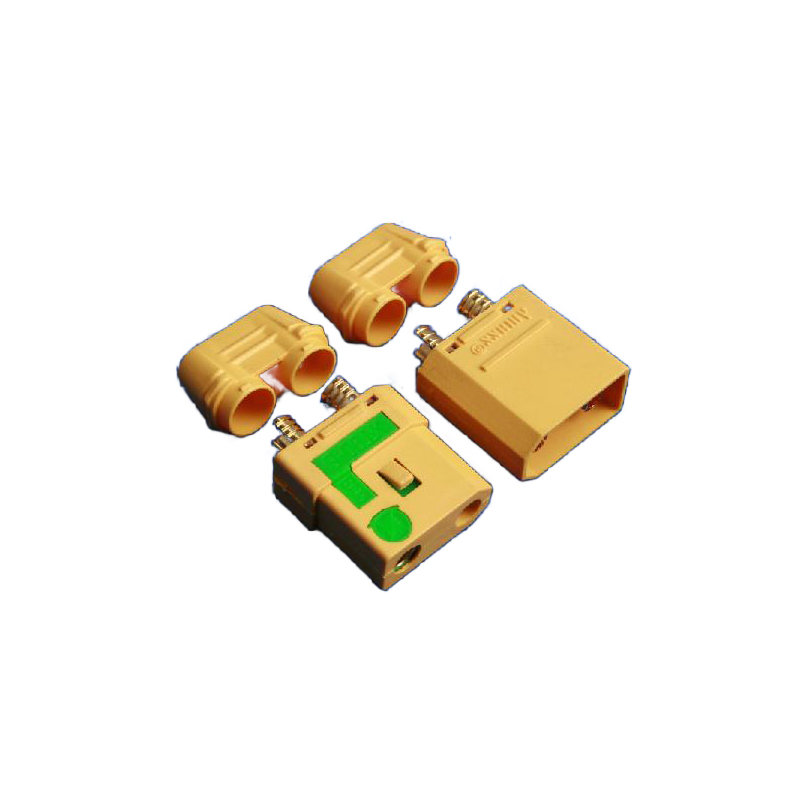

Anti Spark Connector Male/Female XT90-S (Upgrading version of XT90)




Anti Spark Connector Male/Female XT90-S (Upgrading version of XT90)
Amass new XT90 -s plug in XT90 plug, on the basis of successful selling, launched an updated version of the plug, in response to the current market demand for greater resistance current plug. XT90 using 4.5 mm banana plugged in, the use of lightweight design, light weight, small volume, big resistance current.
XT90 -s plug is unique in the lighter design, in the small plug inside the fuselage blend in the resistance, has realized the need to bulk before AS150 plug can strike fire resistant. And ordinary XT90 compatible
Länge: 49 mm
Breite: 20.8 mm
Höhe :11 mm
Gewicht :16 g
Anwendung :Hochstrom
Kontaktmaterial :vergoldet
Kabelquerschnitt :9.0 qmm
AWG :8
Belastbarkeit [Dauerstrom] :90 A
Max. Belastbarkeit [Impulsstrom]* :120 A
Übergangswiderstand :0.005 mOhm
Stecker Länge :31.5 mm
Buchse Länge :31 mm
Zusatzinfo 4.5 mm Goldkontakt [ø] | Betriebsspannung 10 – 15 V|DC
Stecksystem :XT90
Temperaturbereich von: -20 bis 260 °C
* Modellbauerfahrung
– 1x male connector w/plastic sleeve
– 1x female connector w/plastic sleeve
