Model：Model
SKU：B0468
Sensor：IMX323
Still resolution：2 Megapixels
Color filter type：Color
Shutter type：Rolling
Optical size：1/2.9″
Output format：MJPG/YUYV/H.264
Pixel size：2.8μmx 2.8μm
Sensor active area：1936(H)1097(V)
Frame rate：MJPG: 19201080@30fps, 1280720@30fps, 800600, 640360, 640480, 352288,320240@30fps YUYV: 15fps@800600, 30fps@320240/352288/640360/640480 H.264: 30fps@ 19201080, 1280720, 800600, 640360, 640480, 352288,320240
Focus type：Manual Focus
FOV：83°(D)×71°(H)×55°(V)
Lens mount：M12 Mount
F.no：F2.8
E.F.L：4mm
Distortion：<1%
IR sensitivity：Integral IR-cut Filter, visible light only
Interface：USB 2.0 device

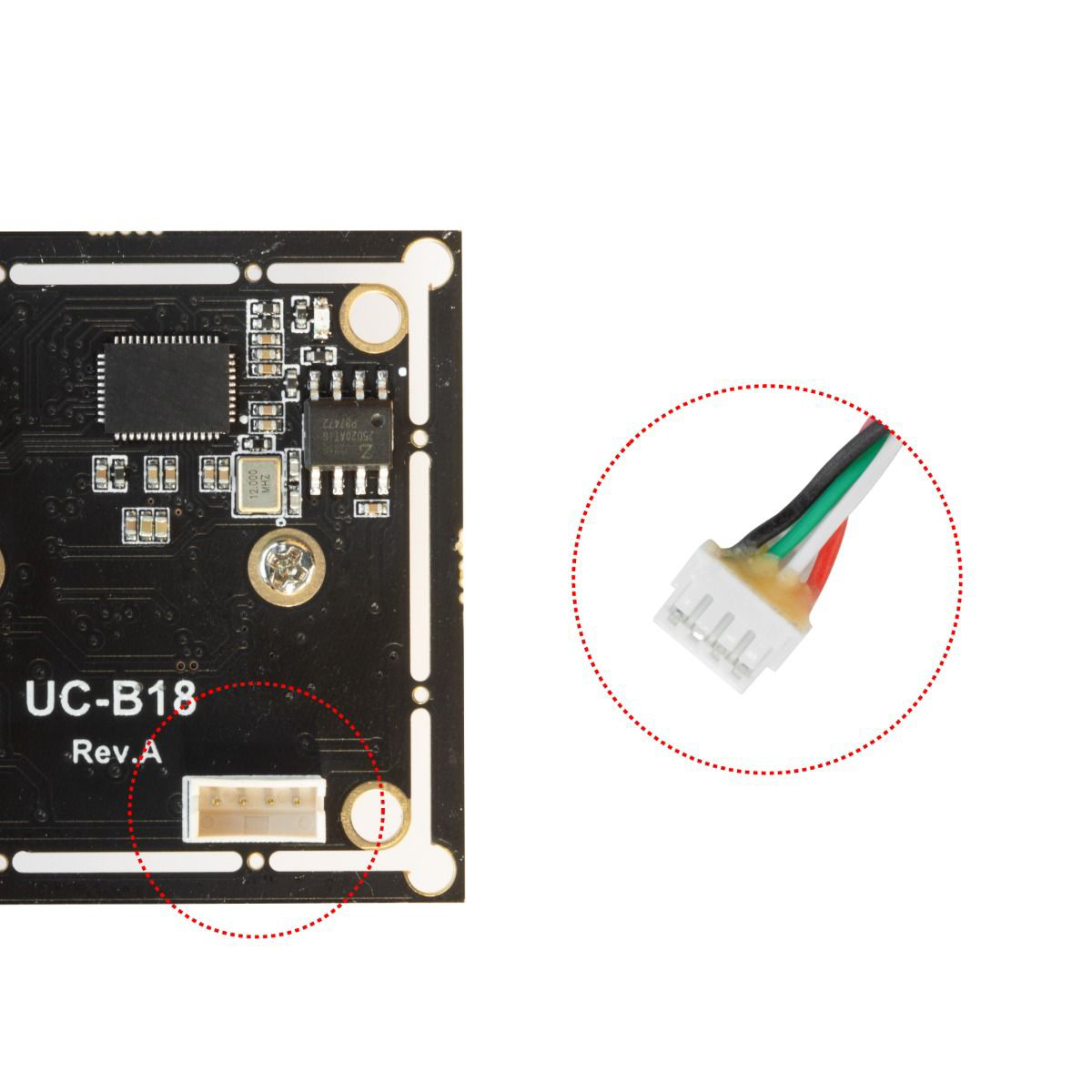

Connector：B4B-ZR
UVC compliant：No additional drivers required
Operating voltage：5 V +/- 5%
Operating temp.：0°C to 70°C
Power requirements：Max: 1.25W
Camera board size：38*38 mm (Hole Pitch: 34mmx34mm, 28mmx28mm)
Audio：Single Microphone
Supported OS：Windows, Linux, Android and MAC OS
Sample application：AMCap
UVC controls：Brightness, Contrast, Hue, Sharpness, Saturation, Gama, Gain, White Balance(Manual and Auto), Backlight contrast, Exposure(Manual and Auto)
