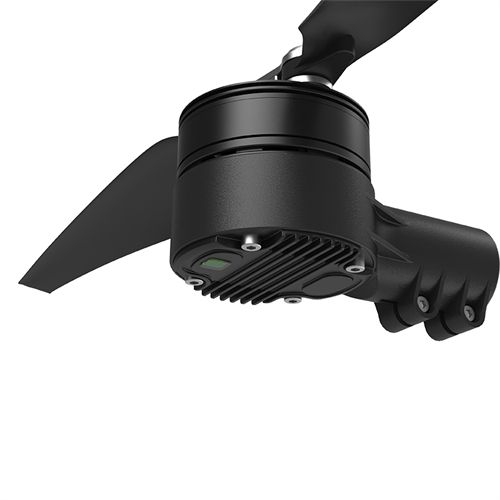

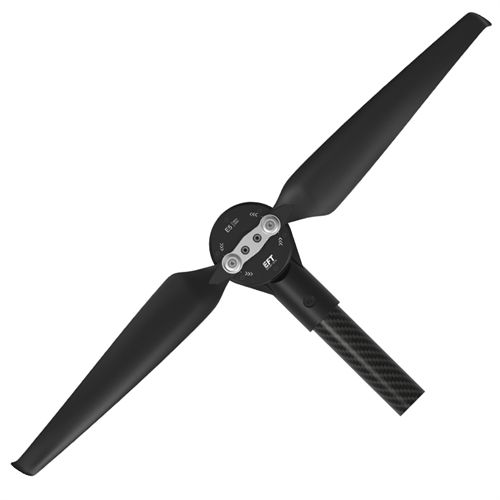

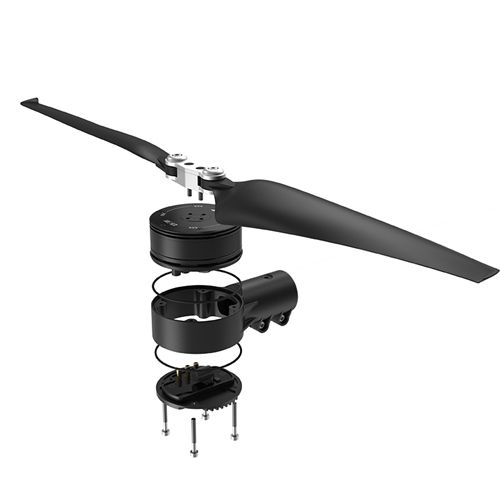

Arrival EFT E5 Series Power Set Multi-rotor Motor Folding Propeller UAV Power Set For X6100 Drone Parts
Arrival EFT E5 Series Power Set Multi-rotor Motor Folding Propeller UAV Power Set For X6100 Drone Parts

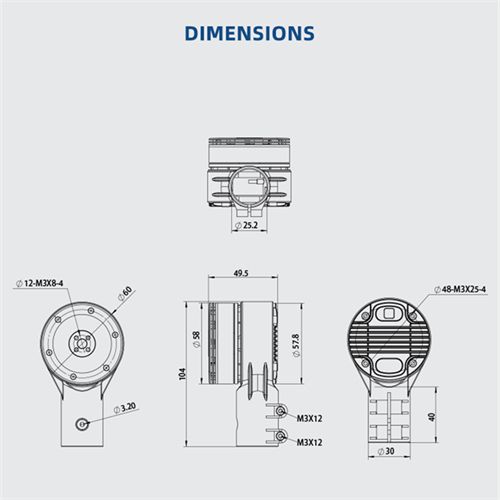

PRODUCT SPECIFICATION
– Maximum Pull：4kg
– Recommended Pull：1.5-2kg
– Supply Voltage：25.2V ( 6S )
– Working Temperature：-10~40°C
– Kit Weight：362g
– Line Lenath：500mm
– Tube Diameter：25mm
PROPELLER
– Propeller Size：18×6 inch
– Propeller Weight：48g / piece
MOTOR
– Stator Size：50x8mm
– Motor KV Value：335KV
– Motor Weight：190g
ESC
– Maximum Voltage：25.2V
– Maximum Current：40A
– Signal Frequency：50-400Hz
– Signal Pulse Width：1050us-1950us
EFT E5 Power System x 1
