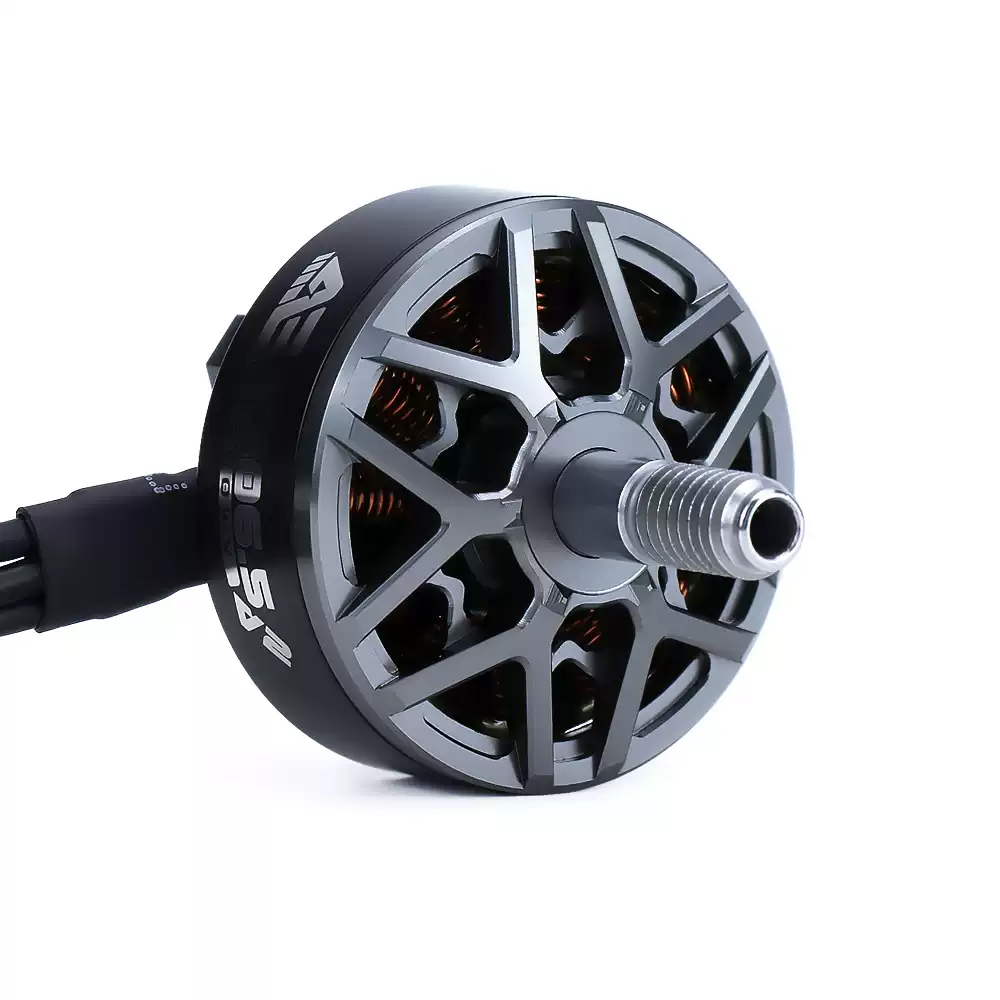

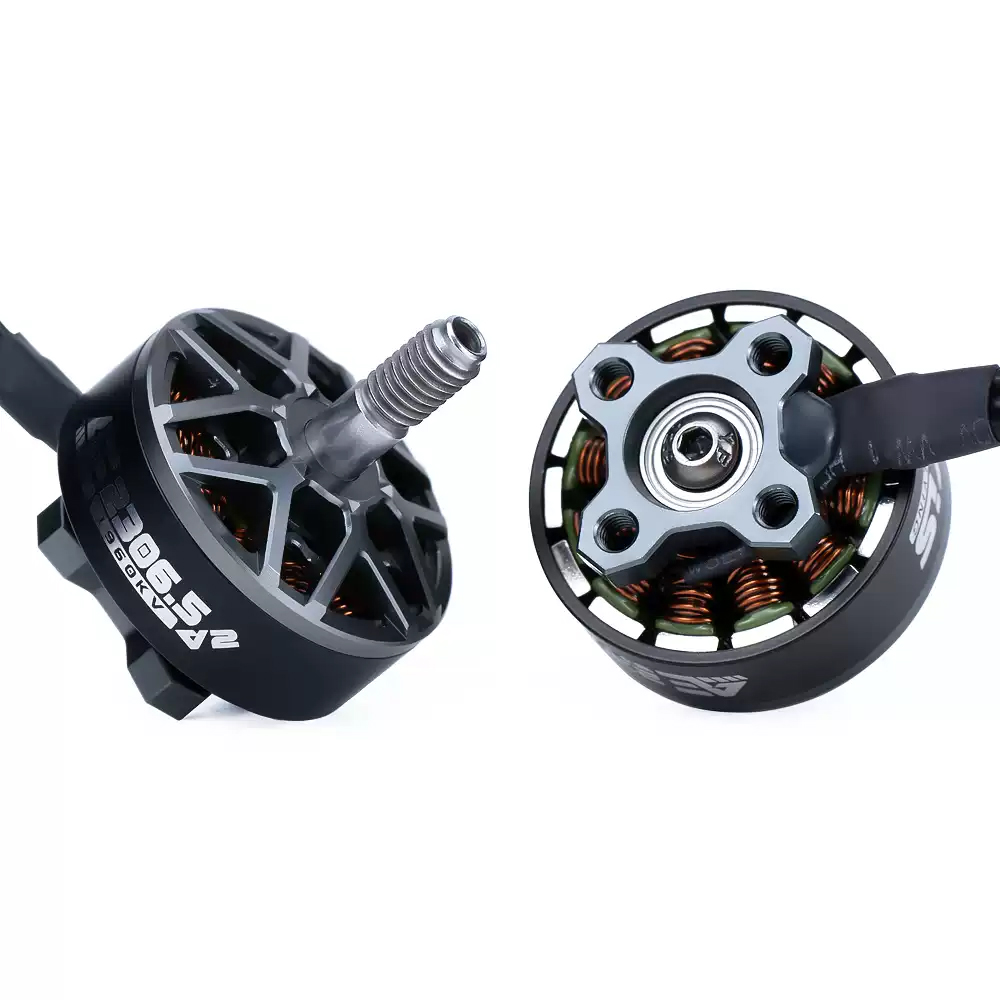

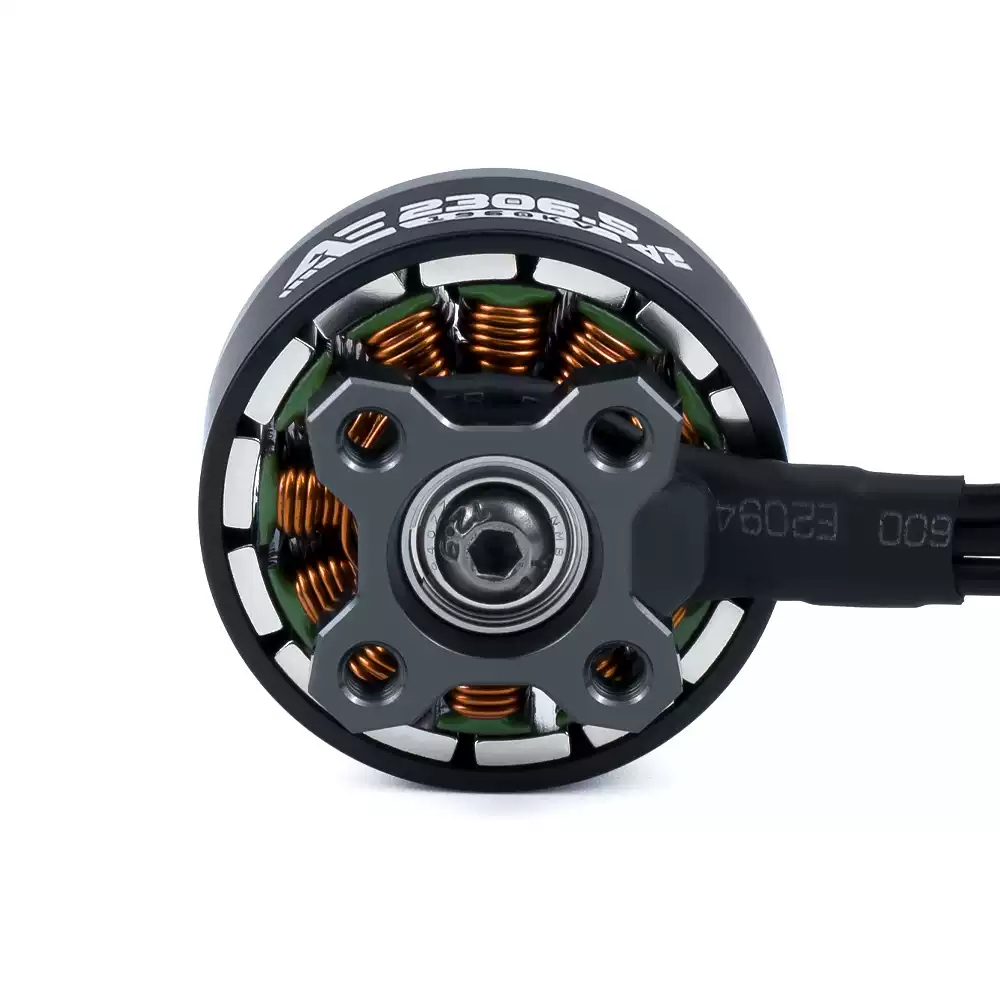

AxisFlying AE2306.5 V2 1860KV 1960KV Brushless Motor 4-6S LiPo 5mm Shaft for 5inch FPV Drones








AxisFlying AE2306.5 V2 1860KV 1960KV Brushless Motor 4-6S LiPo 5mm Shaft for 5inch FPV Drones
Model: AE2306.5
KV:1860
Slot poles:12N14P
Internal resistance:70.62mΩ
Size:Ø27.9×32.7mm
Wheelbase:4mm
Silicone line:20# 150mm
Battery:6S
Weight(wire included):33.45g
Max power:859.58W
Max current:36.86A
Max force:1670g
Current without payload(10V):0.95A
Model: AE2306.5
KV:1960
Slot poles:12N14P
Internal resistance:60.16mΩ
Size:Ø27.9×32.7mm
Wheelbase:4mm
Silicone line:20# 150mm
Battery:6S
Weight(wire included):33.7g
Max power:1041.79W
Max current:44.54A
Max force:1760g
Current without payload(10V):1.28A
