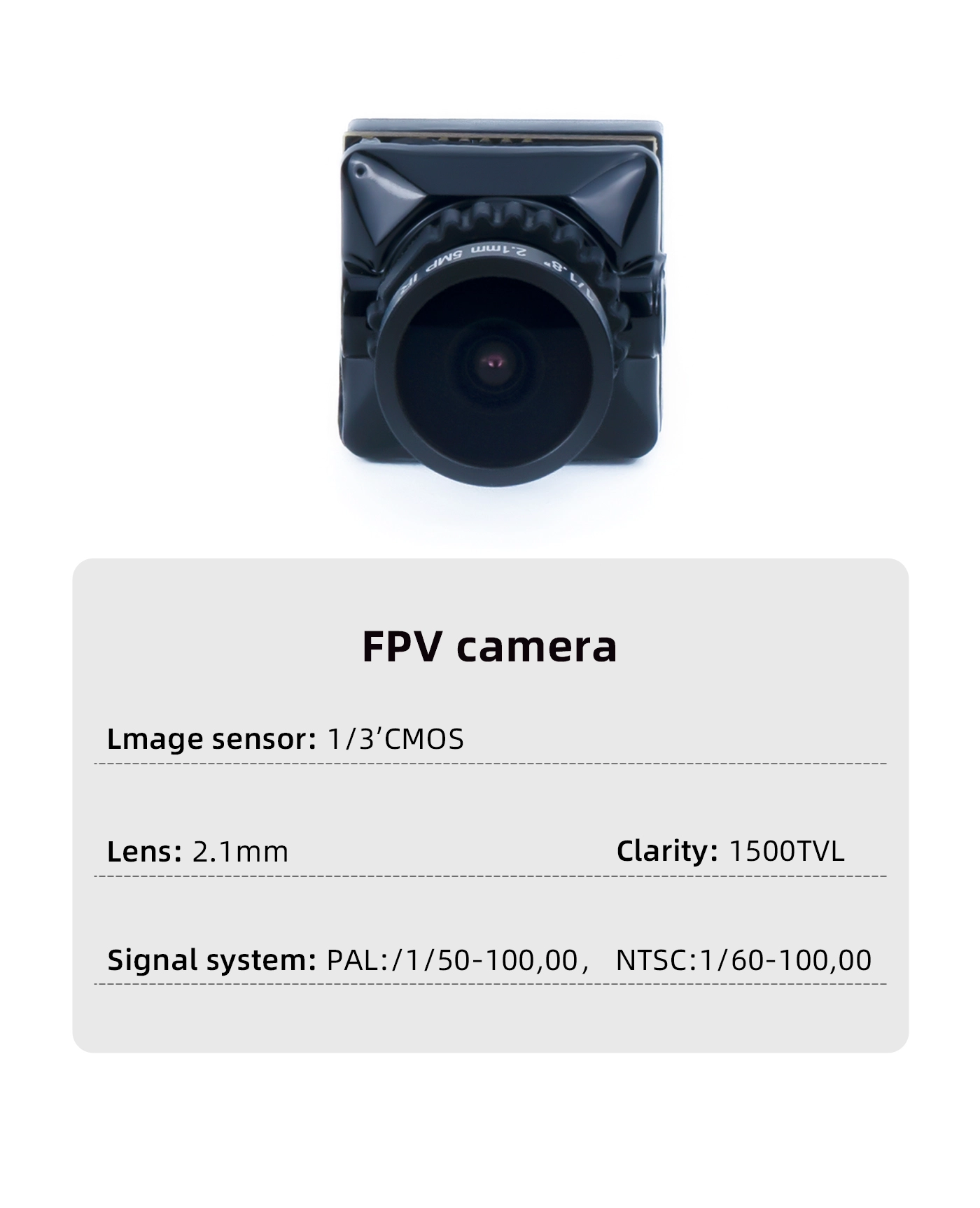

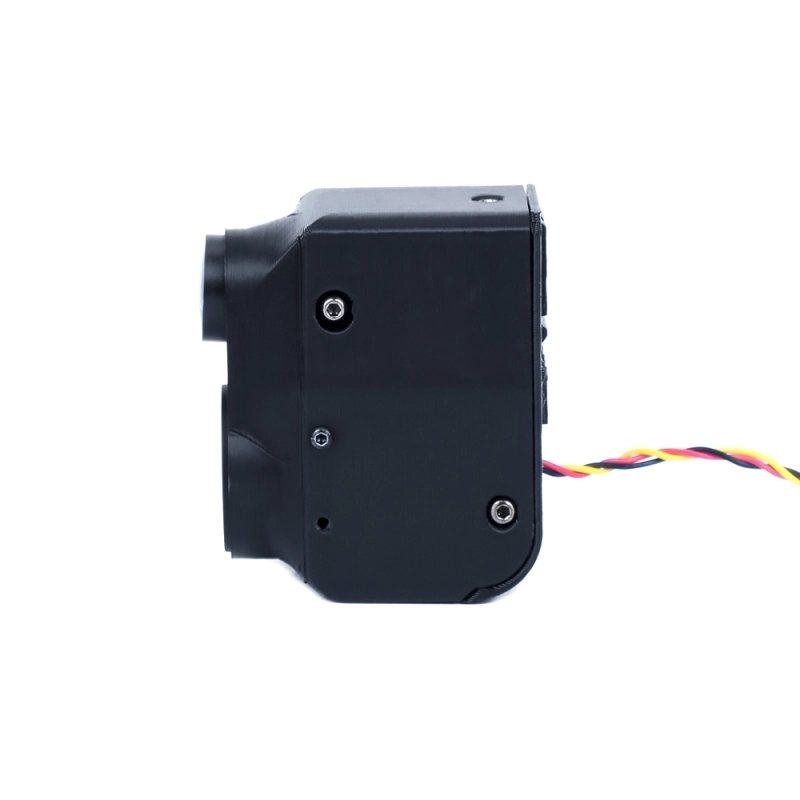

FPV camera
Lmage sensor: 1/3’CMOS
Lens: 2.1mm
Clarity: 1500TVL
Signal system: PAL:1/50-100,00, NTSC:1/60-100,00

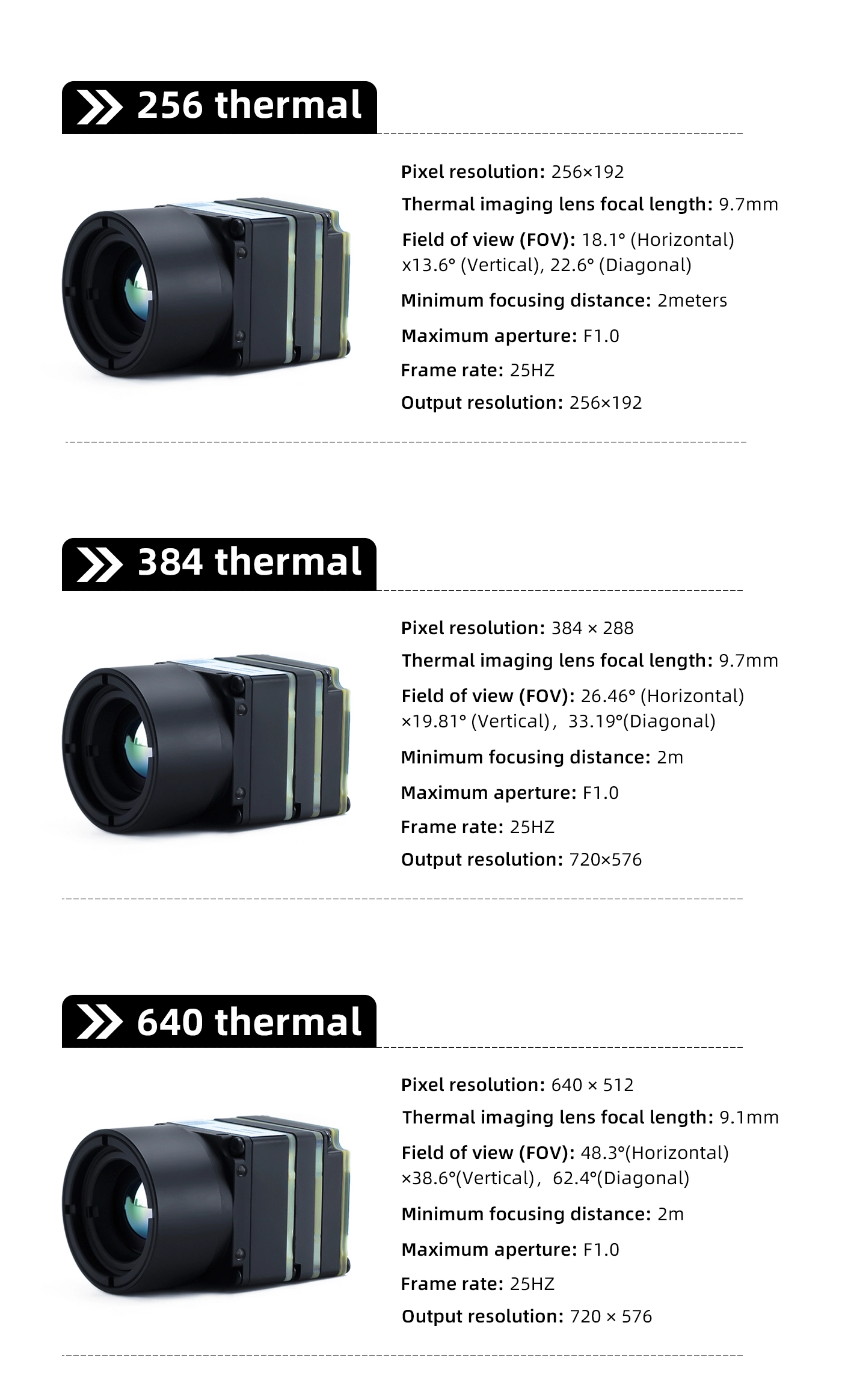

256 thermal
Pixel resolution: 256×192
Thermal imaging lens focal length: 9.7mm
Field of view (FOV): 18.1°(Horizontal)×13.6°(Vertical), 22.6°(Diagonal)
Minimum focusing distance: 2meters
Maximum aperture: F1.0
Frame rate: 25HZ
Output resolution: 256×192

384 thermal
Pixel resolution: 384×288
Thermal imaging lens focal length: 9.7mm
Field of view (FOV): 26.46°(Horizontal)×19.81°(Vertical), 33.19°(Diagonal)
Minimum focusing distance: 2m
Maximum aperture: F1.0
Frame rate: 25HZ
Output resolution: 720×576

640 thermal
Pixel resolution: 640×512
Thermal imaging lens focal length: 9.1mm
Field of view (FOV): 48.3°(Horizontal)×38.6°(Vertical), 62.4°(Diagonal)
Minimum focusing distance: 2m
Maximum aperture: F1.0
Frame rate: 25HZ
Output resolution: 720 × 576
