Bandit BR3 Elrs 915MHz Receiver For RC FPV Long Rang Drone
Description
Bandit BR3 Expresslrs Receiver features a huge 500mw of telemetry output making it ideal for long range applications. The ESP8285 MCU and SX1276 RF chip are renowned for low latency, high sensitivity and exceptional long-range performance. The included T Antenna is optimized for long range performance.
Due to the low-latency and high-refresh-rate RF module, the Bandit BR3 Expresslrs Receiver is ideal for FPV freestyle or Long Range.
Features
Maximum 500mW telemetry RF power
Built-in TCXO oscillator
Utilizing 0402 components, superior resistance to vibration
Dual 915/868MHz T Antenna for improved signal stability and range
Item: Bandit BR3 ExpressLRS Receiver
Regulatory Domain: FCC915
MCU: ESP8285
RF Chip: SEMTECH SX1276
Telemetry RF power: 100mW – 500mW LUA Adjustable
Antenna: 915/868MHz T Antenna
Antenna Interface: IPEX1
Bus Interface: CRSF
Working Voltage: DC 5.0V

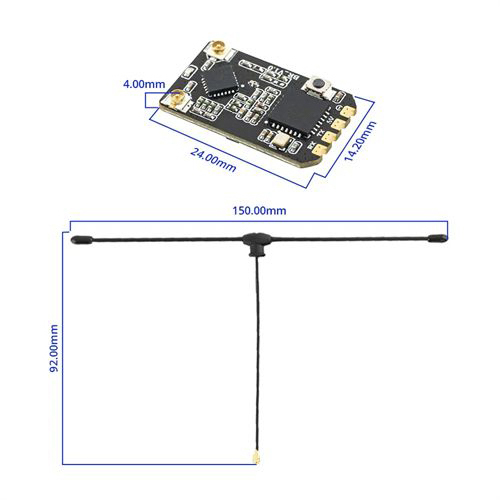

Dimension: 24*14.2mm
Weight: 5.5g (with antennas)
1 * Bandit BR3 Expresslrs Receiver
2 * T Antenna (Installed on Receiver)
3 * Receiver Shrink Tube Sleeves
1 * CRSF Wire
1 * Manual
