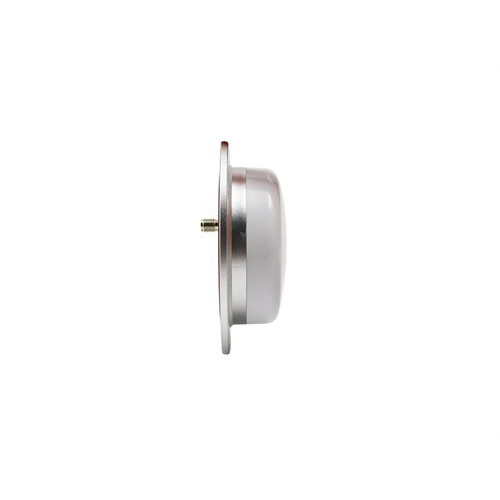

Beitian drone UAV RTK GNSS antenna GPS L1L2 GLONASS L1L2 Galileo E1E5b BeiDou B1B2B3 SMA-K connector Aviation Antenna -BT-3707A
Beitian drone UAV RTK GNSS antenna GPS L1L2 GLONASS L1L2 Galileo E1E5b BeiDou B1B2B3 SMA-K connector Aviation Antenna -BT-3707A
The BT-3707A antenna is a four-star full-frequency aviation antenna. It is a high-gain and low-wind-resistance antenna. It has characteristics such as small size, exquisite appearance, high sensitivity, and low power consumption. It greatly improves the accuracy and speed of positioning for high-speed moving carriers. It can be used with multiple receivers. It is widely used in fields such as navigation scheduling, tracking and monitoring, and measurement and control. It is especially suitable for high-speed moving systems and fields, such as civilian drones and vehicle-mounted high-precision applications
LNA gain (dB): 35±2.
In-band flatness (dB): ±2.
Noise figure (dB): 2.0.
Antenna output standing wave VSWR: 2.0.
Operating voltage (V): 3.3V – 12.0V.
Operating current (mA): <45.
Structural characteristics: None specified.
Connector model: SMA-K (can be customized according to customer needs).
Antenna size (mm): 190×25.5 (excluding connector).
Weight (g): 130g.
Waterproof level: IP67.
Working environment:
Working relative humidity: 95%.
Working temperature (°C): -40 – +85.
Storage temperature (°C): -55 – +85.
GNSS antenna BT-3707A x1
