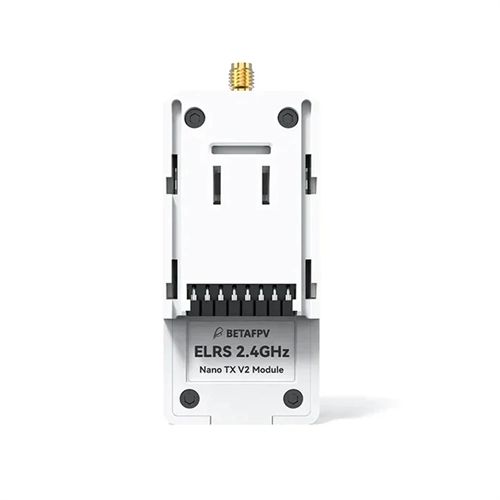

BETAFPV ELRS Expresslrs Nano Remote Control TX V2 Module 2.4GHz with T-LED Antenna For RC Racing Quadcopter Drones








BETAFPV ELRS Expresslrs Nano Remote Control TX V2 Module 2.4GHz with T-LED Antenna For RC Racing Quadcopter Drones
*The First ever T-LED antenna with built-in LED display functionality, allowing pilots to effortlessly monitor the signal transmitting and receiving while using the radio transmitter.
*Featuring an integrated TCXO, it minimizes frequency deviation for stable performance, eliminating signal interference.

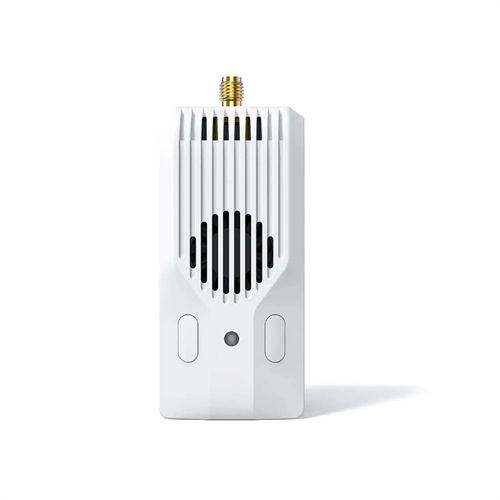

*With its optimized internal airflow channel and a heat sink, a high-speed 1804 cooling fan, it effectively dissipates heat even during high power output, ensuring stable link performance.
*Support backpack and custom button functions based on ELRS V3.3, empowering pilots to connect external devices and set buttons according to personal usage habits.
Item: BETAFPV Nano TX V2 Module | ELRS 2.4GHz
Weight: 28g
Color: White
Antenna Connector: RP-SMA(2.4GHz)
RF Power(2.4GHz): 25mW/50mW/100mW/250mW/500mW/1000mW
Packet Rate(2.4GHz): 50Hz/100Hz/150Hz/250Hz/333Hz/500Hz/D250/D500/F500/F1000
Frequency Band: 2.4GHz ISM
Backpack: Support
Input Voltage: 7V~13V DC
Power Consumption(2.4GHz): 8V,1000mA@1000mW, 150Hz,1:128
USB Port: Type-C
Fan Voltage: 5V
Default Firmware Version: ExpressLRS V3.3.0
1 × Nano TX V2 Module
1 × T-LED Antenna
1 × USB to Type-C Data Cable
1 × Type-C Male to XT30U Male Power Cable
1 × Instruction Manual
1 × Service Card
