BETAFPV SuperG Nano Transmitter TX Module ELRS Gemini Dual-Frequency Long Range Diversity Transmitter for FPV Racing Drone










BETAFPV SuperG Nano Transmitter TX Module ELRS Gemini Dual-Frequency Long Range Diversity Transmitter for FPV Racing Drone
* Introducing the pioneering Gemini Dual-Frequency Diversity Transmitter, propelling ELRS into the era of dual-frequency capabilities.
* Dual 1W transmit power experienced amplified signal strength, expanded transmission distances, and a substantial increase in remote control range.
* In conjunction with existing true diversity receivers, activating the Gemini mode ensures unwavering signal stability even in the most intricate radio environments.
* Meticulously crafted from CNC aluminum alloy, the transmitter casing facilitates efficient thermal conductivity, complemented by an intelligently designed Heatsink system for optimal heat dissipation.

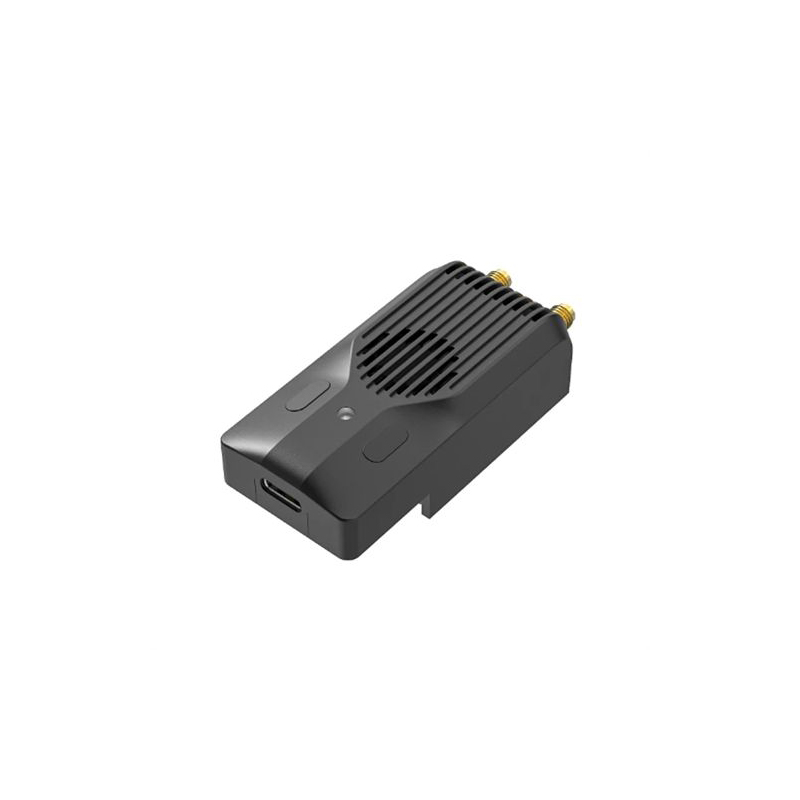

* Featuring 2 customizable buttons and 1 USB port, the transmitter accommodates external power sources, enabling steadfast long-range expeditions.
Item: BETAFPV SuperG Nano Transmitter Module | ELRS 2.4G
Weight: 44.8g
Color: Black
Antenna Connector: 2* RP-SMA
RF Power: 25mw/50mW/100mW/250mW/500mW/1000mW
Packet Rate: 50Hz/100Hz/150Hz/250Hz/333Hz/500Hz/D250/D500/F500/F1000
Frequency Band: 2.4GHz ISM
Backpack: support
Input Voltage: 7V~13V DC
Rated Current: 8V,1000mA@1000mW, 1:128, Gemini mode
USB Port: Type-C
Fan Voltage: 5V
Default Firmware Version: ExpressLRS V3.3.0

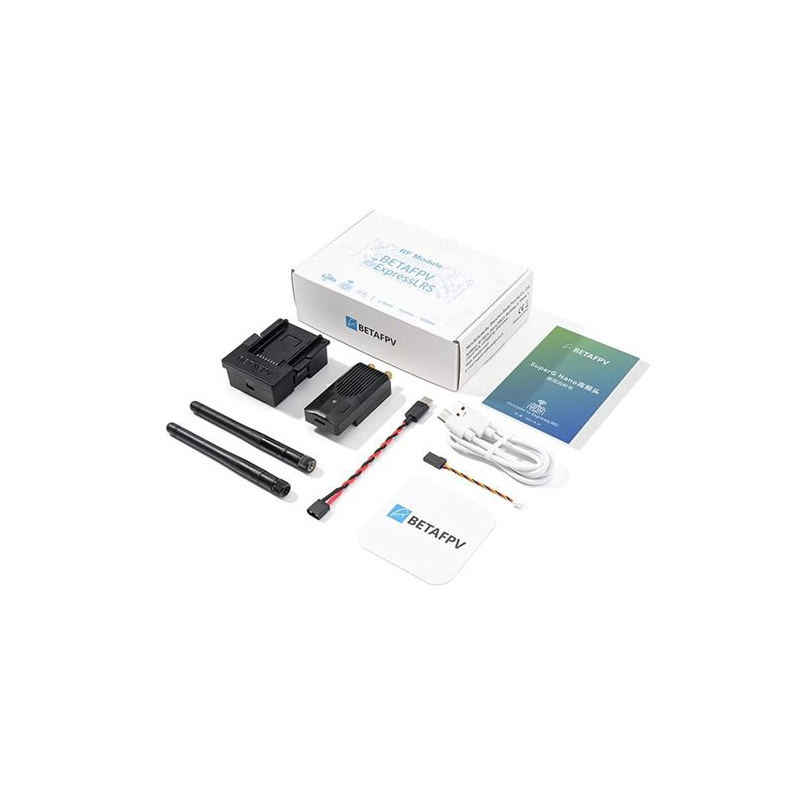

1 × SuperG Nano Transmitter (Black/Red/Grey)
2 × 2.4G Glue Stick Antenna
1 × USB to Type-C Data Cable
1 × Type-C Male to XT30U Male Power Cable
1 × GH1.25 Male to FUTABA Male Signal Cable

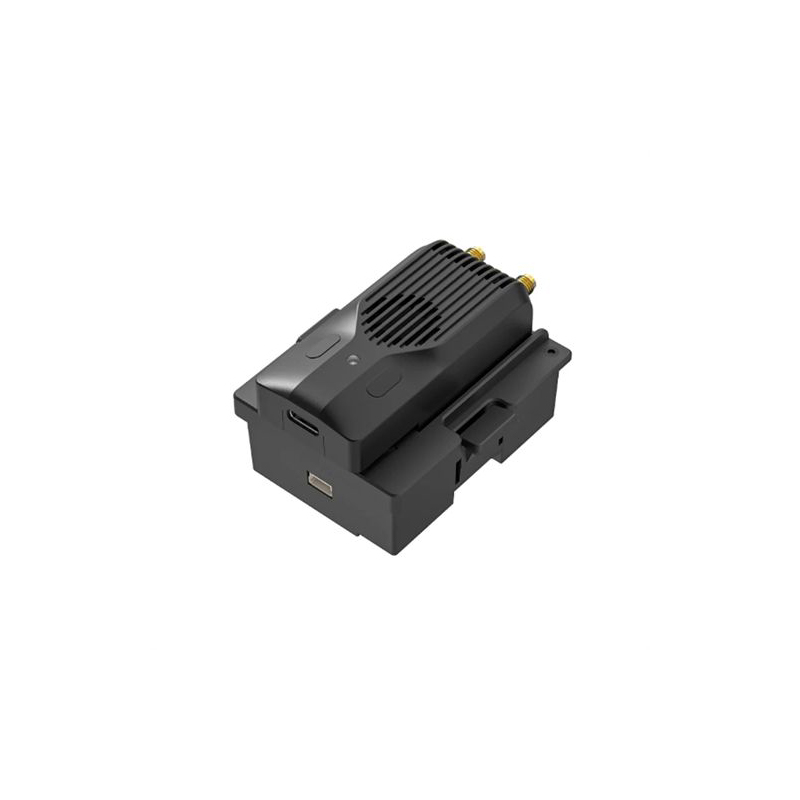

1 × Micro-Nano Module Adapter (Standard Version)
1 × Double Side EVA Foam Tape
1 × Instruction Manual
1 × Service Card
