BETAFPV SuperP 14CH Diversity Receiver ELRS 915MHz with Dual Antenna Dual Reception For RC aircraft Cars Boats Drones






BETAFPV SuperP 14CH Diversity Receiver ELRS 915MHz with Dual Antenna Dual Reception For RC aircraft Cars Boats Drones
Being the first to market! SuperP 14CH Diversity Receiver has been designed not only for long-range flying, aerial photography but also suitable for the application of fixed-wing, helicopters, RC cars, boats and etc. It has TCXO oscillator, two antennas, dual receiver chains, and Plug-N-Play ports, and adds more features, which support 14 channels for the external barometer, RGB light strip, and other external sensors that are currently under development. It offers 2.4GHz, 915MHz and 868MHz versions, and greatly fulfills the requirements of reliability for long-range flying, aerial photography, or FPV freestyle tricks. With this receiver, users are able to get a more stable and reliable experience on RC models.
Item: BETAFPV SuperP 14CH Diversity Receiver ELRS 915MHz
MCU: ESP32 Pico D4 + 2*SX1276(915MHz/868MHz)
Telemetry Power: 17dBm/50mW (915MHz/868MHz)
Frequency Bands: SM, 915MHz FCC/868M EU
Rated Current: 140mA@5V (915MHz/868MHz)

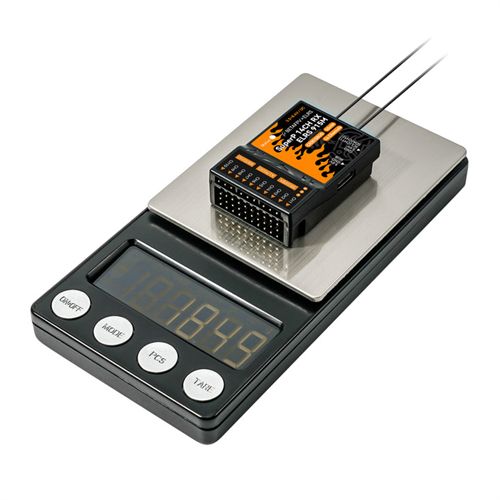

Weight: 15.8g (915MHz/868MHz)
Default Firmware Version: ExpressLRS V3.3.0
Serial Output Protocol: PWM, CRSF or SBUS
Antenna: 2* IPEX MHF 1 Antenna
Size: 46.9mm*32.7mm*14.6mm
Voltage Detector Range: 1~6S
Input Voltage: 3.5V~8.4V DC
PWM Channel: 14 Channels
Adapted RC Model Type: Multirotors, Fixed-wing aircraft, Helicopters, RC Cars, RC Boats and etc.
1 * SuperP 14CH Diversity Receiver 915MHz
2 * 150mm Dipole T Antenna 915MHz
1 * GH2.0 3-Pin Cable
1 * GH2.0 4-Pin Cable
1 * Y Splitter Cable for Servo
1 * Voltage Test Cable
1 * User Manual
