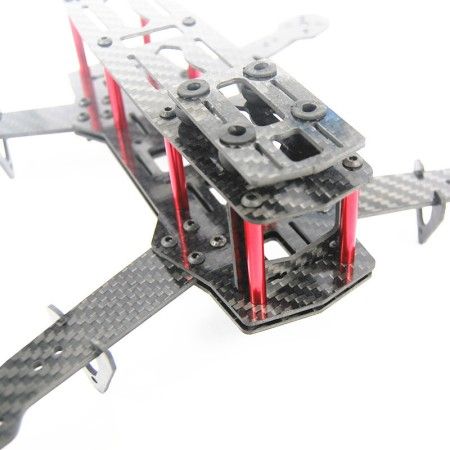

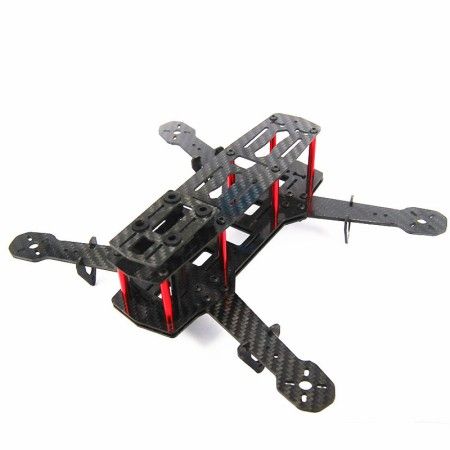

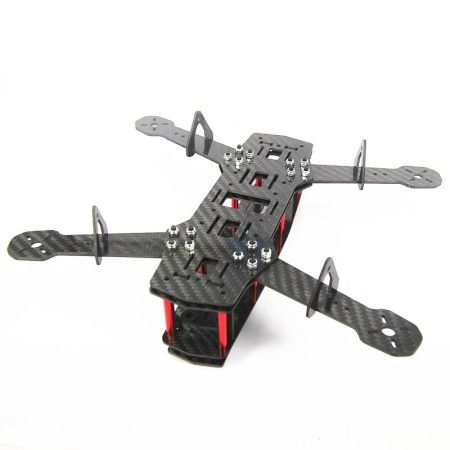

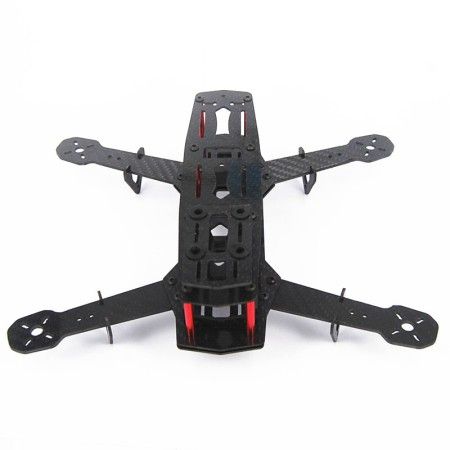

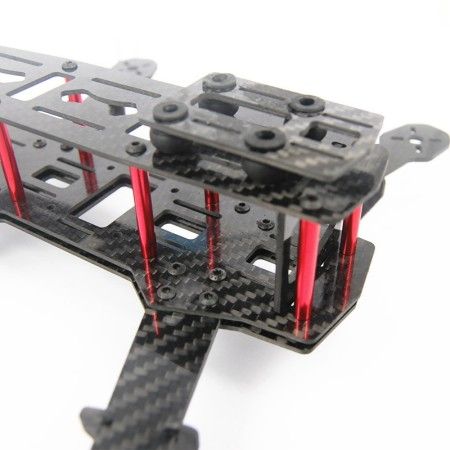

Carbon Fiber Mini 250 FPV Quadcopter Frame for quadcopter
The Mini Quad is a low weight Mini Sport FPV Quadcopter frame.
It was designed to make use of standard sized electronic equipment commonly used in RC.
This allows the quadcopter to compete with larger quadcopters, while being smaller and agile !
Working on Mini Quadcopters requires a lot of soldering,
wire shortening and creation of power distribution systems.
This product requires a good knowledge of RC systems and is not recommended for beginners.
Materials: 3k Weave Carbon Fiber
Fasteners: Stainless Steel & Black Nylon 6/6
Size: 220mm diagonally, 175mm wide, 130mm long motor-to-motor; about 1/2 the size of a regular quadcopter
Maximum Propeller: 5″

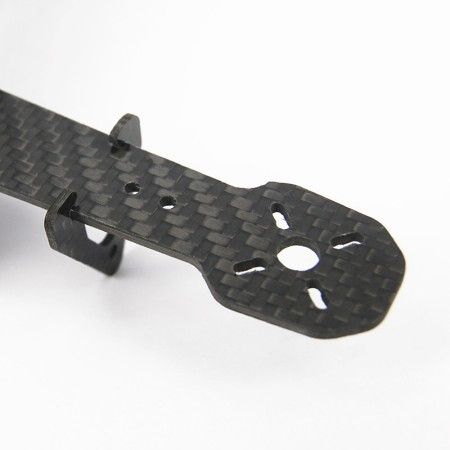

Motor Mount: M2 12mm – 16mm (Tiger MN1806 2300kv, RCX 1804 2400kv), M3 19mm (Tiger MT2206 2000kv, Sunnysky X2204 2300kv)
Flight Controller Mount: 30.5mm x 30.5mm
Board Camera Mount: 32mm x 32mm
Suggested Components
Motors: Tiger MN1806 “Blackout 3S” 2300kv Motor
Propeller: 5×3
ESC: 12amp SimonK ESC
Battery: 3S 1300mah
Flight Controller: MW,KK, Naze32, Flip Pro
-QA250KIT x1
