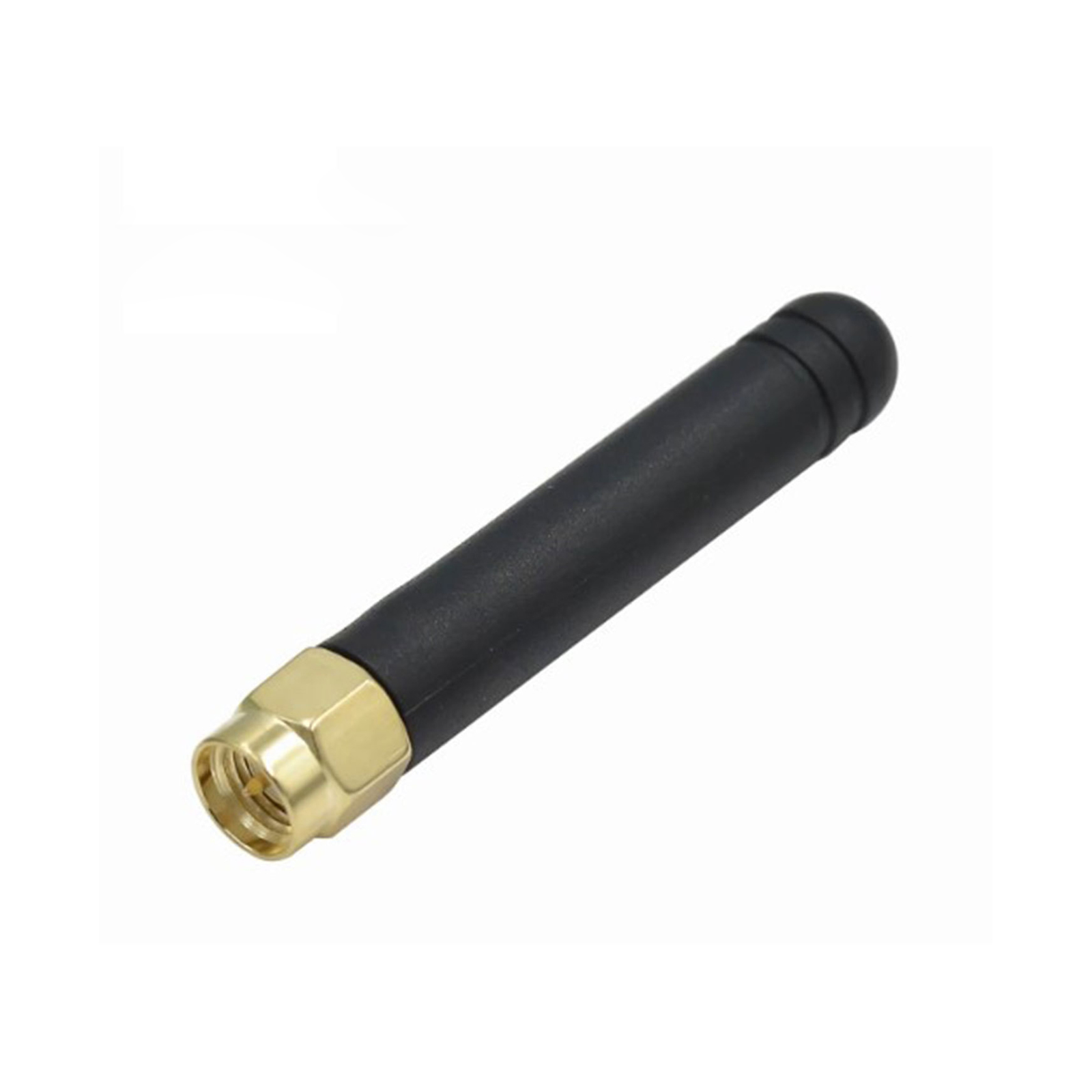

CC1101 Wireless Module With SMA Antenna 433MHz Wireless Transceiver Module For Arduino
Programmable Output Power:Supports programmable output power for all supported frequencies, ensuring optimal power usage.
Low Power Consumption:WOR feature enables reduced power consumption, ideal for battery-powered devices.
Advanced Error Detection:Built-in hardware CRC error detection for reliable and secure data transmission.
High Transmit Power:Maximum transmit power of +10dBm for strong signal transmission, ideal for reliable data transmission.
CC1101 Module Arduino|CC1101 Arduino|Wide Operating Frequency Range:Supports 315/433/868/915MHZ, ensuring versatile wireless connectivity in various ISM bands.
Model: CC1101 Wireless Module
RF Chip: CC1101
Transmit Power: 10mW
Communication Distance: 380m
Operating Voltage: 1.9-3.6VDC, meeting battery power supply requirements
PCB Size: 28mm×15mm, all industrial-grade components
Production Process: SMT placement
Interface Mode: 2*4*2.54 (universal board bonding wire can be used)
Voltage: 1.8V-3.6VDC
Communication Level: 07VDDA-3.6VDC
Measured Distance: Over 380m (depending on the environment without obstacles in line-of-sight)
Maximum Power: 10dBm (approx. 10mW)
Air Rate: 1.2kbps-500kbps (due to 433 physical characteristics, it is recommended not to exceed 20kbps)
Transmit Current: 29.2mA (peak value)
Receive Current: 14.7mA
Communication Interface: Standard SPI interface, mode 0, communication rate up to 10Mbps
Single Packet: 1-32 bytes, 3-level FIFO buffer
RSSI Support: Supported
CC1101 Wireless Module x1
