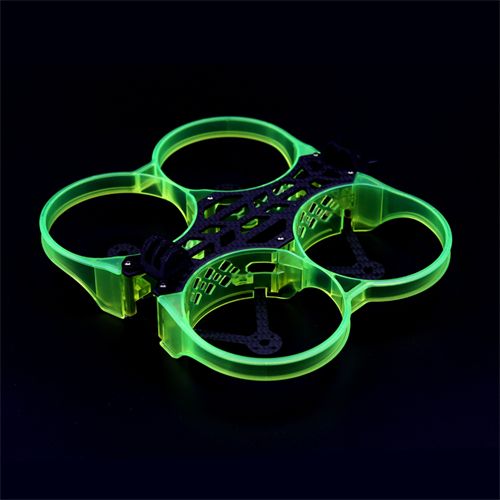

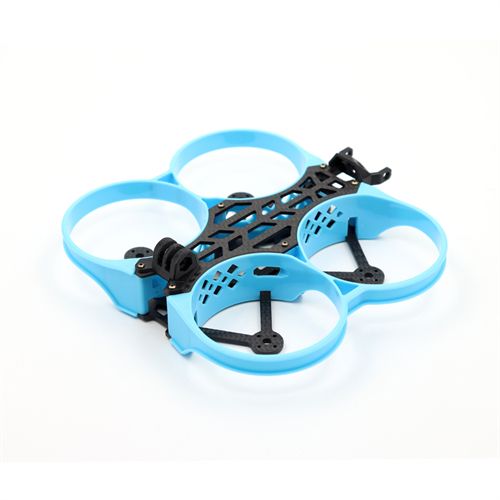

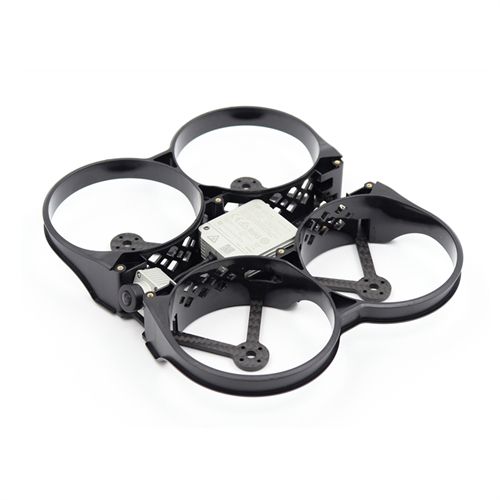

CLOUD-149 V2 Wheelbase 133mm 3inch Carbon Fiber Drone Frame Kit with Propeller Protective Cover
CLOUD-149 V2 Wheelbase 133mm 3inch Carbon Fiber Drone Frame Kit with Propeller Protective Cover
1. You can choose to install DJI FPV sky terminal and analog image transmission
2. Exquisite appearance design, convenient disassembly and assembly, sturdy and durable structure
3. With typec led bb integrated circuit board, easy to adjust parameters
4. High-quality integrated carbon plate, precise cutting
Model: CLOUD-149 V2
Colour：Black，Blue，Green（Colour Random）
Frame type: wide X
Maximum support blade: 3inch
Wheelbase: 133mm
Weight: 103g
Floor thickness: 3mm
Top plate thickness: 2mm
Flight control mounting hole: 20x20mm/25.5×25.5mm compatible with two specifications
Camera installation distance: 20mm (support sky end and analog camera)
Motor mounting hole: 12x12mm
Recommended configuration:(Not Included)
Flight control: AIOF405 30A flight control ESC
Motor: 1306/1408/1506
Battery: 4S 850mah- 6S1300mah
FPV: DJI FPV HD

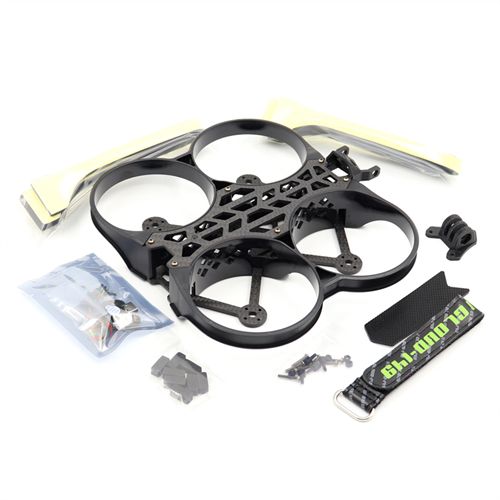

CLOUD-149 V2 133mm 3inch Frame Kit x 1set
