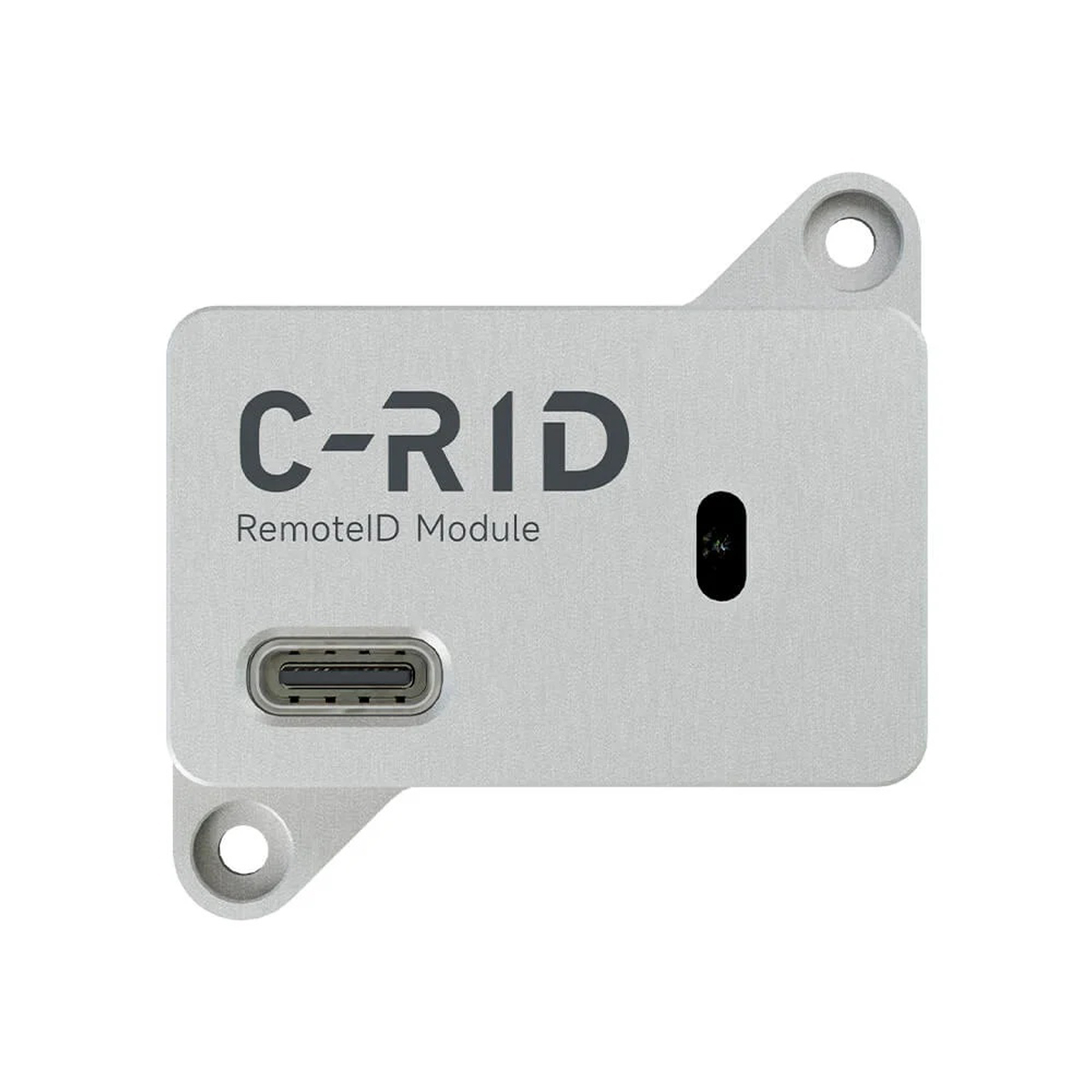

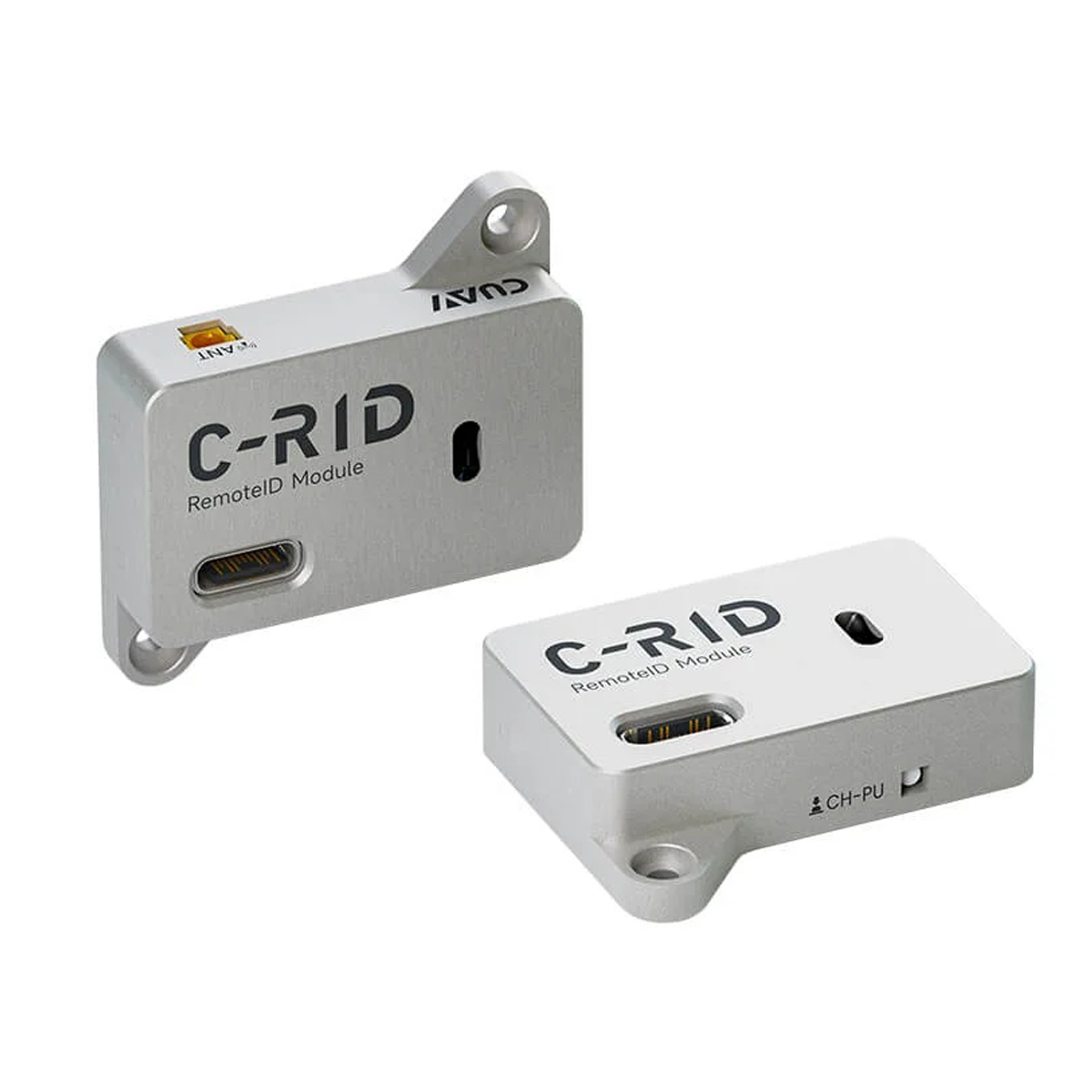

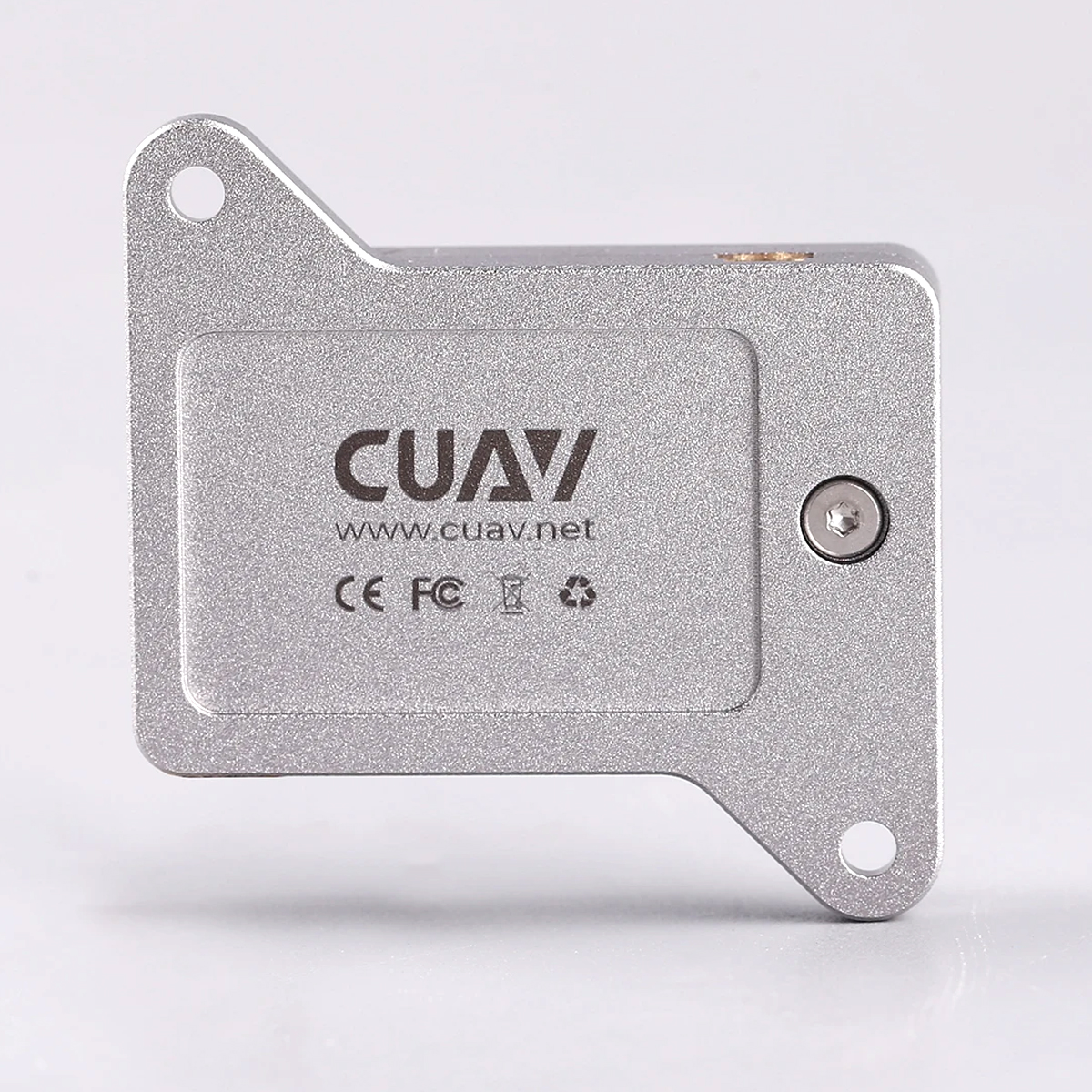

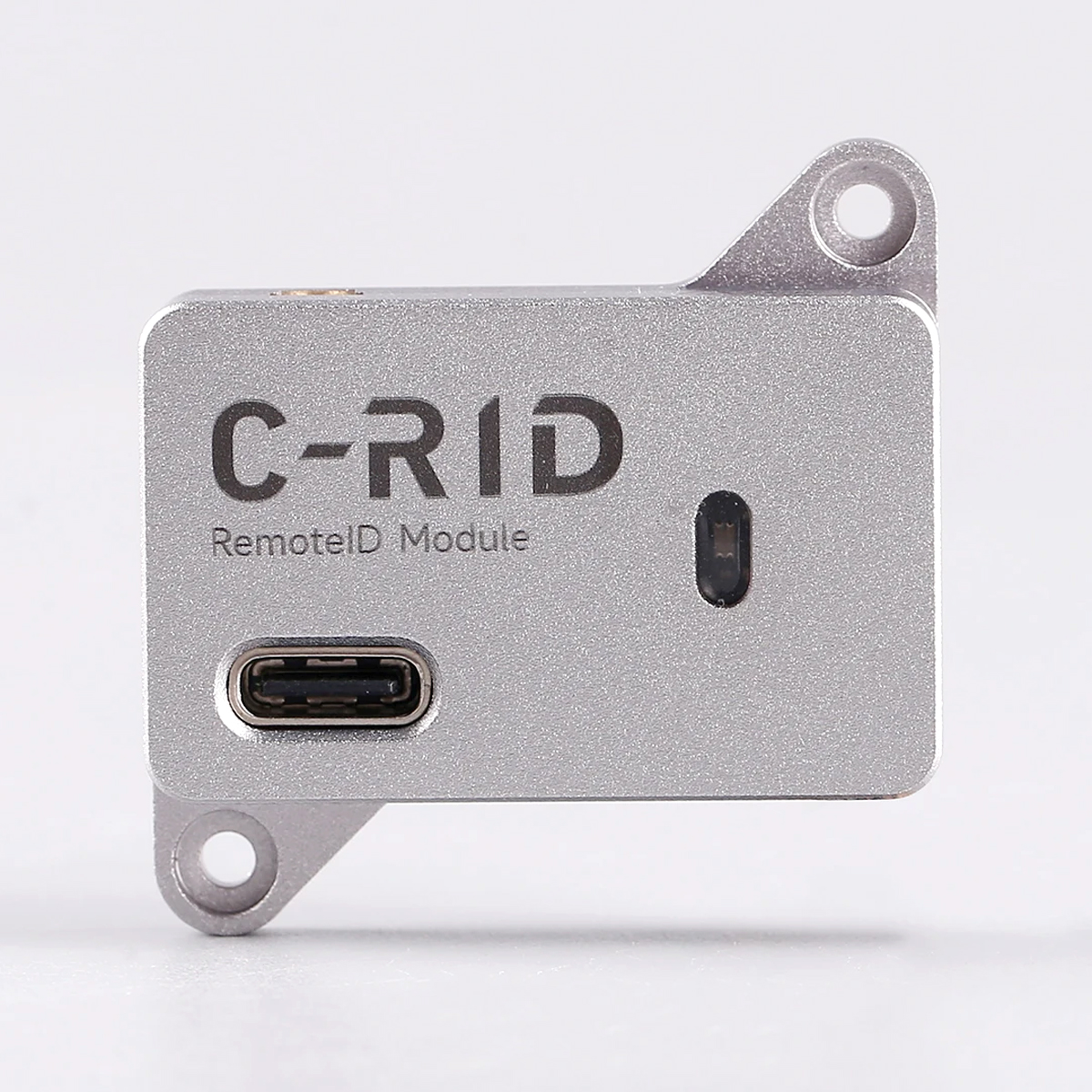

CUAV C-RID Drone Remote ID Broadcast Module DroneCAN UART Dual Interface for UAV FPV Racing Quadcopter

SKU CUAV-C-RID Category RC Accessories Tag Module Brand: Feixiang

CUAV C-RID Drone Remote ID Broadcast Module DroneCAN UART Dual Interface for UAV FPV Racing Quadcopter

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Identification Code for Compliant Products ofDrones

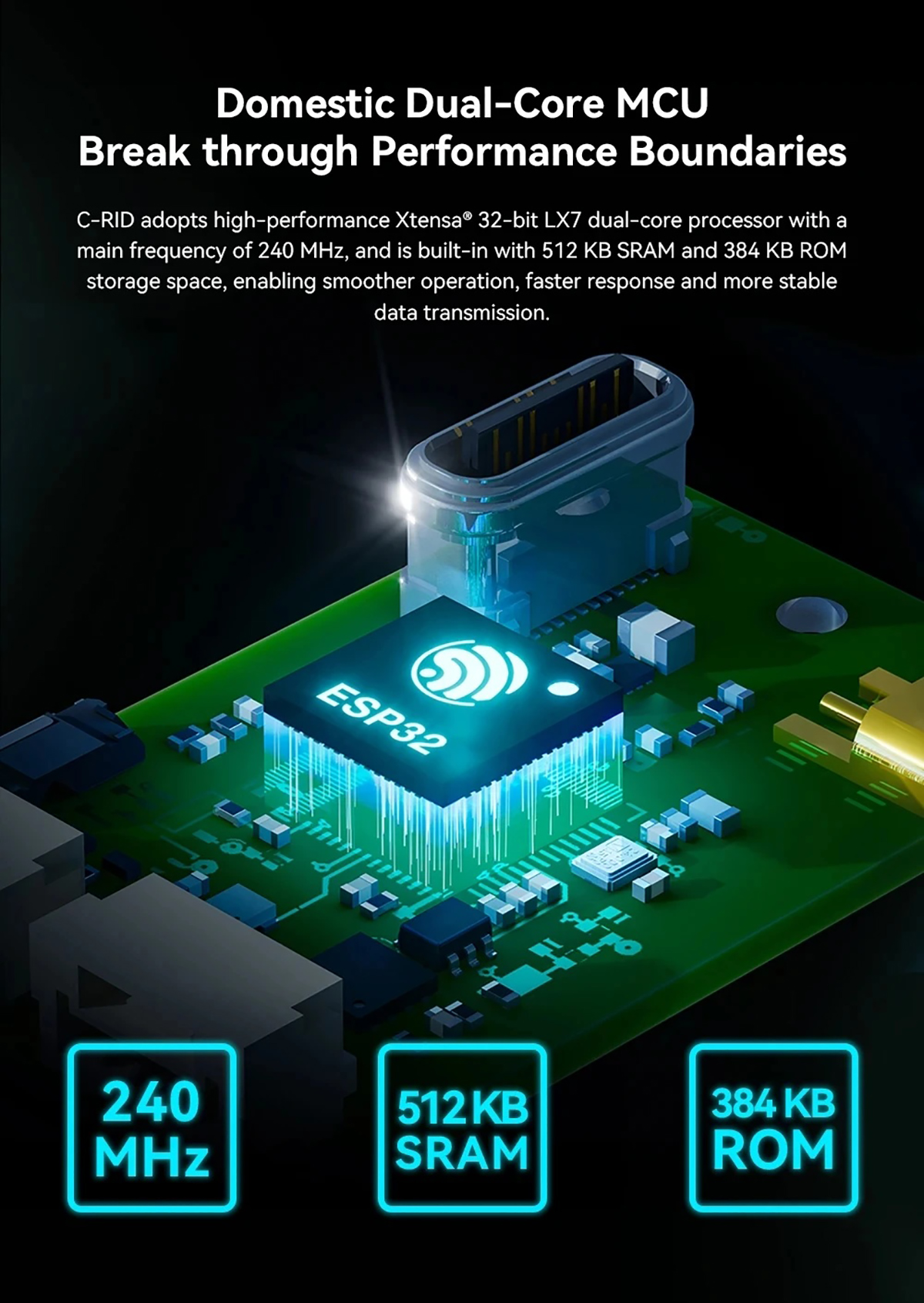

Domestic Dual-Core MCU Break through Performance Boundaries
Long-Range Broadcast, Wider Coverage

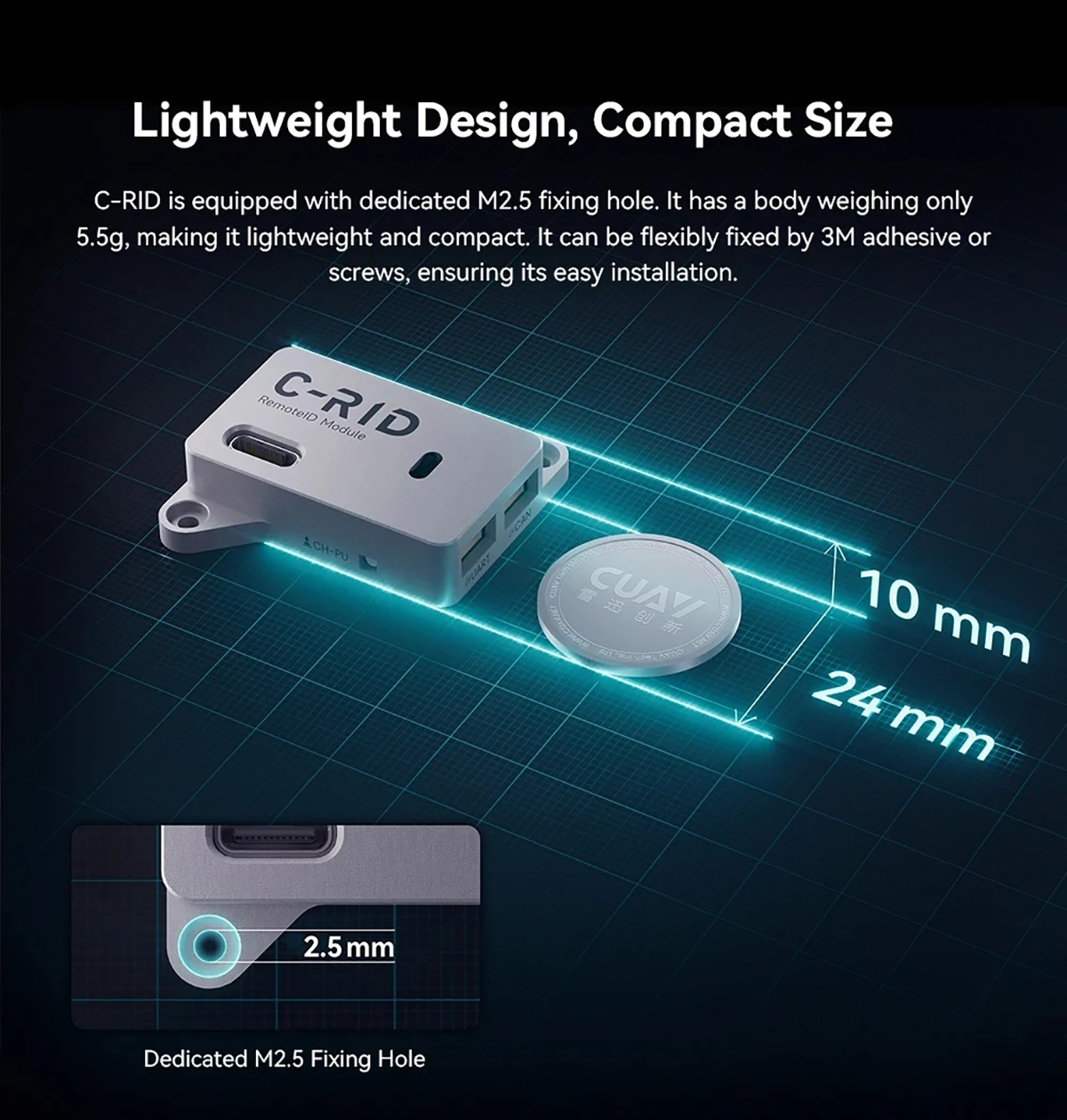

Lightweight Design, Compact Size

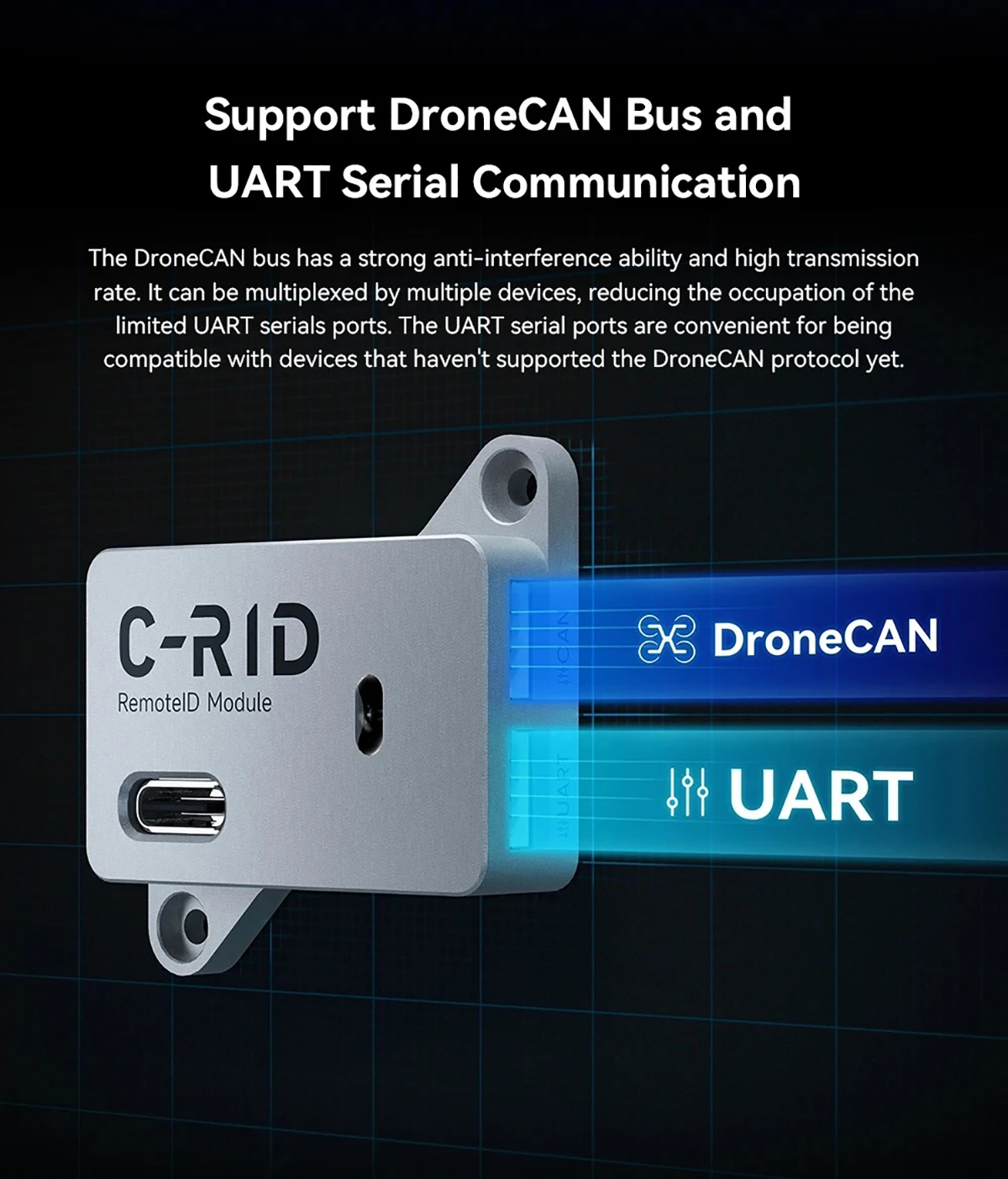

Support DroneCAN Bus and UART Serial Communication

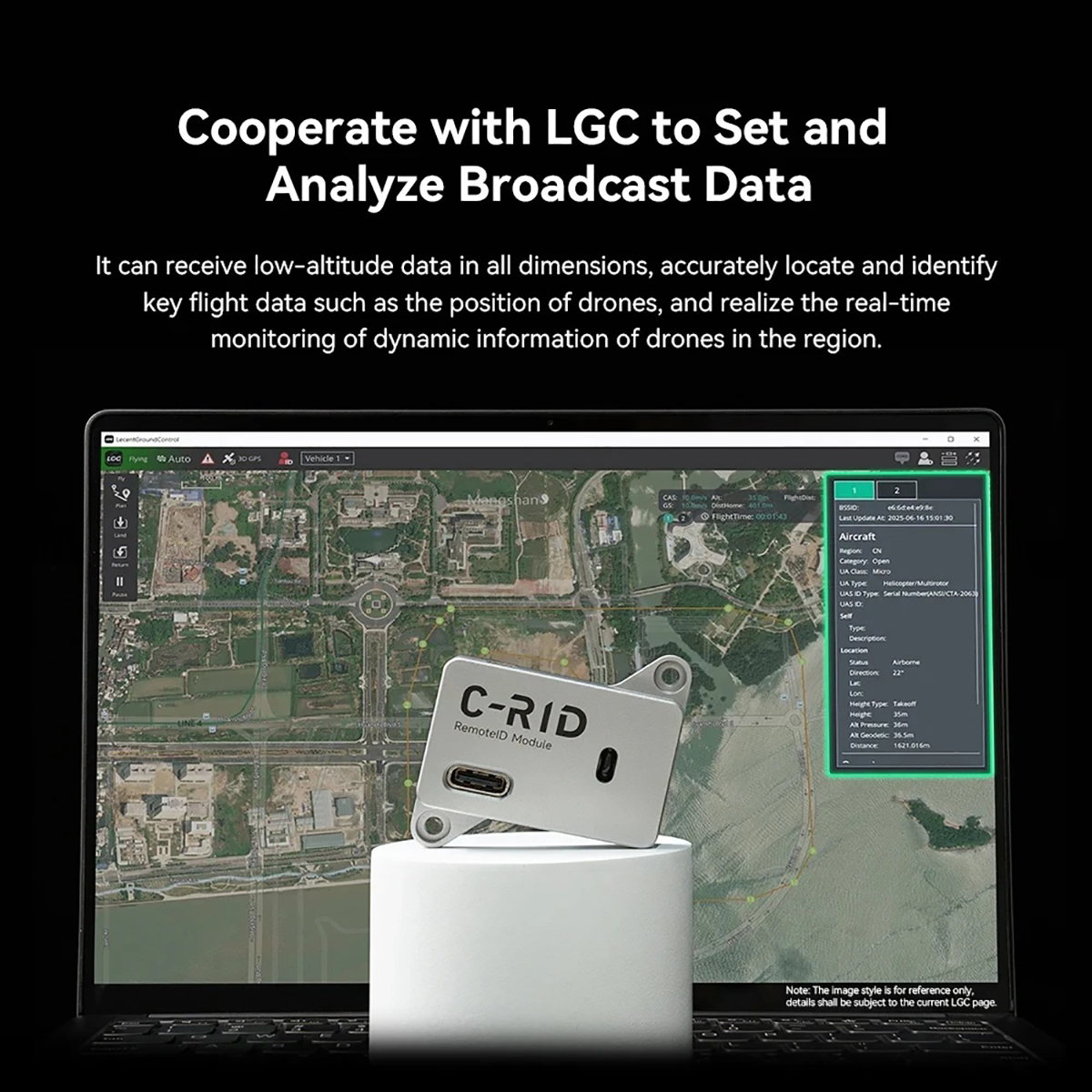

Cooperate with LGC to Setand Analyze Broadcast Data

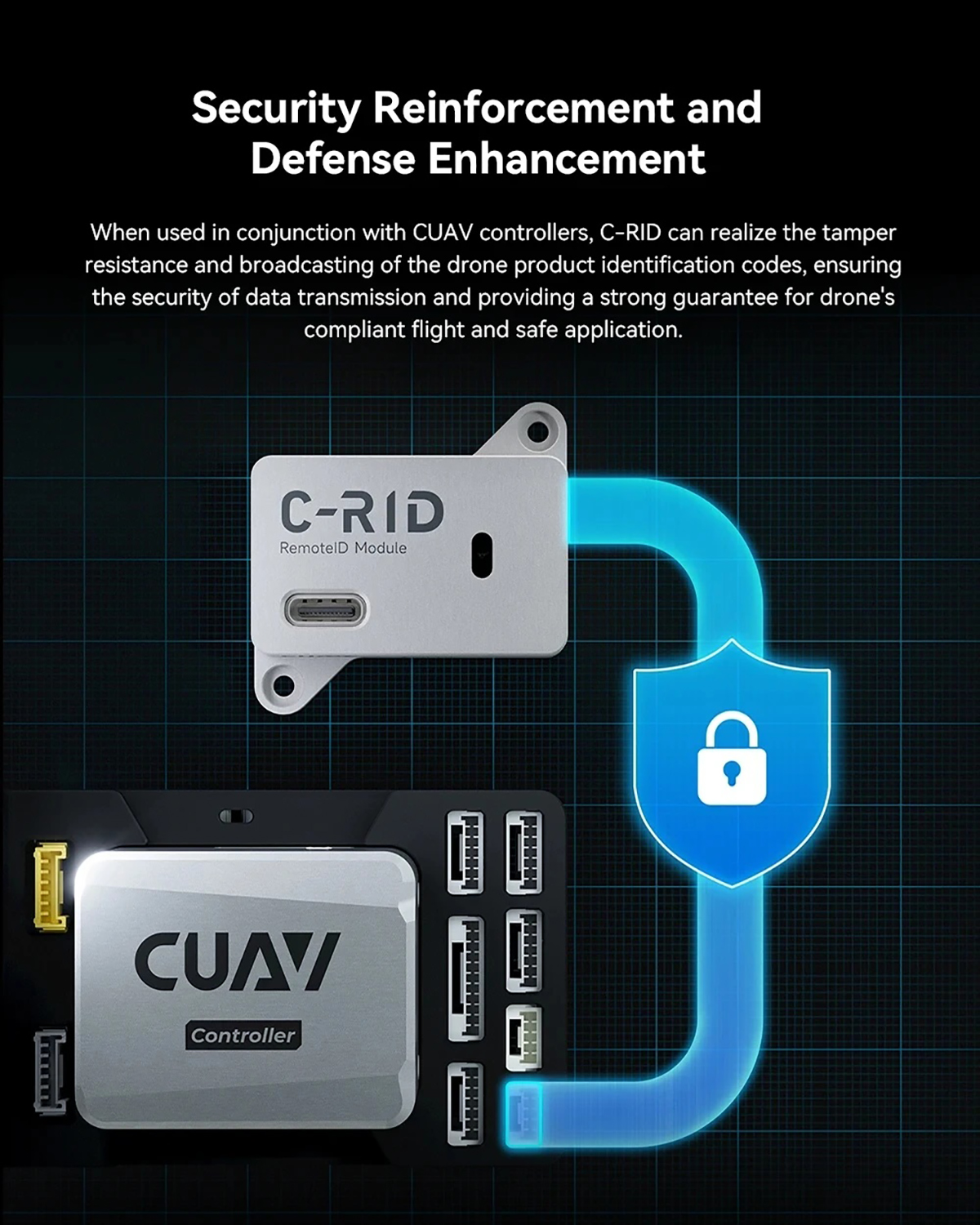

Security Reinforcement and Defense Enhancement

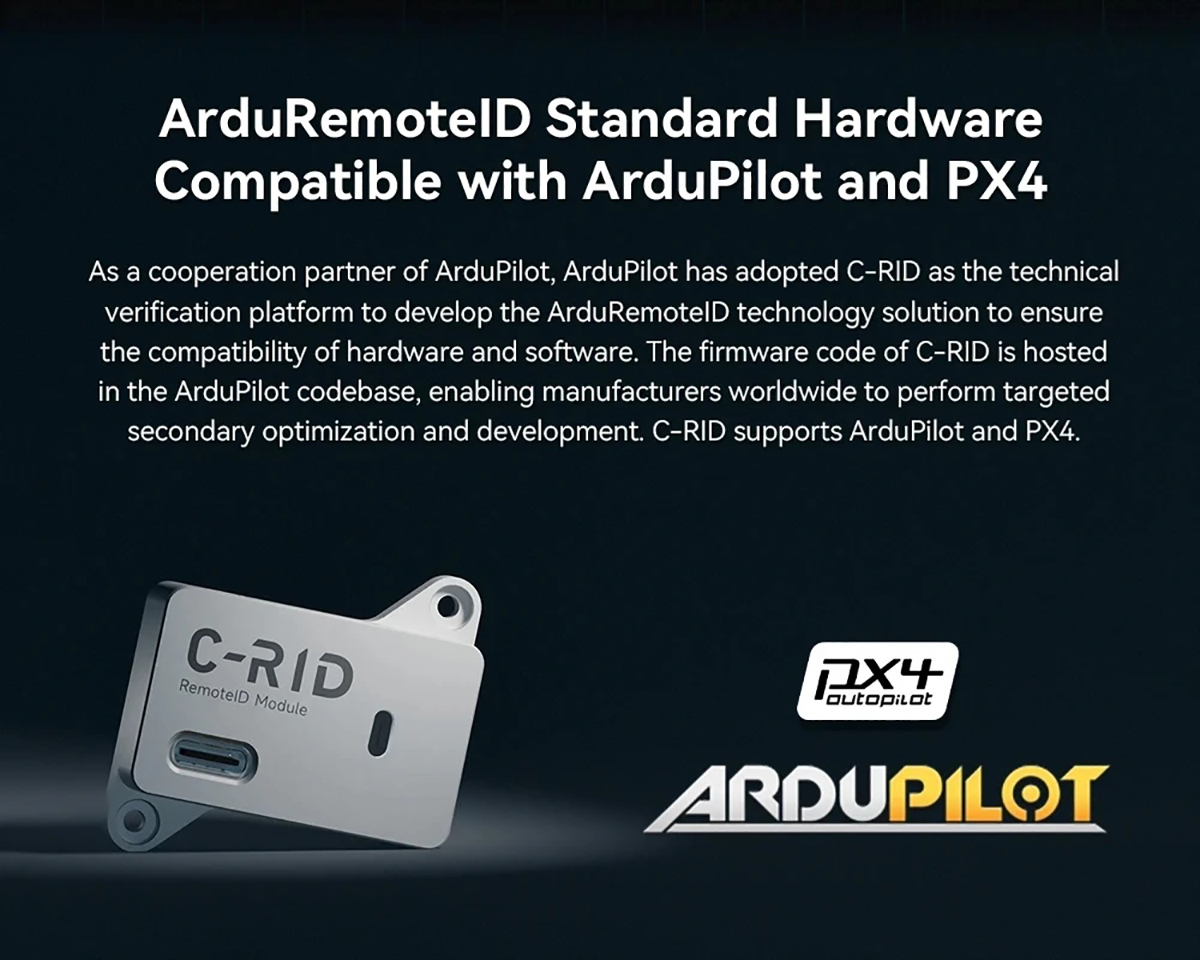

ArduRemotelD Standard Hardware Compatible with ArduPilot and PX

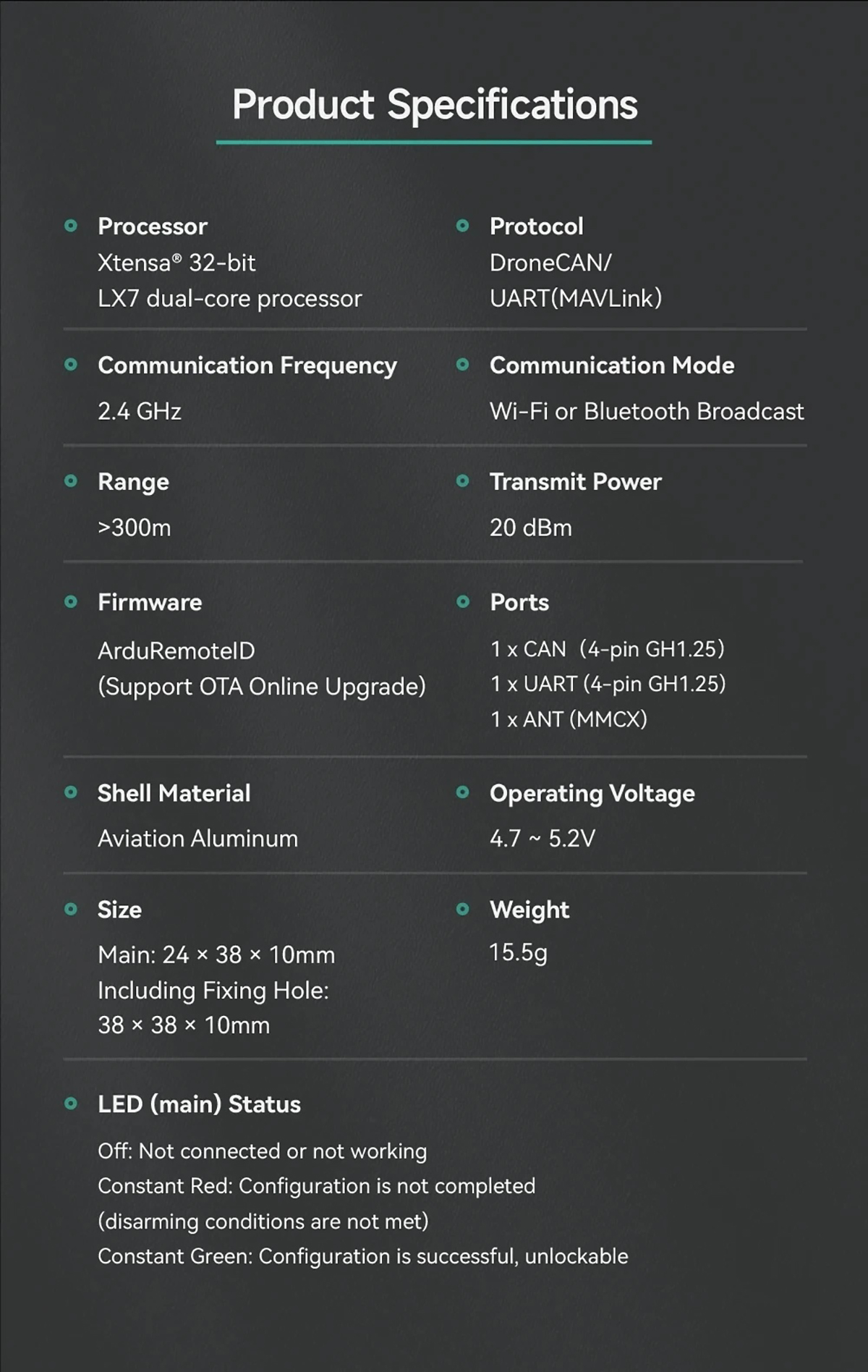

Model: Xtensa 32-Bit LX7 Dual-Core Processor
Protocol: DroneCAN/UART(MAVLink)
Communication Frequency: 2.4GHz
Range: >300m
Transmit Power: 20dBm
Firmware: ArduRemotelD (Support OTA Online Upgrade)

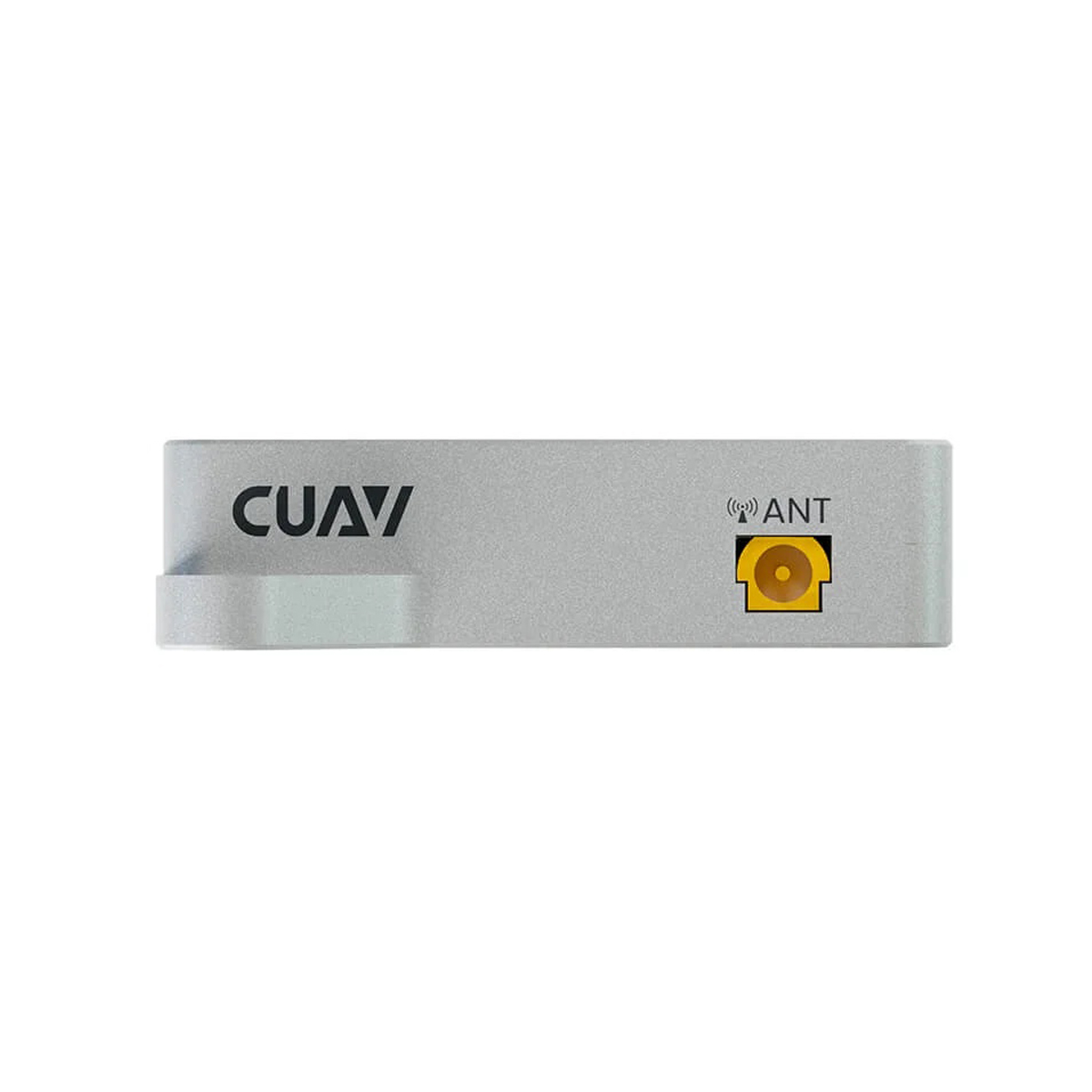

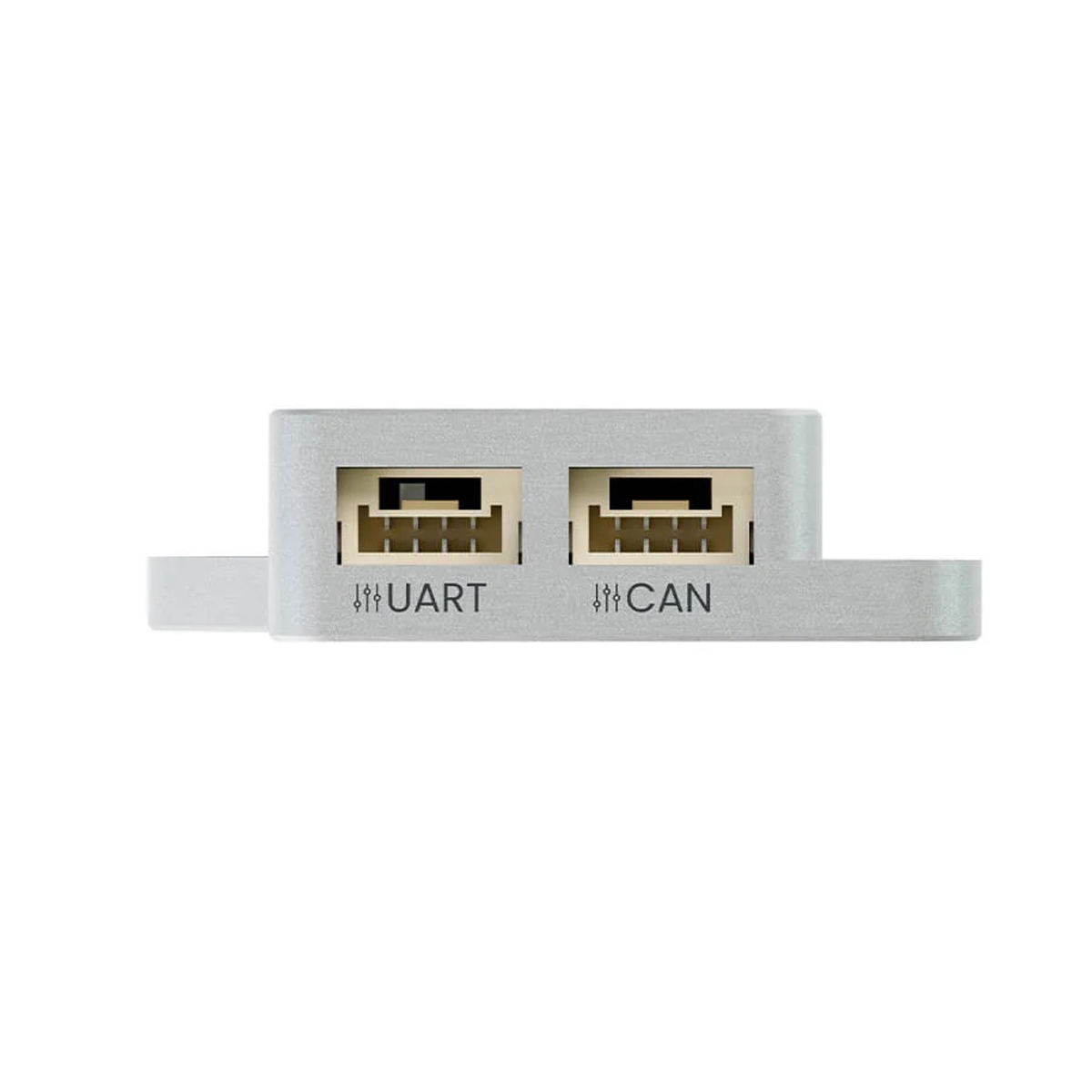

Ports: 1 x CAN (4-Pin GH1.25), 1 x UART (4-Pin GH1.25), 1 x ANT(MMCX)
Shell Material: Aviation Aluminum
Operating Voltage: 4.7～5.2V

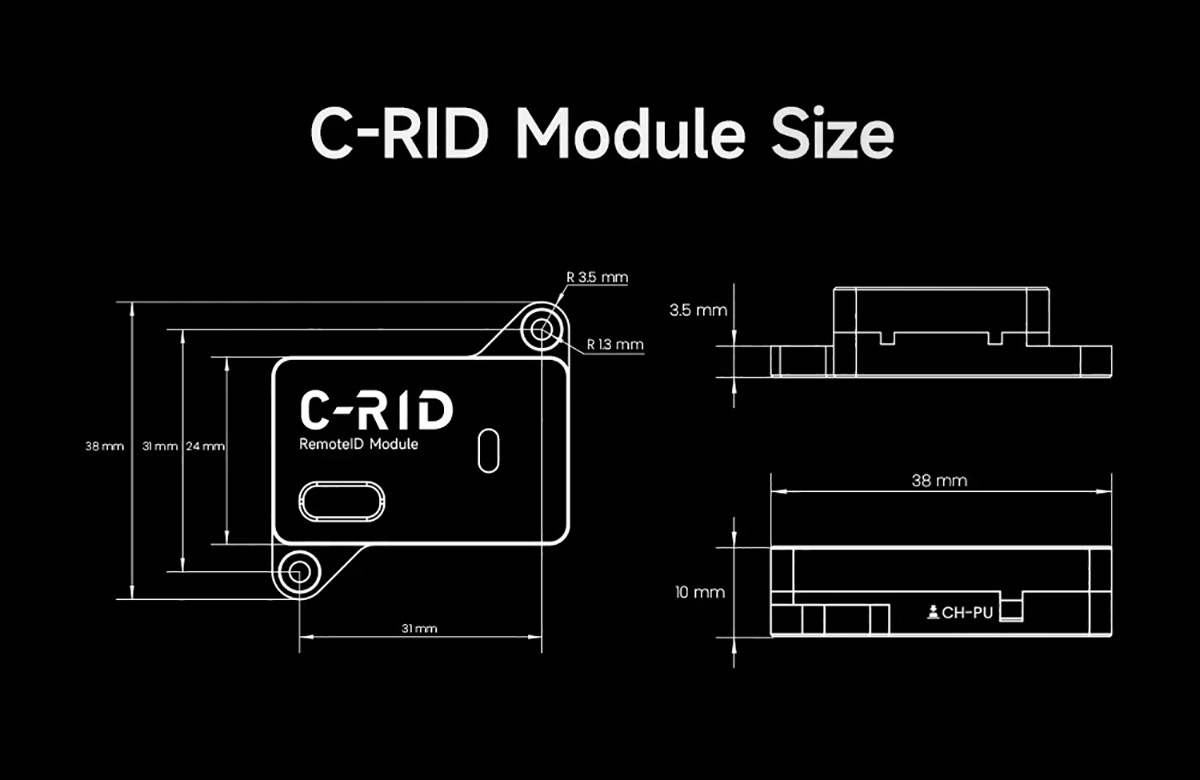

Size: Main: 24×38x10mm; Including Fixing Hole: 38x38x10mm
Weight: 15.5g
LED (Main) Status:
Off: Not Connected Or Not Working
Constant Red: Configuration Is Not Completed(Disarming Conditions Are Not Met)
Constant Green: Configuration Is Successful, Unlockable
