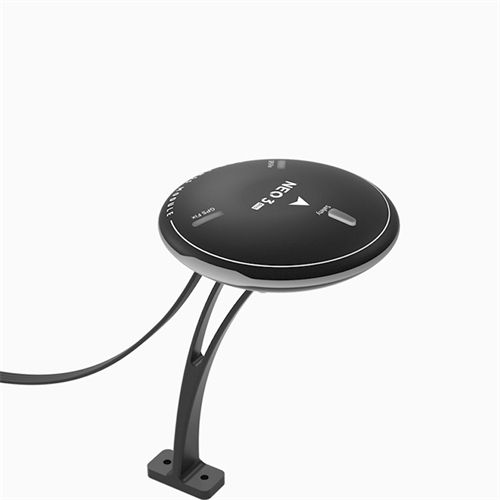

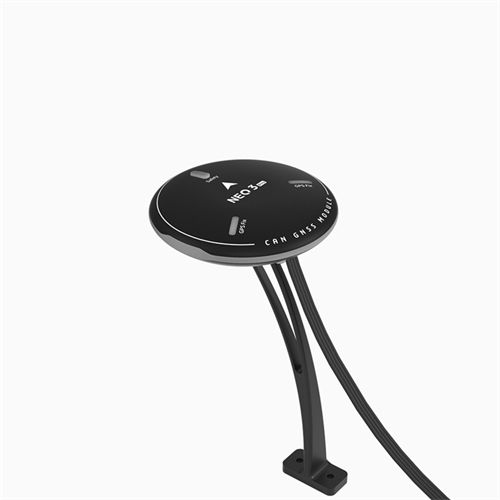

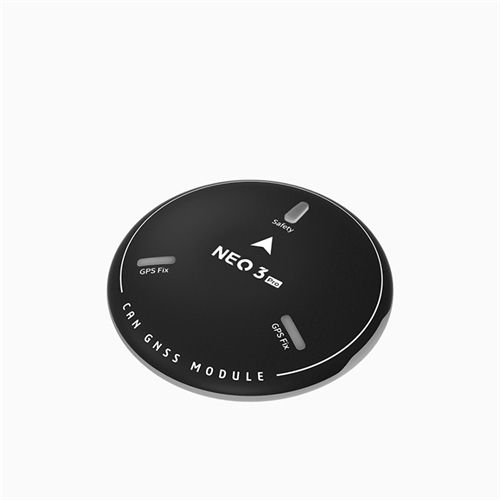

CUAV NEO 3 PRO GNSS GPS Module For PIX Flight Controller Pixhawk with Ardupilot PX4 Open Source 4 Starts
CUAV NEO 3 PRO GNSS GPS Module For PIX Flight Controller Pixhawk with Ardupilot PX4 Open Source 4 Starts
NEO 3 Pro adopts SAW+LNA+SAW triple filter design, effectively avoiding the influence of remote control, data transmission, 4G signal on GPS positioning reception
New generation satellite receiver Ublox M9N，The actual measurement can reach a maximum accuracy of 0.7m.
Supports simultaneous reception of Beidou, Galileo, Glonas, and GPS four satellite systems
Processor：STM32F412
Compass：RM3100
Barometer：MS5611
GNSS receiver：UBLOX NEO M9N
RGB drive：NCP5623C
Buzzer：Passive buzzer
Safety switch：Physical button
GNSS：Beidou、Galileo、 GLONASS、 GPS
GNSS Augmentation System
-SBAS:WAAS,EGNOS,MSAS
-QZSS:L1s(SAIF)
-other：RTCM3.3
Number of concurrent GNSS：4
Frequency band
-GPS:L1C/A
-GLONASS:L10F
-Beidou:B1I
-Galileo:E1B/C
Horizontal accuracy：2.0M
Speed accuracy：0.05M/S
Nav. update rate：25Hz(Max)
Acquisition
-Cold start：24S
-Hot start：2S
-Aided start:2s
Number of satellites(MAX)：32+
Sensitivity
-Tracking and nav-167dBm
-Cold start Hot star-148dBm
-Reacquisition -160dBm
Protocol：UAVCAN
Port TYpe：GHR-04V-S
Supported flight controller：CUAV series,
Pixahwk series
Wave filtering：SAW+LNA+SAW
Anti-Electromagnetic/radio frequency interference：EMI+RFI
Upgrade firmware：support
Support Flight control type：Ardupilot/PX4*(PX4 is still working hard to adapt to the clock)
Input voltage：5V
Operating temperature：-10~70℃
Size：60*60*16MM
Weight：33g
NEO 3 Pro Module X1
GPS Stand X1
CAN Connect Cable X1
