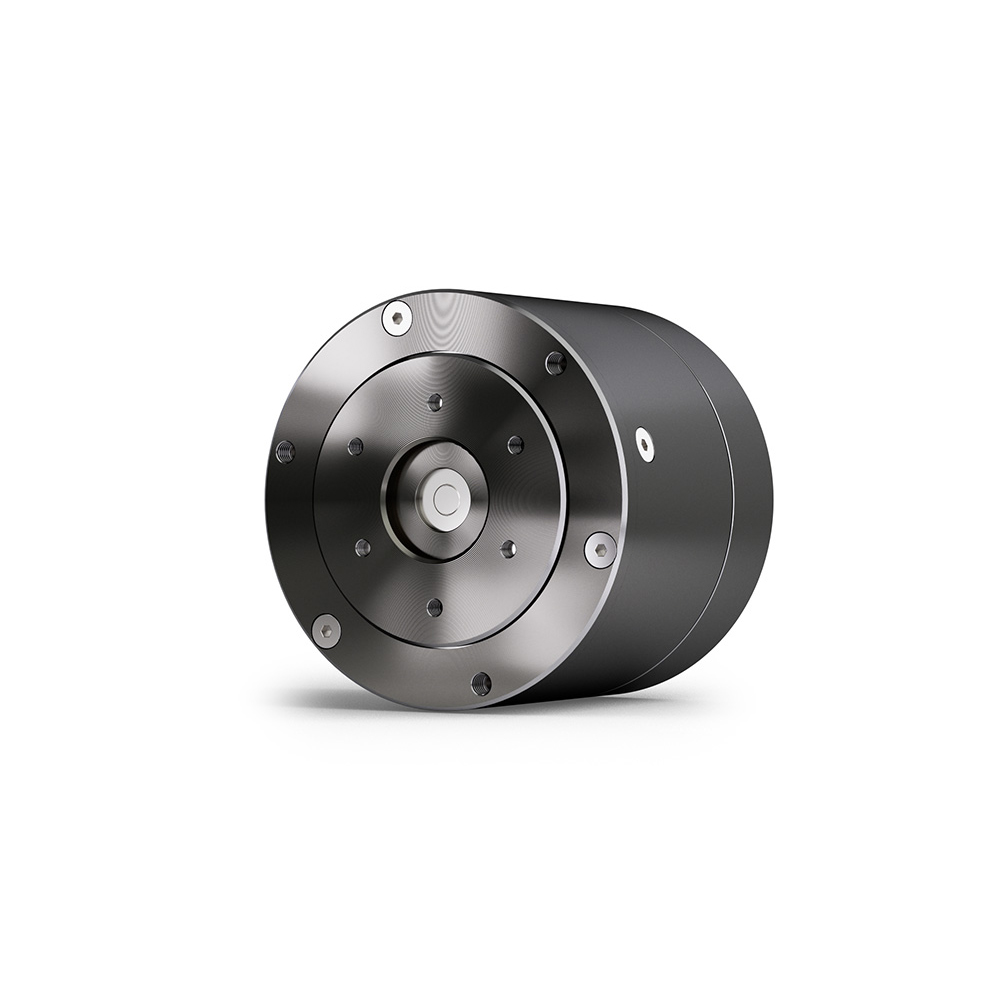

CubeMars AK45-10 75KV Brushless Motor Lightweight & High Power for Humanoid Robot Joints

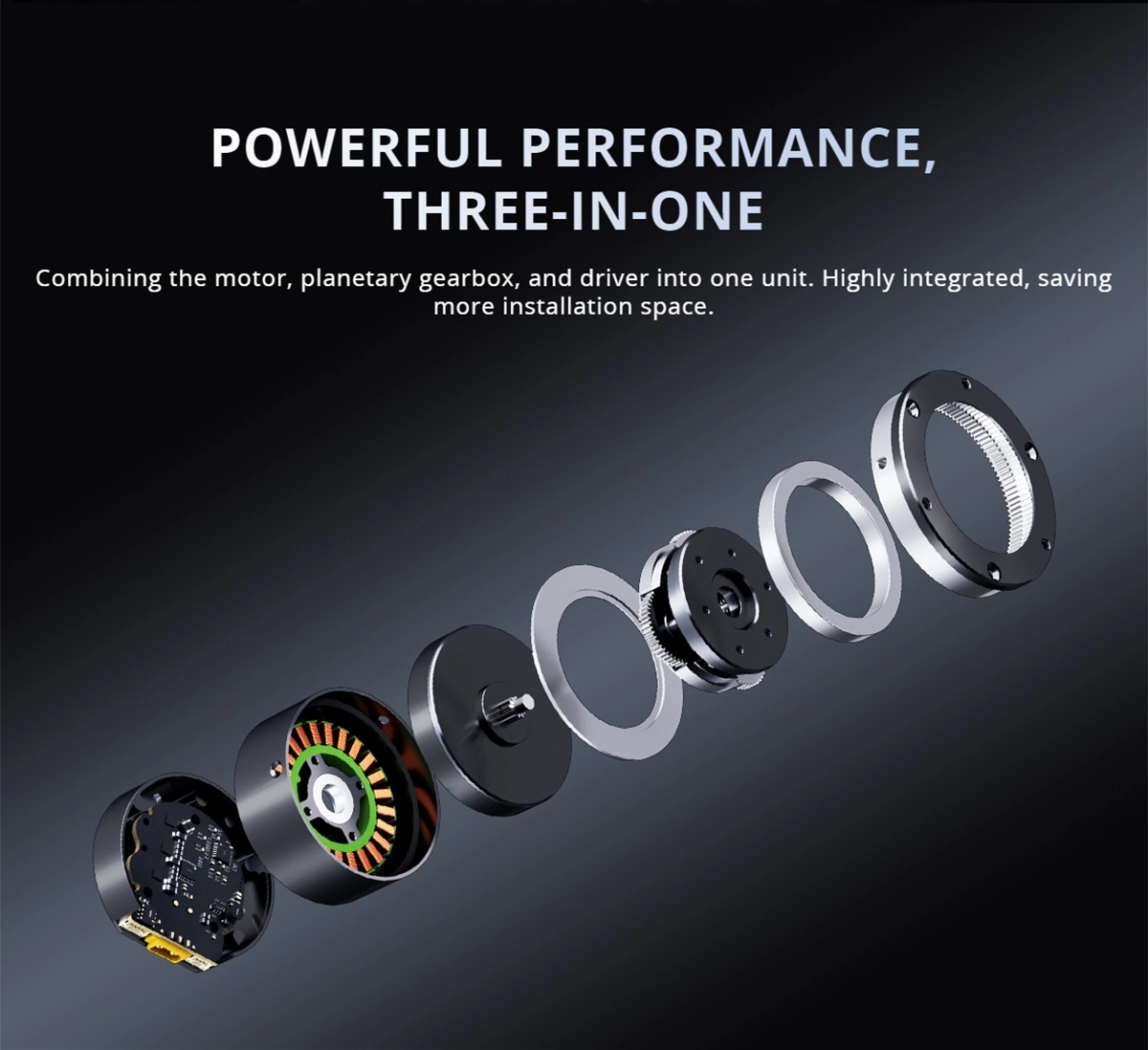

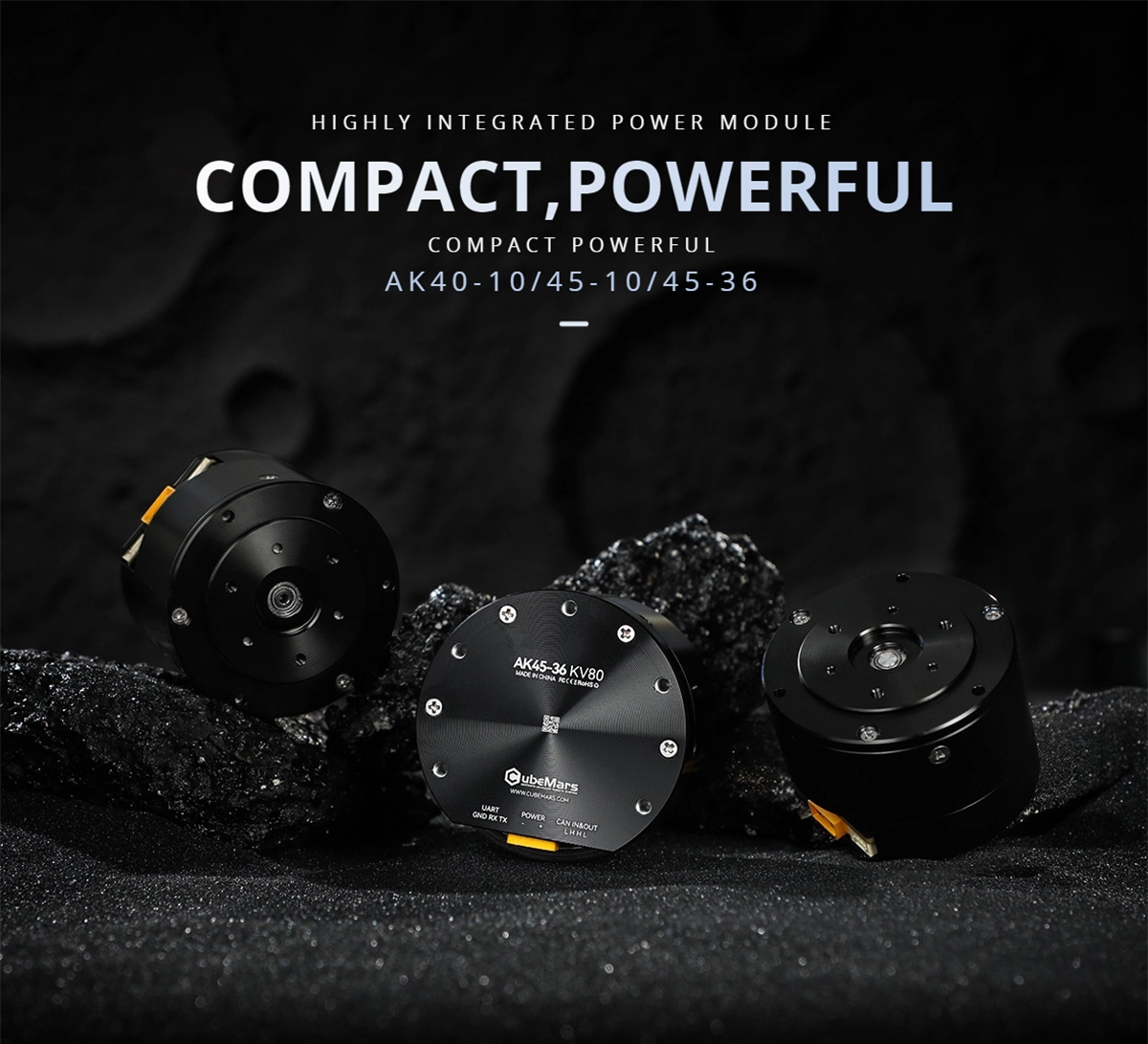

The AK40-10, AK45-10, and AK45-36 series are high-performance power modules that integrate a brushless motor, planetary gearbox, and driver into a single unit, providing the perfect solution for powerful motion and precise control. These modules feature a lightweight design with high efficiency and strong power, offering exceptional torque density to meet various high-load demands. The core components of the gearbox and the manufacturing process have been specially optimized to deliver a smoother operating experience. Supporting both servo and motion control modes, they incorporate adaptive PID settings, eliminating complexity and enabling direct, efficient operation.

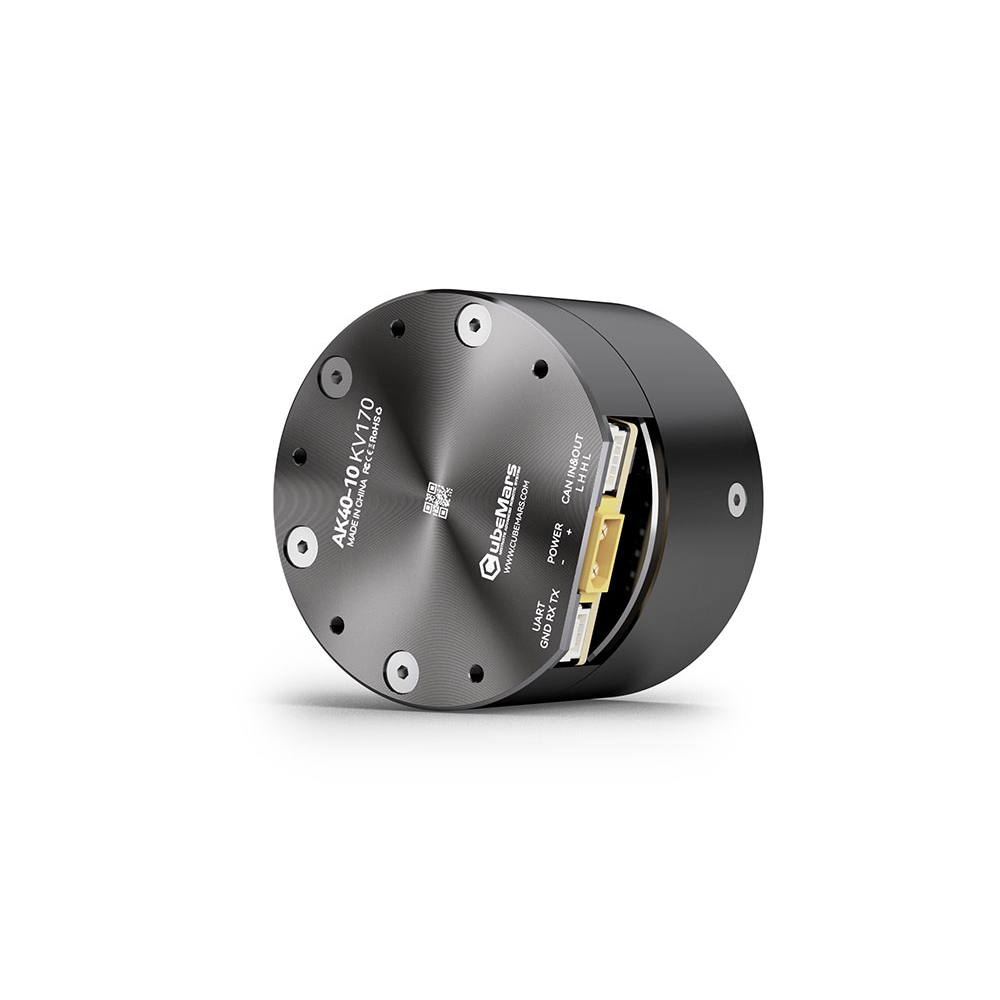

The AK40-10 and AK45-10 power modules use a 10:1 reduction ratio, making them suitable for applications with limited space and moderate torque requirements. In contrast, the AK45-36 power module features a 36:1 reduction ratio, delivering greater torque output for heavy-load applications. The plug-and-play, highly integrated design removes traditional redundant wiring, streamlining the installation process and simplifying deployment.
More compact power module

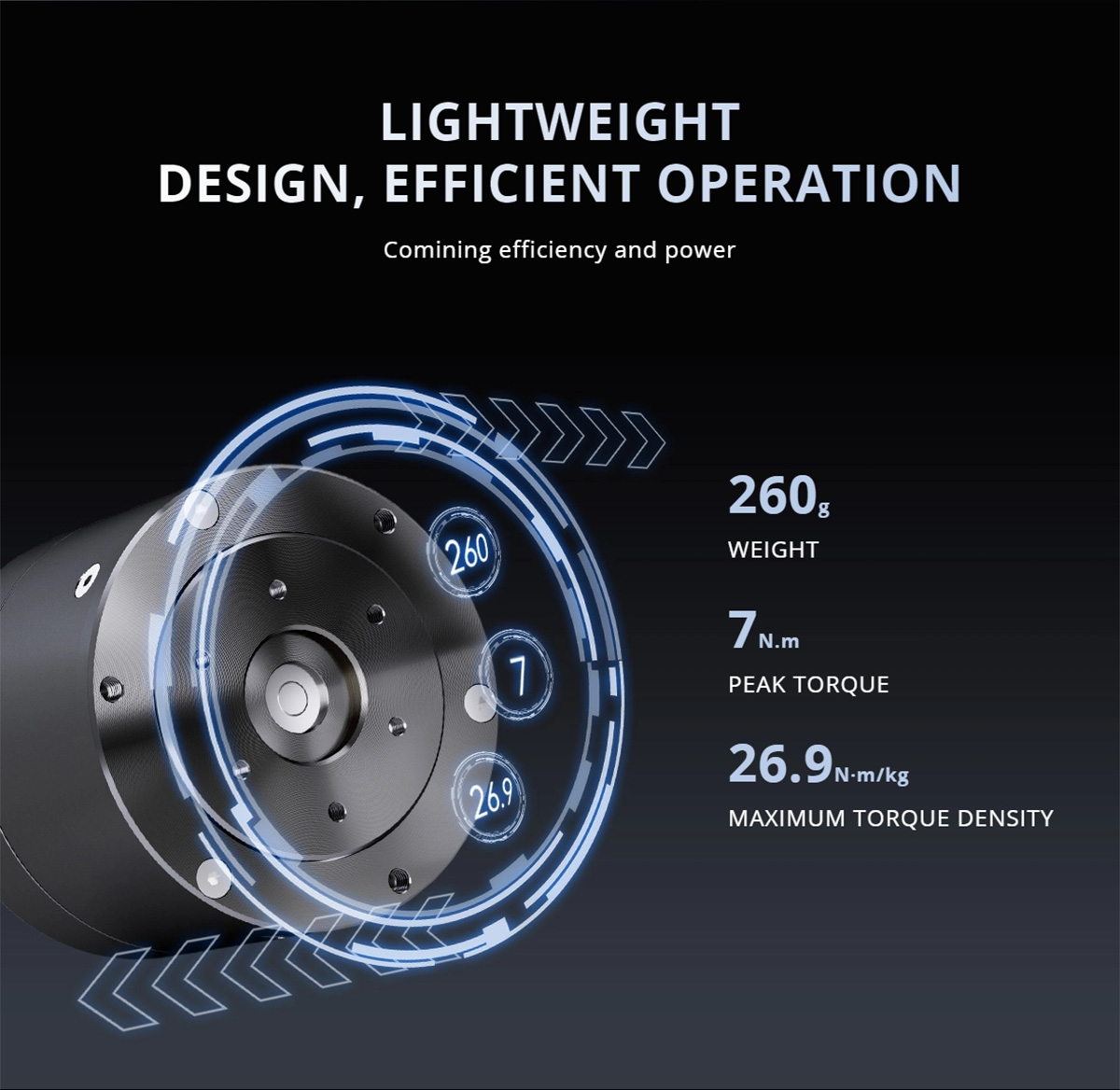

Lightweight design with strong power
Supports both Servo and MIT

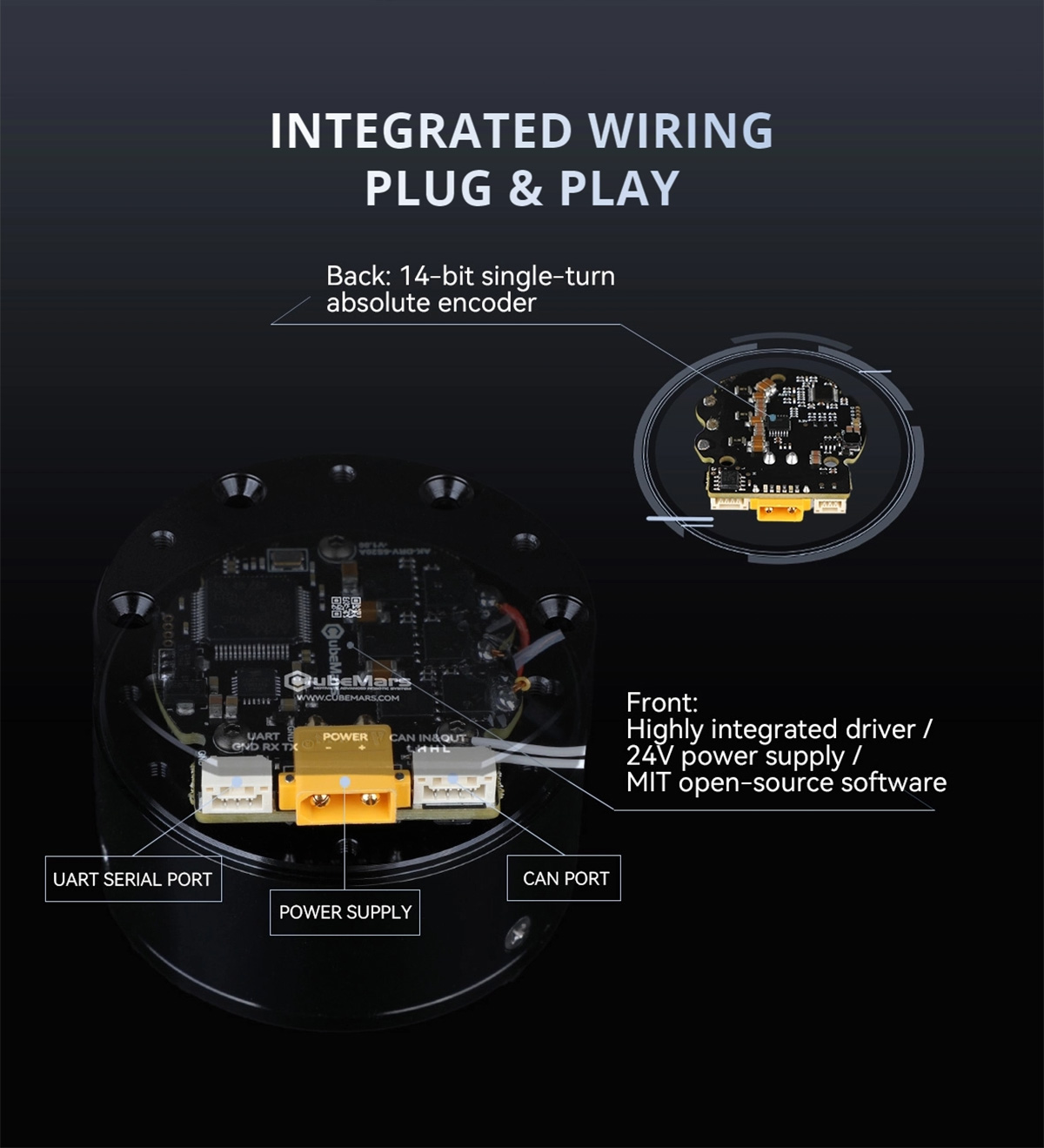

Plug & Play, simplifying complexity
Suitable for humanoid robot joints

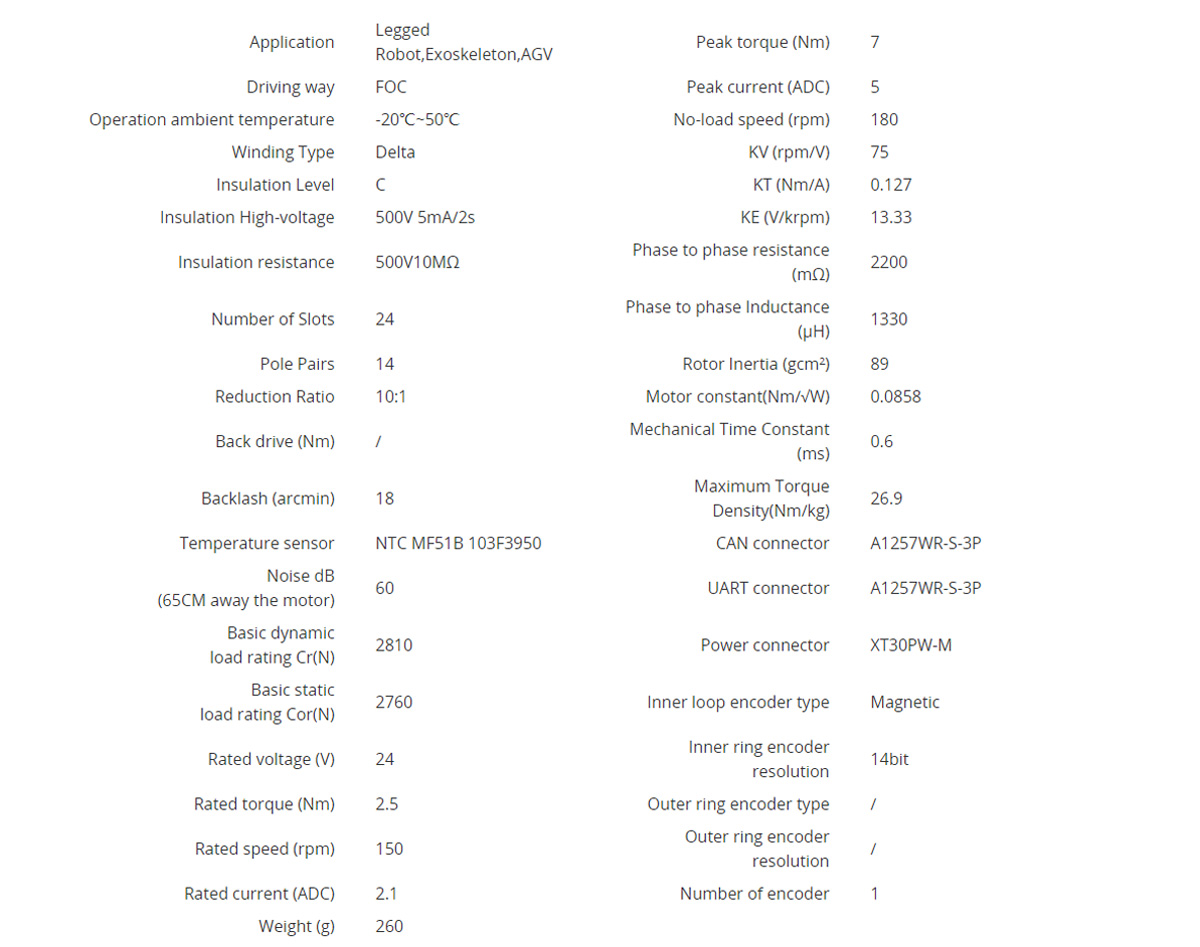

Model: AK45-10 KV75
Application: Legged Robot, Exoskeleton, AGV
Peak torque (Nm): 7
Driving way: FOC
Peak current (ADC): 5
Operation ambient temperature: -20℃~50℃
No-load speed (rpm): 180
Winding Type: Delta
KV (rpm/V): 75
Insulation Level: C
KT (Nm/A): 0.127
Insulation High-voltage: 500V 5mA/2s
KE (V/krpm): 13.33
Insulation resistance: 500V10MΩ
Phase to phase resistance (mΩ): 2200
Number of Slots: 24
Phase to phase Inductance (μH): 1330
Pole Pairs: 14
Rotor Inertia (gcm²): 89
Reduction Ratio: 10:1
Motor constant(Nm/√W): 0.0858
Back drive (Nm): /
Mechanical Time Constant (ms): 0.6
Backlash (arcmin): 18
Maximum Torque Density(Nm/kg): 26.9
Temperature sensor: NTC MF51B 103F3950
CAN connector: A1257WR-S-3P
Noise dB (65CM away the motor): 60
UART connector: A1257WR-S-3P
Basic dynamic load rating Cr(N): 2810
Power connector: XT30PW-M
Basic static load rating Cor(N): 2760
Inner loop encoder type: Magnetic
Rated voltage (V): 24
Inner ring encoder resolution: 14bit
Rated torque (Nm): 2.5
Outer ring encoder type: /
Rated speed (rpm): 150
Outer ring encoder resolution: /
Rated current (ADC): 2.1
Number of encoder: 1
Weight (g): 260

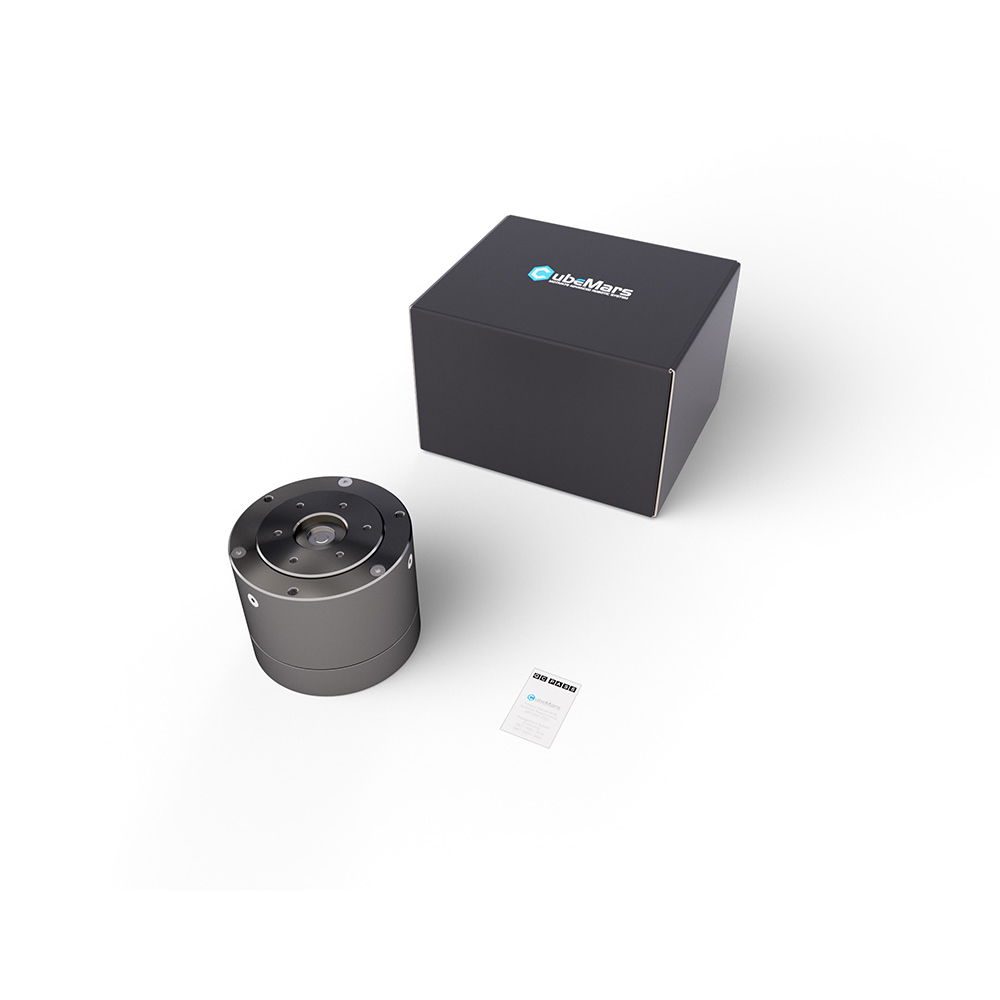

AK45-10 Motor x1
