CubeMars AK60-6 V1.1 KV80 KV140 Robotic Actuator High Integrated Dynamic Module for Legged Robot Exoskeleton

SKU AK60-6-V1.1 Category Motor Tag Motor Brand: T-MOTOR

CubeMars AK60-6 V1.1 KV80 KV140 Robotic Actuator High Integrated Dynamic Module for Legged Robot Exoskeleton

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

he CubeMars AK60-6 V1.1 robotic actuator integrates a brushless DC motor, planetary gearbox, and driver board into a compact, easy-to-install package. Featuring a 6:1 planetary gear reduction, it delivers stable torque while maintaining high response speed. The module supports multi-loop control (position, speed, torque, and MIT hybrid mode), features plug-and-play connectivity, and includes adaptive PID tuning. Integrated protection against overcurrent, overvoltage/undervoltage, and overheating ensures reliable operation in demanding environments.

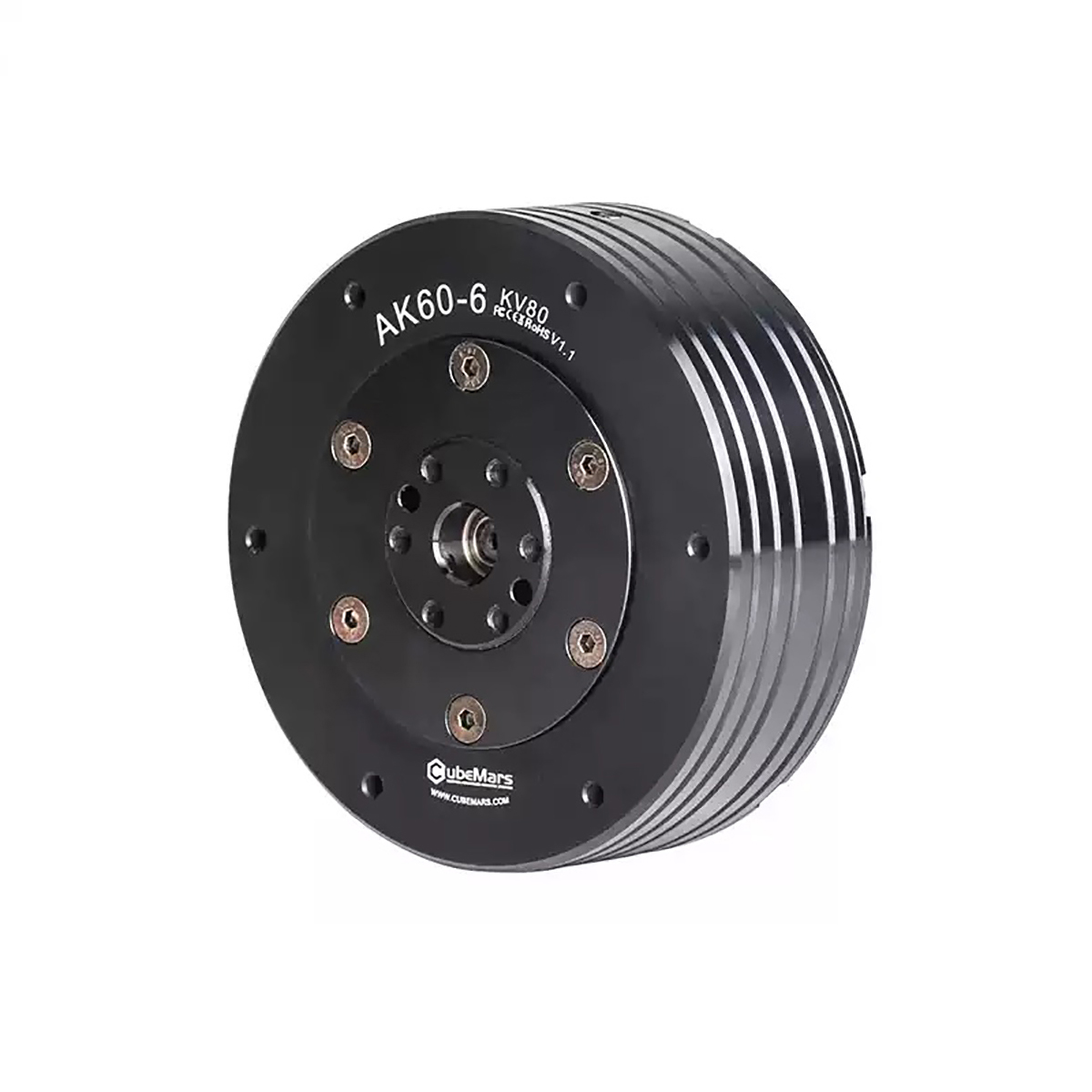

Model: AK60-6 V1.1 KV80
Application: Legged Robot, Exoskeleton, AGV
Driving Way: FOC
Operation Ambient Temperature: -20℃~50℃
Winding Type: Star
Insulation Class: C
Insulation High-Voltage: 500V 5mA/2s
Insulation Resistance: 500V 10MΩ
Phase: Three Phase
Pole Pairs: 14
Reduction Ratio: 6:1
Back Drive (Nm): 0.2
Backlash (°): 0.55
Temperature Sensor: NTC MF51B 103F3950
Noise (65cm Away from the Motor): 55dB
Basic Load Ratings (Dynamic C) (N): 3150
Basic Load Ratings (Static C0) (N): 4500
Rated Voltage (V): 24
Rated Torque (Nm): 3
Rated Speed (rpm): 233
Rated Current (ADC): 3.8
Peak Torque (Nm): 9
Peak Current (ADC): 13.1
Kv (rpm/V): 80
Kt (Nm/A): 0.135
Ke (V/krpm): 12.8
Phase to Phase Resistance (mΩ): 605
Phase to Phase Inductance (μH): 415
Inertia (gcm²): 243.5
Km (Nm/√W): 0.17
Mechanical Time Constant (ms): 0.81
Electrical Time Constant (ms): 0.69
Weight (g): 368
Maximum Torque Weight Ratio (Nm/kg): 24.46

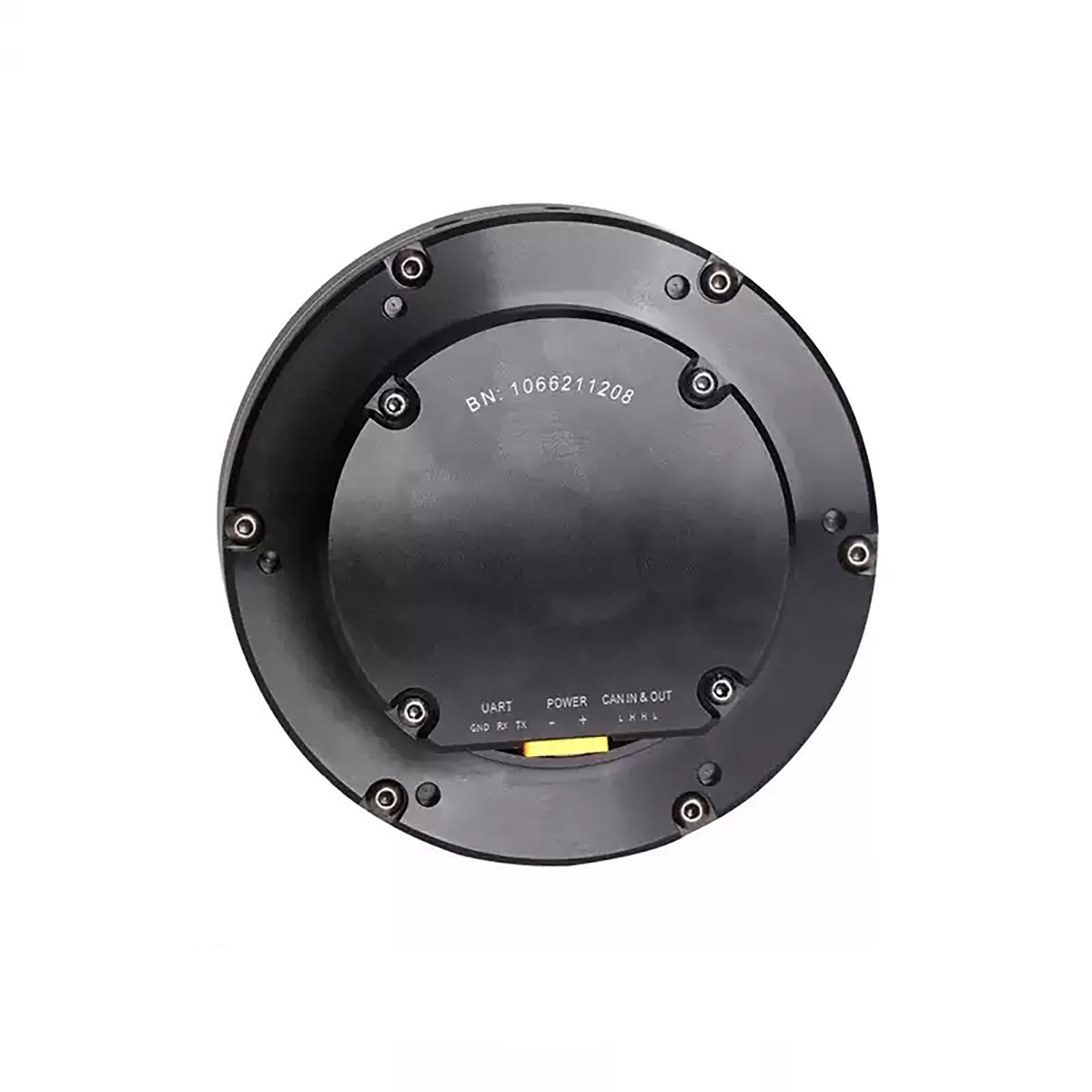

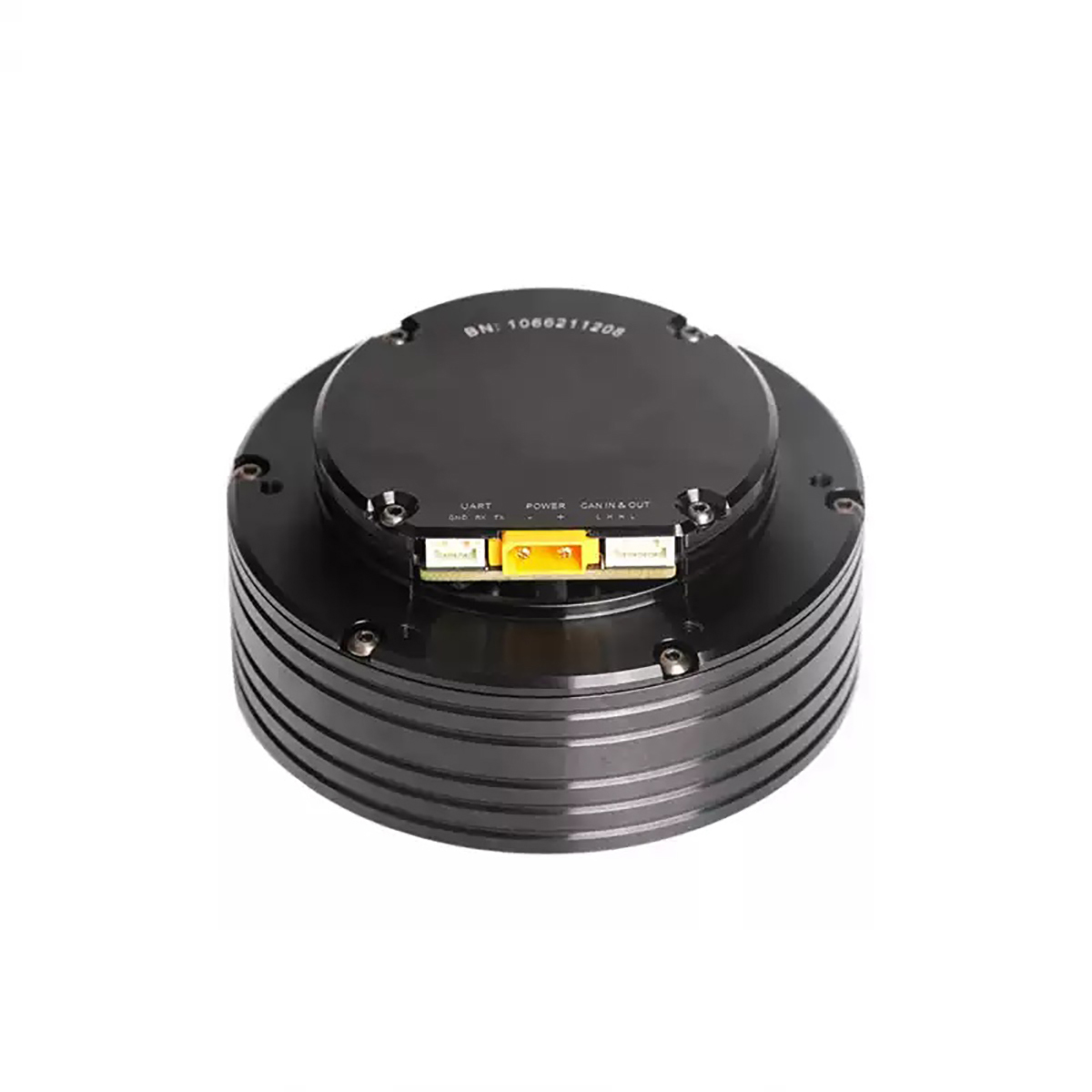

CAN Connector: A1257WR-S-4P
UART Connector: A1257WR-S-3P
Power Connector: XT30PW-M
Inner Loop Encoder Type: Magnetic Encoder
Inner Ring Encoder Resolution: 14bit
Outer Ring Encoder Type: –
Outer Ring Encoder Resolution: –
Number of Encoder: 1

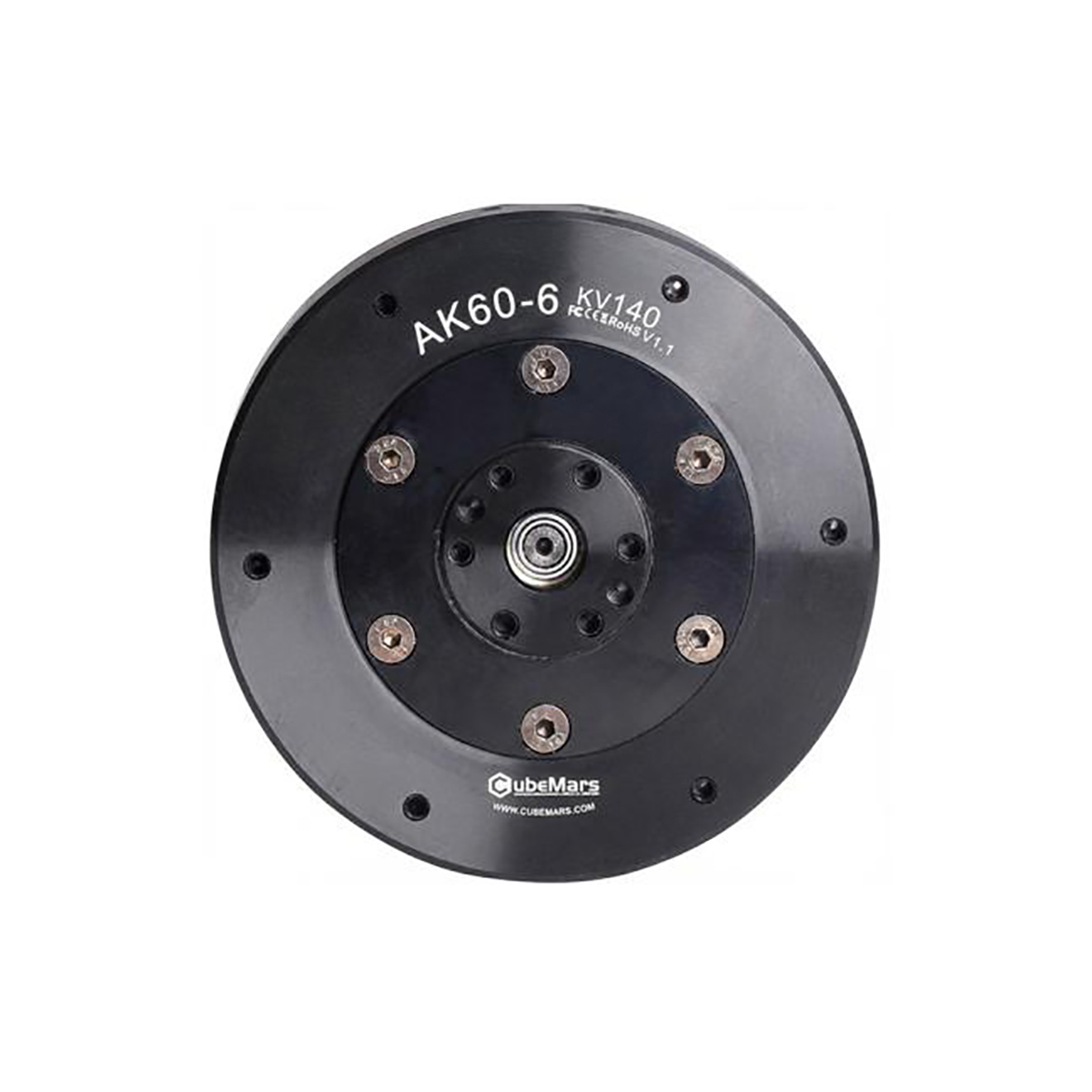

Model: AK60-6 V1.1 KV140
Application: Legged Robot, Exoskeleton, AGV
Peak Torque (Nm): 9
Driving Way: FOC
Peak Current (ADC): 22.7
Operation Ambient Temperature: -20℃~50℃
Kv (rpm/V): 140
Winding Type: Delta
Kt (Nm/A): 0.078
Insulation Class: C
Ke (V/krpm): 7.5
Insulation High-Voltage: 500V 5mA/2s
Phase to Phase Resistance (mΩ): 202
Insulation Resistance: 500V 10MΩ
Phase to Phase Inductance (μH): 138
Phase: 3
Inertia (gcm²): 243.5
Pole Pairs: 14
Km (Nm/√W): 0.17
Reduction Ratio: 6:1
Mechanical Time Constant (ms): 0.81
Back Drive (Nm): 0.2
Electrical Time Constant (ms): 0.68
Backlash (°): 0.55
Weight (g): 368
Temperature Sensor: NTC MF51B 103F3950
Maximum Torque Weight Ratio (Nm/kg): 24.46
Noise (65cm Away from the Motor): 60dB
CAN Connector: A1257WR-S-4P
Basic Load Ratings (Dynamic C) (N): 3150
UART Connector: A1257WR-S-3P
Basic Load Ratings (Static C0) (N): 4500
Power Connector: XT30PW-M
Rated Voltage (V): 24
Inner Loop Encoder Type: Magnetic Encoder
Rated Torque (Nm): 3
Inner Ring Encoder Resolution: 14bit
Rated Speed (rpm): 420
Outer Ring Encoder Type: –
Rated Current (ADC): 6.5
Outer Ring Encoder Resolution: –
Number of Encoder: 1
