DC 3-6V Liquid Level Sensor For Water tank Liquid Level Detection
DC 3-6V Liquid Level Sensor For Water tank Liquid Level Detection
Measurement type:
Water, engine oil, gasoline, diesel, kerosene, pesticide, etc.
(not applicable to corrosive liquids such as strong acid and alkali or liquids corrosive to PE materials)
Accuracy: 5%
Weight: 31g (0.03oz)
Power supply: DC3-6v

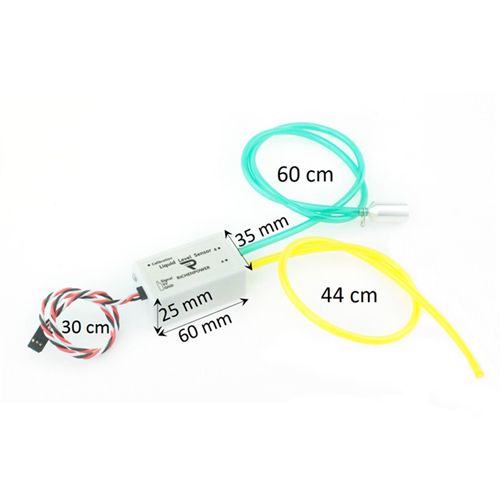

Dimension (L×W×H): 60 × 35 × 25m/2.4 × 1.4 × 1.0in
measuring range: 30cm water or liquid converted according to the specific density of water
Output: amplitude 5V 50Hz PWM signal
Empty 0% – 1100us full 100% – 1900us
Service temperature: – 20℃ – 40℃
Liquid Level Sensor x 1
