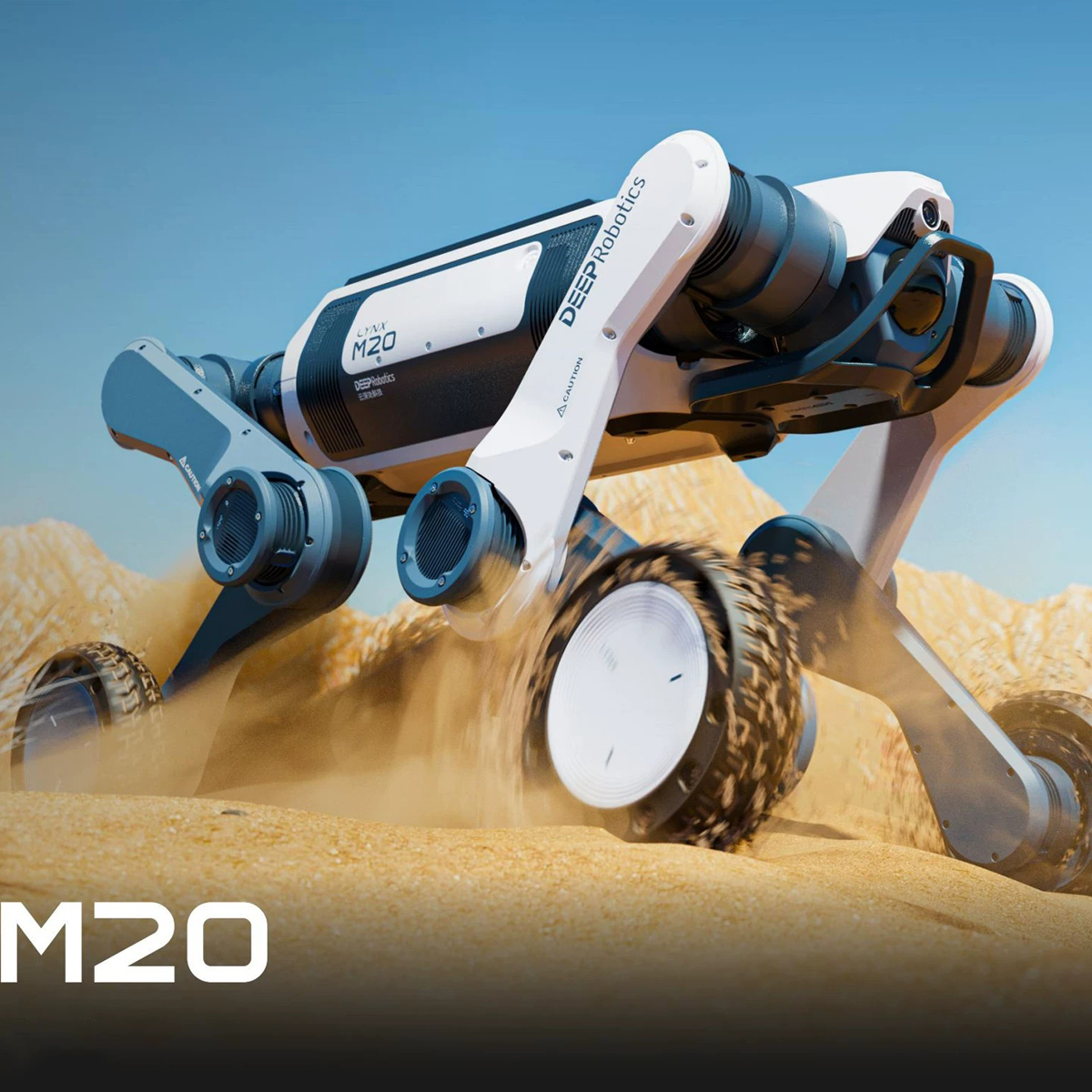

DEEP Robotics LYNX M20 Pro Wheel-Legged Robot High-Performance Configurations for Diverse Demands
DEEP Robotics LYNX M20 Pro Wheel-Legged Robot High-Performance Configurations for Diverse Demands

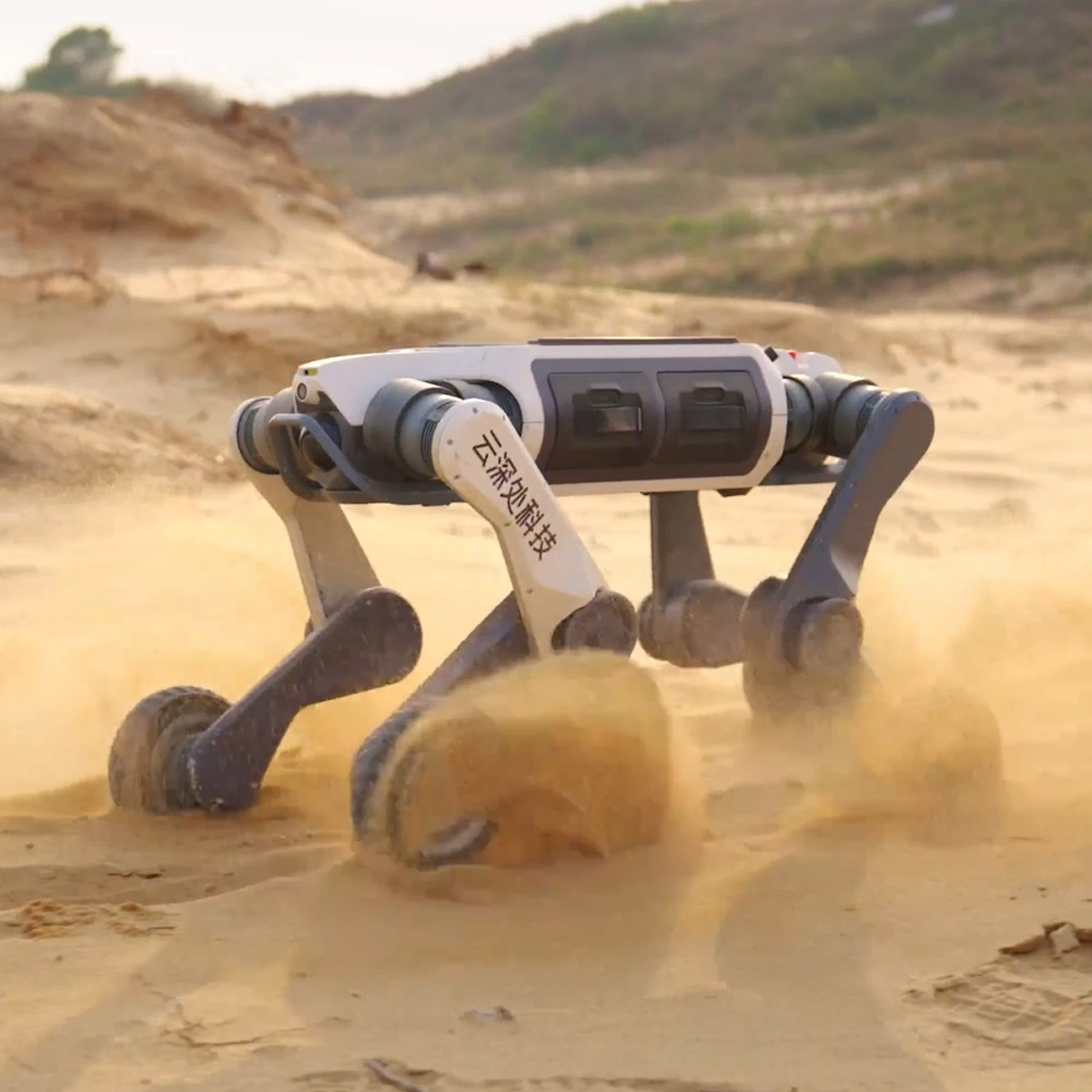

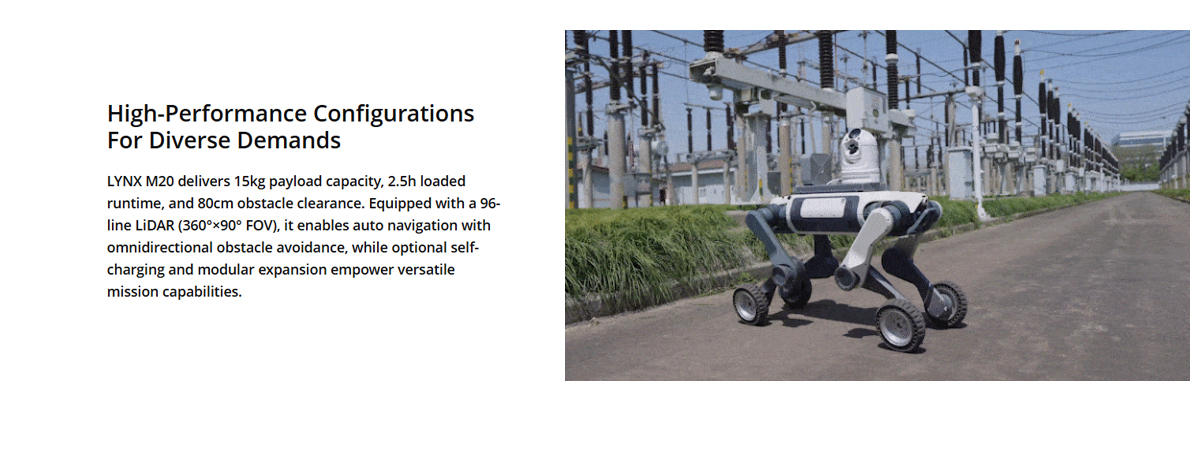

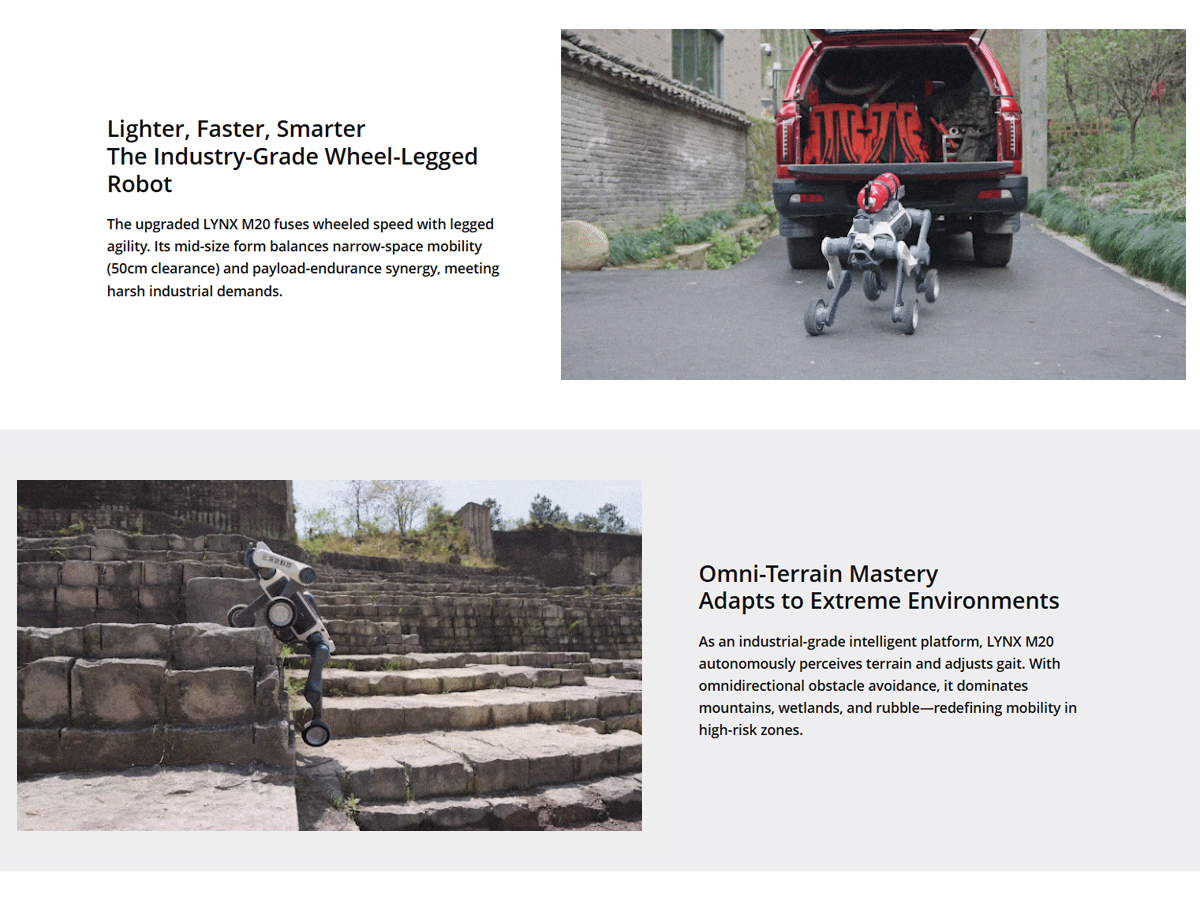

The LYNX M20 series represents the world’s first wheeled-legged robot built specifically for challenging terrains and hazardous environments during industrial operation. Featuring lightweight design with extreme-environment endurance, it conquers rugged mountain trails, muddy wetlands and debris-strewn ruins—pioneering embodied intelligence in power inspection, emergency response, logistics, and scientific exploration.

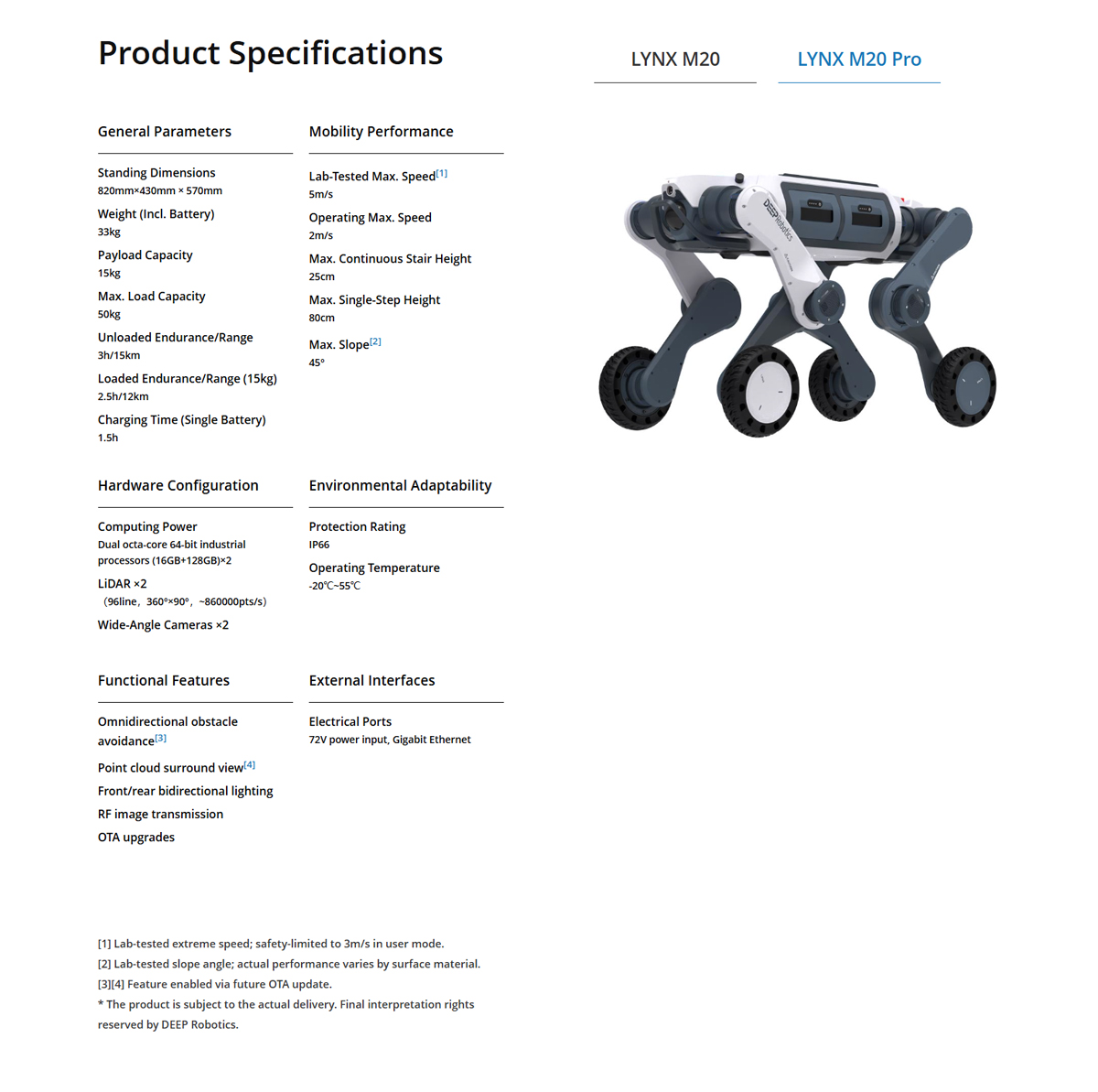

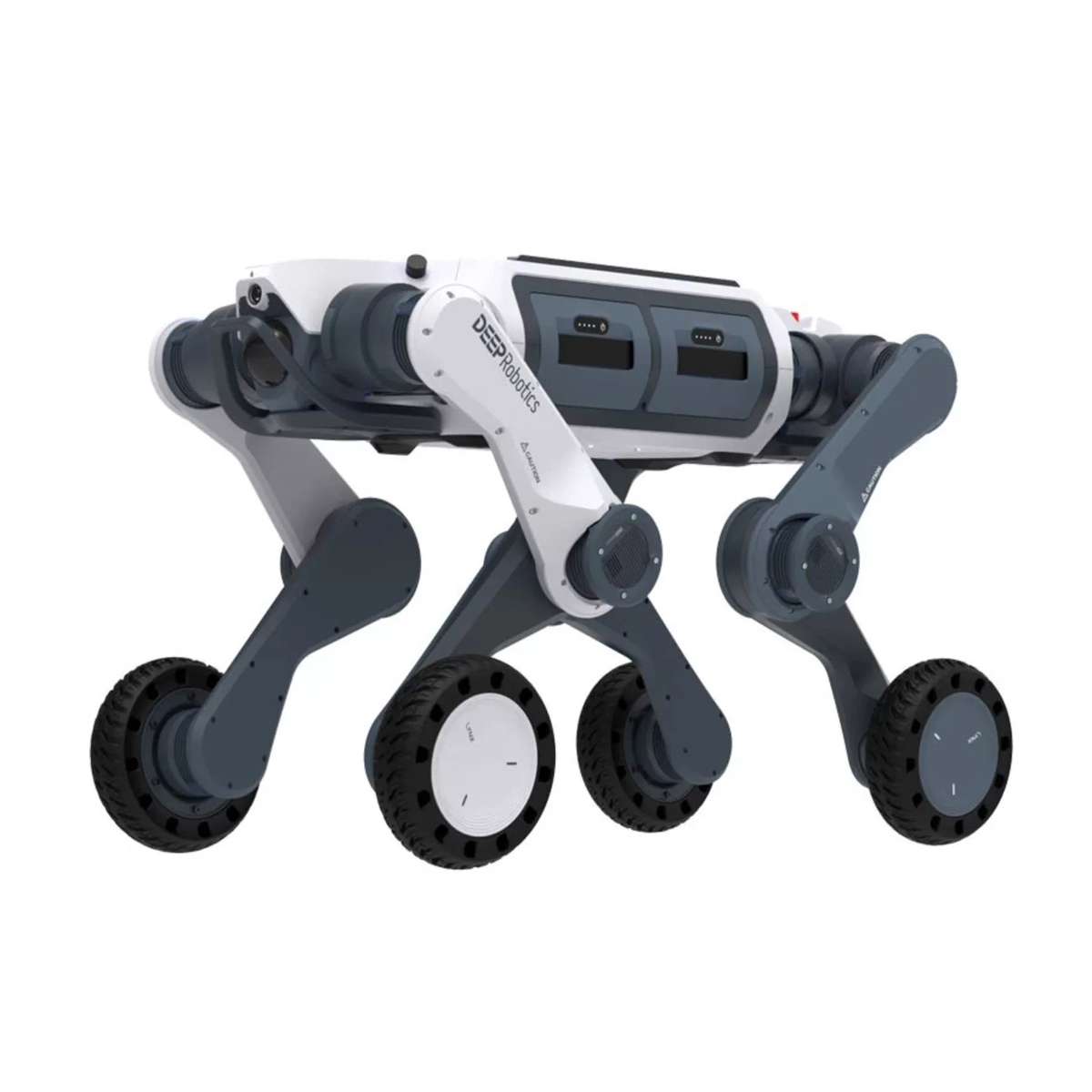

Model: LYNX M20 Pro
Standing Dimensions: 820mm×430mm×570mm
Weight (Incl. Battery): 33kg

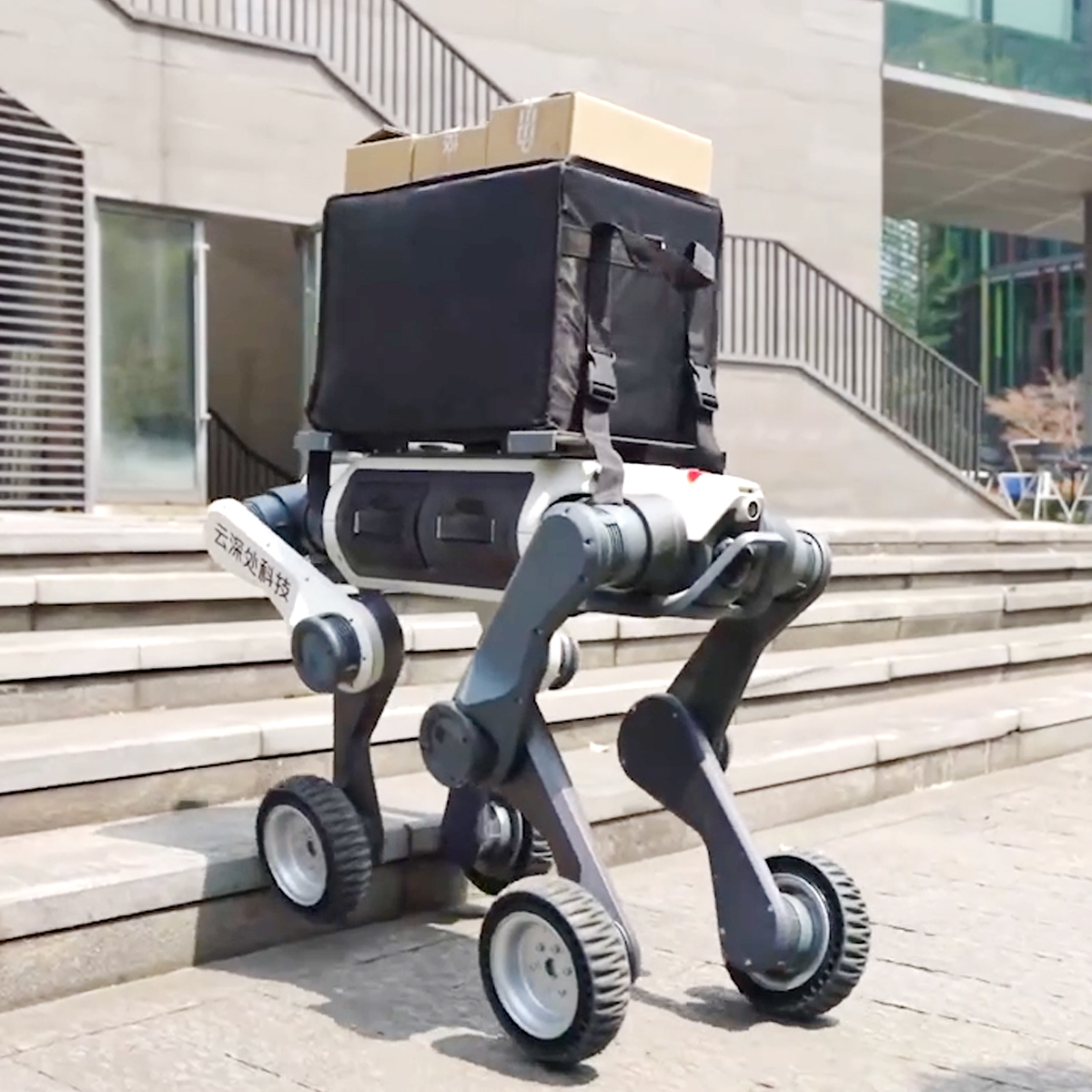

Payload Capacity: 15kg
Max. Load Capacity: 50kg
Unloaded Endurance/Range: 3h/15km
Loaded Endurance/Range (15kg): 2.5h/12km
Charging Time (Single Battery): 1.5h
Mobility Performance
Lab-Tested Max. Speed: 5m/s
Operating Max. Speed: 2m/s
Max. Continuous Stair Height: 25cm
Max. Single-Step Height: 80cm

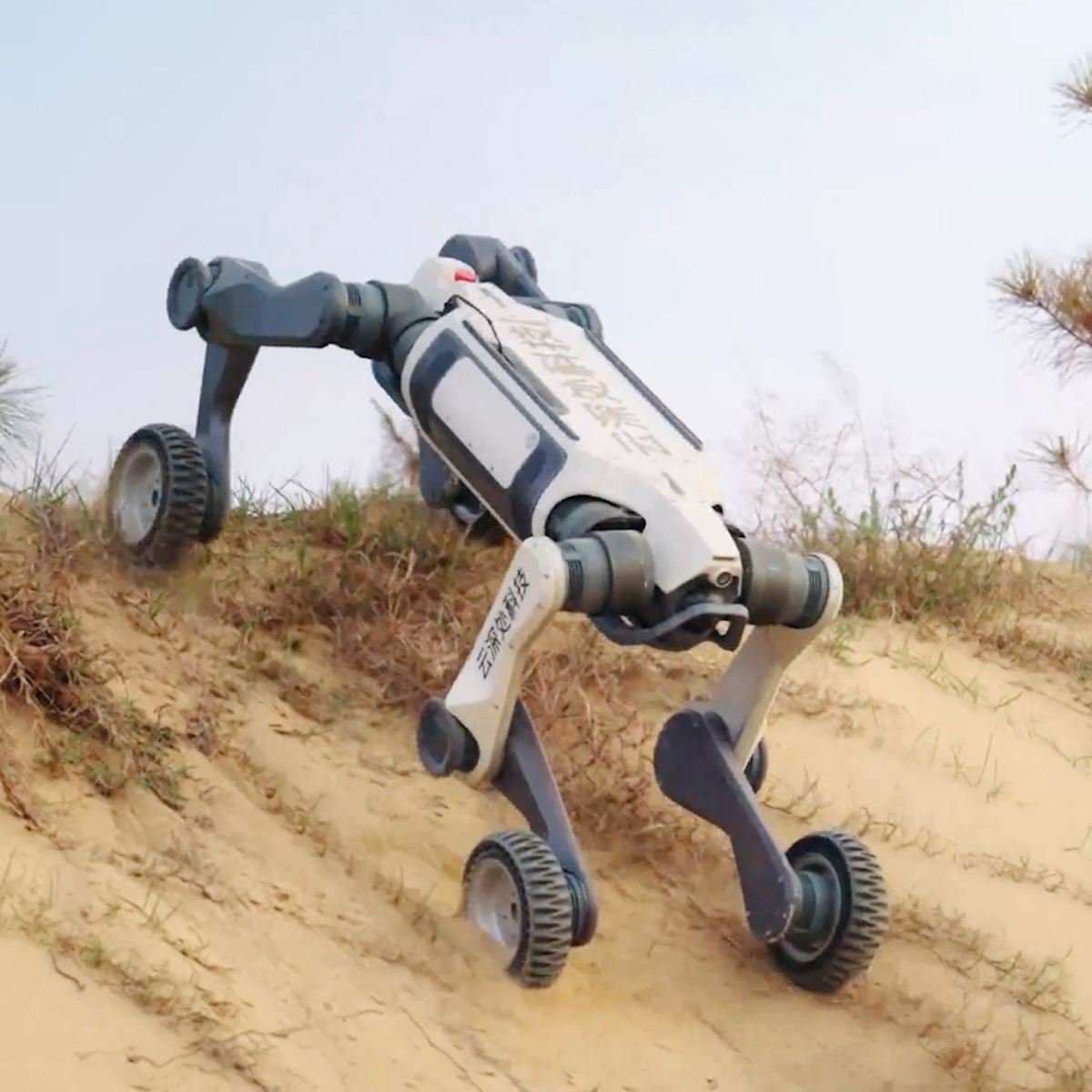

Max. Slope: 45°
LYNX M20 Pro x1
