Droneer AI Camera Module Dual Cameras 1.2KM Multi-target Automatic Locking Tracking for FPV Drone
Droneer AI Camera Module Dual Cameras 1.2KM Multi-target Automatic Locking Tracking for FPV Drone
Droneer AI Camera Module Dual Cameras 1.2KM Multi-target Automatic Locking Tracking for FPV Drone

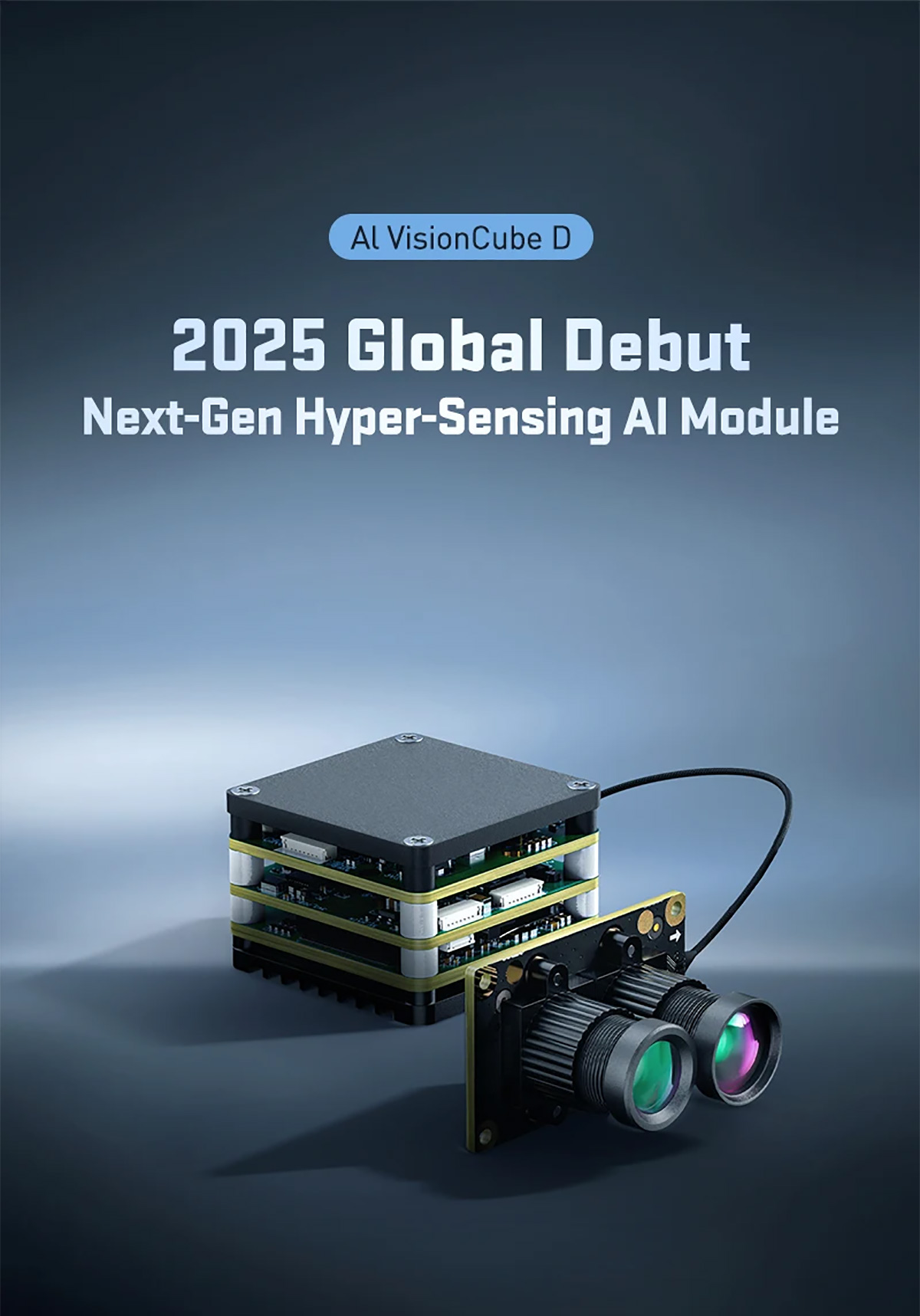

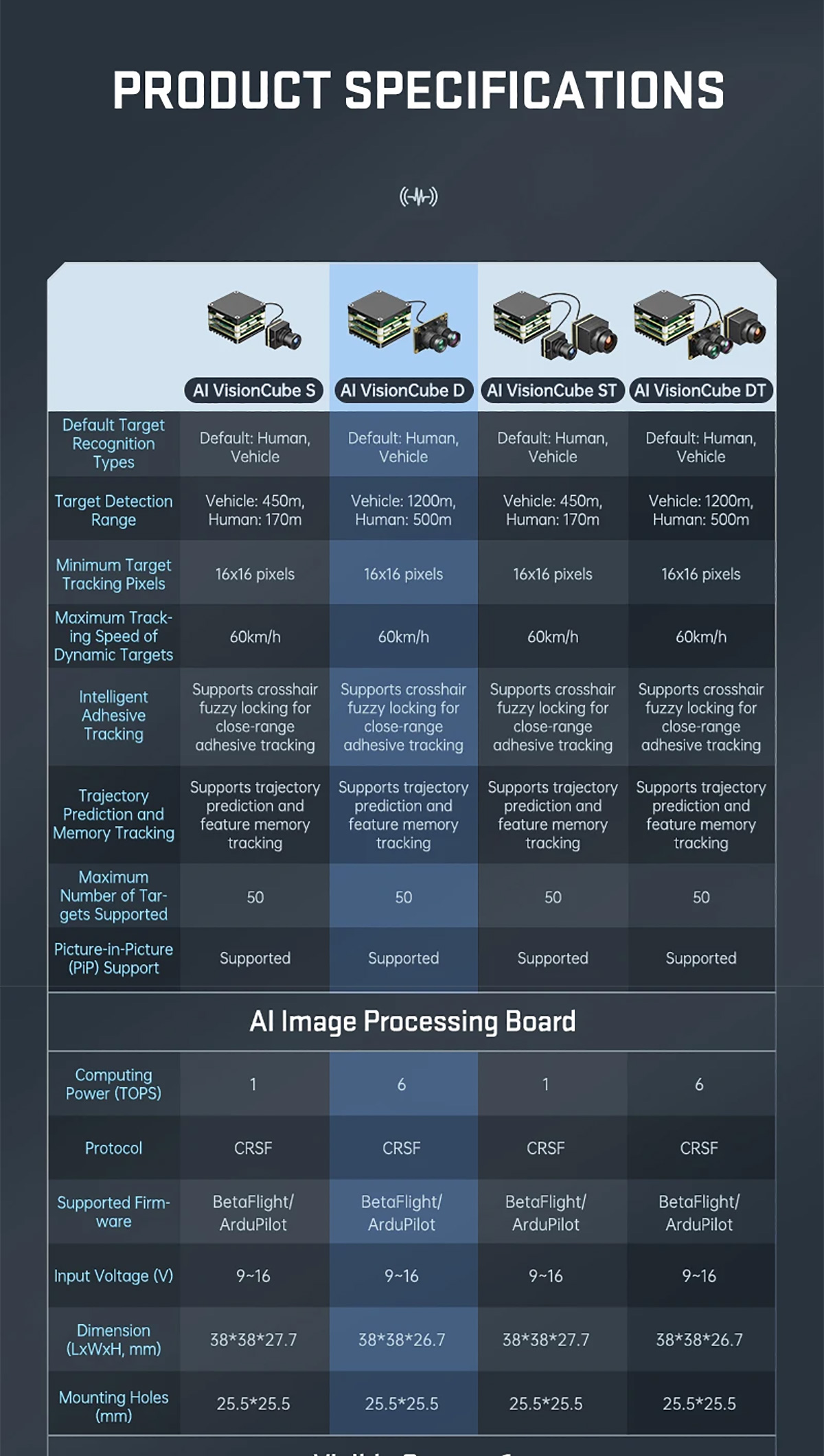

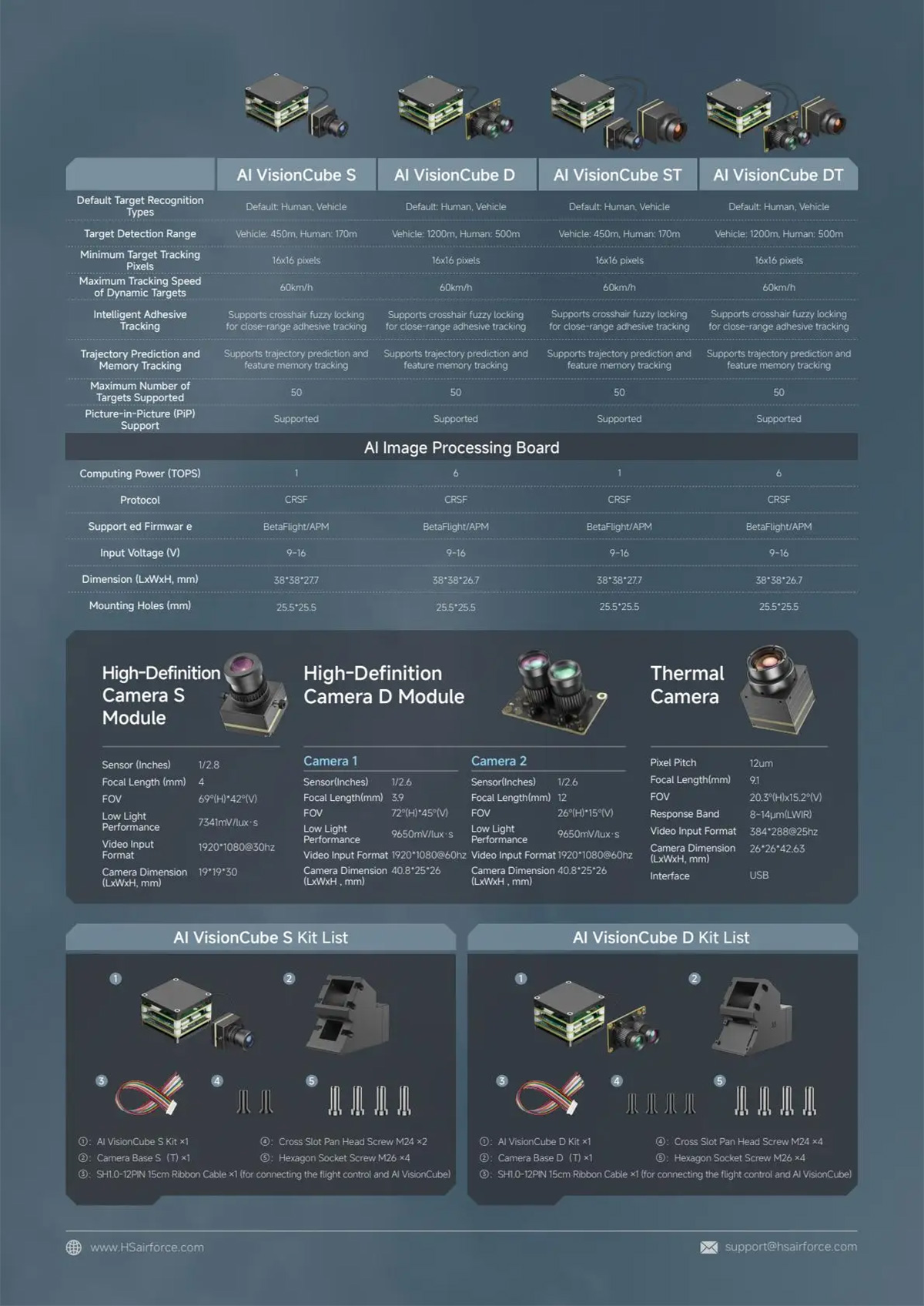

Model：AI VisionCube D
Support target recognition distance: Car: 1200m Person: 500m
Minimum tracking pixel of target object: 16*16 pixels
Whether picture-in-picture support:
AI image processing board main control computing power (TOPS): 6
AI Image Processing Board Control Protocol: CRSF
AI image processing board supports firmware: BetaFlight/APM
AI image processing board input voltage (V): 9~16

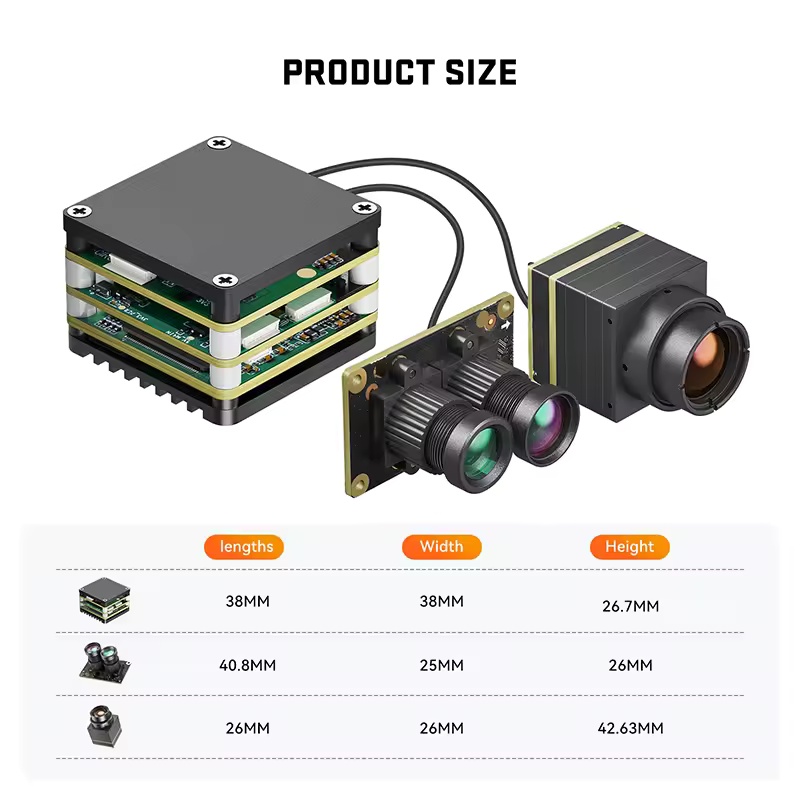

AI image processing board size (length, width, height, mm): 38*38*26.7
AI image processing board installation hole position (mm): 25.5*25.5

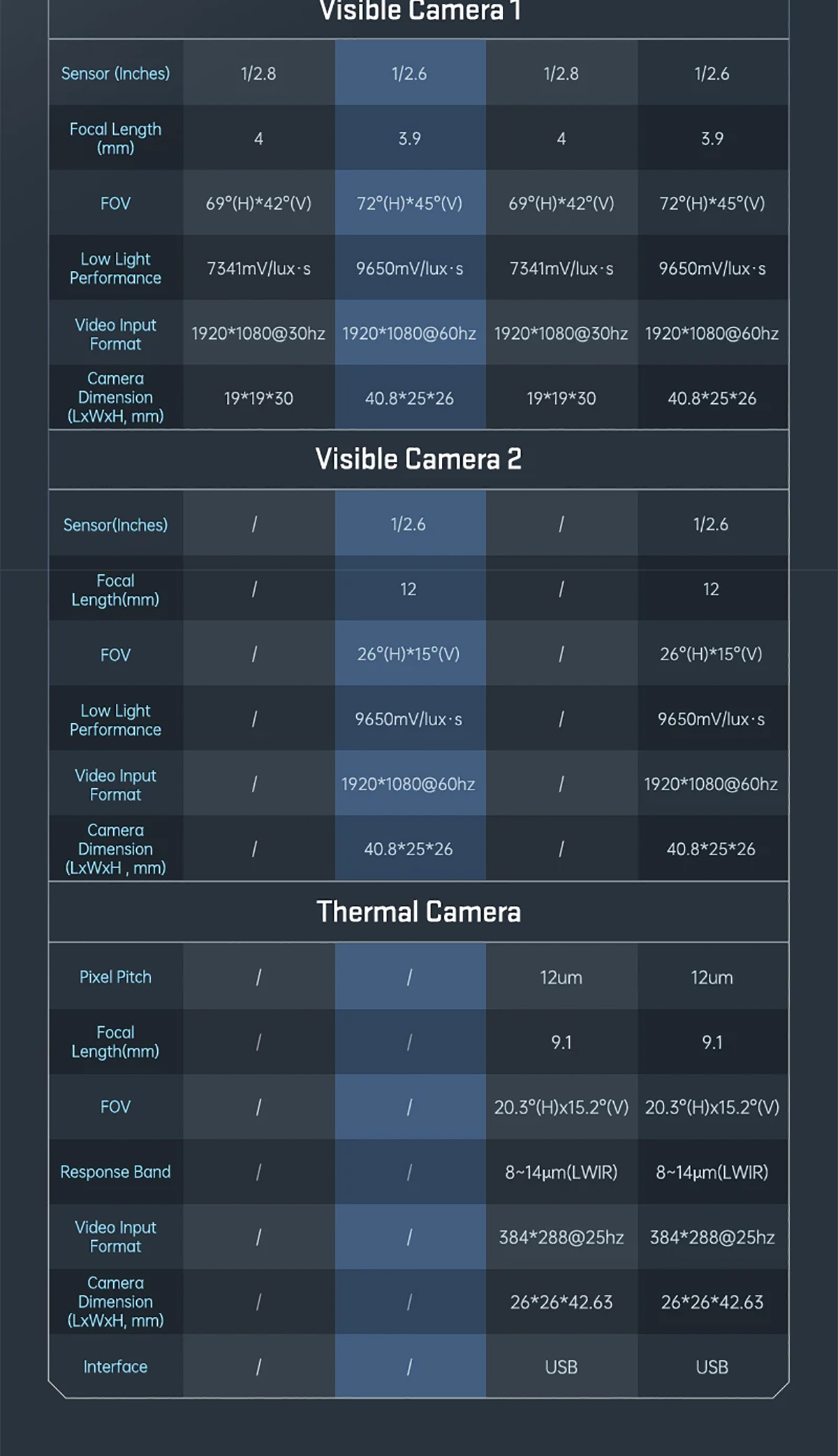

Visible light camera 1 Sensor (Inch): 1/2.6
Visible camera 1 Focal length (mm): 3.9
Visible camera 1 Video input format: 1920*1080@60hz
Visible light camera 2 sensor L: 1/2.6 Inch
Visible camera 2 focal length (mm): 12
Visible camera 2 Video input format: 1920*1080@60hz

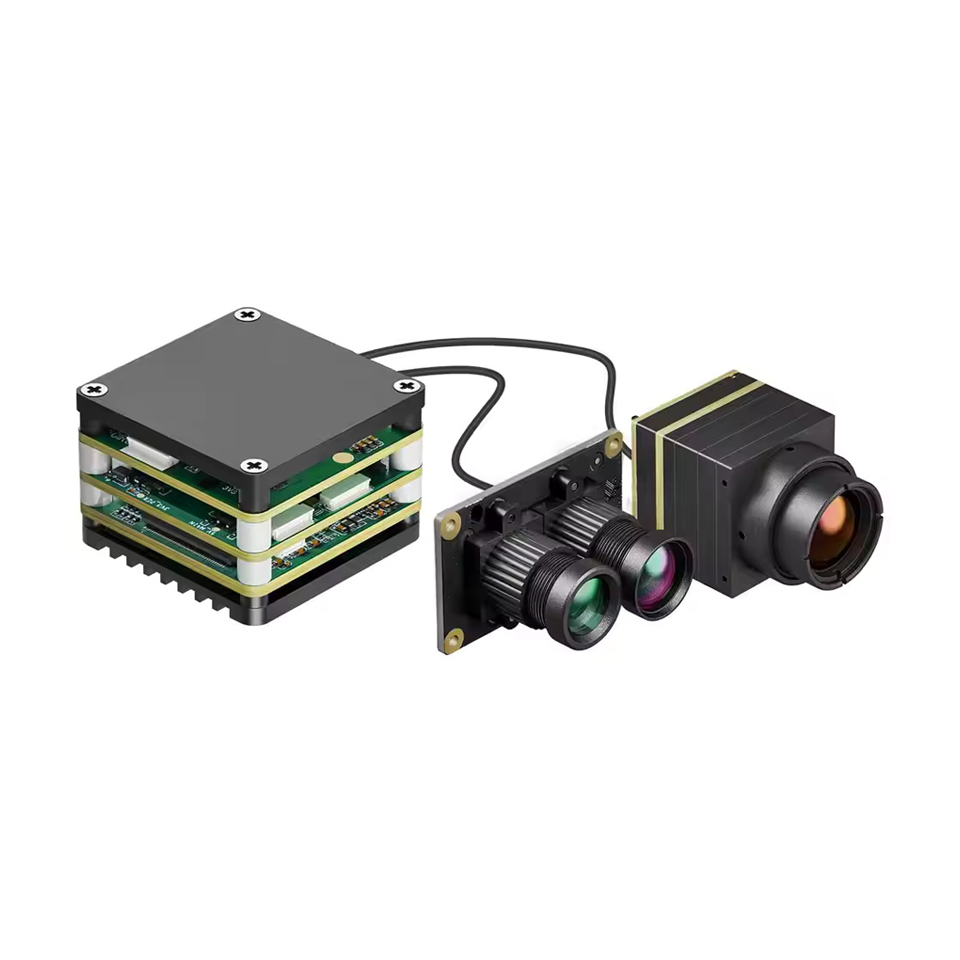

Model：AI VisionCube DT
Support target recognition distance: Car: 1200m Person: 500m
Minimum tracking pixel of target object: 16*16 pixels
Whether picture-in-picture support:
AI image processing board main control computing power (TOPS): 6
AI Image Processing Board Control Protocol: CRSF
AI image processing board supports firmware: BetaFlight/APM
AI image processing board input voltage (V): 9~16
AI image processing board size (length, width, height, mm): 38*38*26.7
AI image processing board installation hole position (mm): 25.5*25.5
Visible light camera 1 Sensor (Inch): 1/2.6
Visible camera 1 Focal length (mm): 3.9
Visible camera 1 Video input format: 1920*1080@60hz
Visible light camera 2 sensor L: 1/2.6 Inch
Visible camera 2 focal length (mm): 12
Visible camera 2 Video input format: 1920*1080@60hz
Visible camera 2 Camera size: 40.8*25*26mm
Thermal imaging camera Focal length: 9.1mm
Thermal imaging camera Response band: 8~14μm (LWIR)
Thermal imaging camera Video input format: 384*288@25hz
Thermal imaging camera Interface: USB

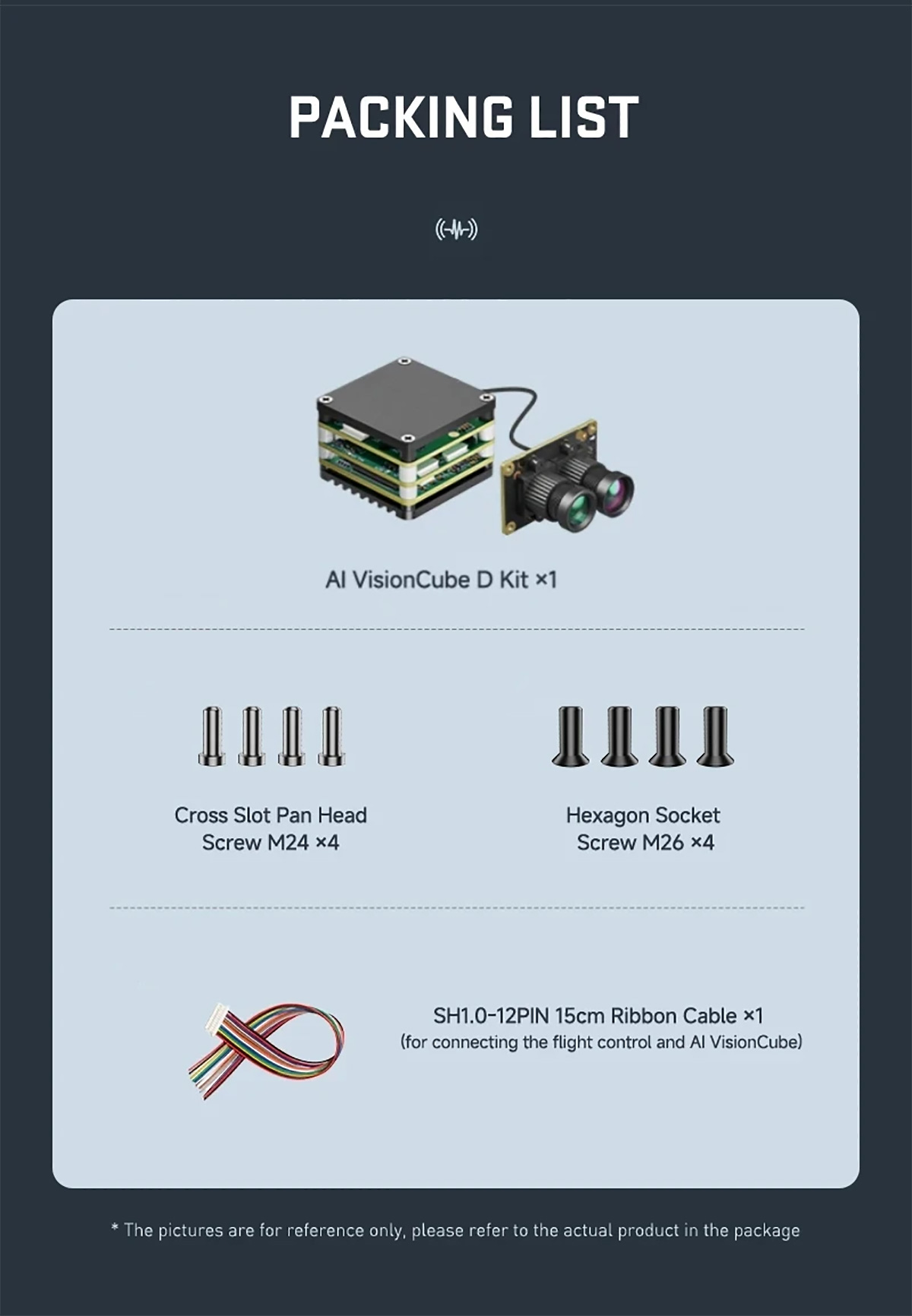

AI VisionCube D
AI VisionCube D x1
SH.01-12PIN 15cm cable x1 (for connecting flight controller and AI VisionCube kit)
Cross recessed pan head screws M2*4 x4
Hexagon socket head cap screws M2*6 x4
AI VisionCube DT
AI VisionCube DT x1
Camera Base x1
SH1.0-12PIN 15cm cable x1 (for connecting flight control and AI VisionCube kit)
Cross slot disc head screw M2*4 x4
Hexagon screw M2*6 x4
