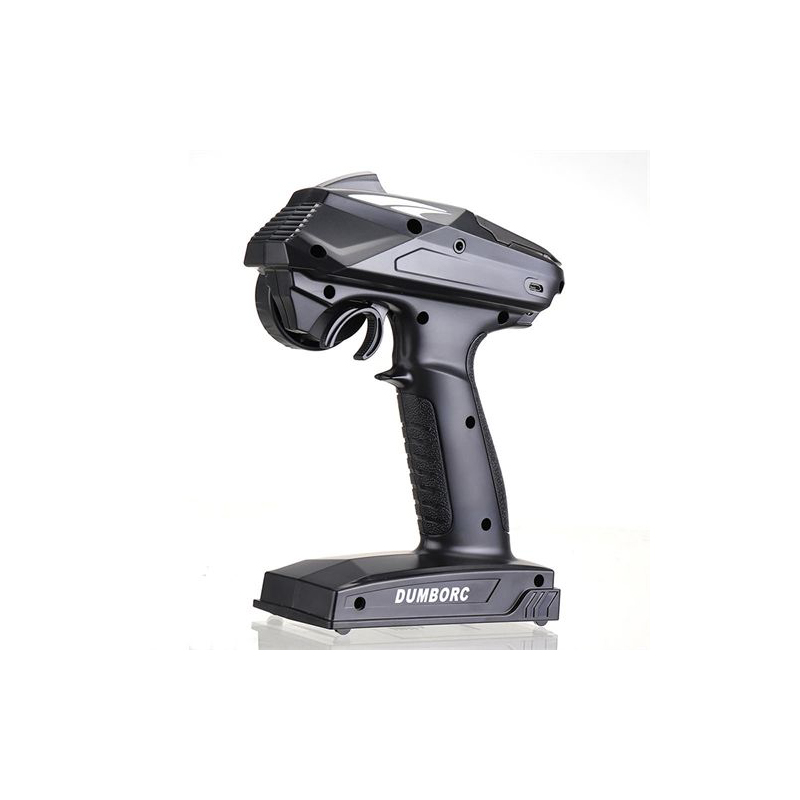

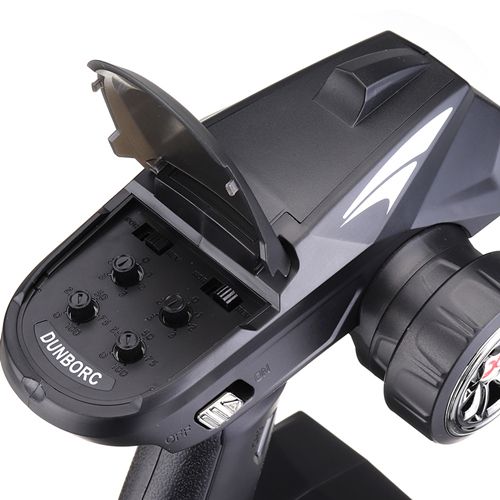

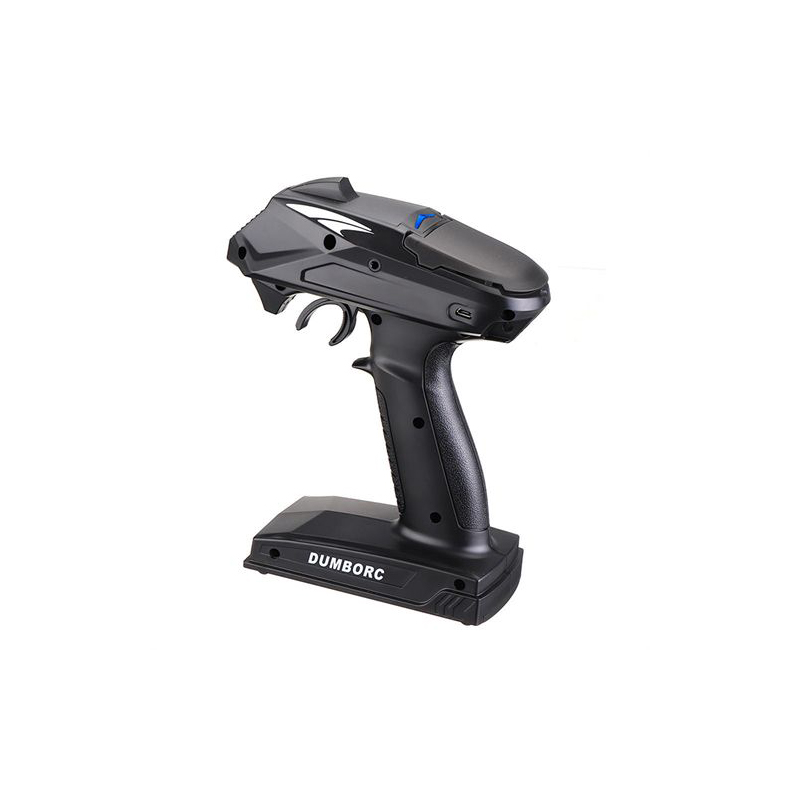

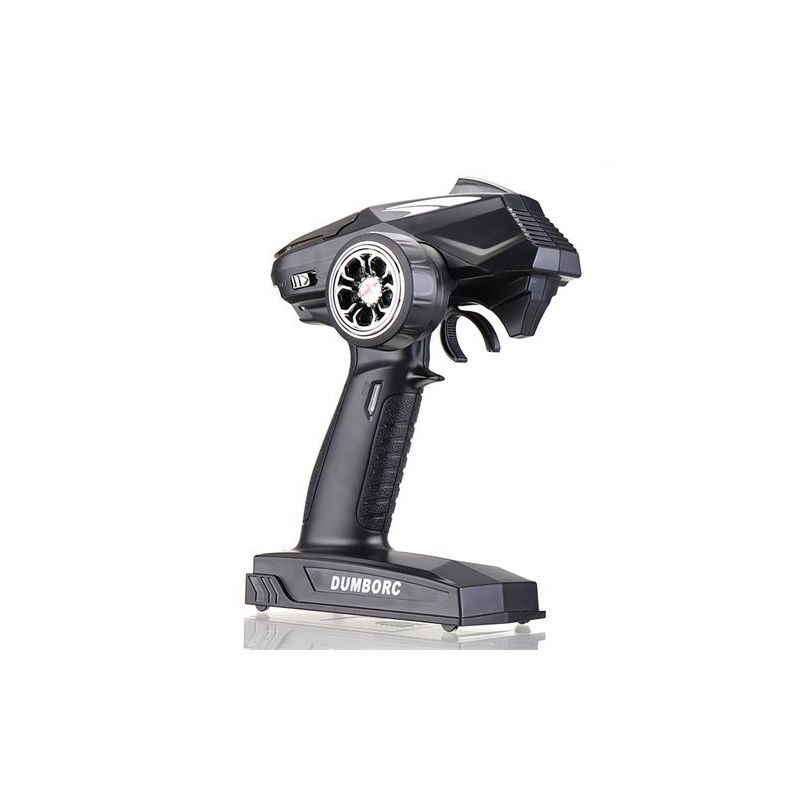

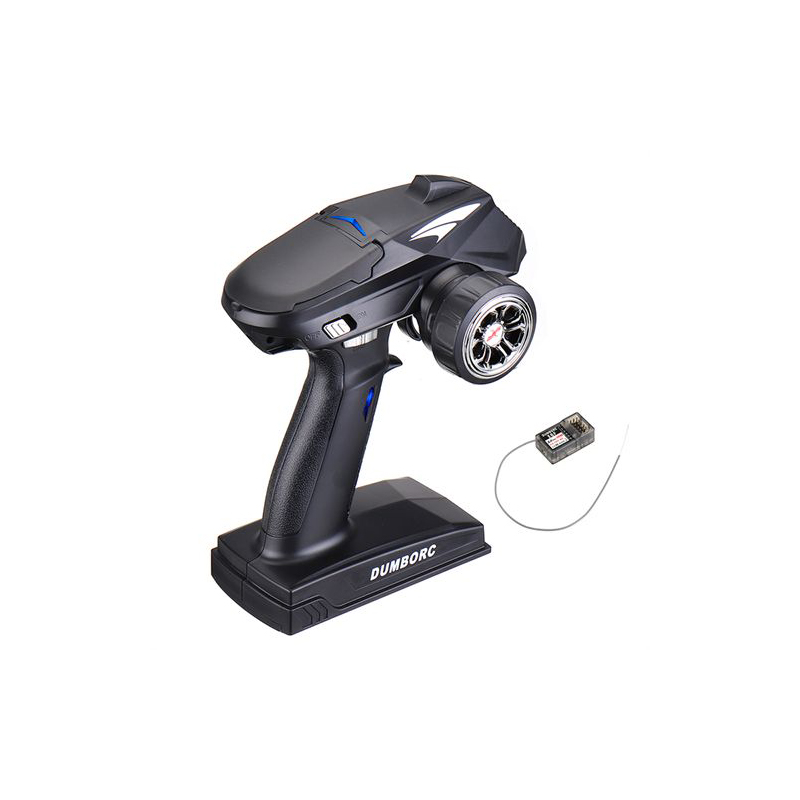

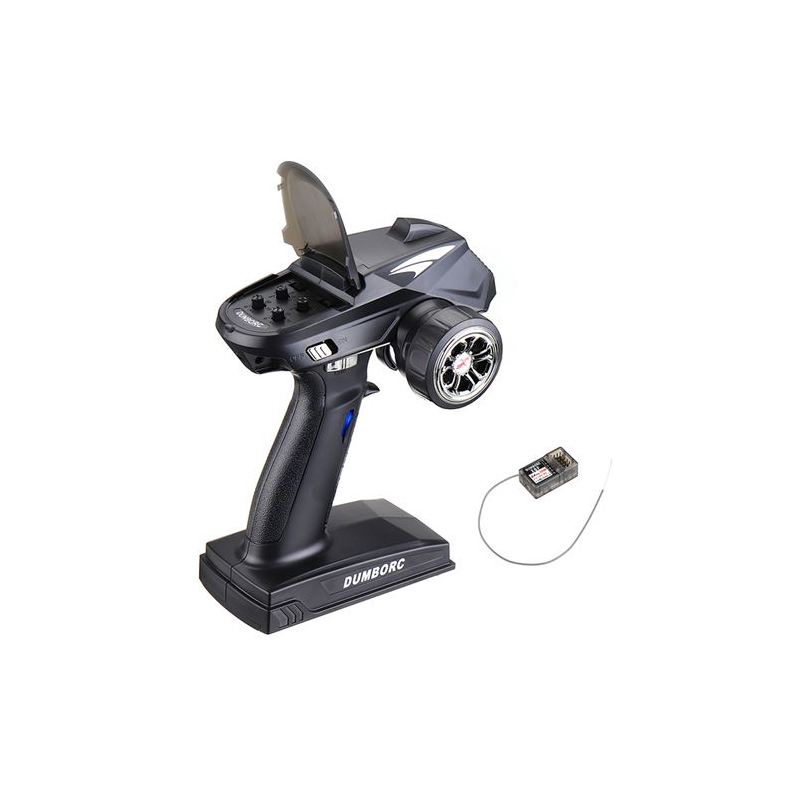

DumboRC X4 2.4G 4CH Transmitter W/X6F Receiver for 1/10 1/8 Crawler Axial SCX10 D90 RC Car Boat












DumboRC X4 2.4G 4CH Transmitter W/X6F Receiver for 1/10 1/8 Crawler Axial SCX10 D90 RC Car Boat
– 2.4G technology , FHSS 67 channels frequency-hopping spread spectrum , highly resistant to anti-jamming
– Receiver response time is 3ms, ensuring a fast response and better control.
– Smooth and highly sensitive to control inputs and stable at distances from 400-500m.
– Compatible with a variety of vehides; suitable for RC cars, RC boats and RC tanks
– With brake and fail safe, out of control protection function
– Each of the 3 channels can be set respectively, supporting mixed control of 1 and 2 channels.
– Voltage range of the transmitter: 4.8V-12V(support 1s-3s ) , automatic identification of voltage, low voltage warning: 7.4V / 4.8V.
– Voltage range of the receiver: 3.3V-10V, working current 30MA, supports high voltage servos.
– The receiver`s integrated gyro ( op tional ) , ensures that the RC vehicles stay in course , preventing measure, drifts and turnovers. Supports gyro sensitivity adjustment.
– The unique throttle speed limit adjustment function, allows beginners to practice at a safe speed.
Item Brand:DumboRC
Item Number:X4(transmitter),X6F(receiver)
Item Name:Transmitter
Material:Plastic and metal
Color:Blue and gold
Product Size:160*100*205mm
Receiver Size:35*20*13mm
Battery:4X AA(not included)
Specification:
Channel:4CH
Fit For:Rc Car Boat Tank Model,such as jjrc q65,mn-90 and so on
Modulation Mode: GFSK
Spreading Mode: FHSS 67 channel pseudo-random frequency hopping
Control Distance: 400-500 meters
Remote Control Voltage Range: 4.8-12vRemote Control Working Current: 80-120mA
Receiver Voltage Range: 3.3-10V
Receiver Operating Current: 30mARF Power: <20dbm
Data Resolution: 4096 levels, 0.5us per level
Voltage Alarm: 7.4v|4.8v
Transmission Frequency: 2.4GHz ISM band (2400MHz~2483.5MHz)
Support Receiver: X6F/X6FG
1X Transmitter
1X Receiver
1X Manual
