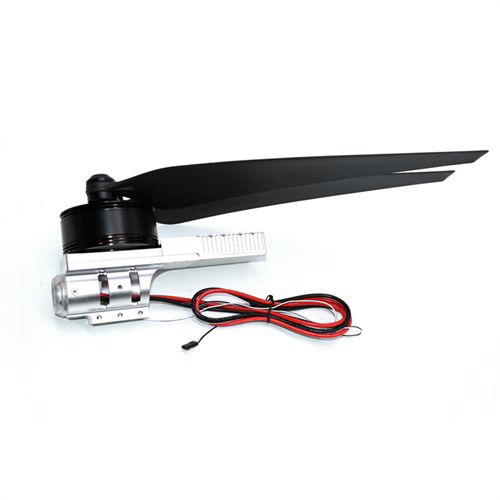

Eagle Power PM90 Efficient Agricultural Drone Industrial UAV Power System For Heavy Lift UAV Quadcopter 10L 15L Agricultural Plant Protection UAV
Eagle Power PM90 Efficient Agricultural Drone Industrial UAV Power System For Heavy Lift UAV Quadcopter 10L 15L Agricultural Plant Protection UAV
Eagle Power PM90 Efficient Agricultural Drone Industrial UAV Power System For Heavy Lift UAV Quadcopter 10L 15L Agricultural Plant Protection UAV
Power mix
Model: PM90
Max pull: 17.1KG
Recommended multi-rotor takeoff weight: 7.0KG-8.0KG/Axis
Applicable lithium battery: 12S(44.4V-50V)
Power combination total weight: 1360g
Applicable pipe diameter of motor base: Ø30mm/Ø35mm
LED lights: Red Green
Applicable ambient temperature: -20℃~65℃
Motor
KV:120 RPM/V
Weight: 692 g

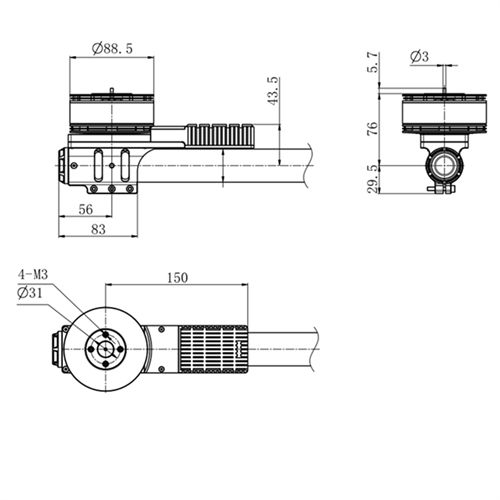

Motor size: Ø88.5*43 mm
Spindle diameter: Ø15 mm
Stator mounting hole size: 4-M4 Ø40
Rotor mounting hole size: 4-M3 Ø31
ESC
Current: 100A
Support lithium battery: 6-14S
Throttle pulse width: 1050us-1940us
Compatible signal frequency: 50Hz-500Hz
Propeller
Model: UP32105
Structure: Folding paddle
Length: 820 mm 32 inches
Pitch: 10.5
Weight: 200 g
PM90 Power System x 1
