Image Transmission Module (VTX)
Model：T3 VTX
Product Name：T3 Digital HD Image Transmission (Air Unit)
Communication Frequency：5.18-5.24GHz, 5.745-5.825GHz
Transmit Power (EIRP)：FCC≤30 dBm, CE<14dBm; SRRC<20dBm

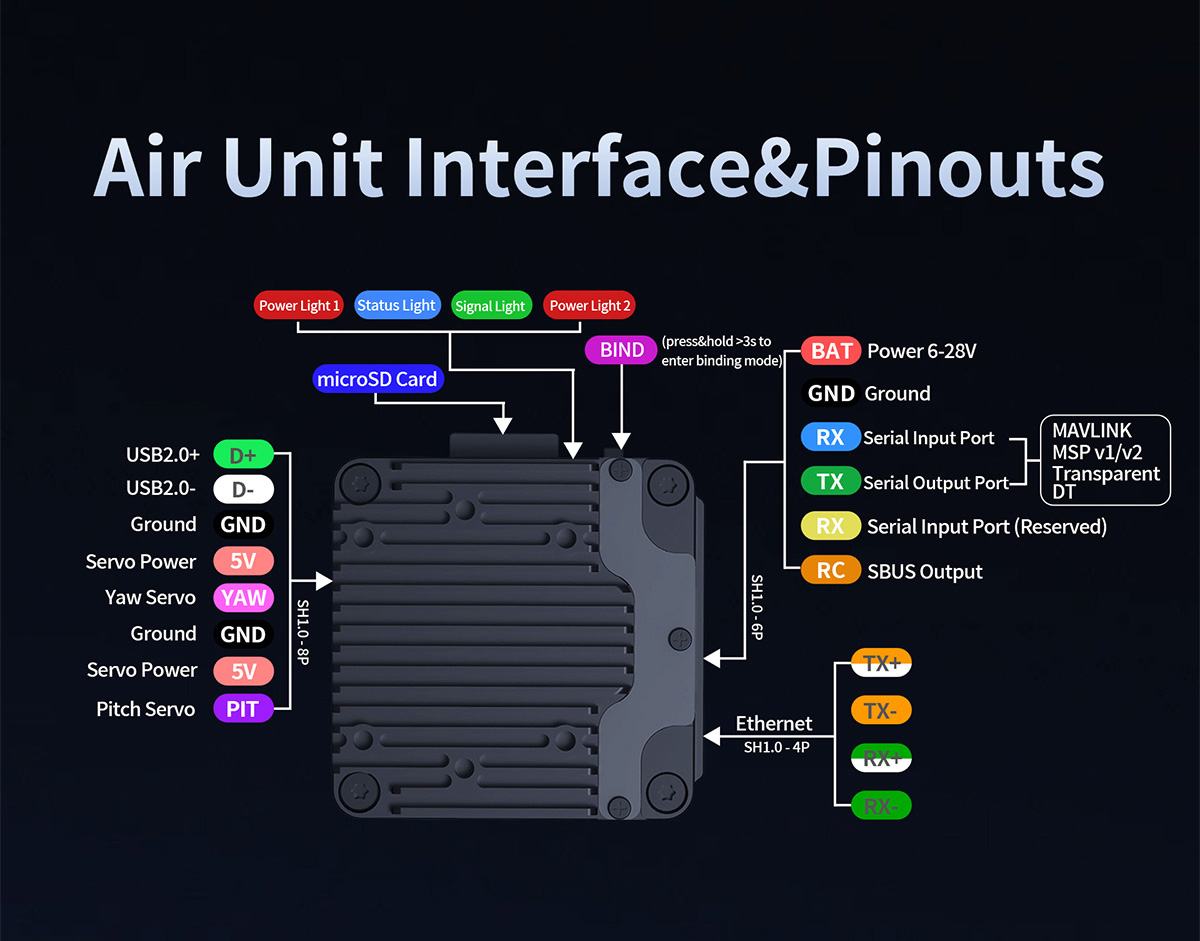

Interface：SH1.0-4P, SH1.0-6P, SH1.0-8P

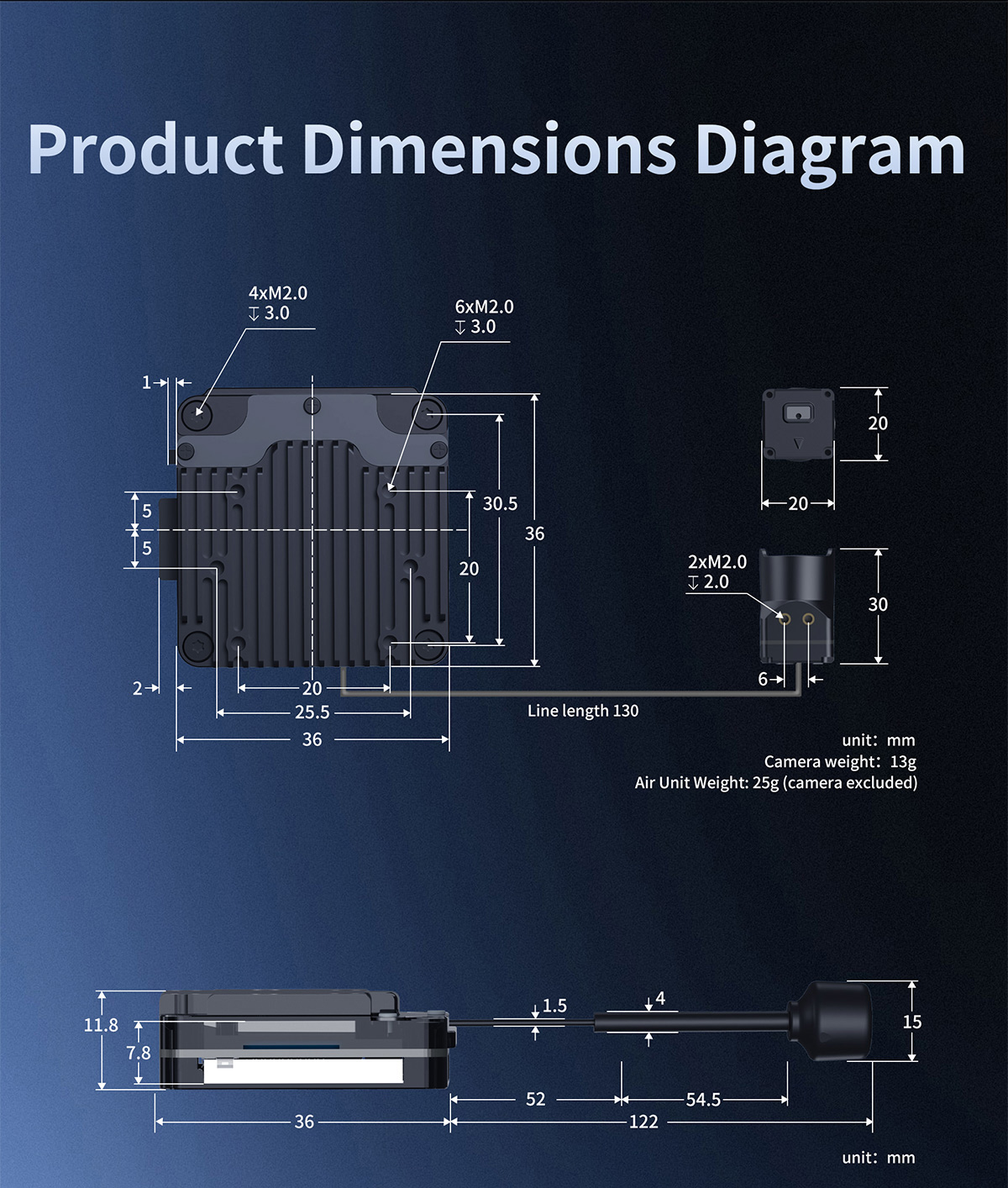

Mounting Hole Spacing：2×25.5 / 4×20mm
Dimensions：36×36×11.8mm
External Storage：Support microSD card (16-256GB)
Recording Specifications：1080p@60fps
Weight：25g (including heat sink)
Operating Temperature：0°C to +50°C
Available Frequency Points：9
Voltage Input Range：6-28V DC
Supported Flight Control Systems：ArduPilot, Betaflight, iNav

Camera Module
Model：T3 Camera Module
Image Sensor：1/2.8-inch 2MP 16:9 sensor
Resolution：1080P/60FPS
Aspect Ratio：16:9
Lens (Standard)：2.9mm HD120
Aperture：F1.4
FOV：120°
Lens (Optional)：2.2mm HD155
Aperture：F1.9
FOV：155°
Shutter Type：Rolling Shutter
Weight：13g
Dimensions：20×20×30mm / 20×20×25mm
Coaxial Cable Length：130mm

Antenna
Name：Omnidirectional Antenna
Polarization Direction：Left-hand Circular Polarization (LHCP)
Working Bandwidth：5500-6000 MHz
Input Impedance：50 Ω
VSWR：≤1.5
Interface Type：IPEX-1
Dimensions：15×122 mm
Weight：2.5 g (single)

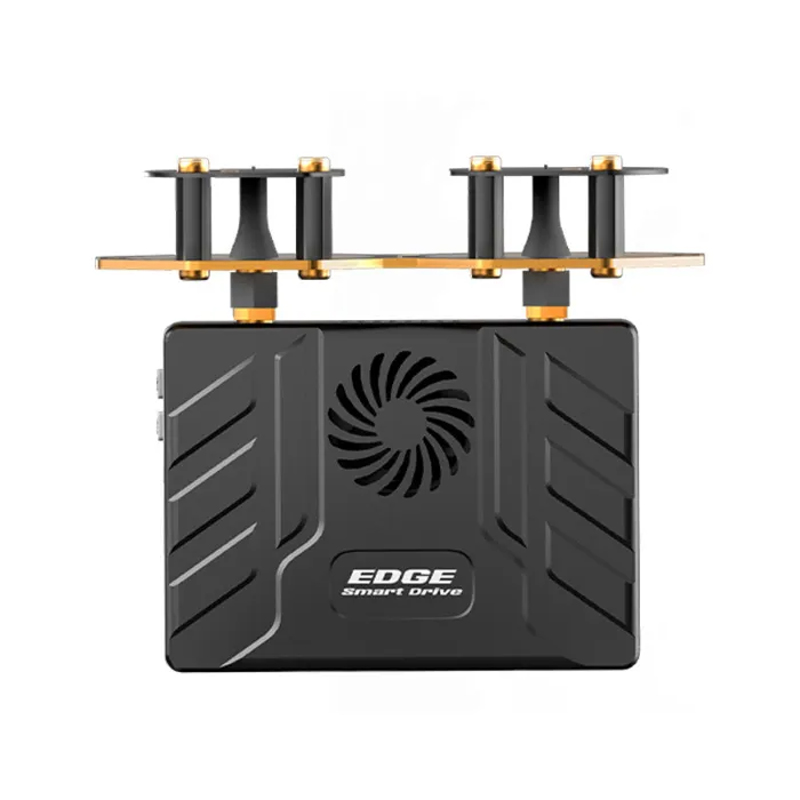

Image Transmission Module (VRX)
Model：T3 VRX
Product Name：T3 Digital HD Image Transmission (VRX)
Communication Frequency：5.18-5.24GHz, 5.745-5.825GHz
Transmit Power (EIRP)：FCC≤30 dBm, CE<14dBm; SRRC<20dBm
Available Frequency Points：9

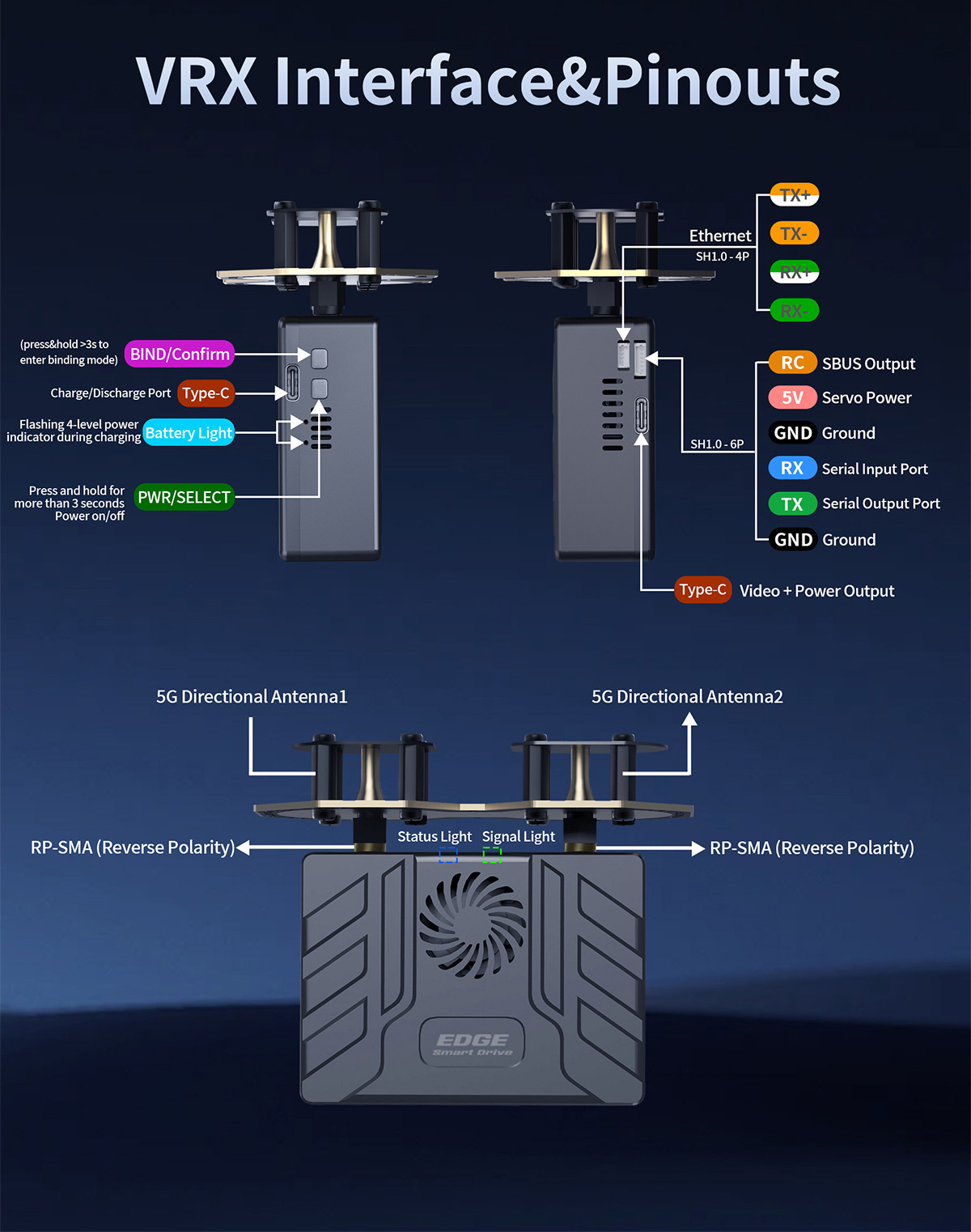

Interface：SH1.0-4P, SH1.0-6P
Type-C：Video Output 1080P/60FPS
Fixed Hole Spacing：15mm (M2×2)

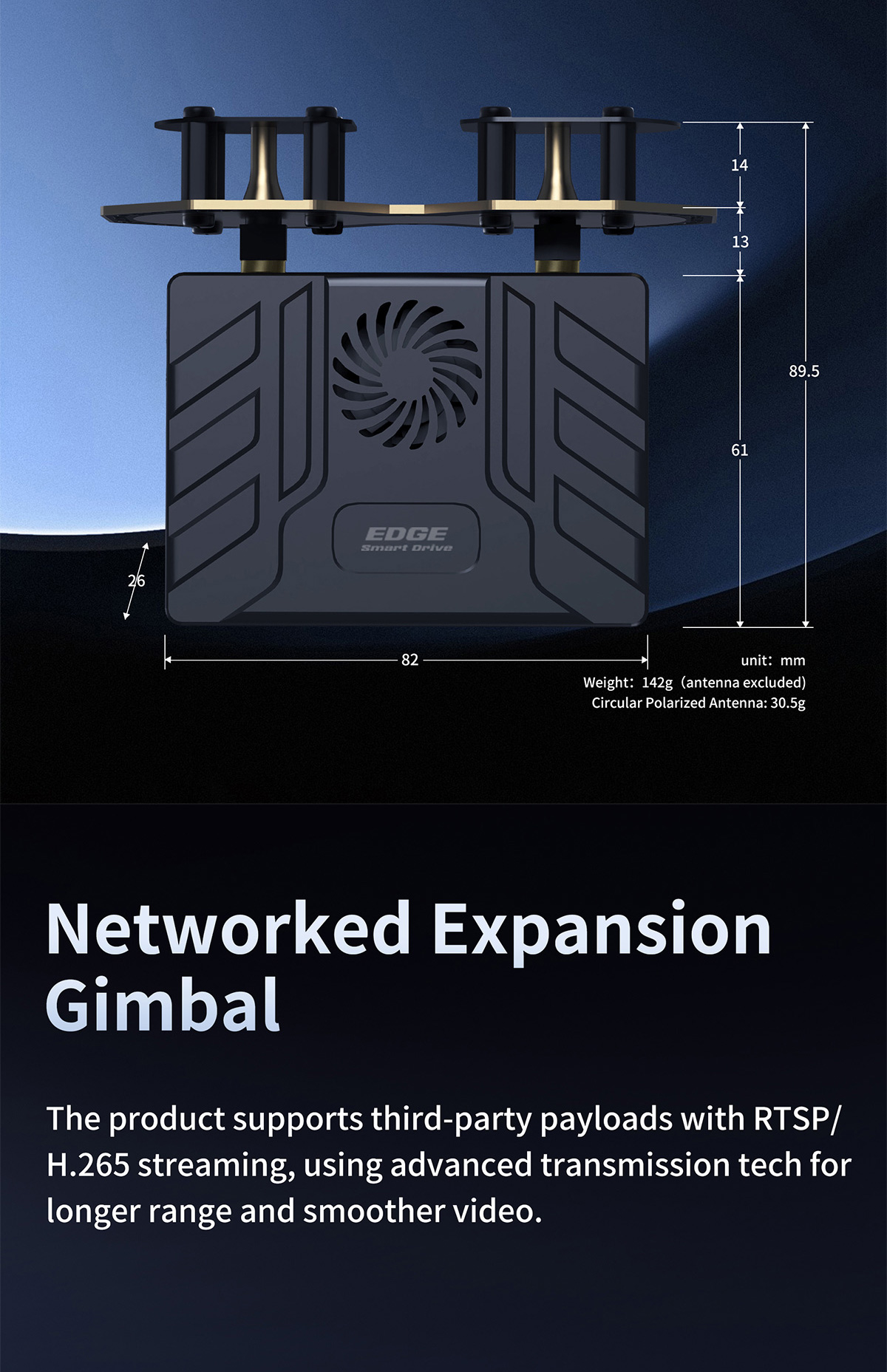

Dimensions：82×26×68mm
Built-in Battery：5000mAh, 3.7V Lion
Weight：142 g (without antenna)
Operating Temperature：0°C to +50°C
Max Charging Power：20W
Max Discharge Power：20W

Antenna
Name：Directional Antenna
Polarization Direction：Left-hand Circular Polarization (LHCP)
Operating Bandwidth：5000-6000 MHz
Input Impedance：50 Ω
Standing Wave Ratio：≤1.5
Interface Type：RPSMA
Dimensions：102×53×27 mm
Weight：30.5 g
