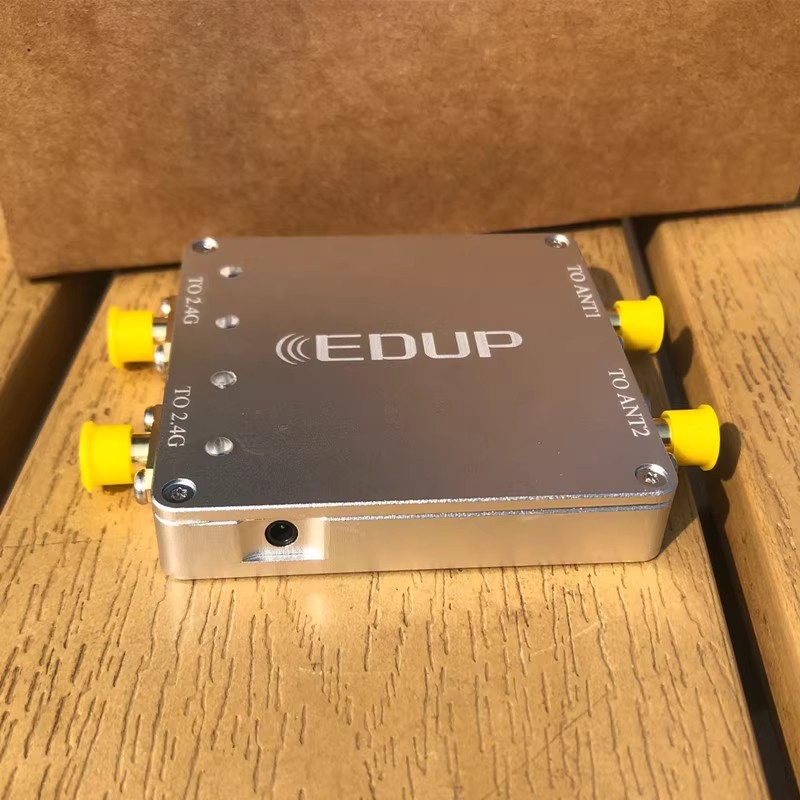

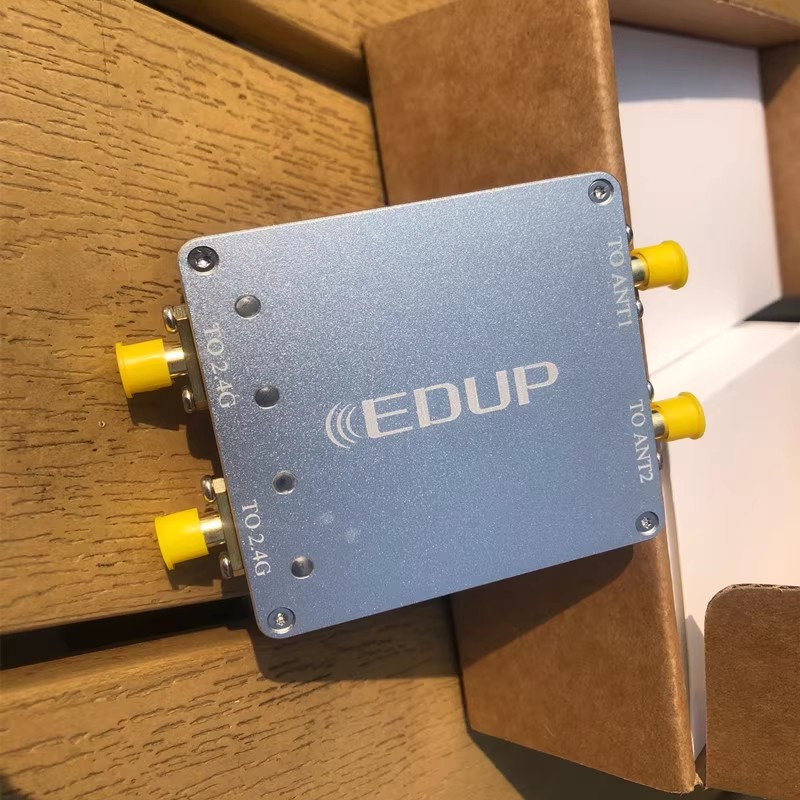

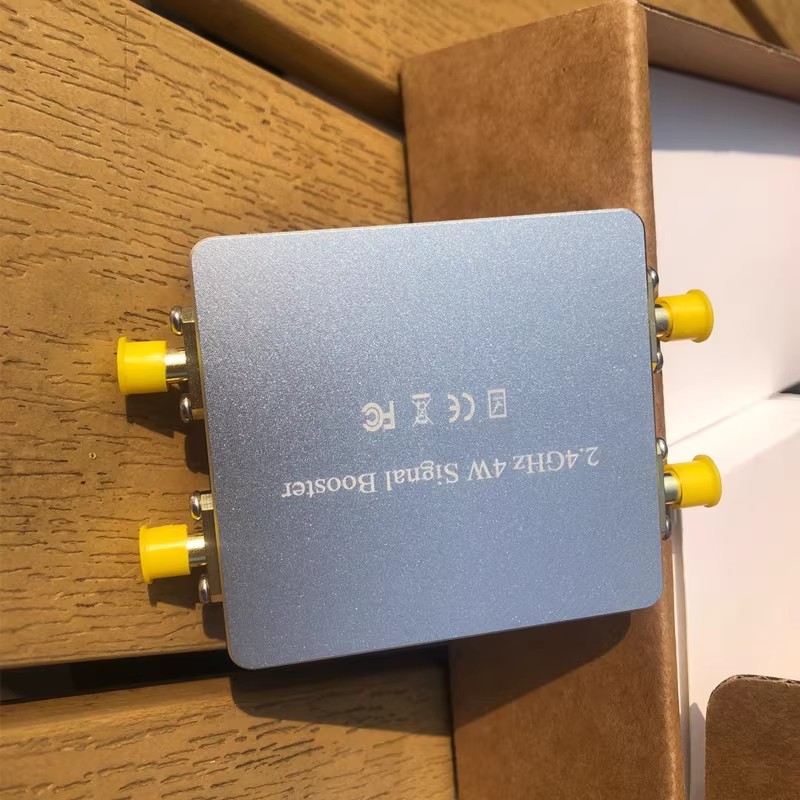

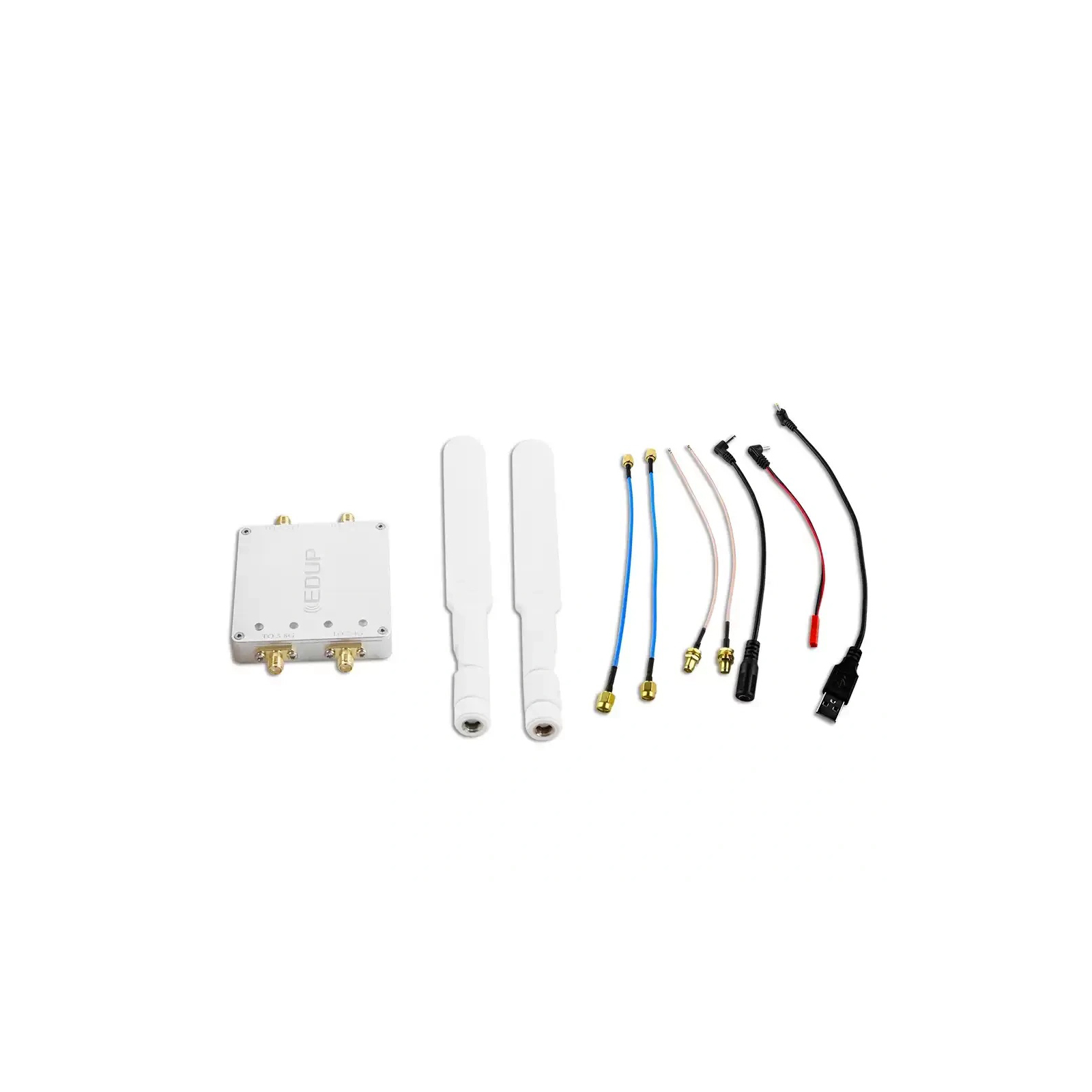

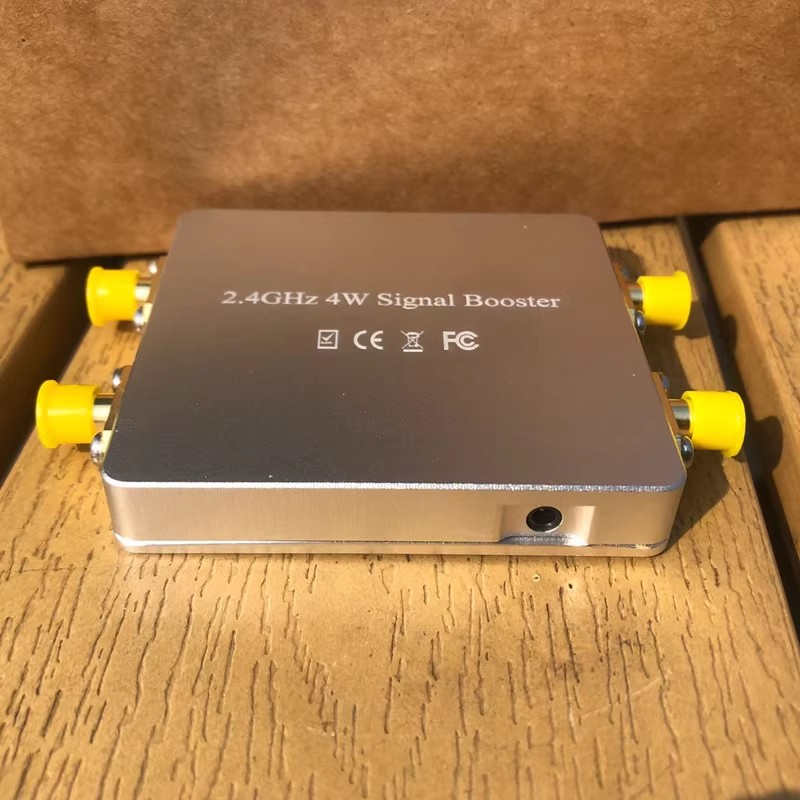

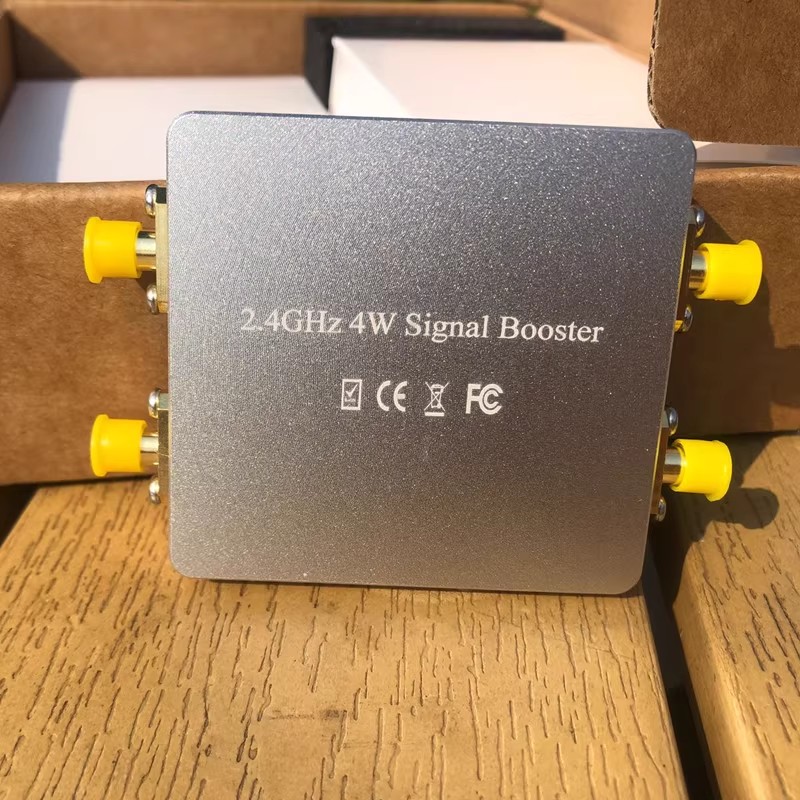

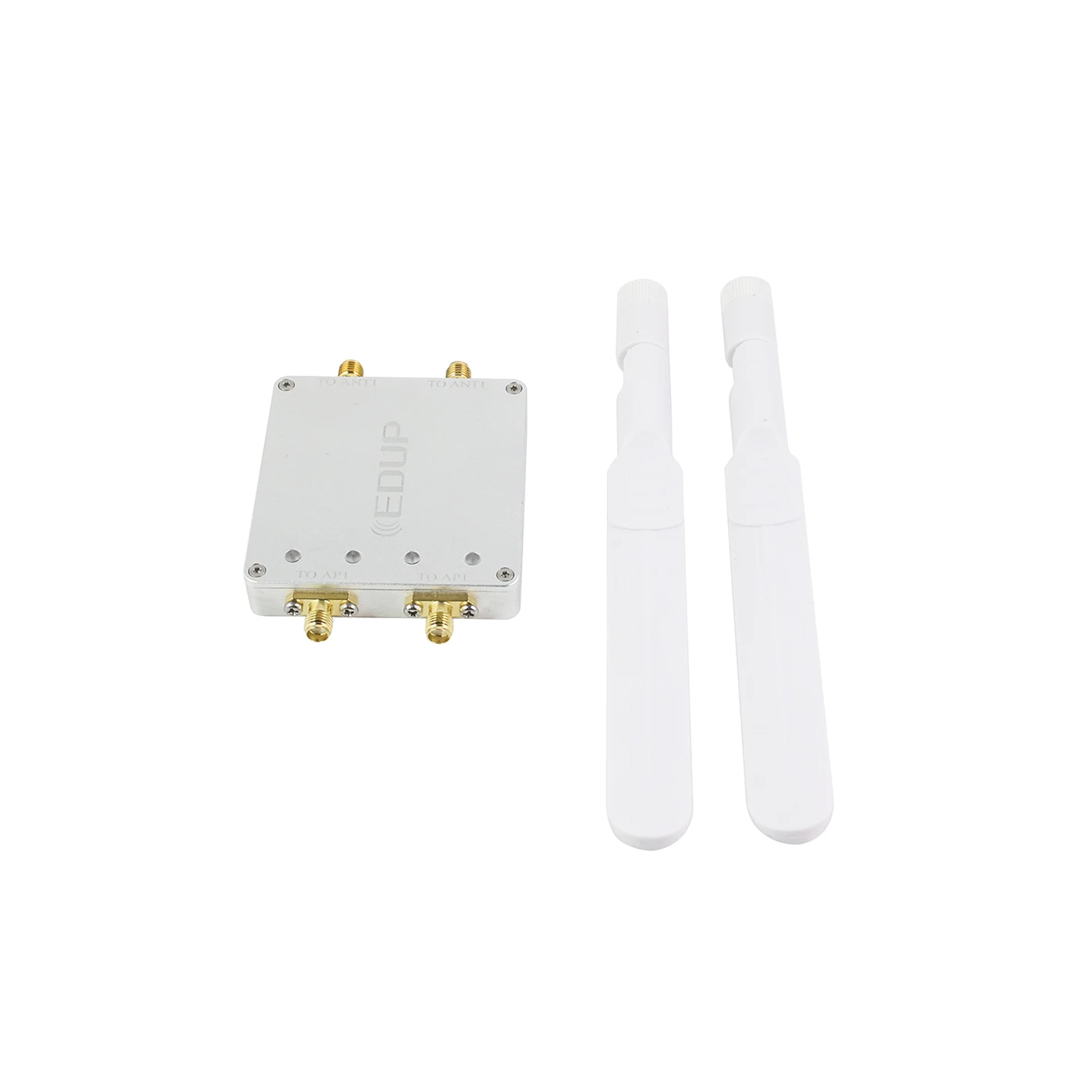

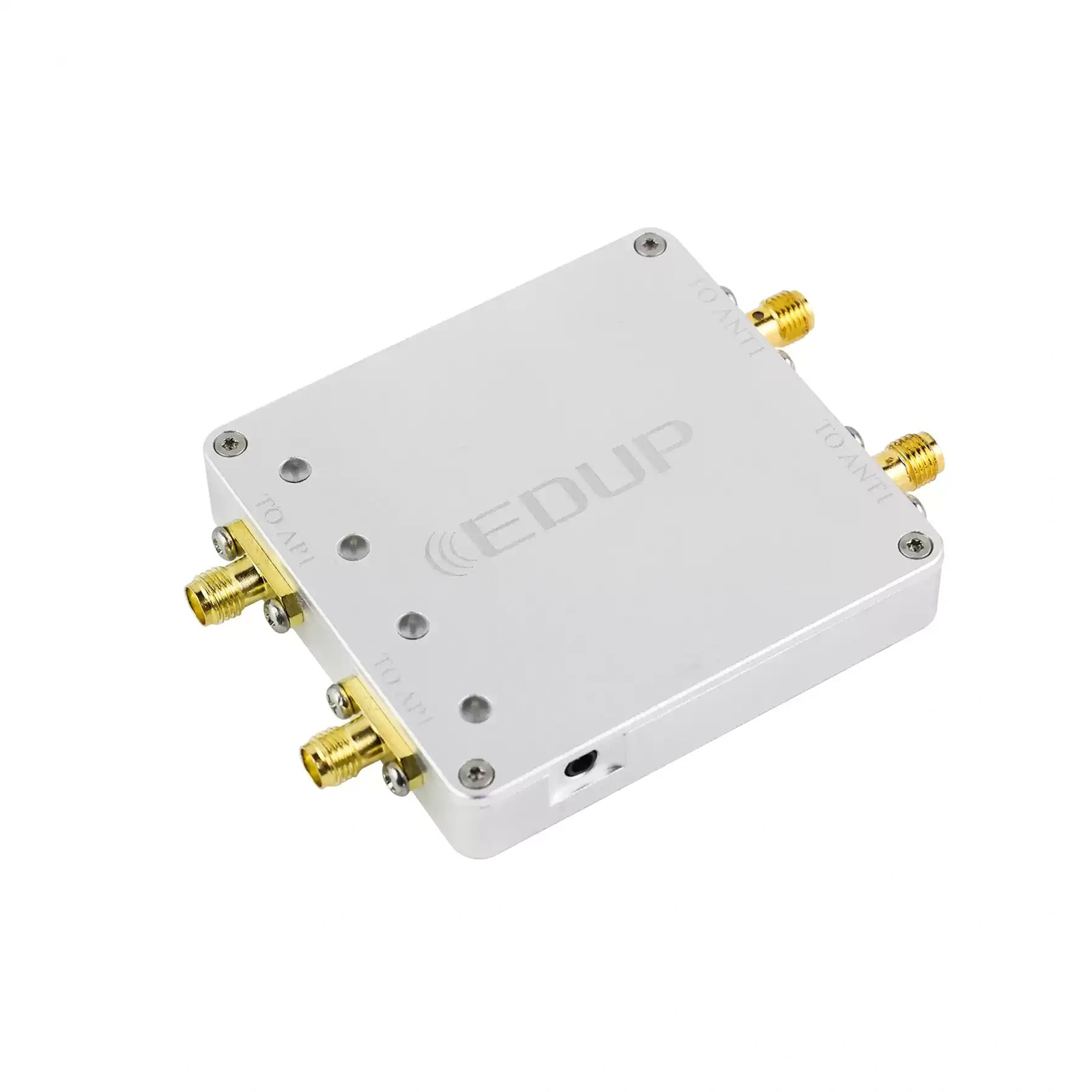

EDUP EP-AB023 2.4GHz 4W Dual Channel Signal Extender RX and TX Dual Channel Frequency Signal Amplifier

SKU EP-AB023 Category Transmitter ＆ Receiver Tags EDUP, Signal Extender Brand: Feixiang

EDUP EP-AB023 2.4GHz 4W Dual Channel Signal Extender RX and TX Dual Channel Frequency Signal Amplifier

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

2.4GHz 4W dual-channel WiFi booster high-power signal amplifier for drones
High-power signal amplifier: Enhances WiFi signals via a 4W dual-channel amplifier to ensure stable connections for drones and other devices.
Ultra-low noise: Features 2.5dB ultra-low noise to maintain signal integrity and reduce interference.
Wide operating voltage range: Supports 5 – 16V operating input, compatible with various power sources like 12V/1A power supplies or portable chargers.
Plug-and-play convenience: Simply plug in to use, no software required. Quickly and easily set up certified IEEE 802.11b/g/n devices.
Extended coverage range: Improves link quality and coverage, expanding the range of certified WLAN devices by 50 times.

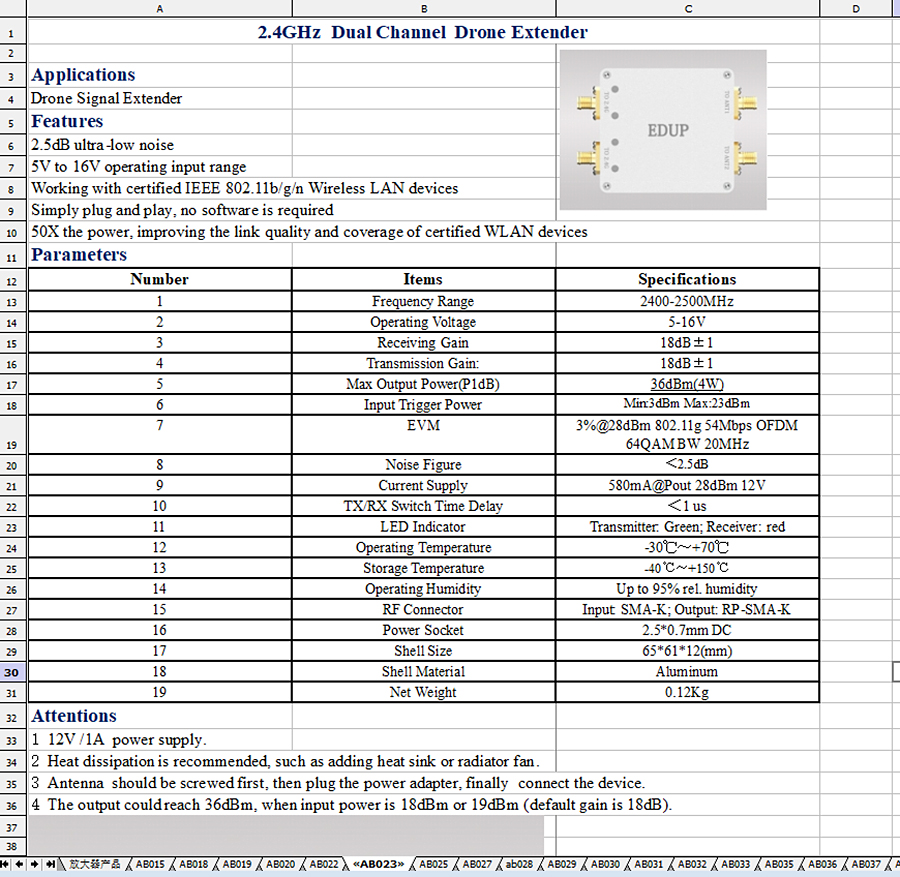

Model: EP-AB023 Signal Extender
Frequency Range: 2400-2500MHz
Operating Voltage: 5-16V
Receiving Gain: 18dB±1
Transmission Gain: 18dB±1
Max Output Power(P1dB): 36dBm(4W)
Input Trigger Power: Min: 3dBm Max: 23dBm
EVM: 3%@28dBm 802.11g 54Mbps OFDM 64QAM, BW 20MHz
Noise Figure: <2.5dB
Current Supply: 580mA @Pout 28dBm 12V
TX/RX Switch Time Delay: <1 us
LED Indicator: Transmitter: Green; Receiver: red
Operating Temperature: -30℃~+70℃
Storage Temperature: -40℃~+150℃
Operating Humidity: Up to 95% rel. humidity

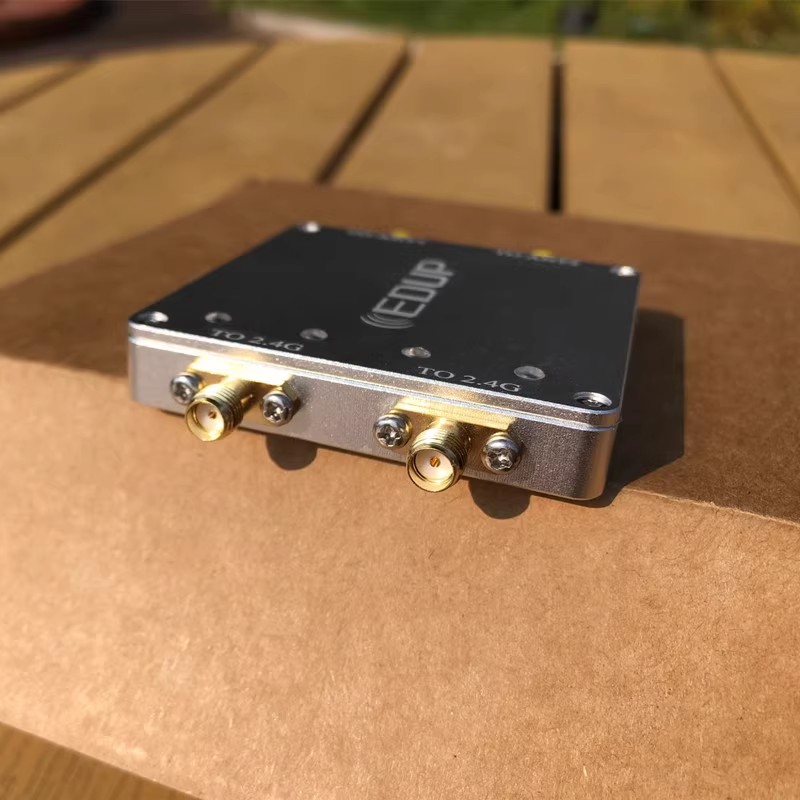

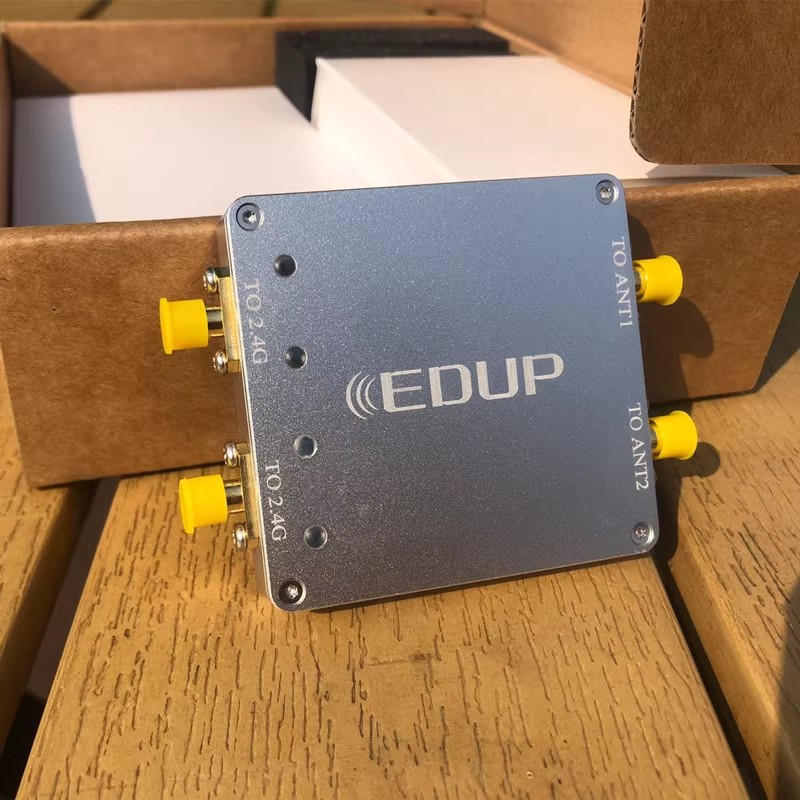

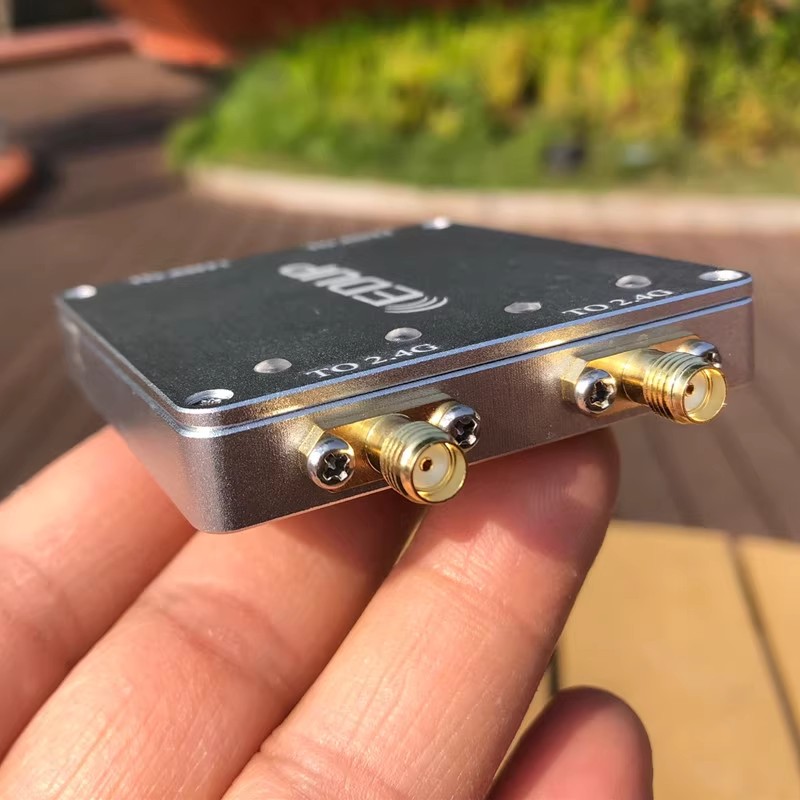

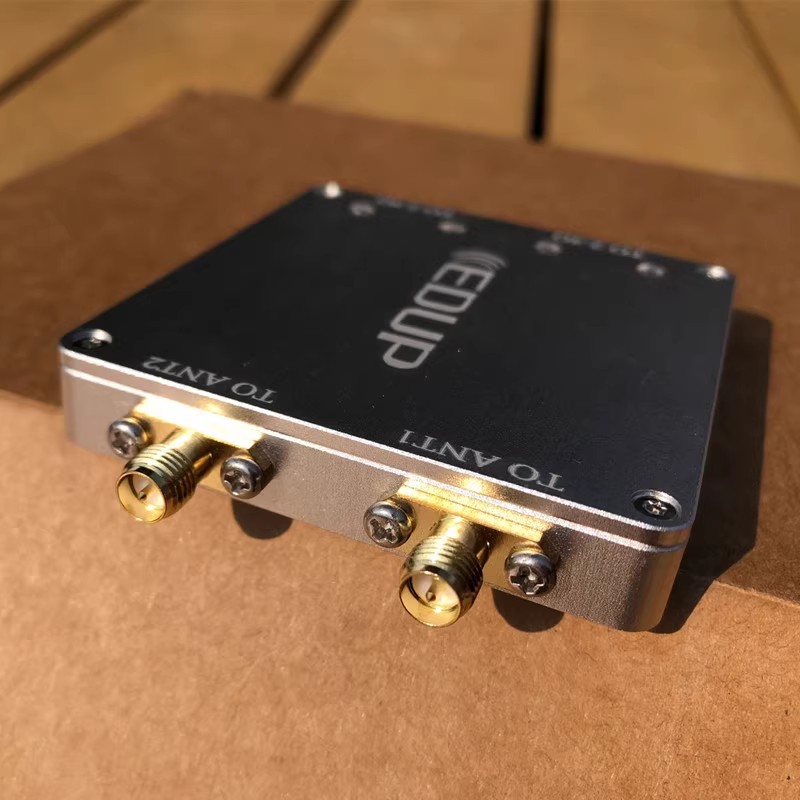

RF Connector: Input SMA-K; Output RP-SMA-K
Power Socket: 2.5*0.7mm DC

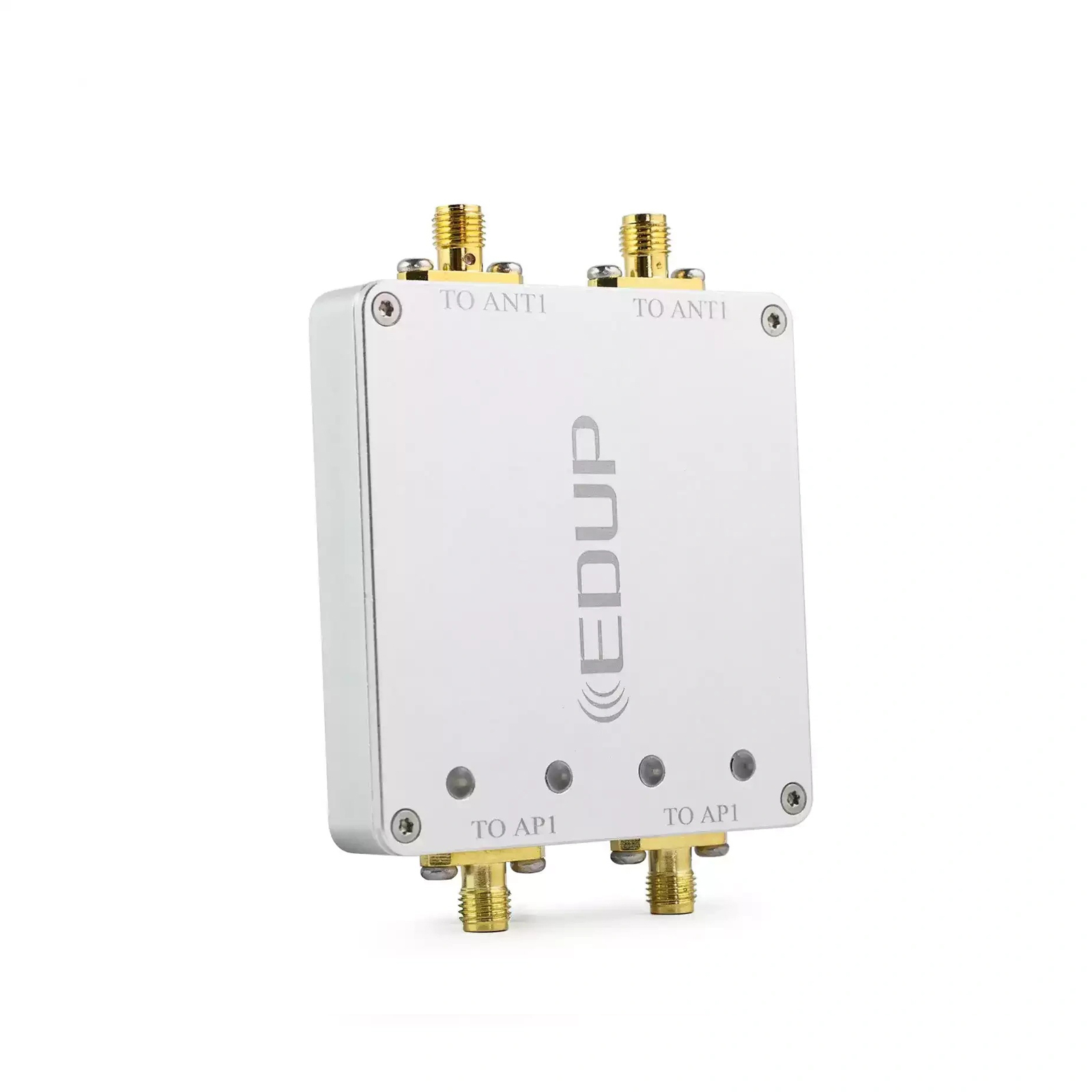

Shell Size: 65*61*12(mm)
Shell Material: Aluminum
Net Weight: 0.12Kg
