EFT EPS220 20L/KG Drone Seed Fertilizer Spreader System For G410 G420 G616 G610 G626 630 Agriculture Drone

SKU EPS220-20L Category Tag Brand:

EFT EPS220 20L/KG Drone Seed Fertilizer Spreader System For G410 G420 G616 G610 G626 630 Agriculture Drone

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

* Multiple Seals And Waterproof
The Spreader Adopts Multiple Waterproof Processes From The Inside To The Outside, So That The Entire System Reaches The IP67 Waterproof Level And Can Be Washed Directly With Water

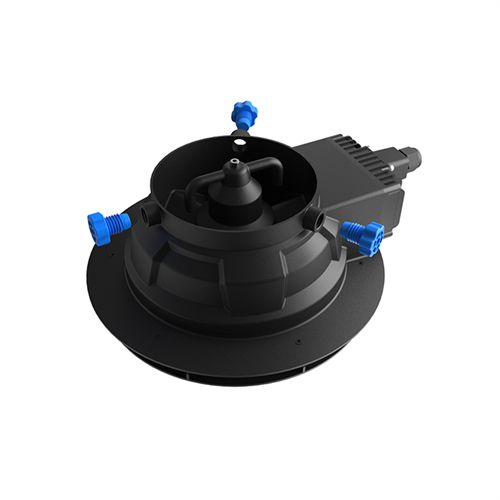

* Tool-Free Quick Release Design
The Spreading System And The Tank Adopt A Separatequick-release Design, Which Can Be Quickly Disassembled With Three Hand-tight Screws, Making Maintenance More Convenient

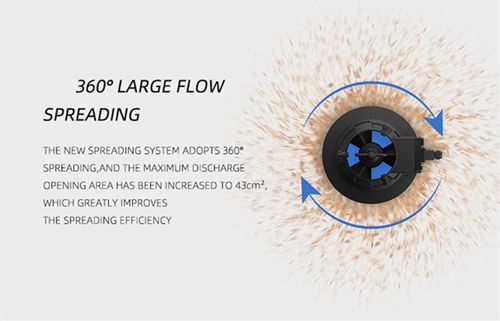

* 360°large Flow Spreading
The New Spreading System Adopts 360° Spreading,and The Maximum Discharge Opening Area Has Been Increased To 43cm², Which Greatly Improves The Spreading Efficiency

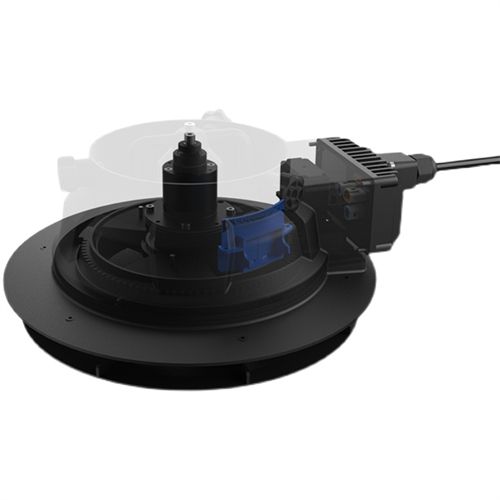

* Independent Control Module
The New Version Of The Spreading System Adopts An Integrated Independent Control Module, A Board-level Potting Process, And An Integrated Heat Sink, Which Is More Stable And Reliable

* Multi-type Particle Spreading
The System Can Support Different Types Of Solid Particles Such As Grain,fertilizer And Bait, And Is Suitable For Sowing,fertilizing And Feeding

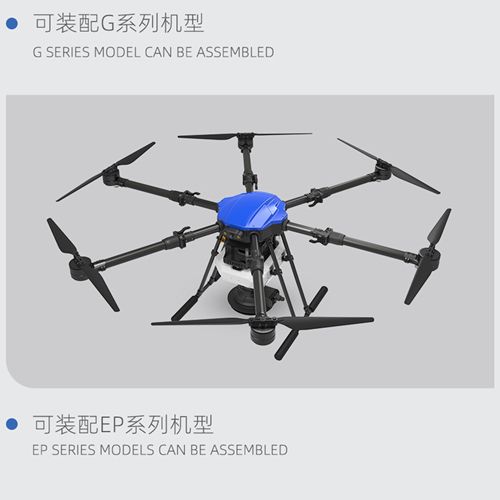

* Multi-platform Compatibility
As An Independent Subsystem, The Spreading System Is Compatible
with A Variety Of Flying Platforms, And Can Be Interchanged
with The Spraying System By Replacing A Few Parts

* Two Control Modes
Based On The Conventional Pwm Control Mode, The New Spreading System Adds Can Bus Control Mode, Which Can Be Deeply Adapted To Different Flight Control Modes

– Product number: EPS220
– Product weight: 1.6kg
– Voltage range: DC 24V-60V
– Protection level: IP67
– Support particle diameter: 0.5-6.0mm(Dry granules)
– Maximum warehouse area: 43cm²
– Valve angle: 0-60°
– Maximum speed: 1100r/min
– Spread wide: 12m
– Material shortage signalEmpty: -0V, Full-5V
– Speed control signal: 1000us-2000us
– Maximum power: 120W
– Working temperature: 0-40℃

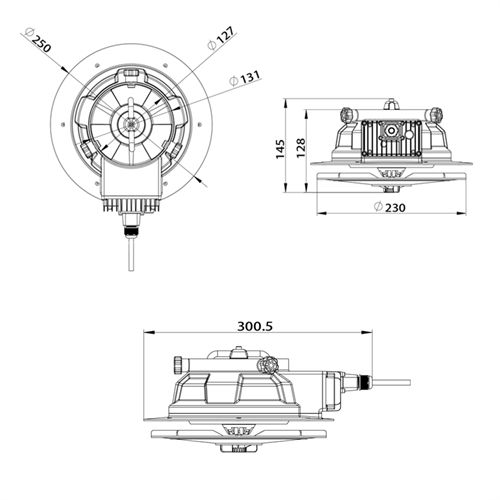

– Dimensions: 300×250×145mm
– Barrel capacity: 20L




Spreading System x 1
20L Fertilizer Barrel x 1
