EFT Spreader EPS200 V2.0 360 Degree Spreading System for E410P E610P E416P E616P and G Series Agricultural Drone

SKU EFT-EPS200 Category Tag Brand:

EFT Spreader EPS200 V2.0 360 Degree Spreading System for E410P E610P E416P E616P and G Series Agricultural Drone

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

  • Multiple Seals and Waterproof
    The spreader adopts multiple waterproof processes from the inside to the outside, so that the entire system reaches the IP67 waterproof level and can be washed directly with water

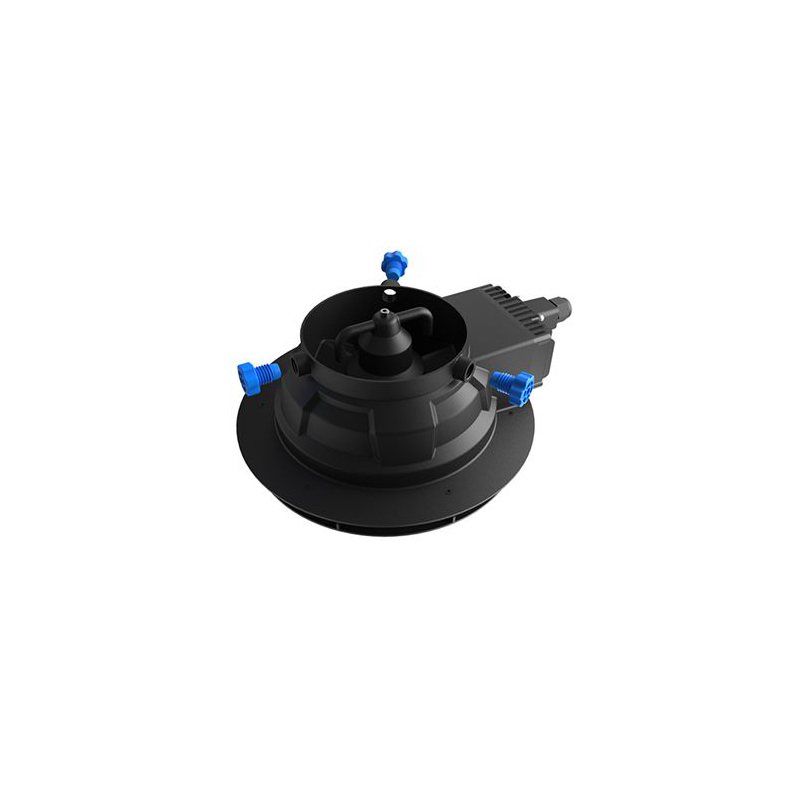

  • Tool-Free Quick Release Design
    The spreading system and the tank adopt a separate quick-release design, which can be quickly disassembled with three hand-tight screws, making maintenance more convenient

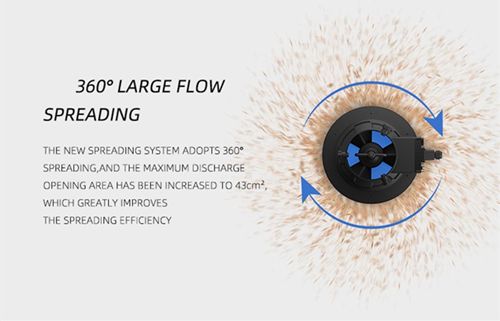

  • 360° Large Flow Spreading
    The new spreading system adopts 360° spreading, and the maximum discharge opening area has been increased to 43cm², which greatly improves the spreading efficiency
  • Independent Control Module
    The new version of the spreading system adopts an integrated independent control module, a board-level potting process, and an integrated heat sink, which is more stable and reliable
  • Multi-Type Particle Spreading
    The system can support different types of solid particles such as grain, fertilizer and bait, and is suitable for sowing, fertilizing and feeding
  • Multi-Platform Compatibility
    As an independent subsystem, the spreading system is compatible with a variety of flying platforms, and can be interchanged with the spraying system by replacing a few parts
  • Two Control Modes
    Based on the conventional PWM control mode, the new spreading system adds CAN bus control mode, which can be deeply adapted to different flight control modes

Product number: EPS200
product weight: 1.6kg
voltage range: DC 24V-60V
Protection level: IP67
Support particle diameter: 0.5-6.0mm(Dry granules)
Maximum warehouse area: 43cm²
Valve angle: 0-60°
Maximum speed: 1100r/min
Spread wide: 12m
Material shortage signalEmpty: -0V, Full-5V
Speed control signal: 1000us-2000us
Maximum power: 120W
Working temperature: 0-40℃
Dimensions: 300×250×145mm



EPS200 Spreading System x 1
